FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase)

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: CA4DK1 Series
Transmission: Fast Gear
Curb Weight:: 7.9ton
seating capacity: 3Personnel
Rated payload: 9.97ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) is a Medium-duty truck featuring 7.75m cargo length, Van body cargo body, 3Personnel volume and 9.97t payload. Its segment focus covers Building material transport, matching those duty cycles. On the powertrain side, it comes with a CA4DK1 Series engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XXYP28K1L5E6A80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 6100mm
Box length class: 7.8m
engine: DachaiCA4DK1-22E6
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.333
Cab length: 9.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1938mm
rear track: 1860mm
Curb Weight: 7.9ton
Rated payload: 9.97ton
GVWR: 18ton
Max. speed: 97km/h
Origin: Changchun/Qingdao
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
market segment: Building material transport
Remarks: Air-suspension seat, with center seat, ETV valve, cylindrical aftertreatment, 100Ah battery, Beijing China VI monitoring terminal, speed limited to 89 km/h
Front/rear suspension: 1.41/2.985m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-22E6
Engine info: CA4DK1 Series
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.8L
Emission standard: China VI
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.75m
Cargo box width: 2.45m
Cargo box height: 2.55m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: J6K
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: F4N front axle
Front axle allowable load: 6500kg
Frame Dimensions: 237*75*6.5mm
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
clutch: Φ395

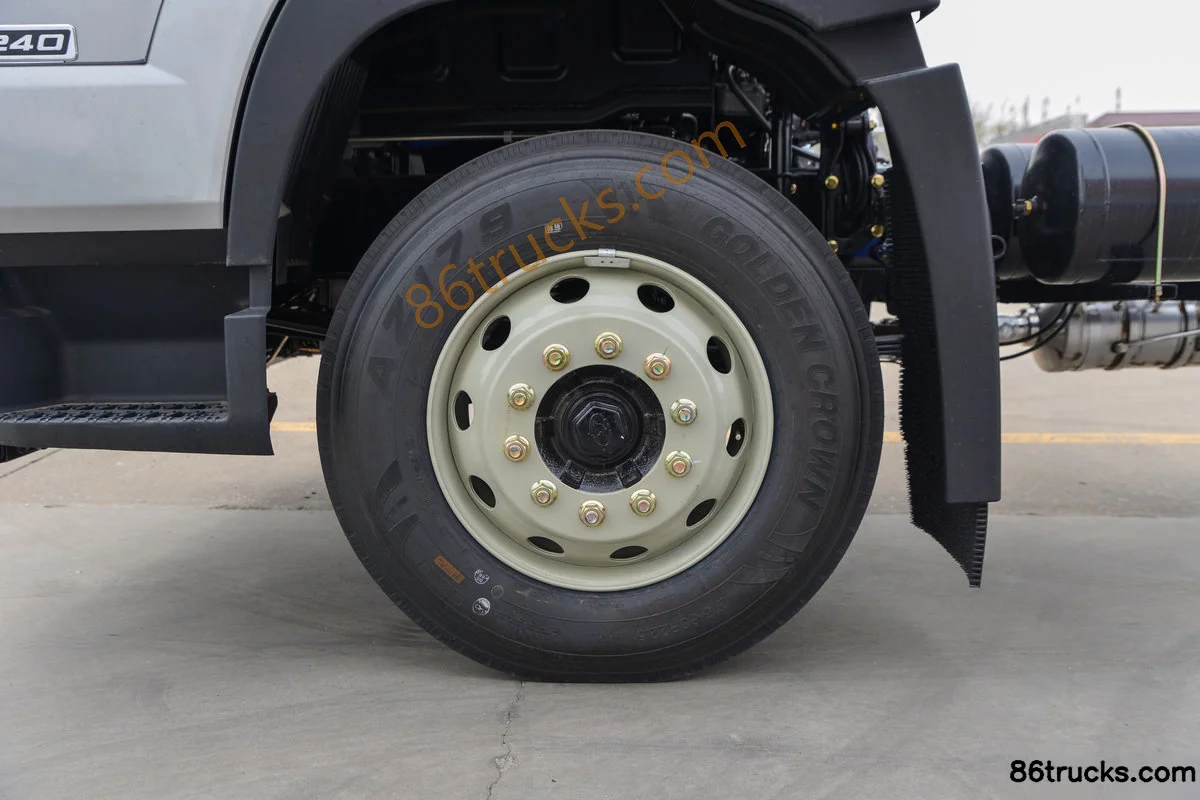

Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Power Mirrors:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

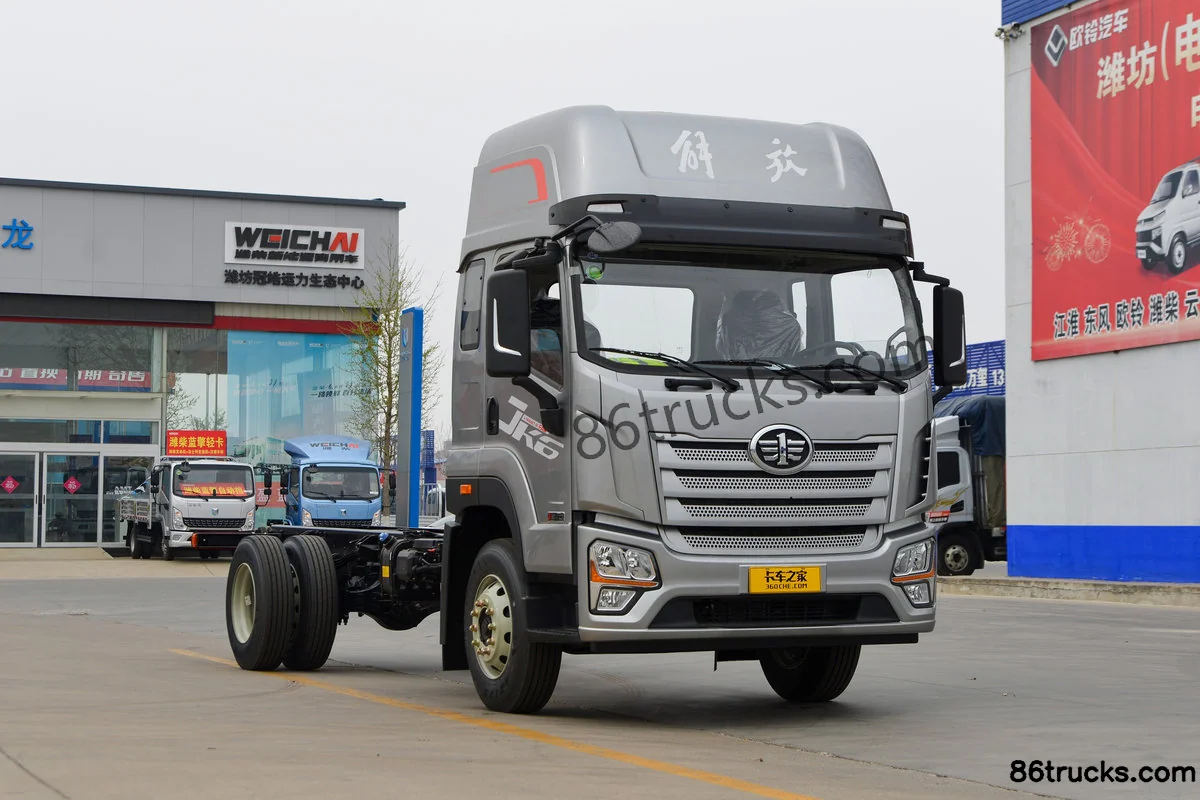

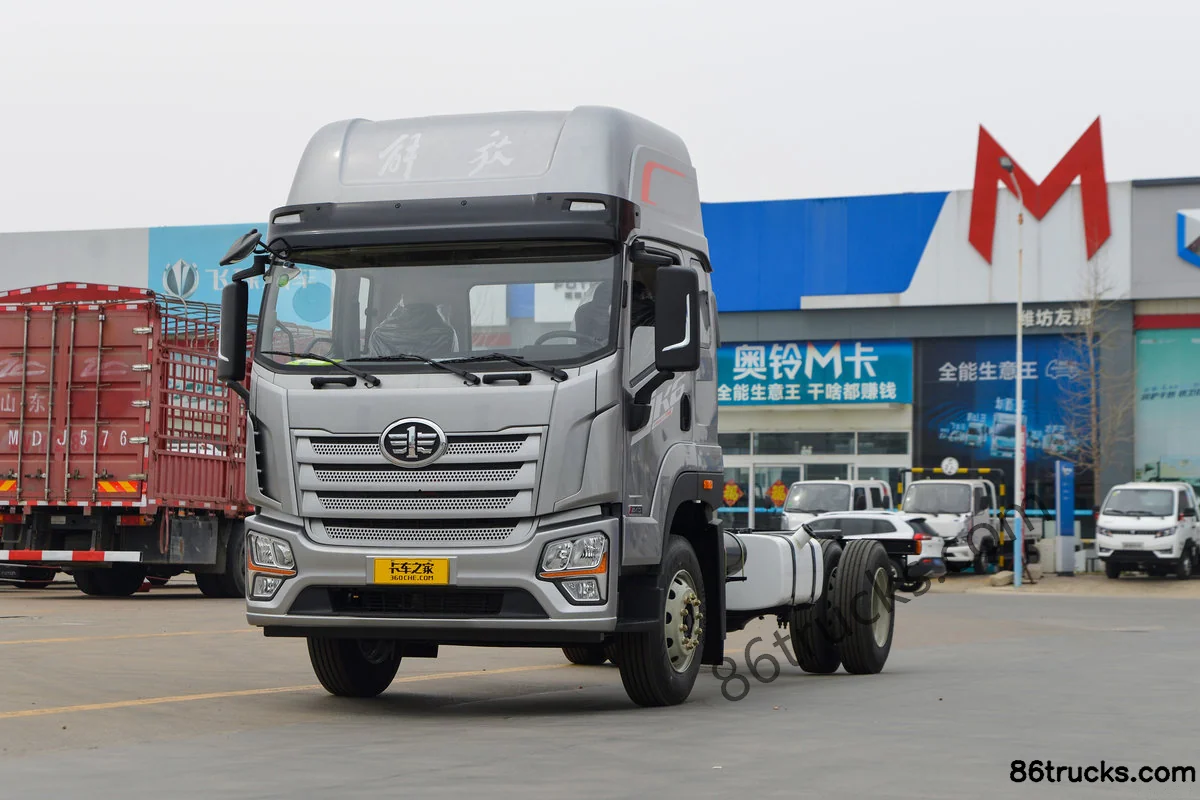

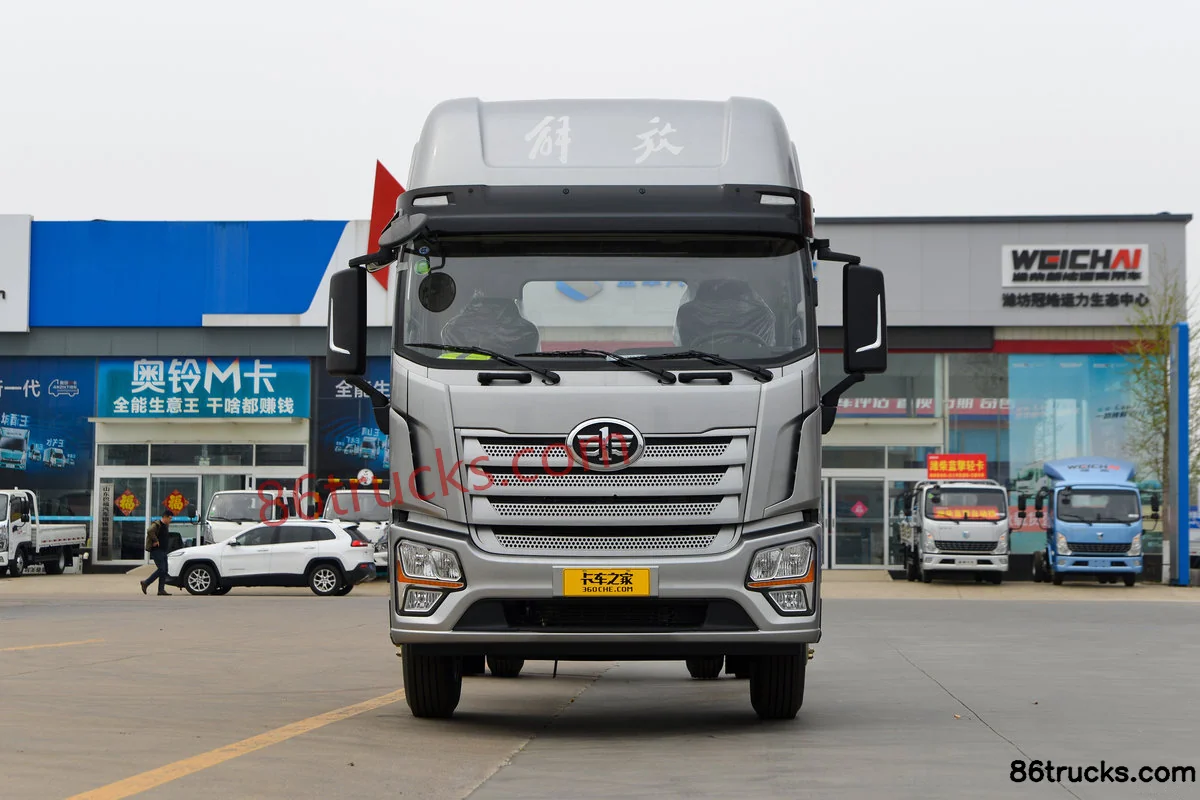

Exterior3

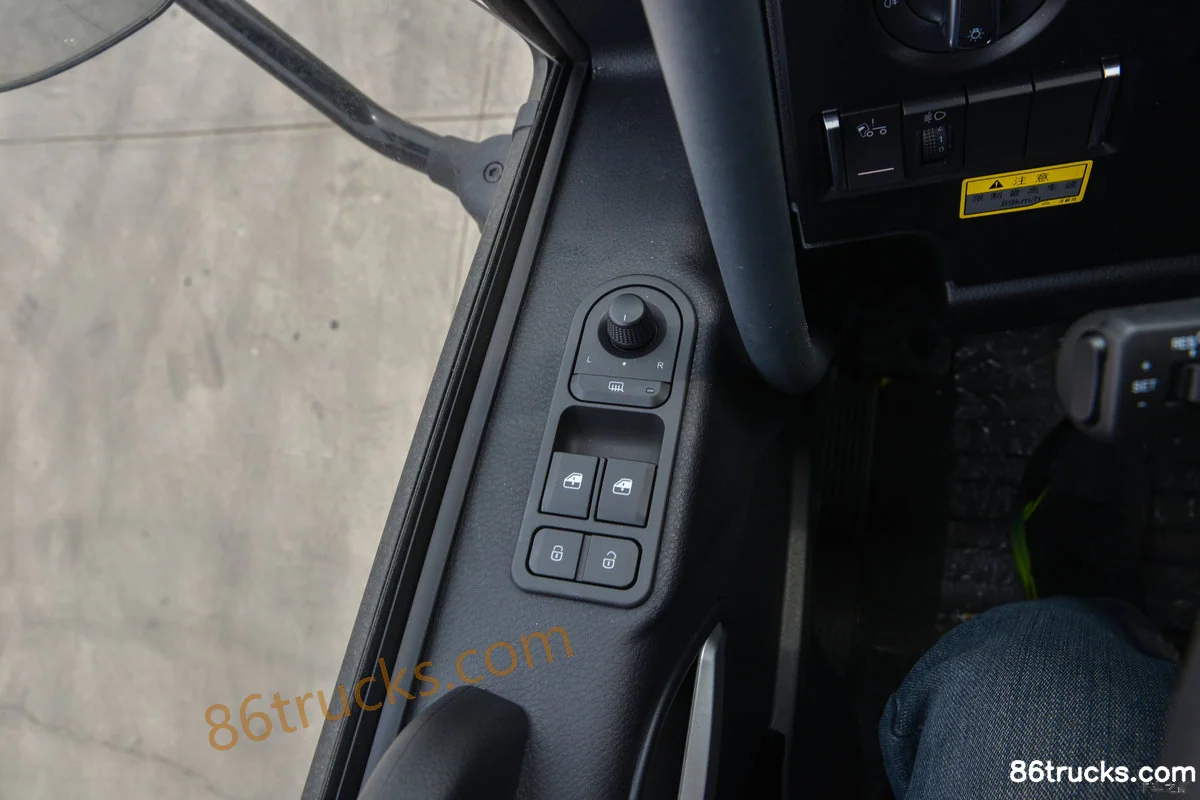

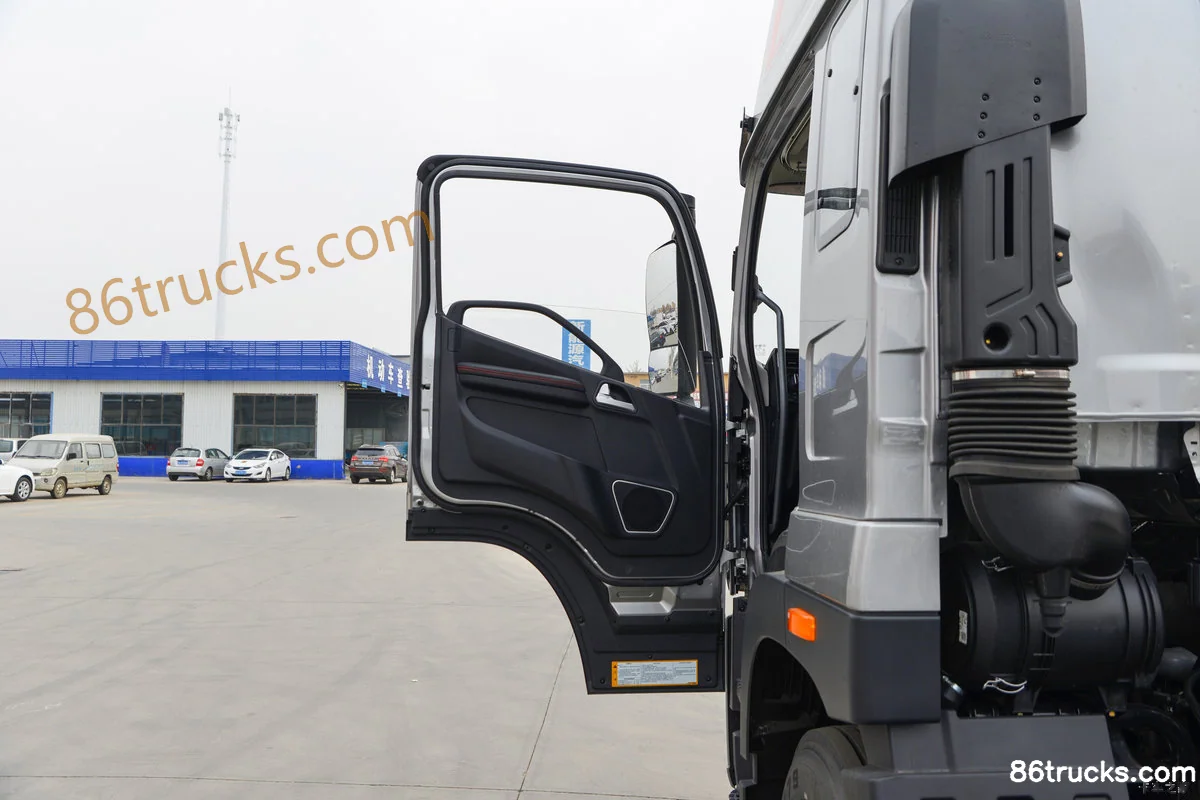

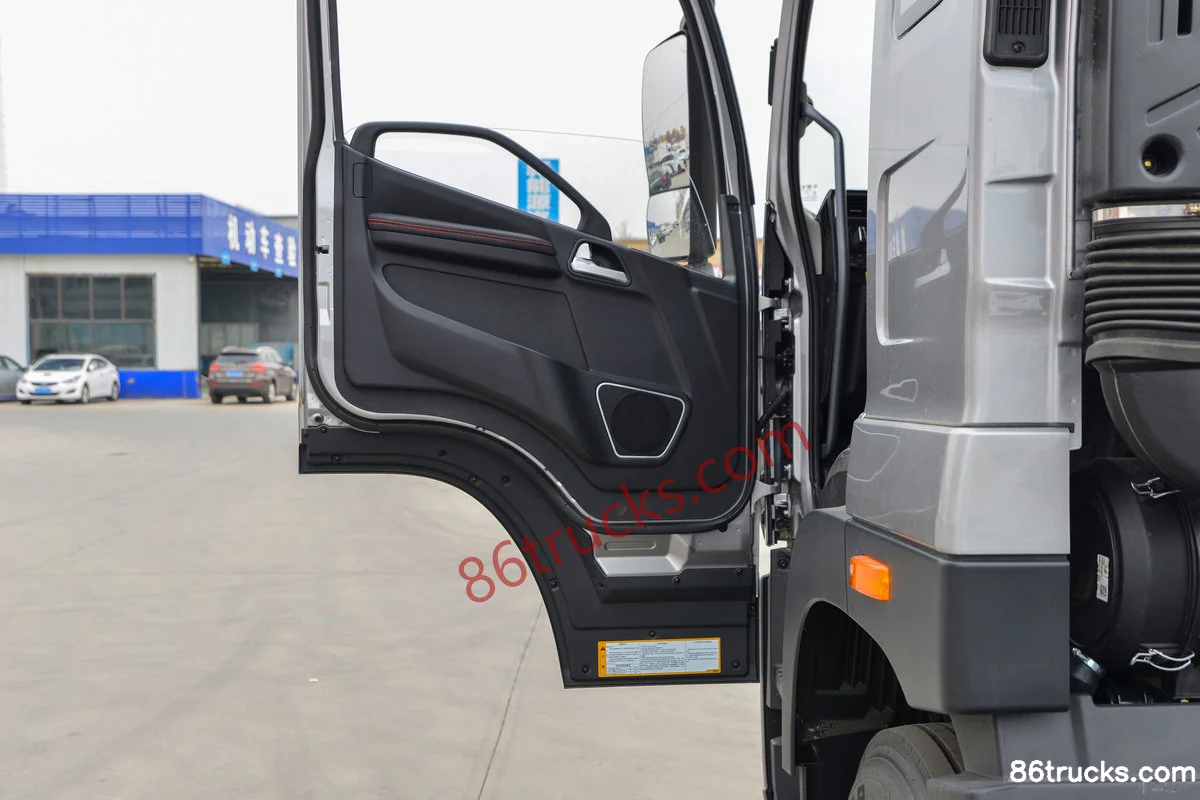

Cab3

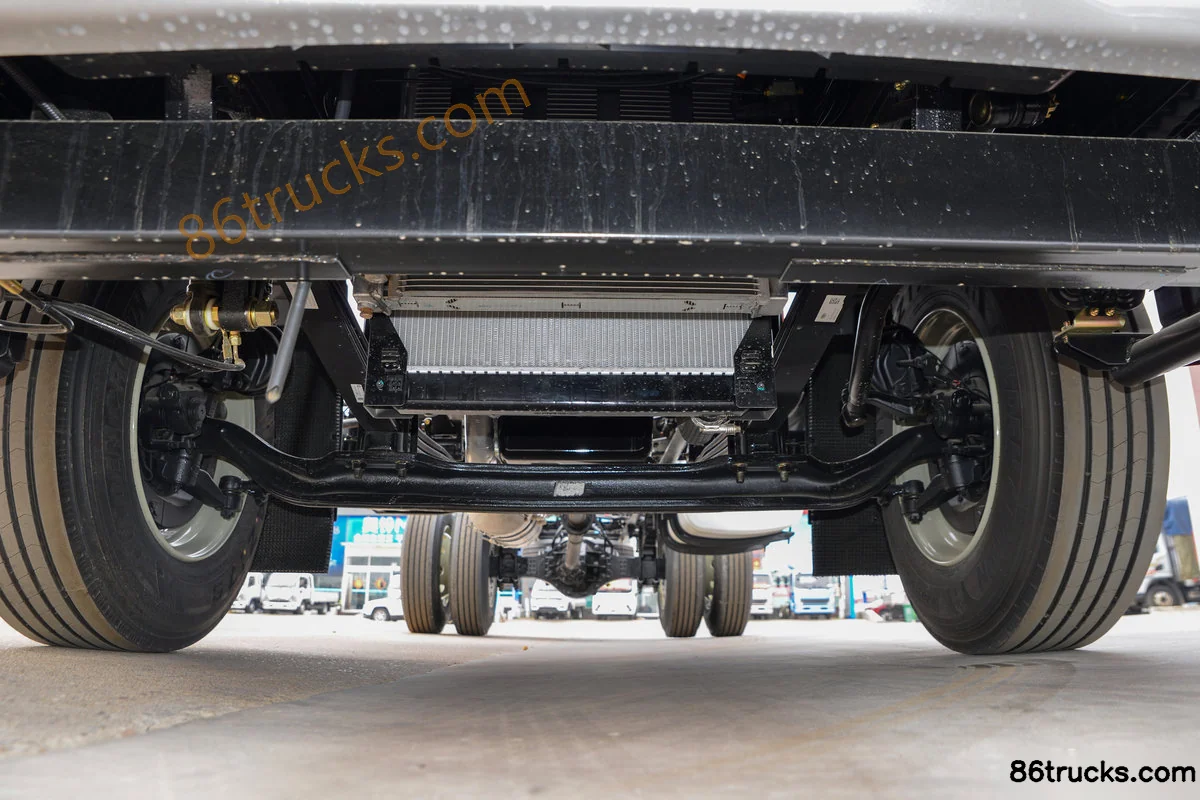

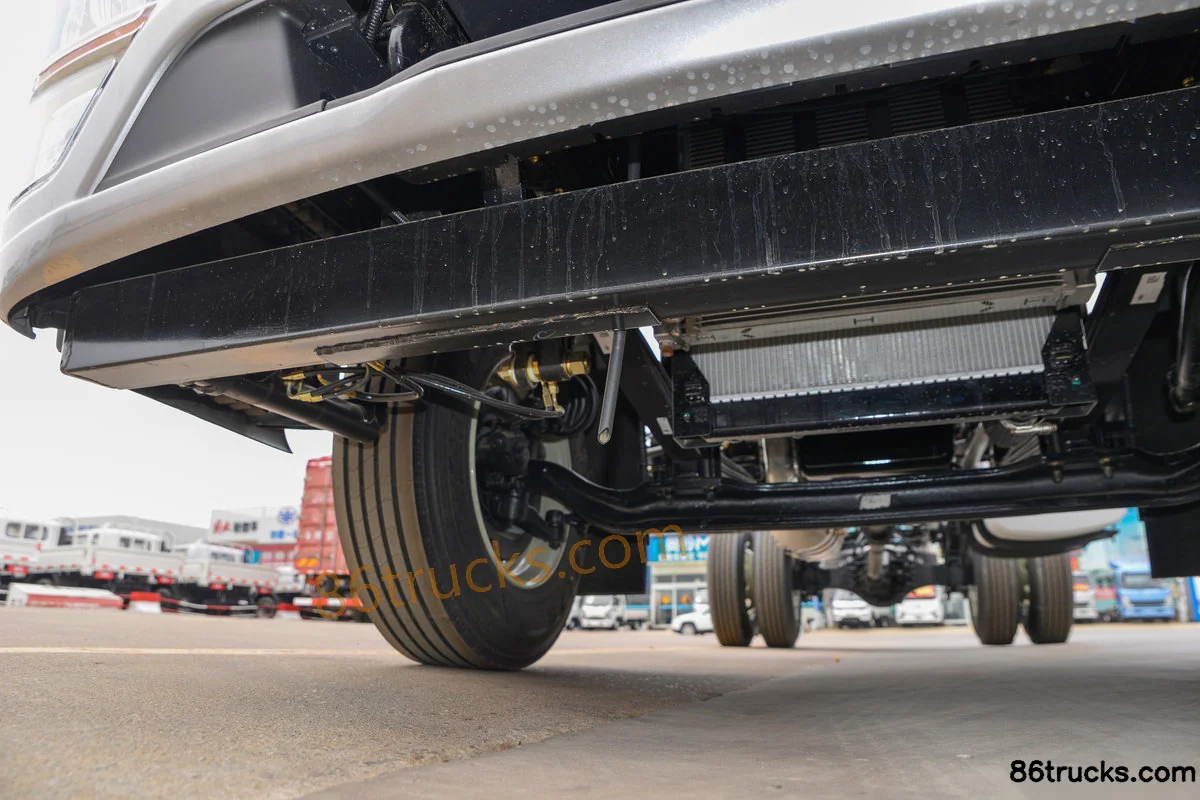

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase)?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: CA4DK1 Series; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) suited for?

FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase) belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 220 hp 4X2(6 wheels) 7.75 m Van Cargo Truck (China VI) (6100 Wheelbase)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
