FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle)

Export reference
MSRP N/A
Horsepower: 350
Emission: China IV
Fuel: Diesel
Engine: Xichai9L
Transmission: Fast Gear
Curb Weight:: 12.745ton
seating capacity: 3Personnel
Rated payload: 18.06ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 18.06t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Xichai9L engine, 350 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5313CCYP2K2L7T4E4A80-1
Type: stake truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DL2-35E4
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 11.995m
Cab width: 2.49m
Cab height: 3.99m
Front track width: 2020/2020mm
rear track: 1847/1847mm
Curb Weight: 12.745ton
Rated payload: 18.06ton
GVWR: 31ton
Max. speed: 93km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle: 12°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Front/rear suspension: 1.375/2.87m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E4
Engine info: Xichai9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China IV
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1500rpm
Rated speed: 2100rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Reinforced 435 stamped-welded axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.111
Leaf spring count: 12/12/10,3/3/10,3/3/4,3/3/-
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

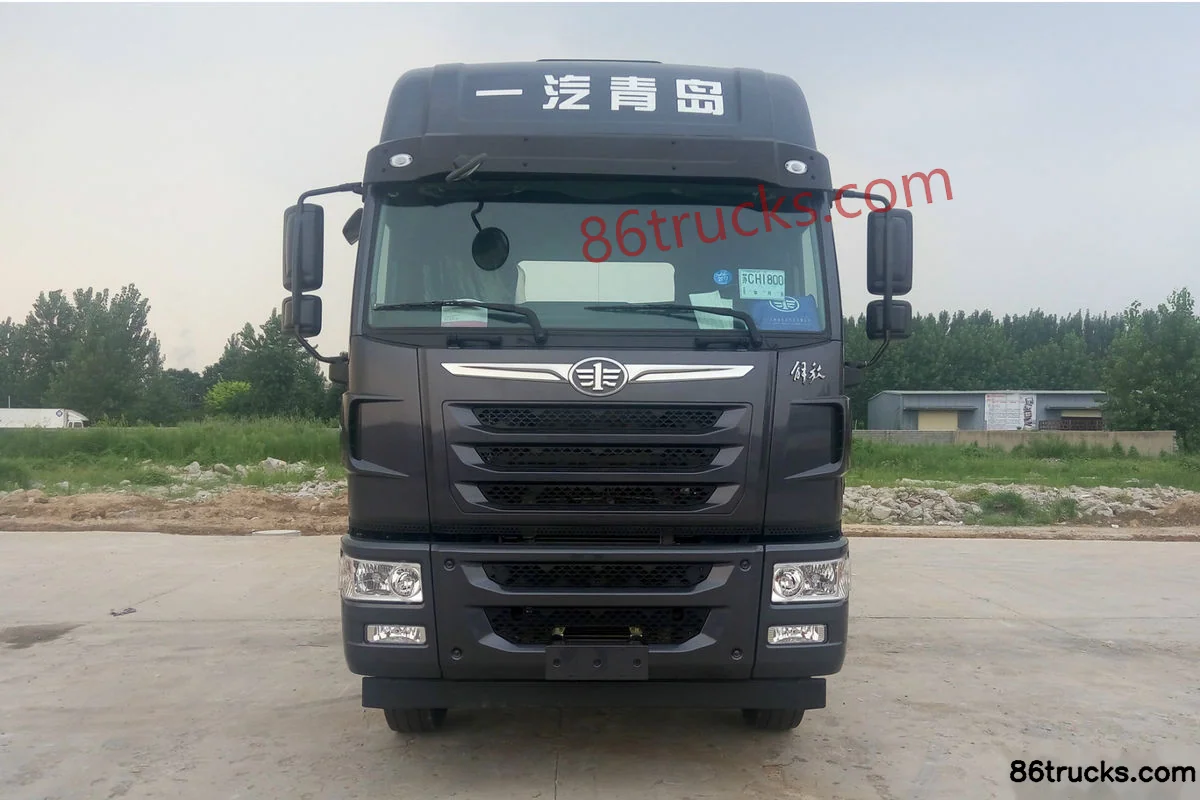

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle)?

Key specs of FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle): Drive: 8x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) suited for?

FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) differ from other variants in the same series?

FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle) belongs to FAW Jiefang Qingdao Tian V Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Tian V Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck (435 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
