Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis)

Export reference
From $50,000
MSRP ¥36M CNY
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.395ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00-20 16PR
Rated payload: 12.41ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) is a Heavy truck featuring 12.41t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG350E40 engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3253VLPCE-1
Drive type: 6X4
Wheelbase: 4100+1350mm
engine: WeichaiWP12NG350E40
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 5.92
Cab length: 8.77m
Cab width: 2.495m
Cab height: 3.4m
Front track width: 2005mm
rear track: 1865/1865mm
Curb Weight: 12.395ton
Rated payload: 12.41ton
GVWR: 25ton
Origin: Beijing
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 17°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG350E40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 16T Mercedes-Benz axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.92
Leaf spring count: 9/12
Tire
Tire Size: 12.00-20 16PR
Number of tires: 10pcs

Photos

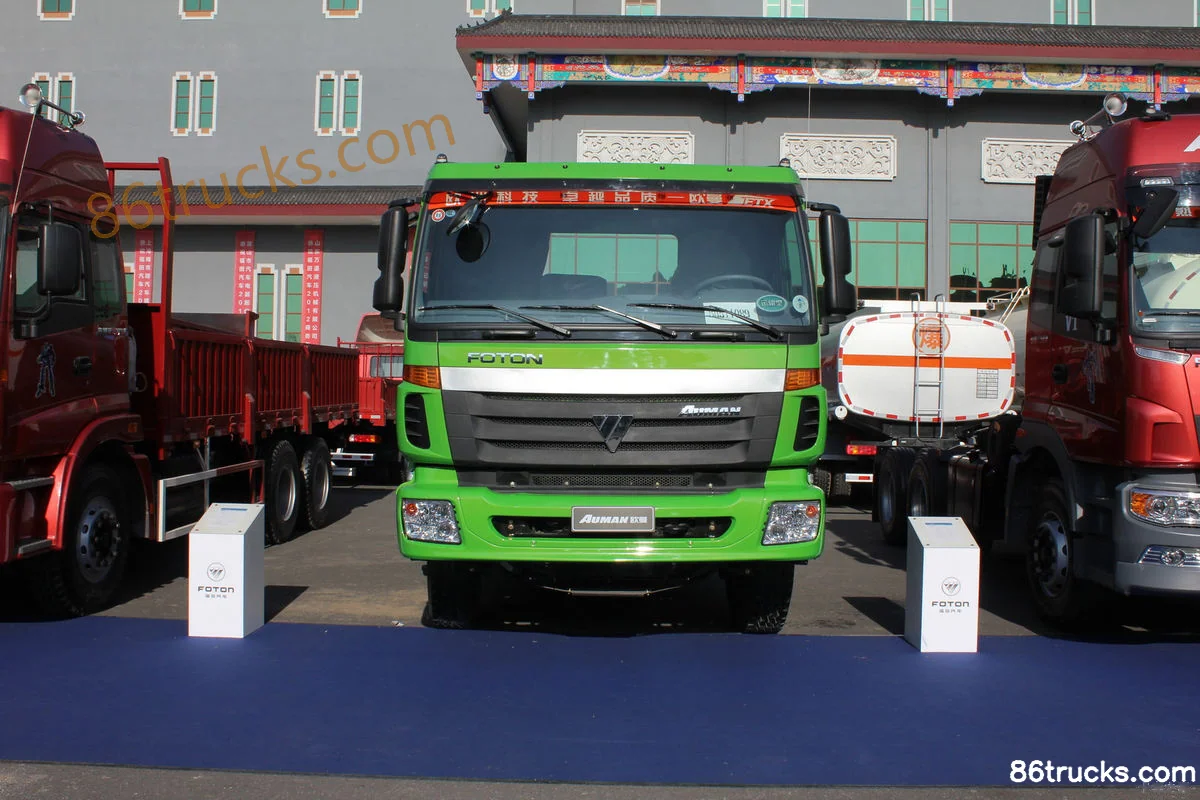

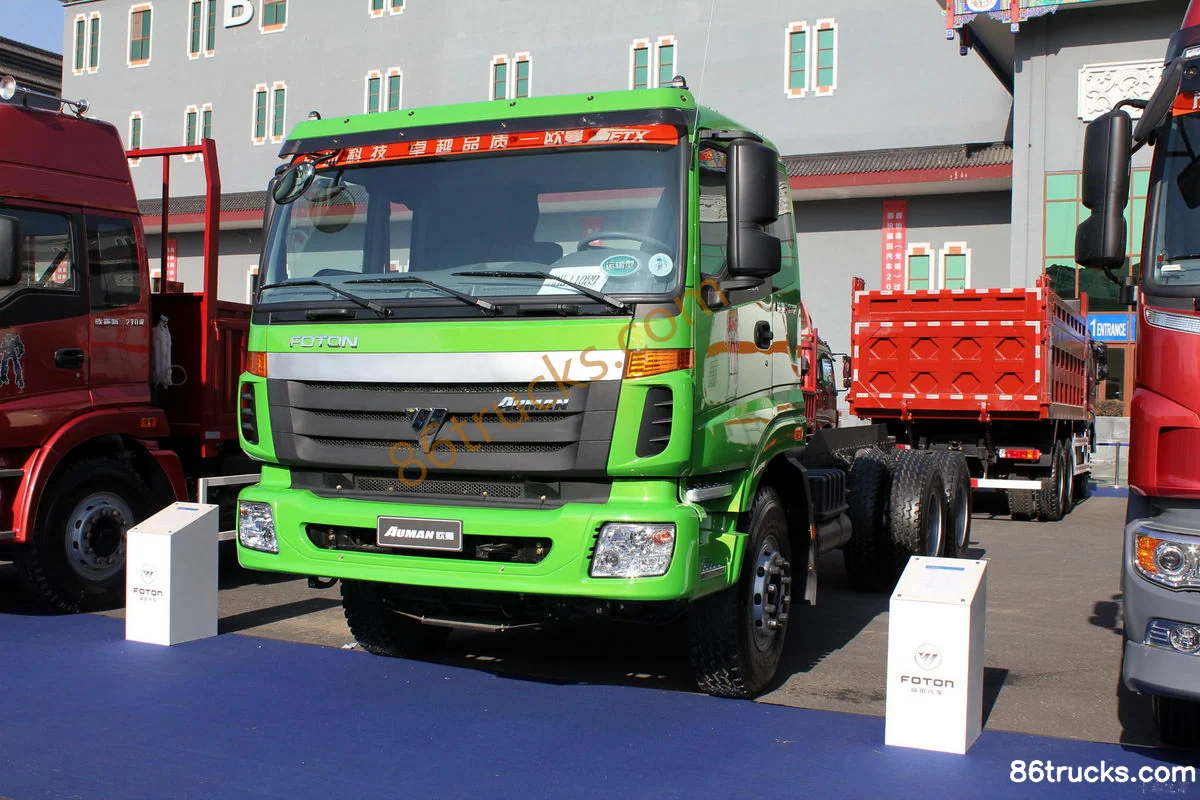

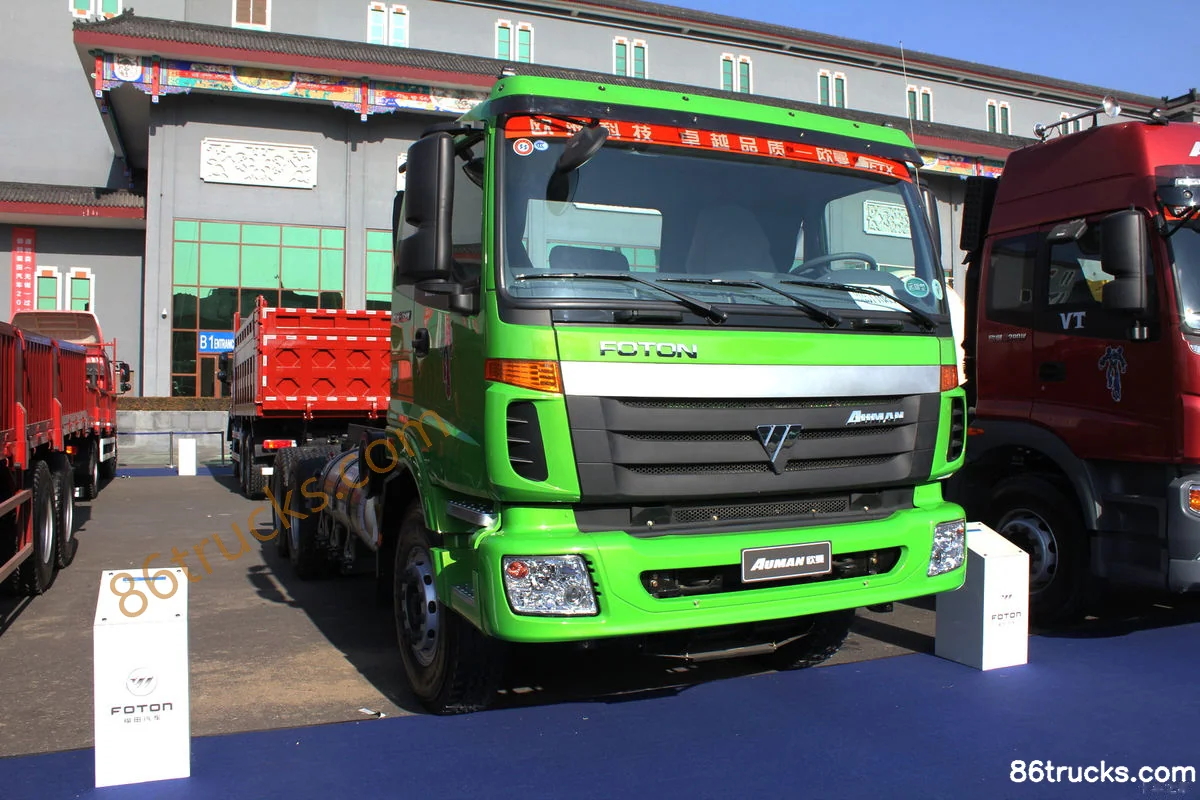

Exterior3

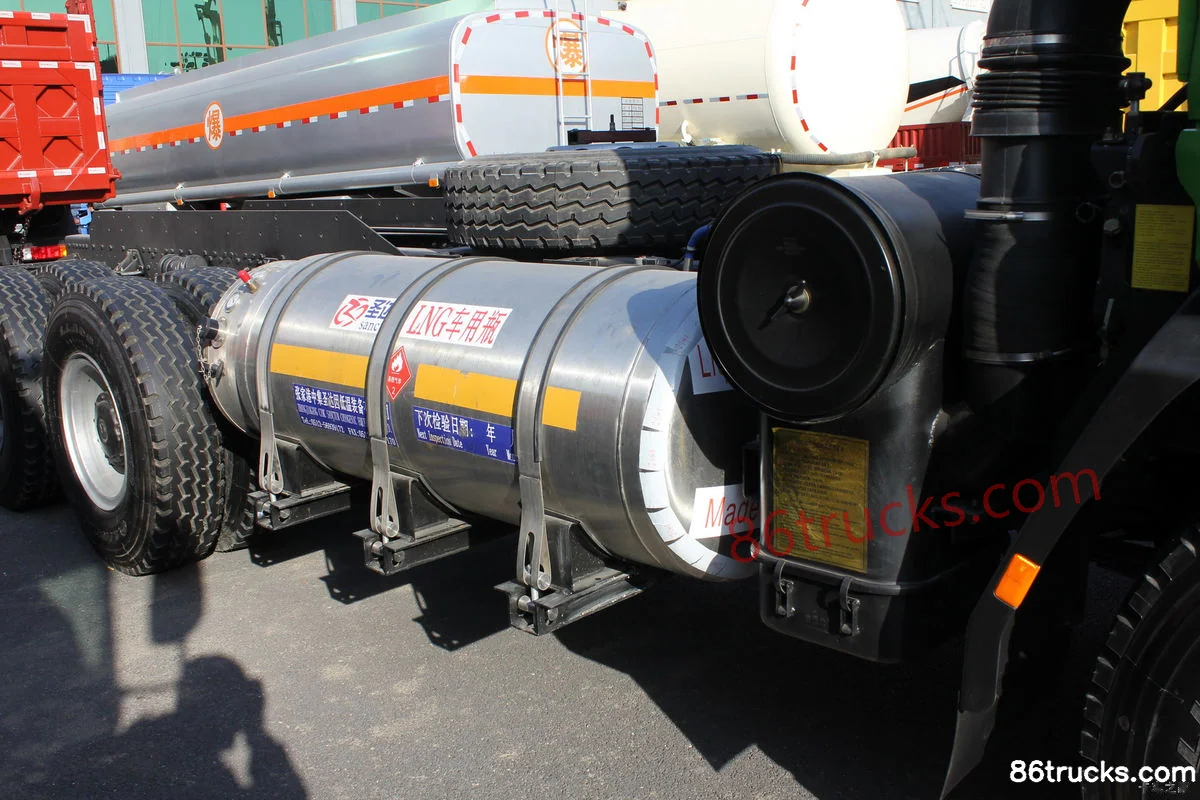

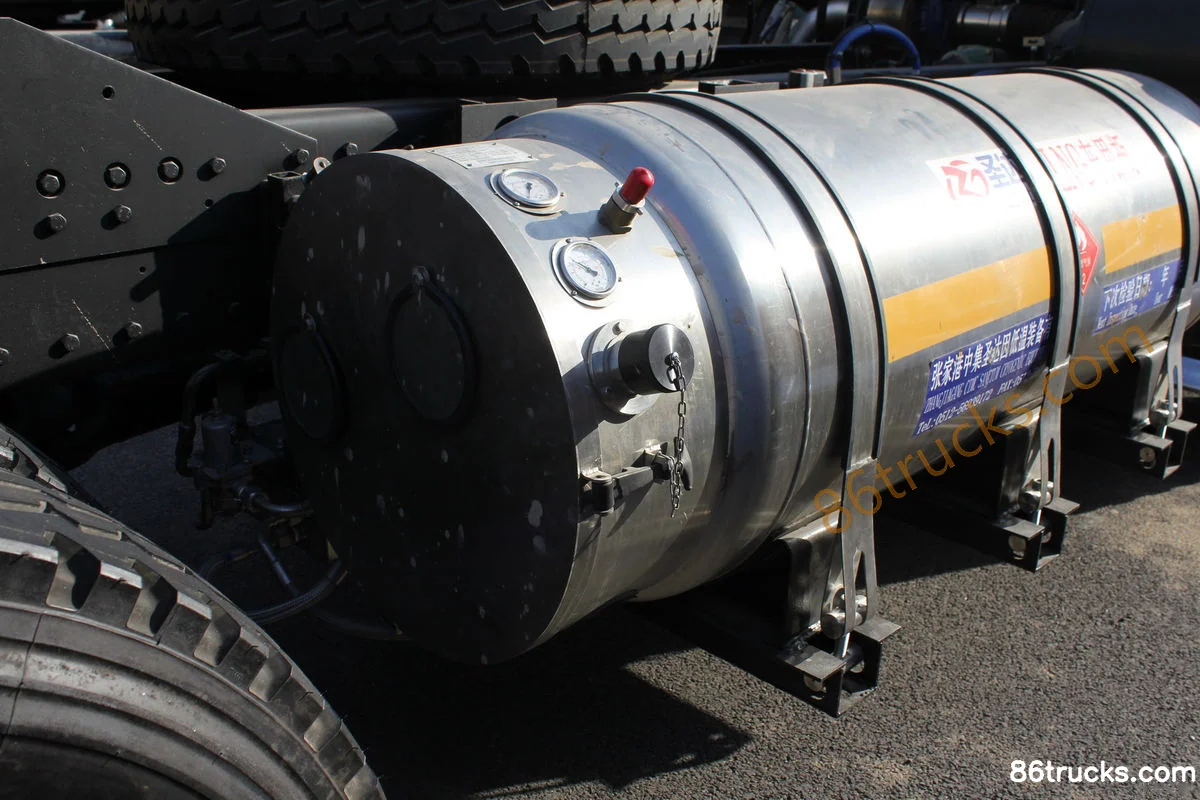

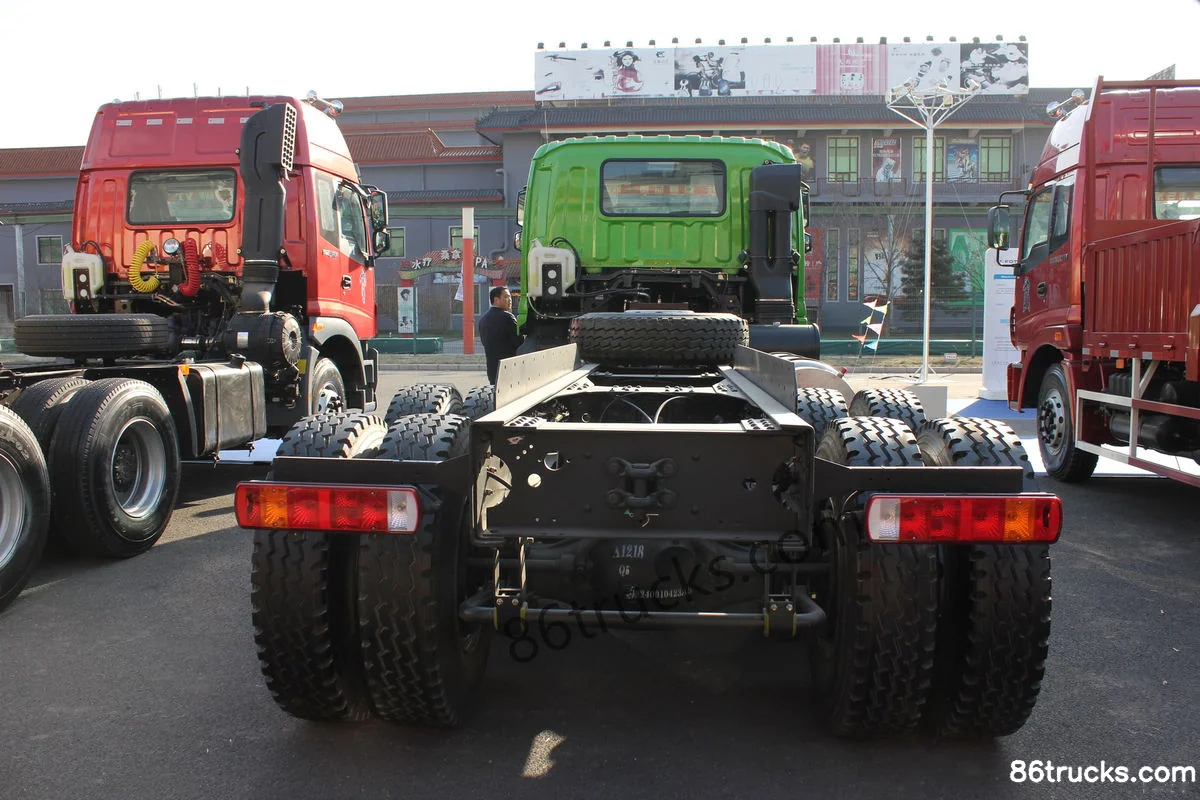

Chassis3

6 photos

FAQ

What is the export price of Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis), and what does it include?

Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) export reference is about From $50,000; MSRP is ¥36M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis)?

Key specs of Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis): Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) suited for?

Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) differ from other variants in the same series?

Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis) belongs to Foton Auman ETX Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
