Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle)

Export reference
From $11,111
MSRP ¥8M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2660mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 84
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DW93-84E5 engine, 84 hp, China V emissions and WLY transmission.

China V 84 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3044W16K5-3
Drive type: 4X2
Wheelbase: 2660mm
engine: Xichai4DW93-84E5
transmission: WLYWLY10H35
Rear Axle Ratio: 5.571
Cab length: 5.11m
Cab width: 1.9m
Cab height: 2.18m
Front track width: 1416mm
rear track: 1420mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 84Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.7m
Cargo box height: 0.65m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab: Aochi Hongrui Single Row
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1870kg
rear axle description: 4T
rear axle allowable load: 2625kg
Axle ratio: 5.571
Leaf spring count: 5/7+6
Aluminum wheels:

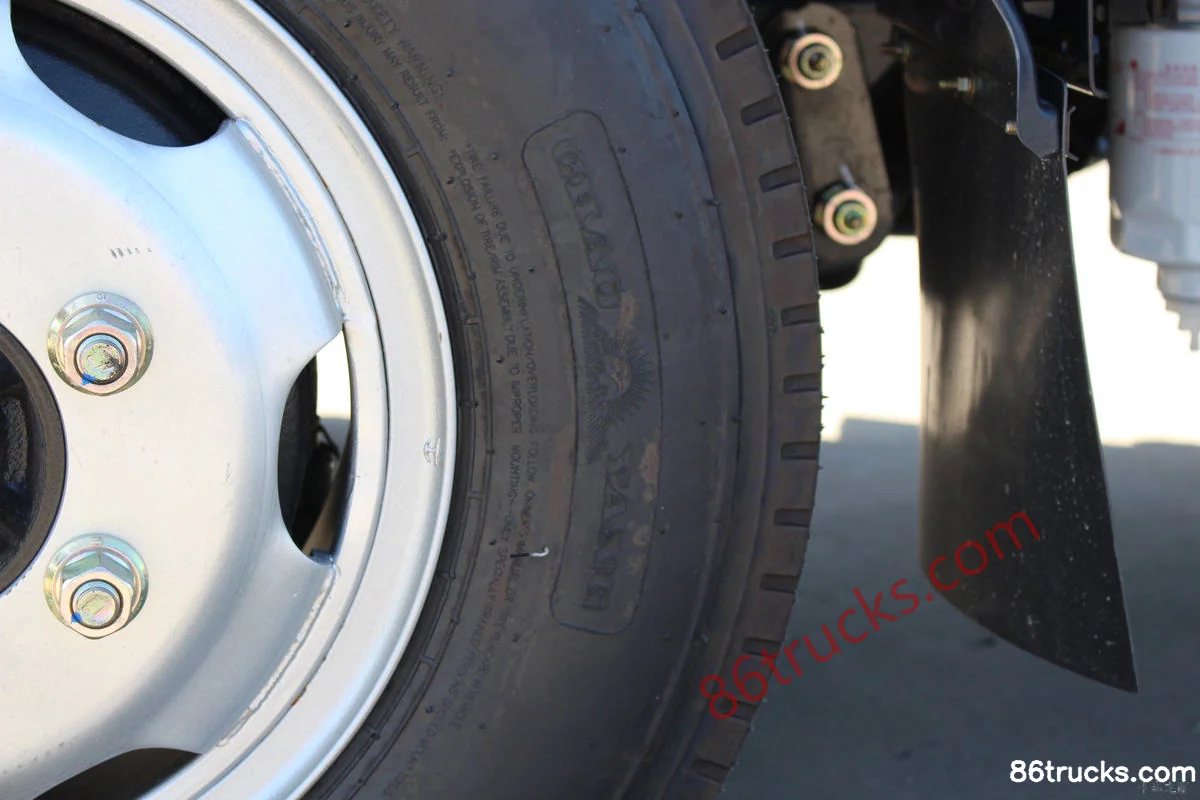

Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

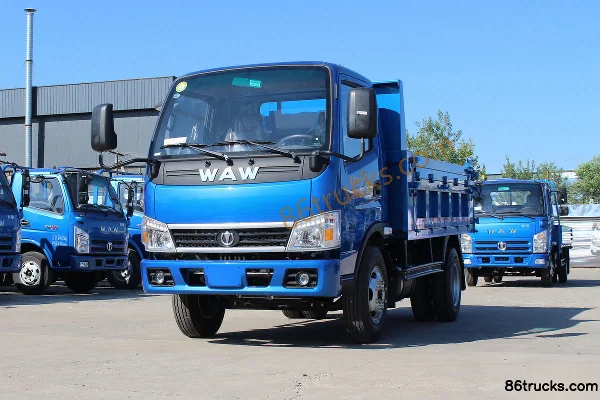

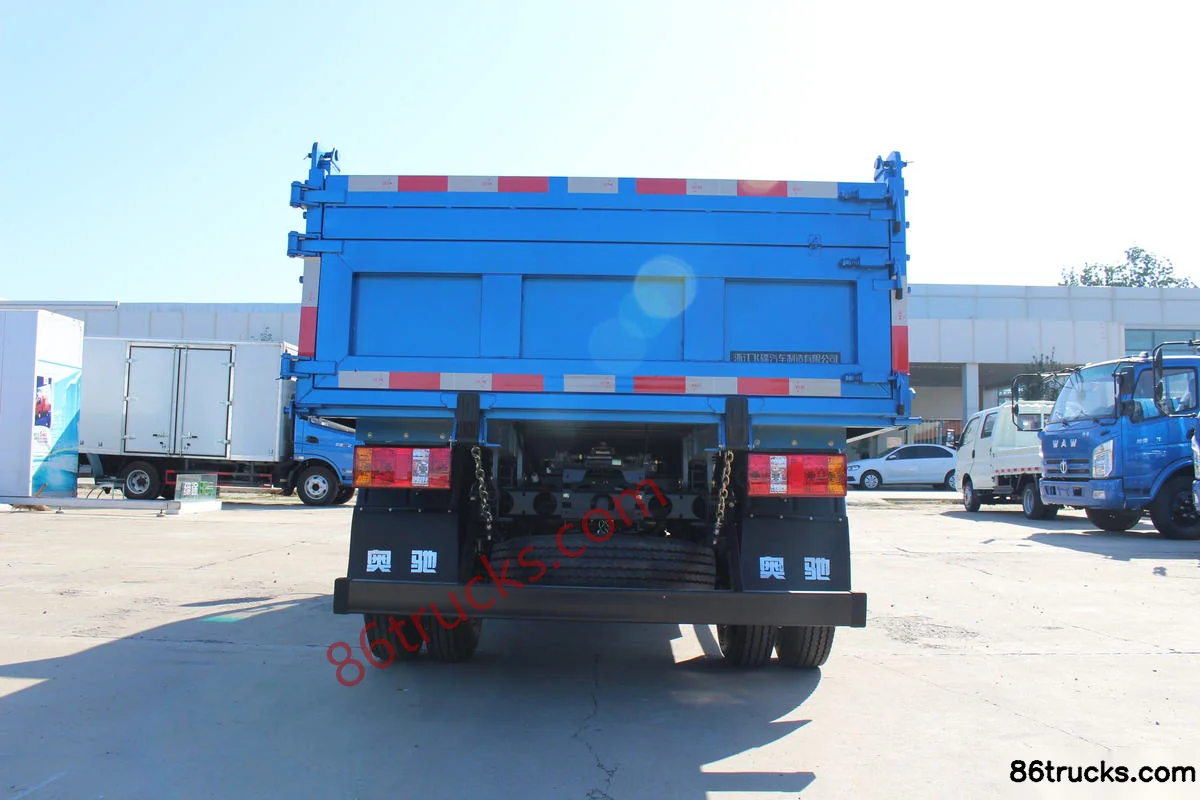

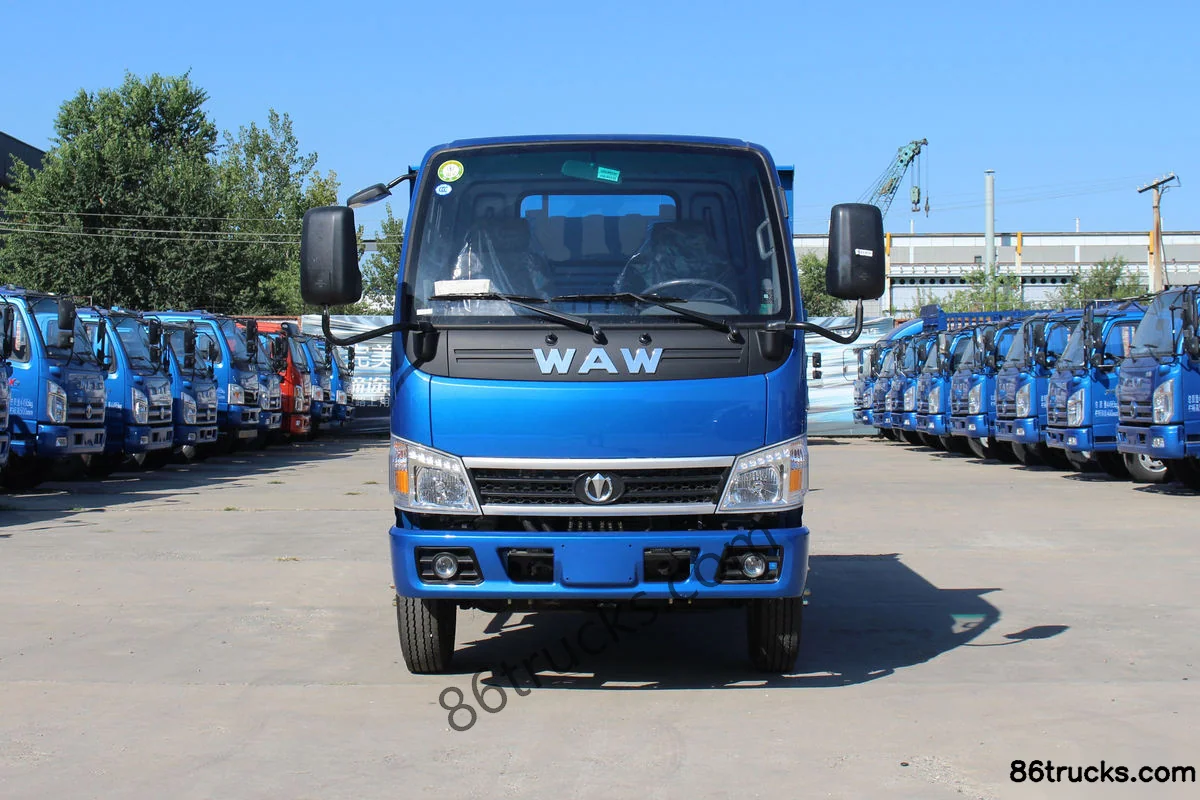

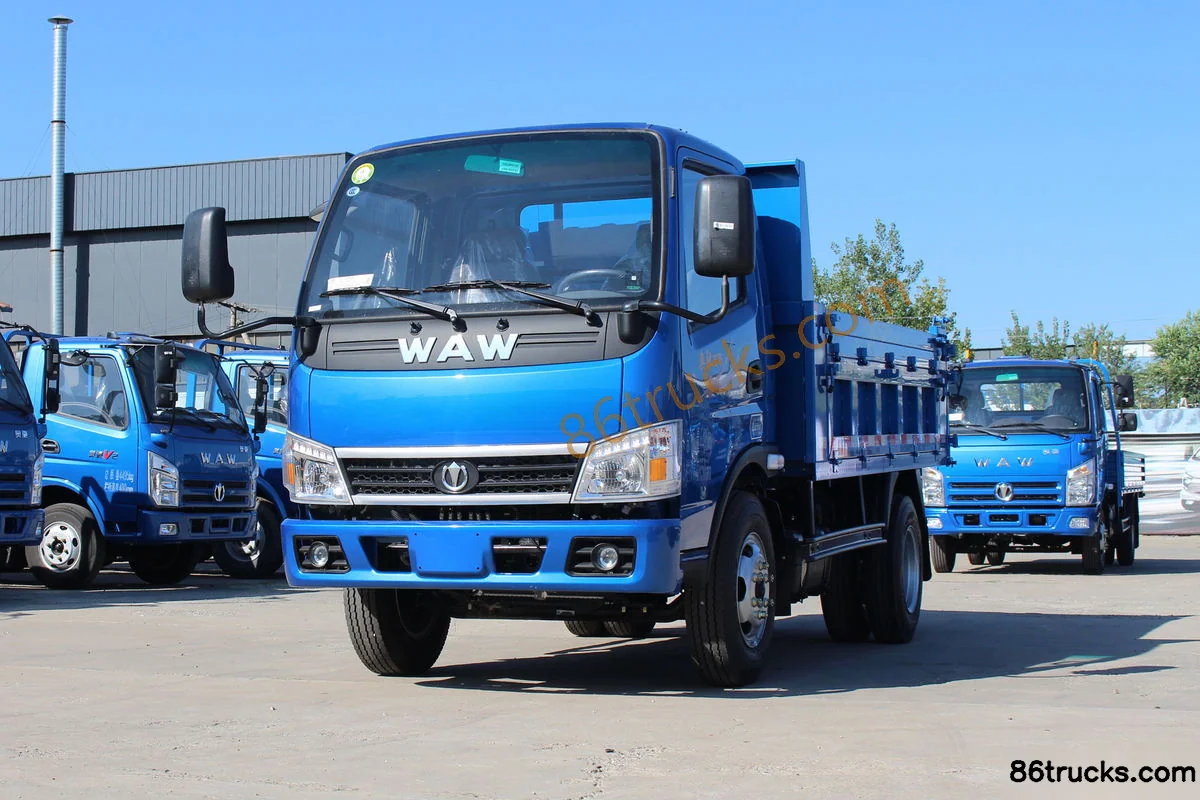

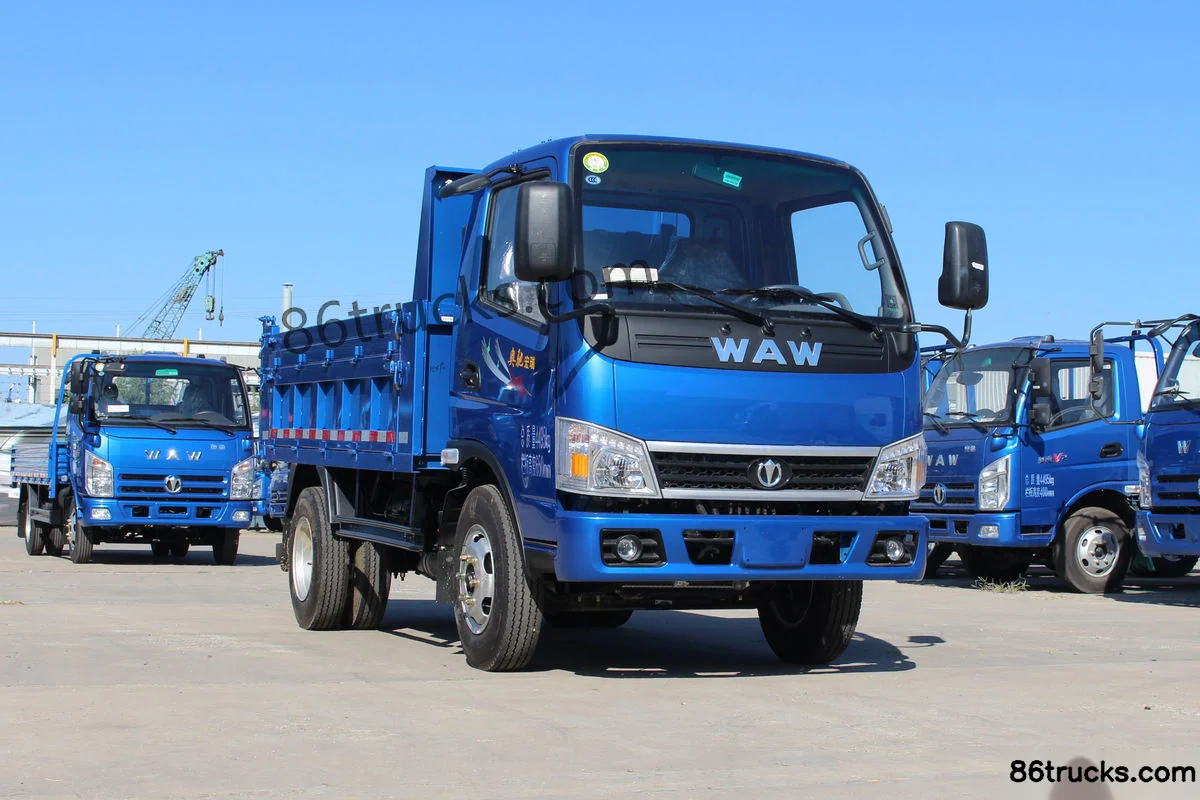

Exterior3

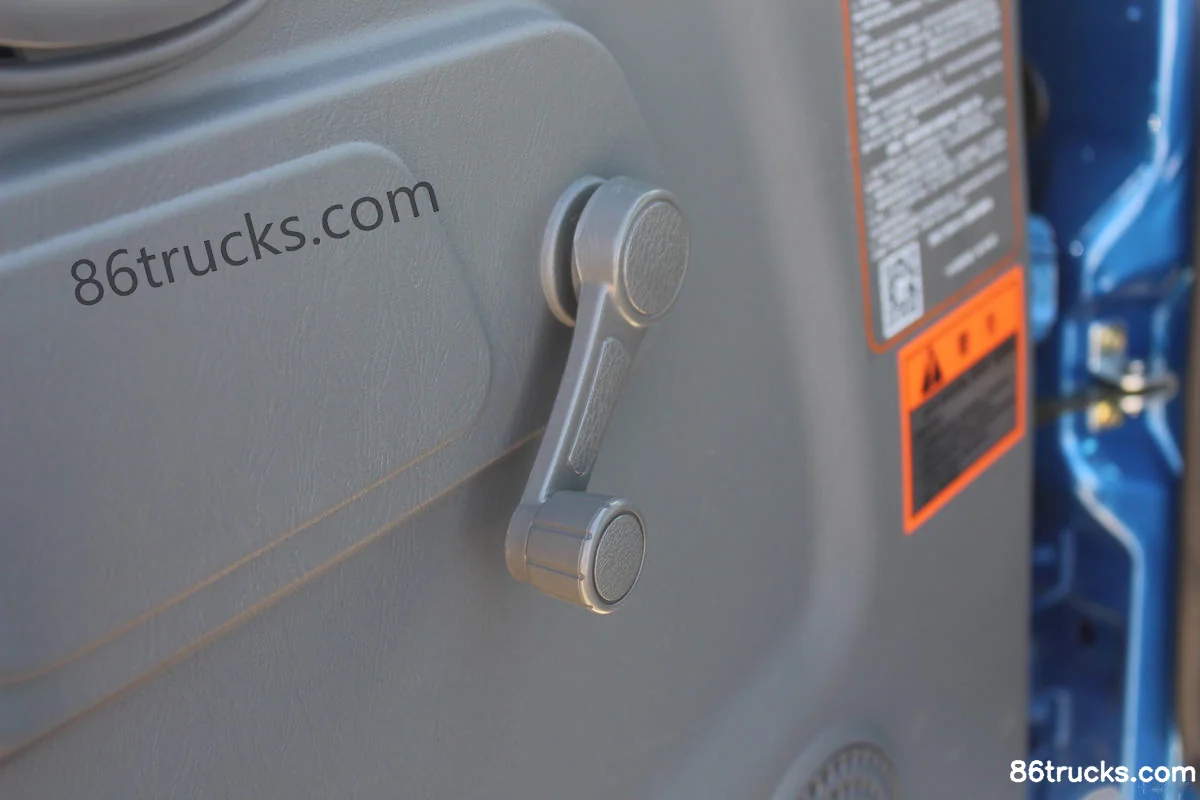

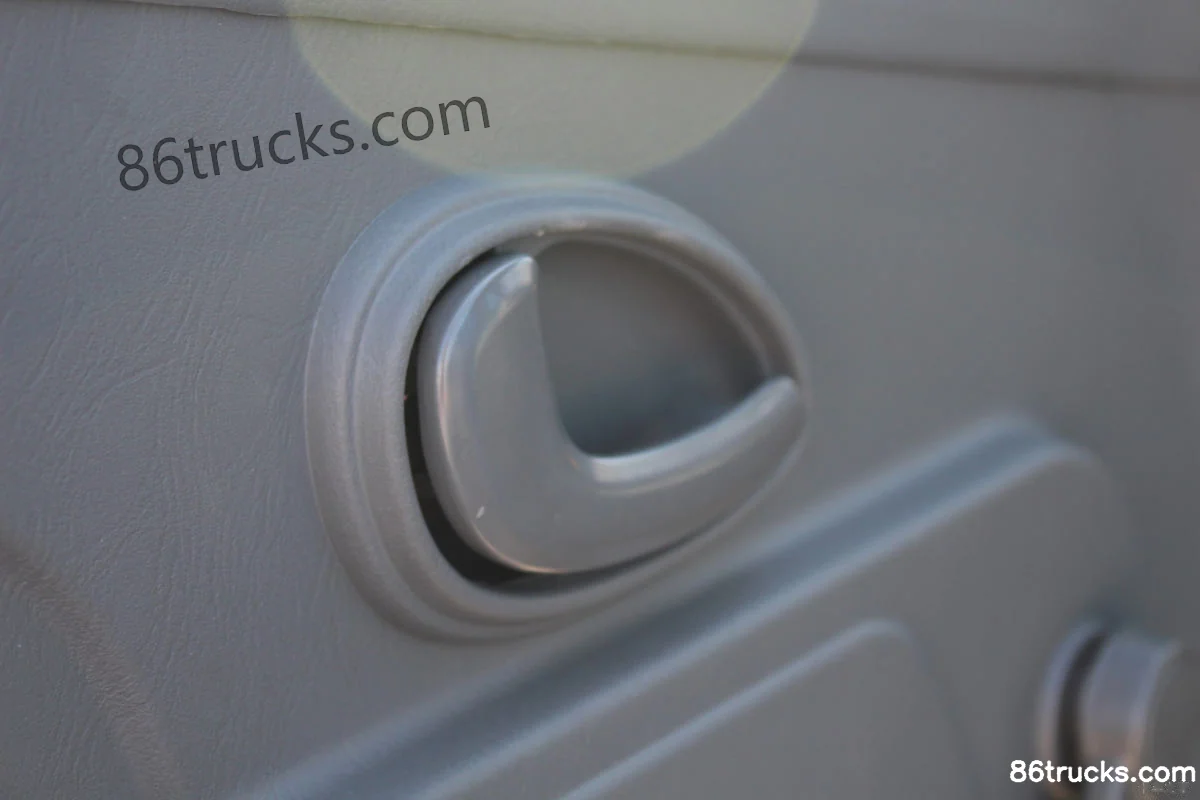

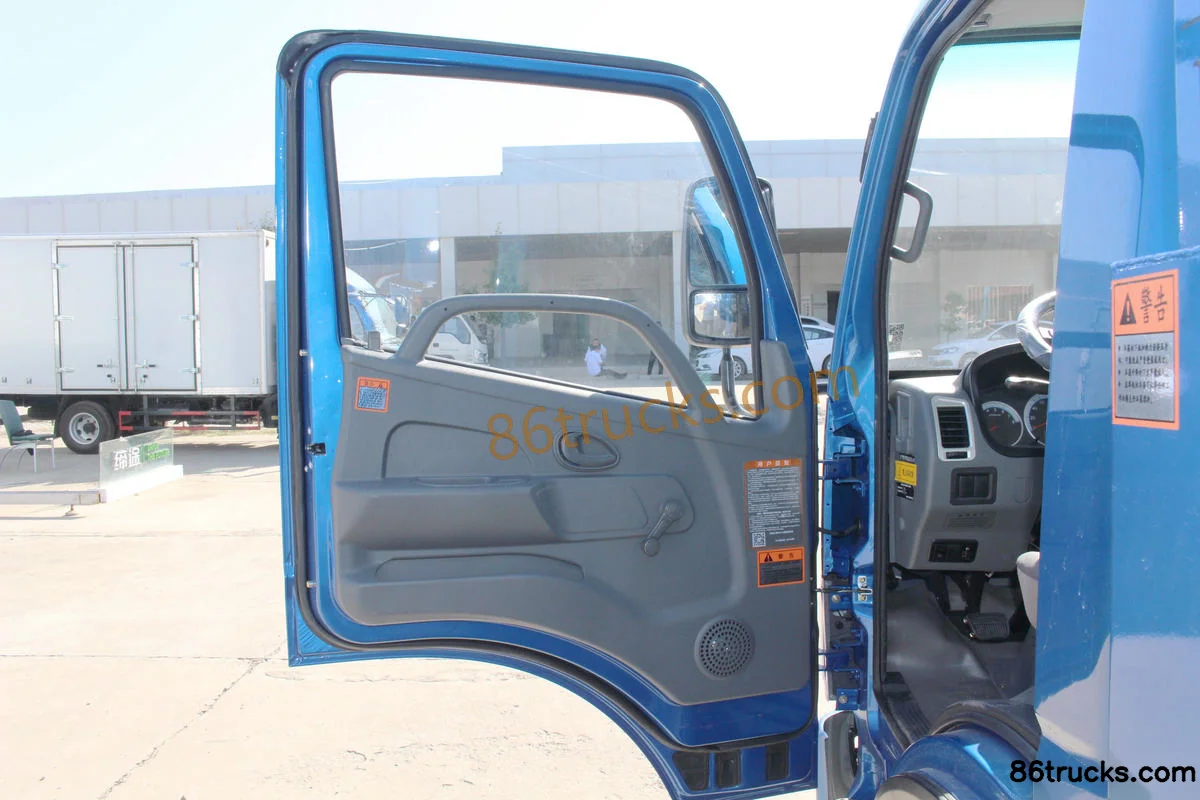

Cab3

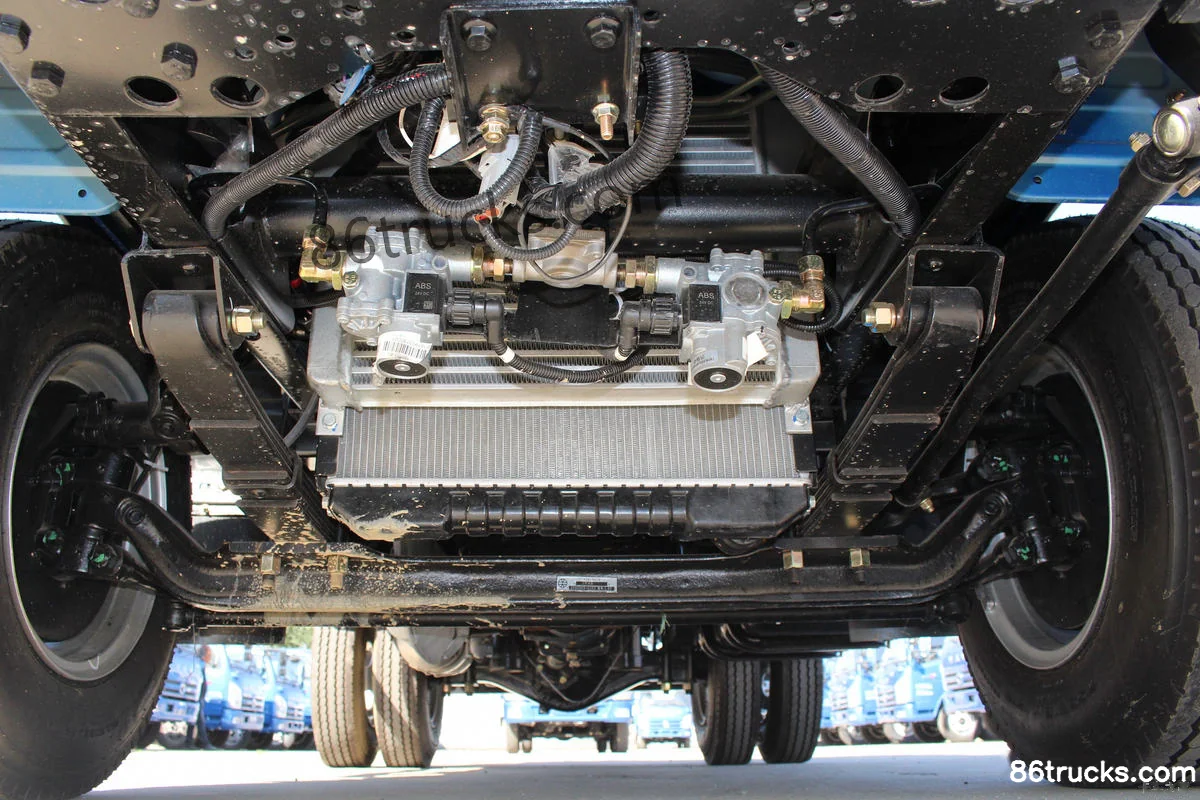

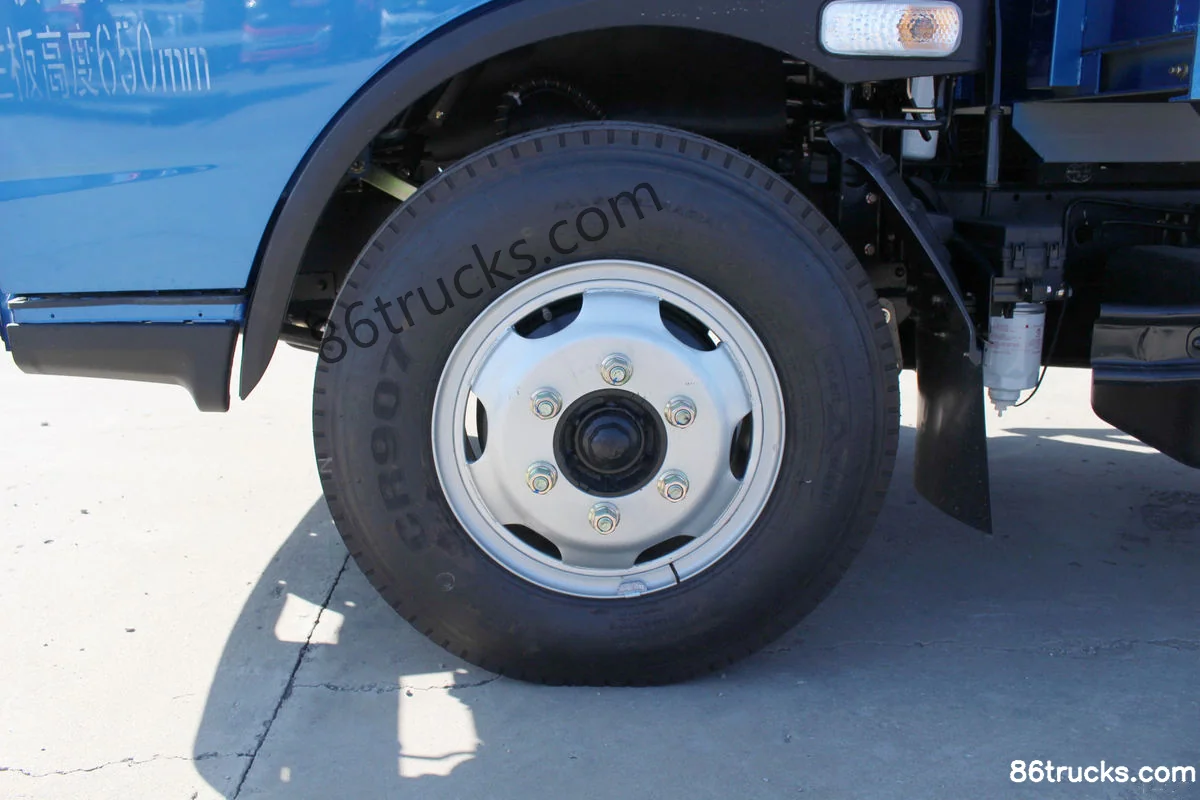

Chassis3

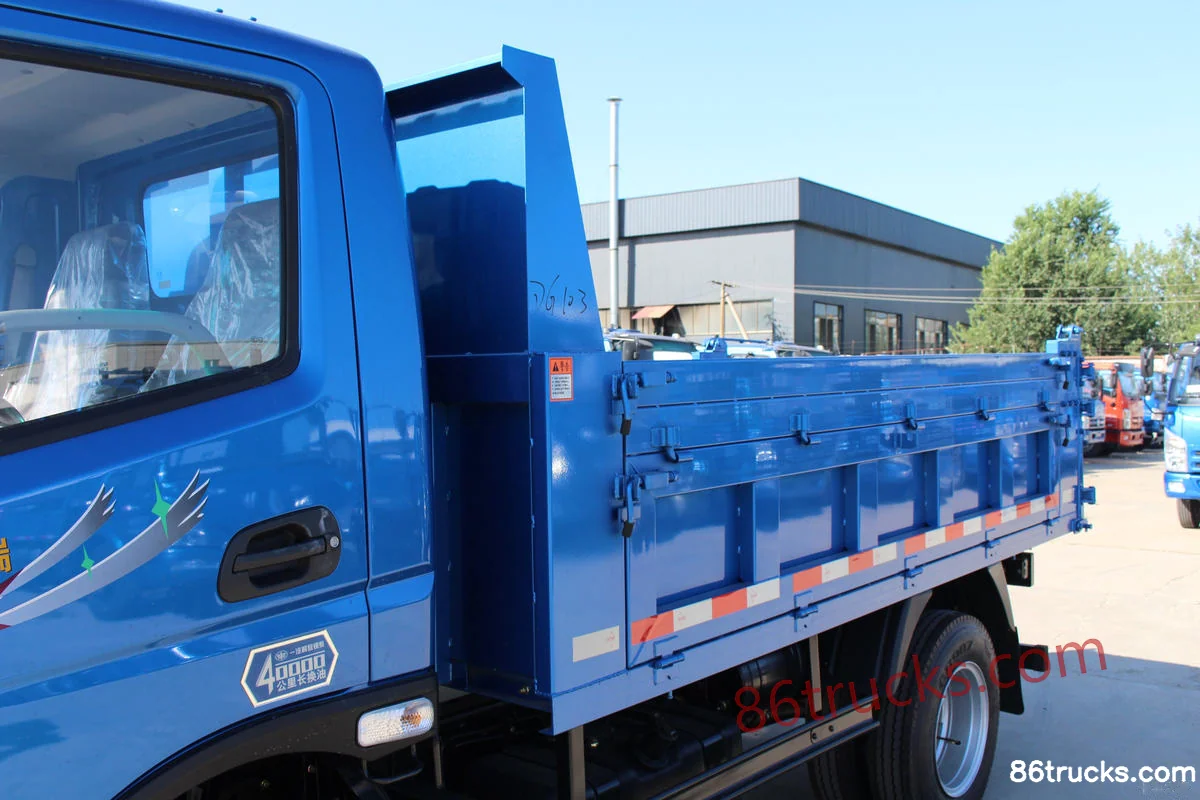

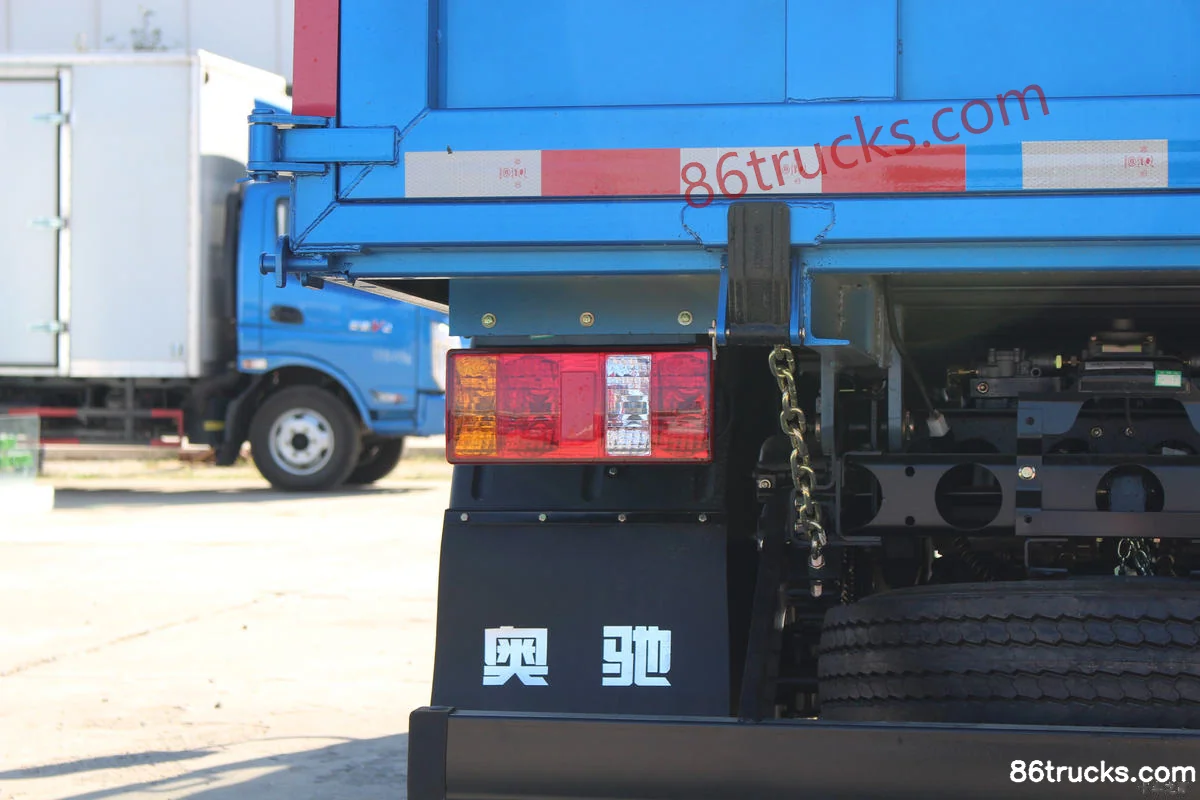

Body3

12 photos

FAQ

What is the export price of Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle), and what does it include?

Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) export reference is about From $11,111; MSRP is ¥8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle)?

Key specs of Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle): Drive: 4x2; Horsepower: 84 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) suited for?

Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) differ from other variants in the same series?

Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle) belongs to Feidi Jinniu X2 (formerly Aochi T series) light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi Hongrui T Series 87 hp 4X2(6 wheels) 3.2m Dump Truck (4T Rear Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
