JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck

Export reference
MSRP N/A
Wheelbase:: 3900+1350mm
Cab dimensions:: 8.385×2.5×3.5m
Type:: Flatbed dump truck
GVWR:: 25ton
Front/rear suspension:: 1.495/1.64m
Energy Type:: Diesel
Drive 6X4 (10 wheels)
Horsepower 350
Rated mass: 12.42ton
Emission China V

Overview

The JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck is a flatbed truck featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.385×2.5×3.5m
Type: Flatbed dump truck
Drive type: 6X4
Wheelbase: 3900+1350mm
Rated mass: 12.42ton
GVWR: 25ton
Front/rear suspension: 1.495/1.64m
Energy Type: Diesel
Body Parameters
Other special notes: K3W Semi-High Roof
Vehicle certification code: HFC3251P1K6E39S3V
Body Brand: JAC Gallop
Engine parameters
Engine Model: WeichaiWP10.350E53
Displacement: 9.726L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC3251P1K6E39S3V
rear axle description: STR (4.8/5.73 ratio)
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160(T)+QH50 cast iron
Tire
Tire Size: 11.00R20,12.00R20 16PR
Number of tires: 10pcs

Photos

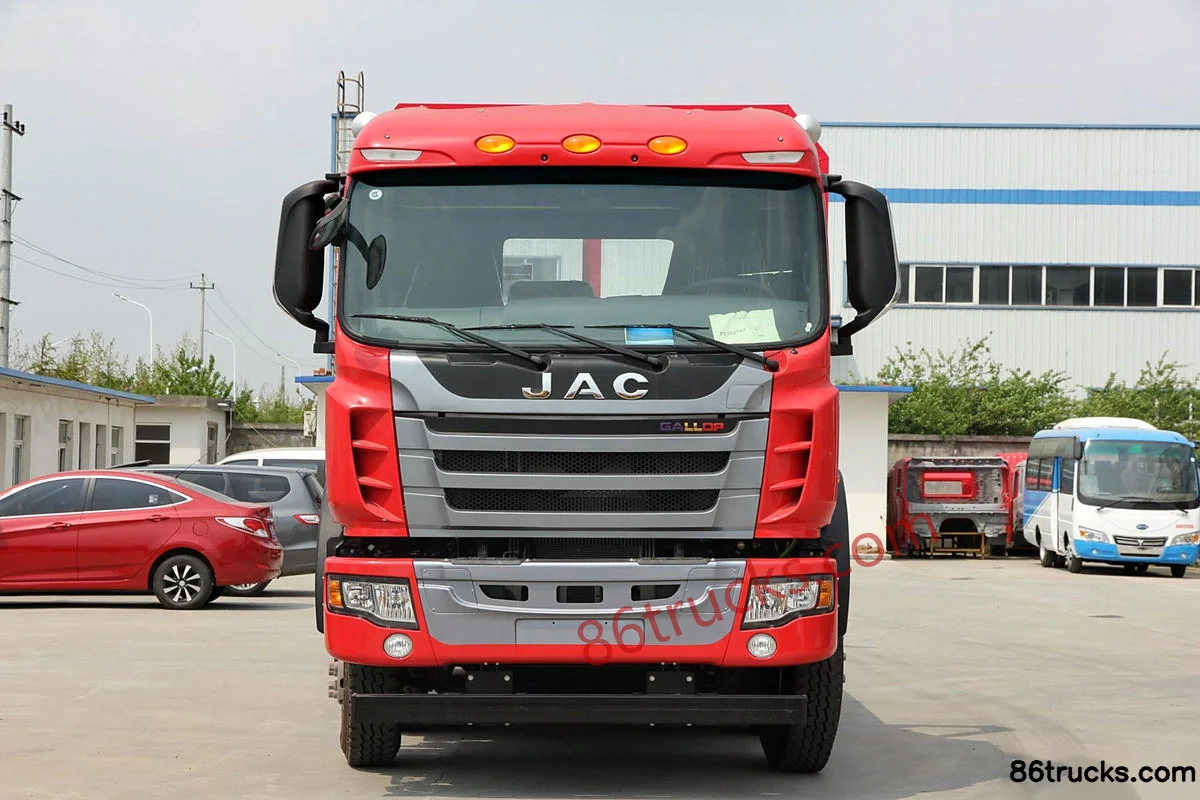

Exterior1

1 photos

FAQ

What emission standard does JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck?

Key specs of JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China V. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck suited for?

JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck is a flatbed truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck differ from other variants in the same series?

JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck belongs to JAC Gallop K3 Heavy Truck (flatbed truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3W Heavy Duty Version 350 hp 6X4(10 wheels) Flatbed Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
