FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck

Export reference
From $19,111
MSRP ¥13.76M CNY
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 4.75ton
seating capacity: 3Personnel
Rated payload: 5.045ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck is a Medium-duty truck featuring 5.2m cargo length, Van body cargo body, 3Personnel volume and 5.045t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5104XXYPK26L3E5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3860mm
Box length class: 5.2m
engine: FotonISF3.8s5154
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.875
Cab length: 7.08m
Cab width: 2.26m
Cab height: 3.4m
Front track width: 1705mm
rear track: 1660mm
Curb Weight: 4.75ton
Rated payload: 5.045ton
GVWR: 9.99ton
Max. speed: 100km/h
Origin: Qujing, Yunnan
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 15°
market segment: Agricultural product transport, logistics distribution, LTL transport
Front/rear suspension: 1.175/2.045m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.2m
Cargo box width: 2.115m
Cargo box height: 2.34m
*Cargo box interior width: 2.1150000095367
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle allowable load: 3990kg
rear axle description: 5T
rear axle allowable load: 6000kg
Axle ratio: 4.875
Leaf spring count: 9/10+11
Tire
Tire Size: 8.25-16,8.25R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

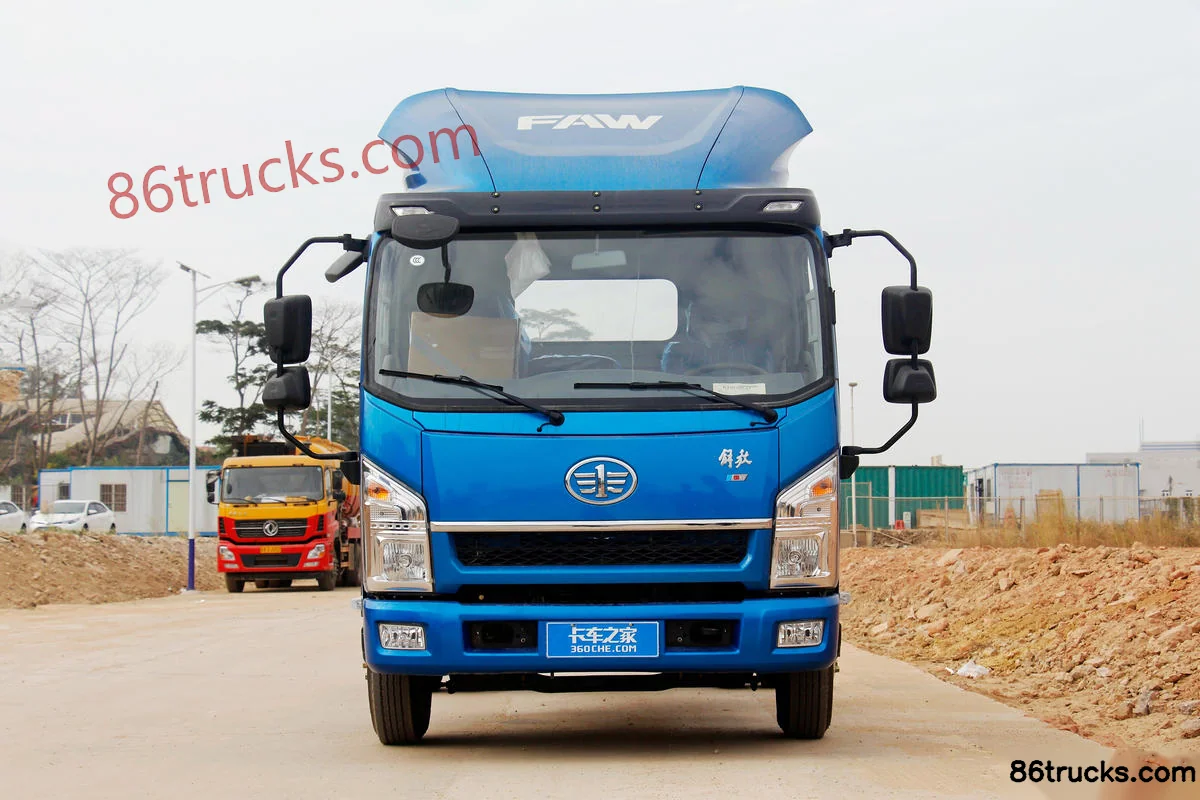

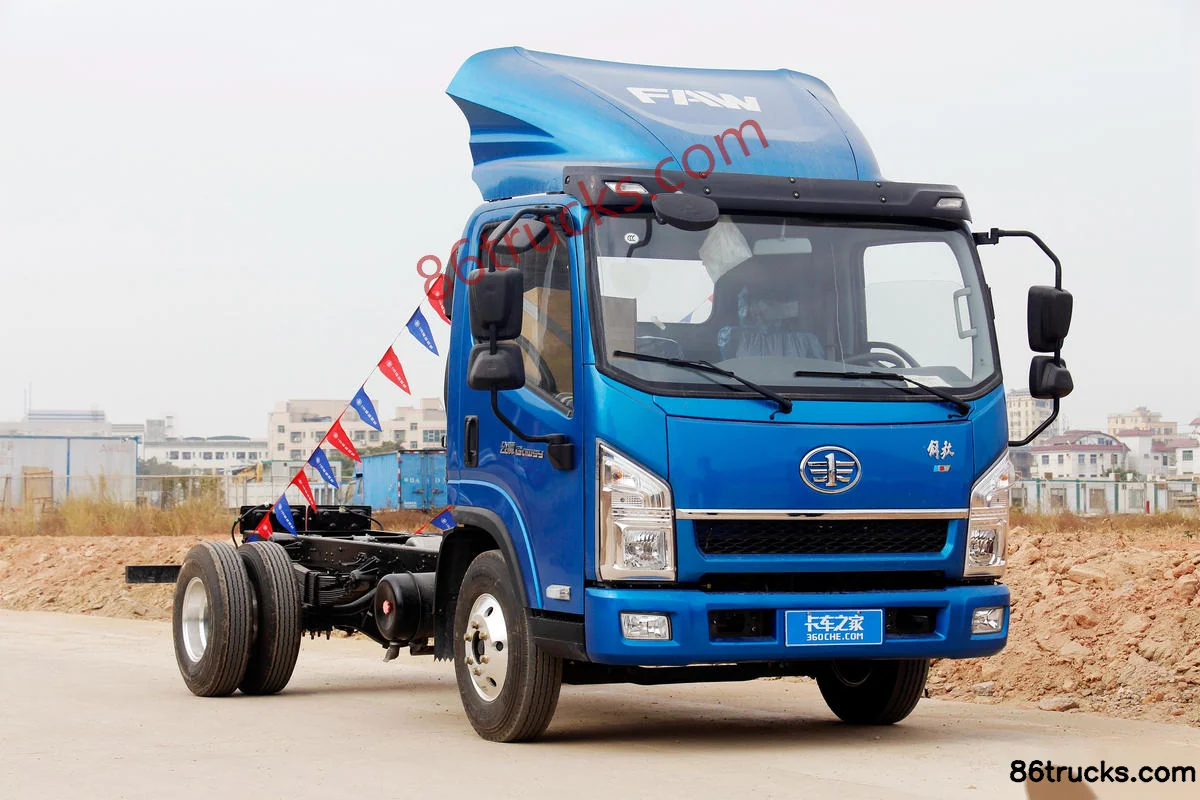

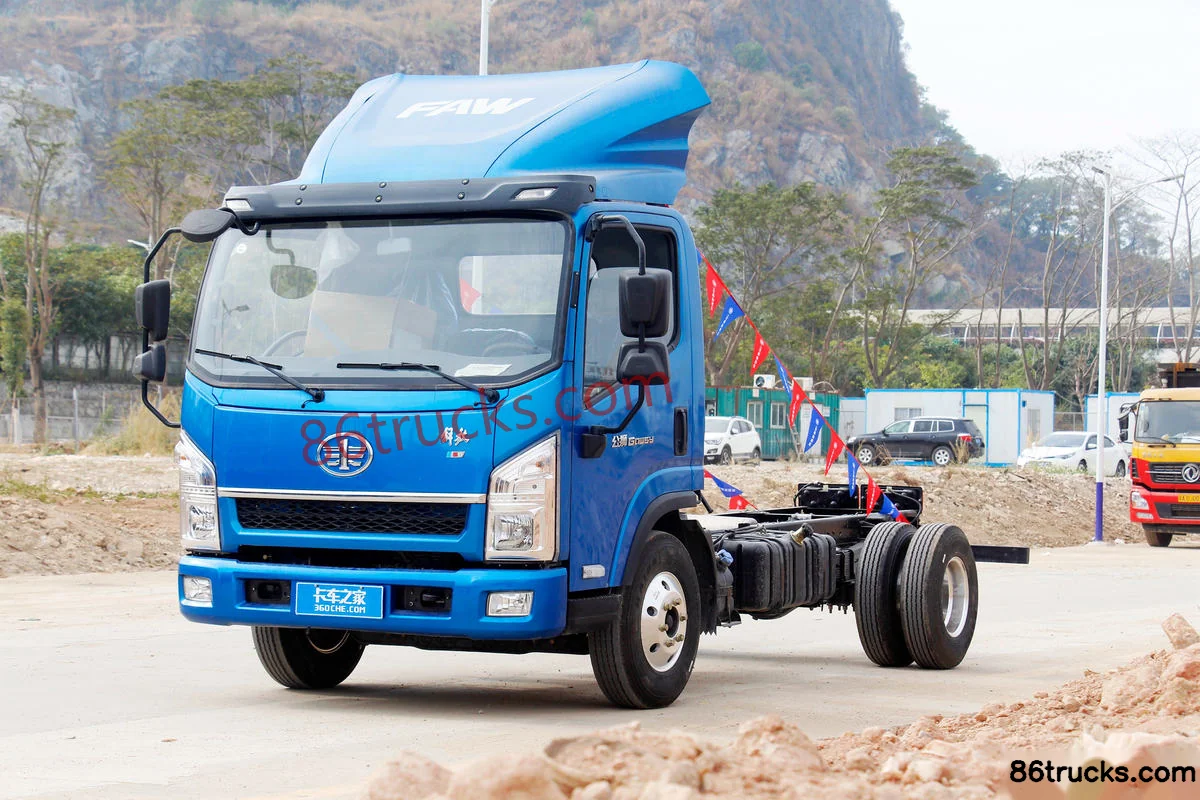

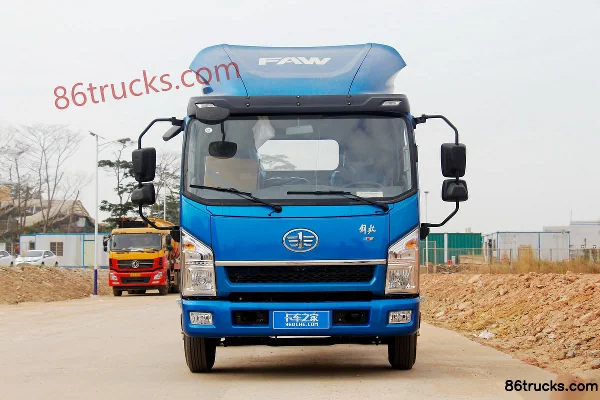

Exterior3

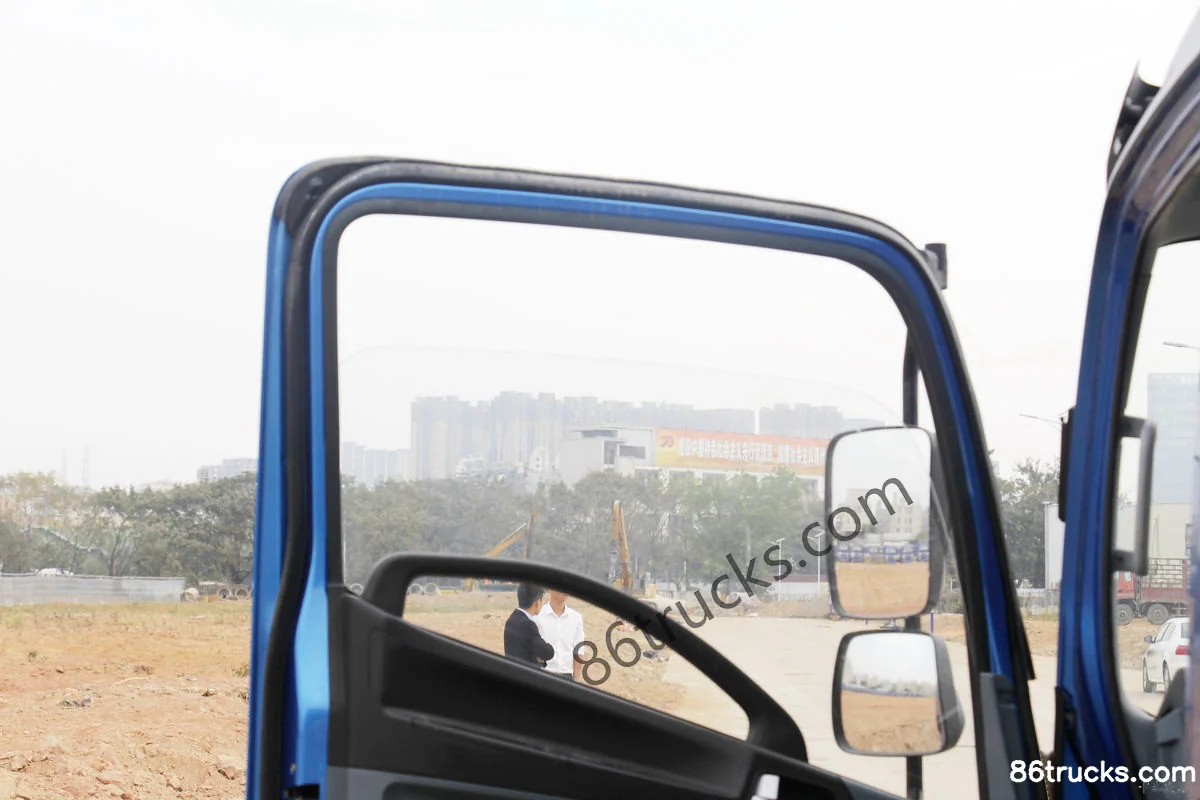

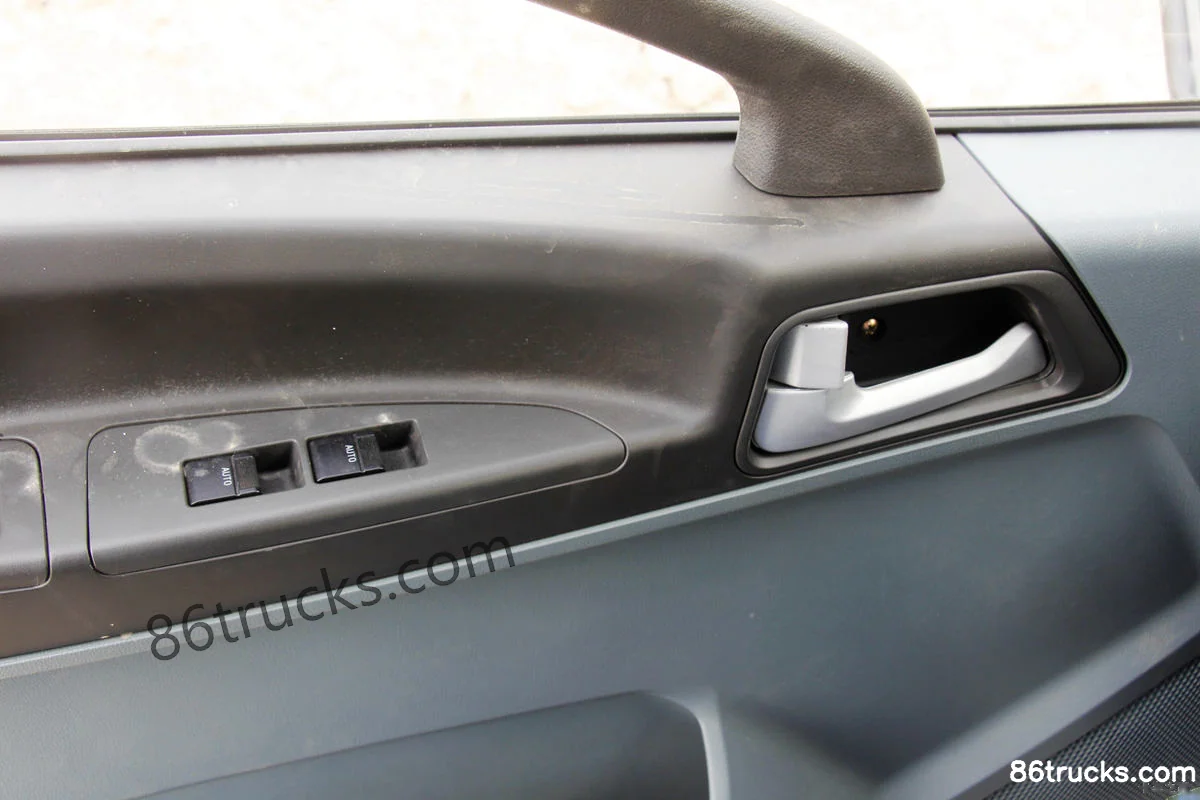

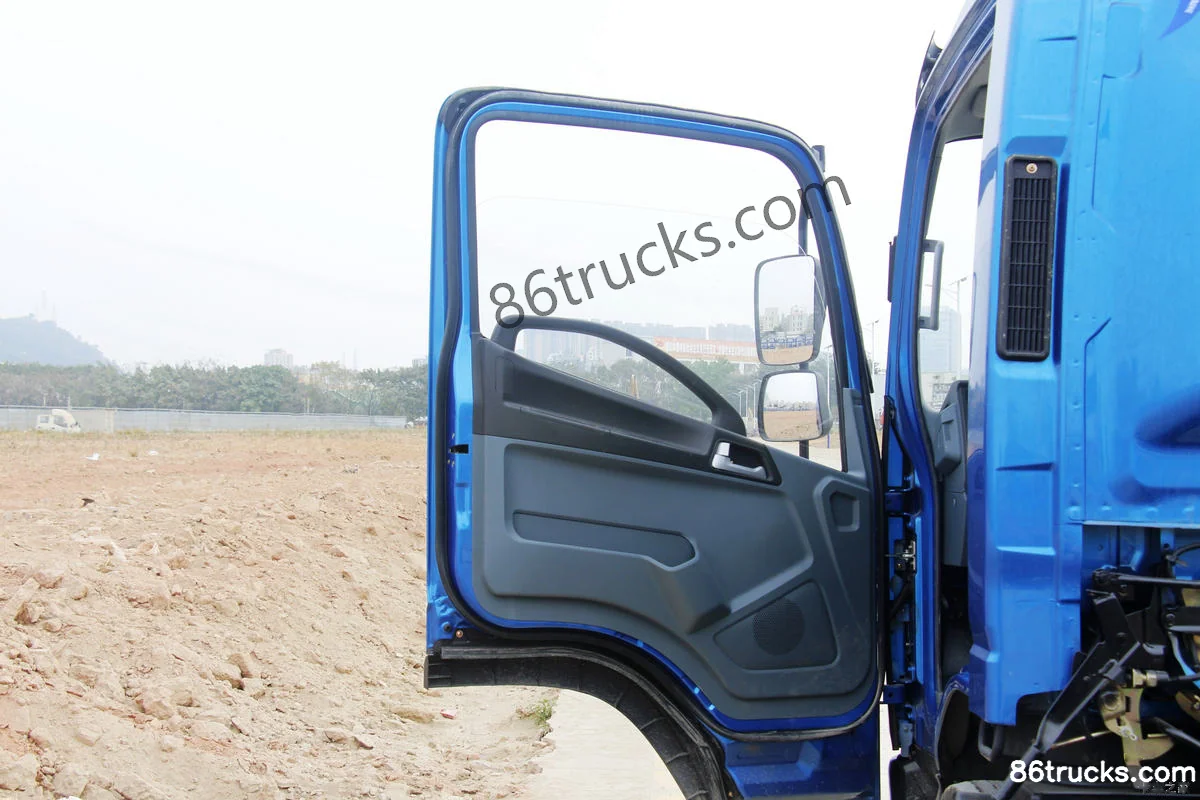

Cab3

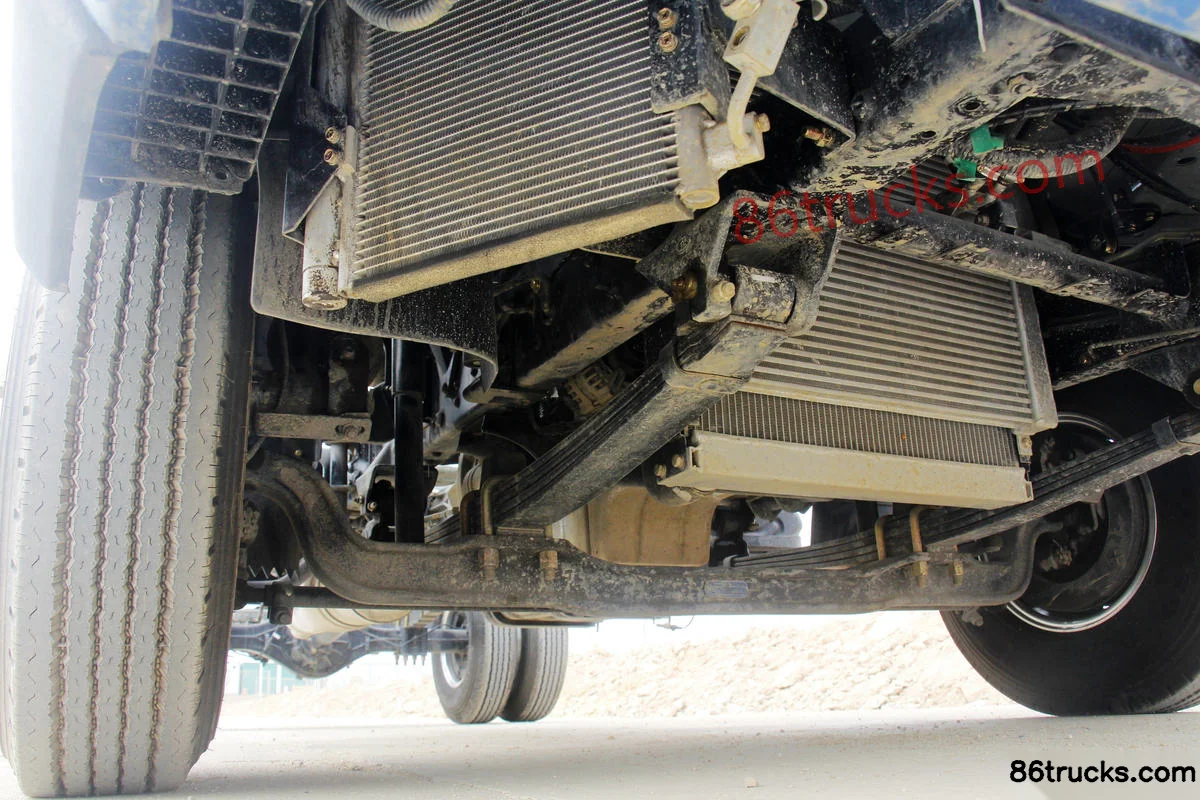

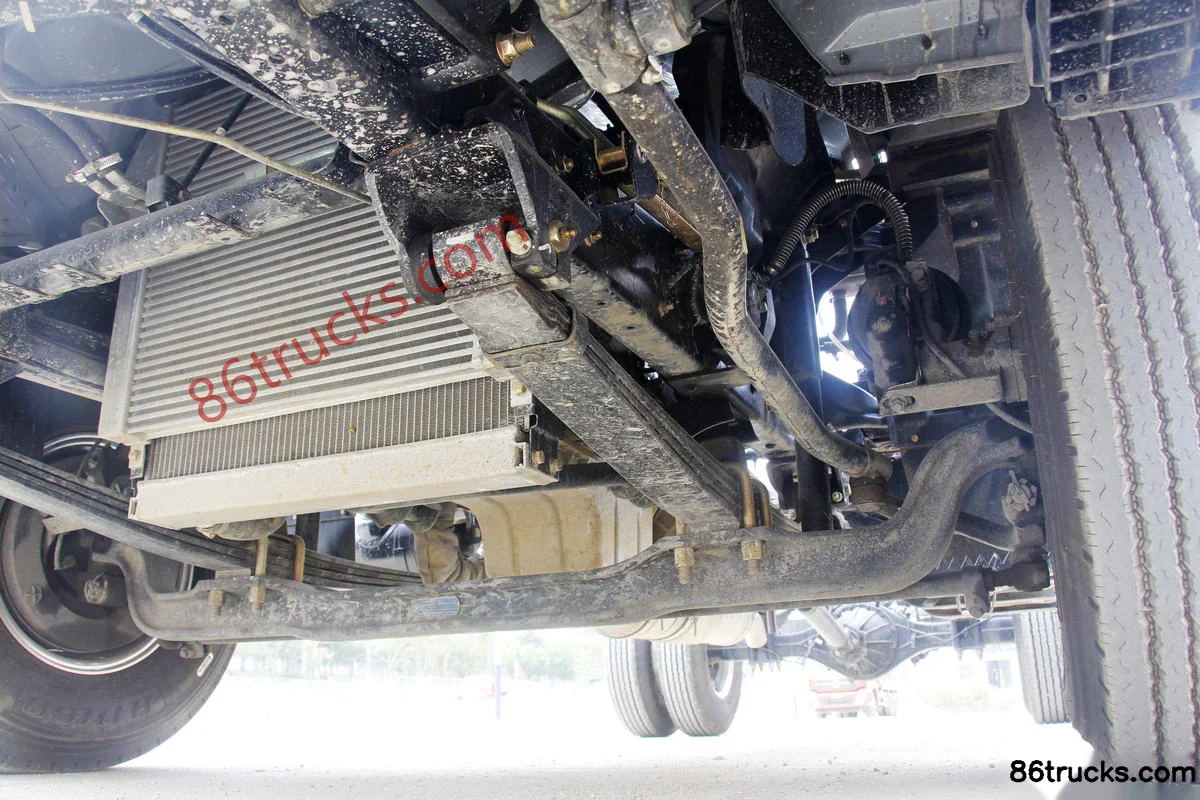

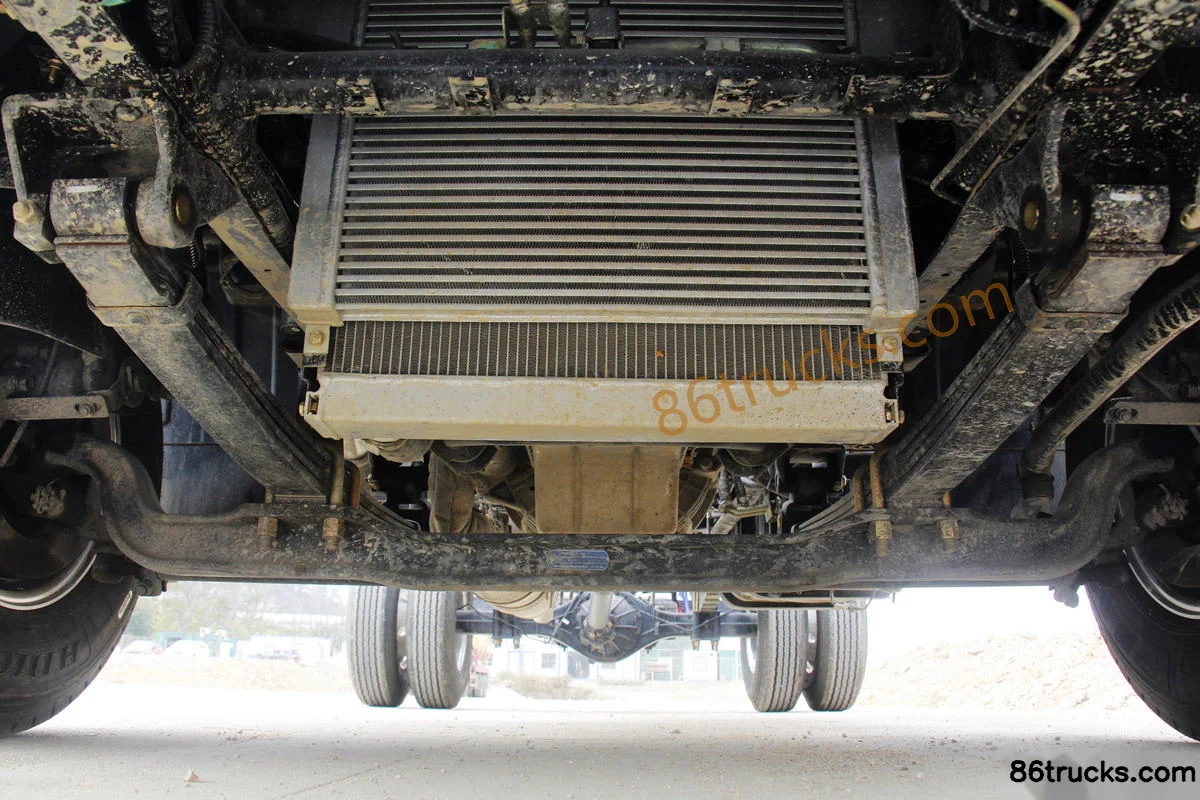

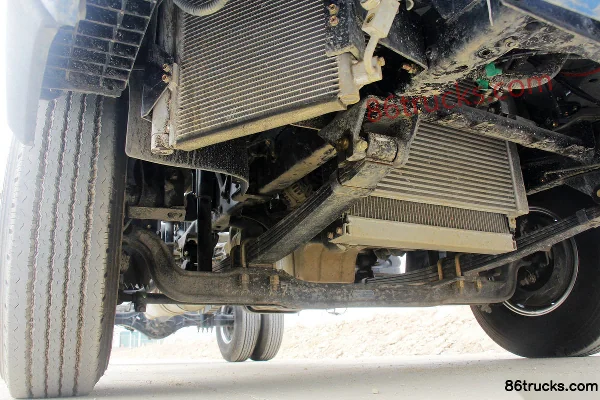

Chassis3

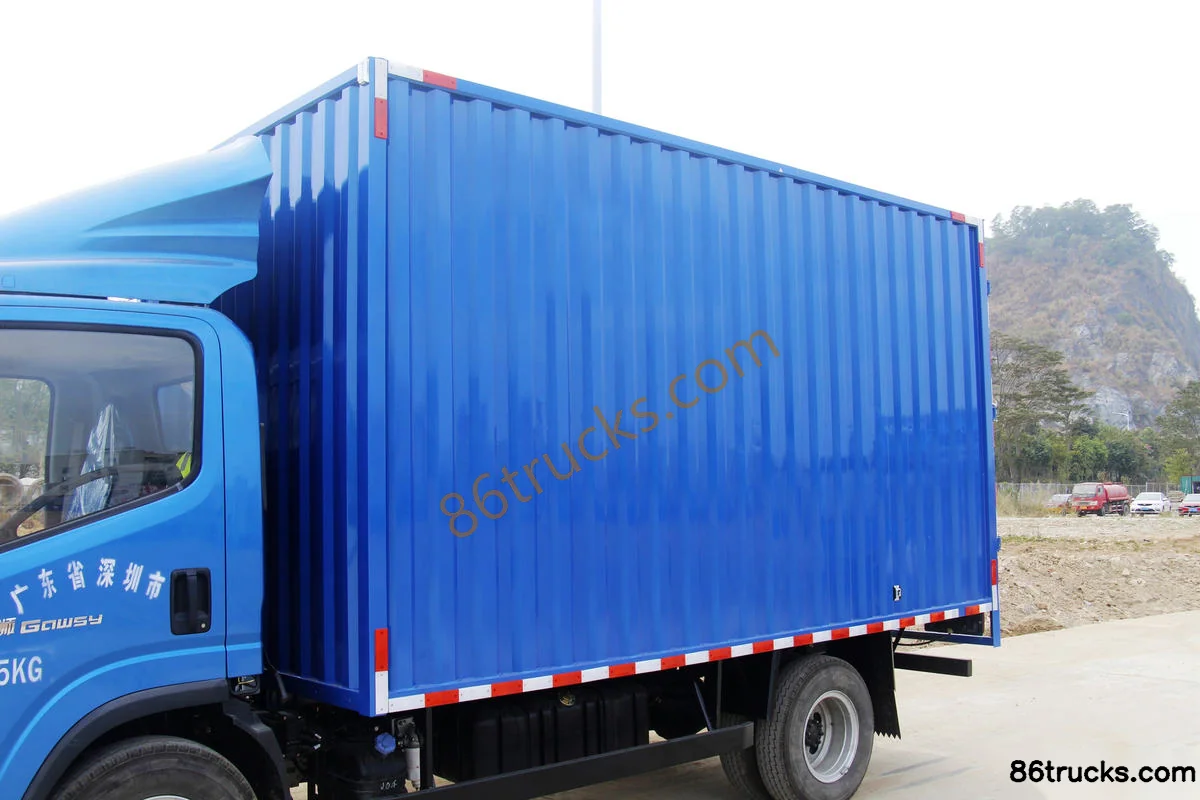

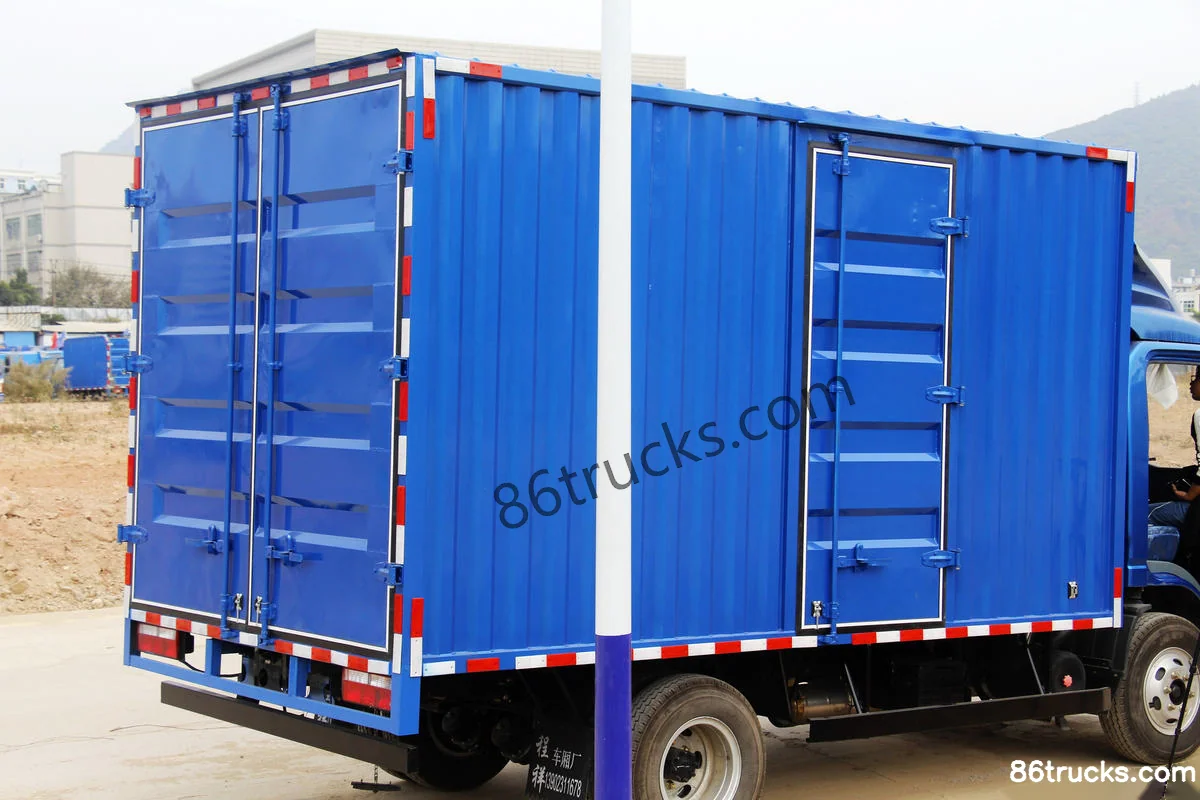

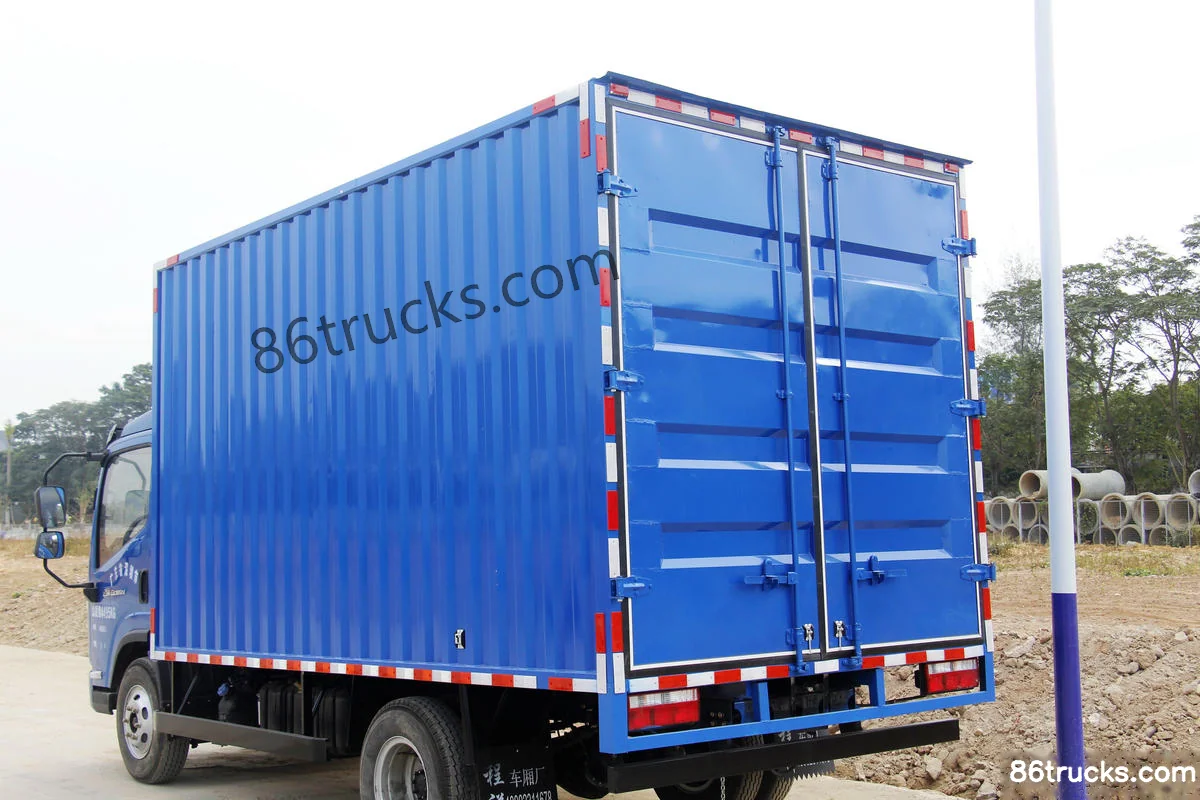

Body3

12 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck, and what does it include?

FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck export reference is about From $19,111; MSRP is ¥13.76M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck?

Key specs of FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck suited for?

FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck differ from other variants in the same series?

FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck belongs to FAW Hongta FAW Jiefang Gongshi Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Gongshi 154 hp 4X2(6 wheels) 5.2m single-row van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
