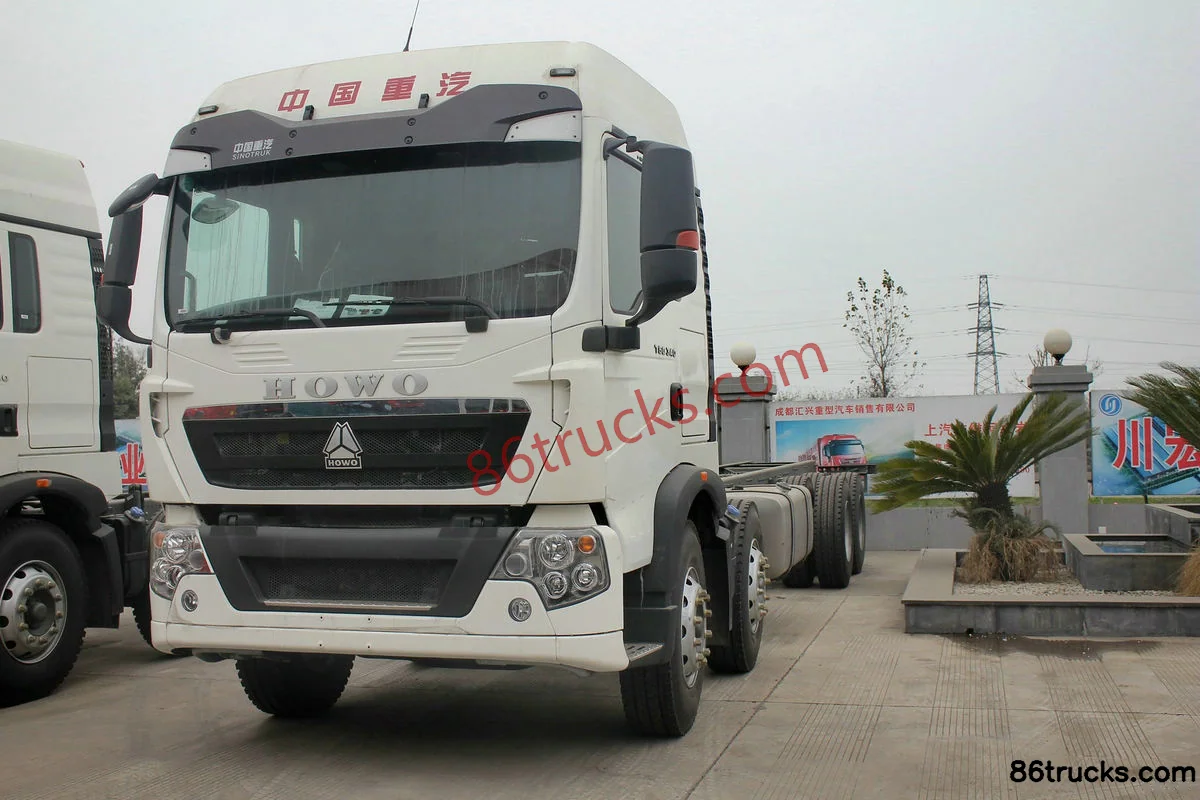

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis

Export reference
From $42,875
MSRP ¥30.87M CNY
Horsepower: 340
Emission: China IV
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 11.28ton
seating capacity: 2Personnel
Rated payload: 19.59ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.52m cargo length, Chassis cargo body, 2Personnel volume and 19.59t payload. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1317N466GD1
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
engine: SinotrukMC07.34-40
transmission: SinotrukHW19712
Rear Axle Ratio: 5.143
Cab length: 12m
Cab width: 2.496m
Cab height: 3.405m
Front track width: 2015/2015mm
rear track: 1830/1830mm
Curb Weight: 11.28ton
Rated payload: 19.59ton
GVWR: 31ton
Max. speed: 110km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 22°
departure angle: 14°
Front/rear suspension: 1.43/2.82m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-40
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China IV
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19712
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 9.52m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: Tandem axle
rear axle allowable load: 17500 (tandem axle)kg
Axle ratio: 5.143
Leaf spring count: 11/11/10
Tire
Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

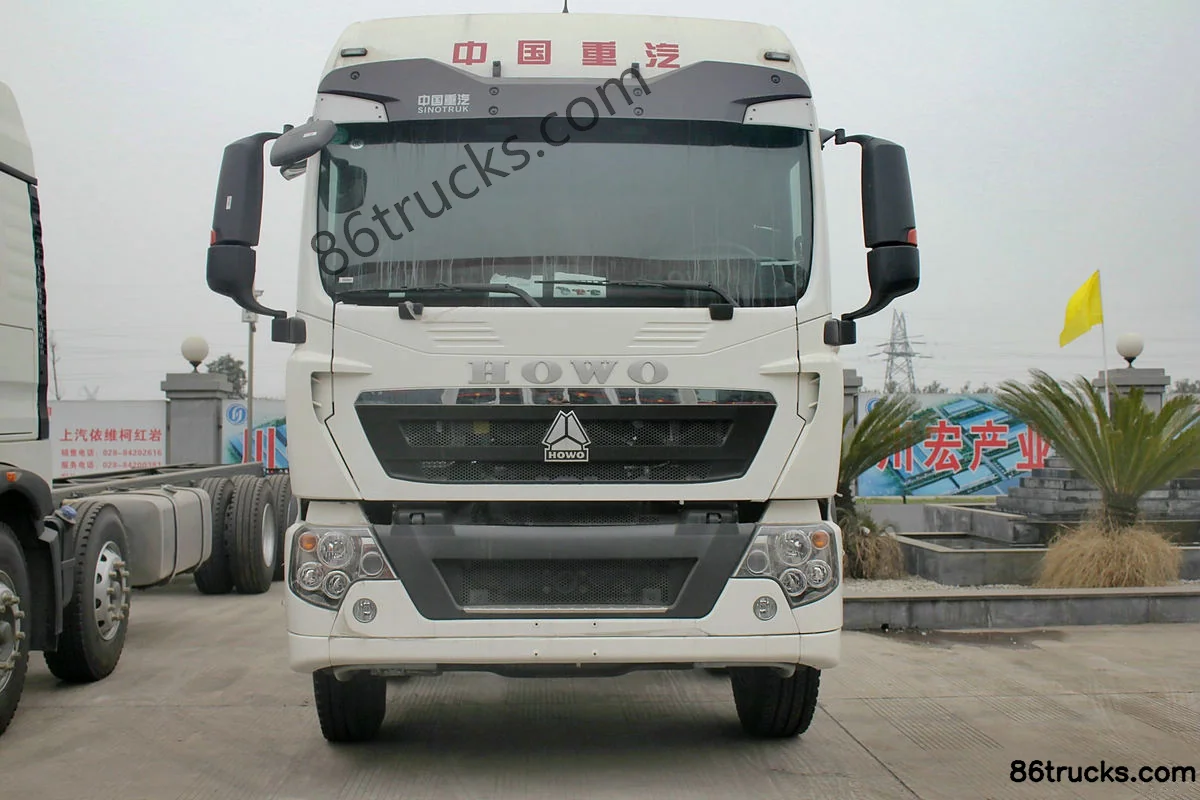

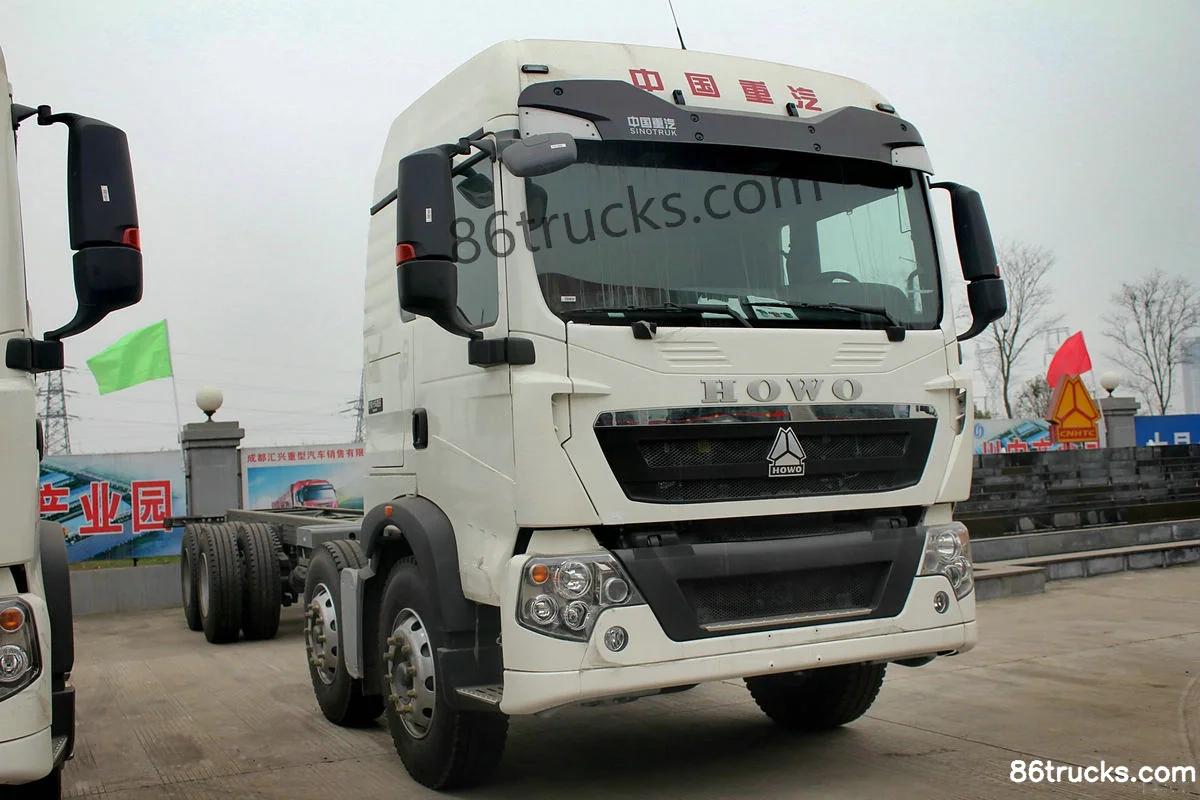

Exterior3

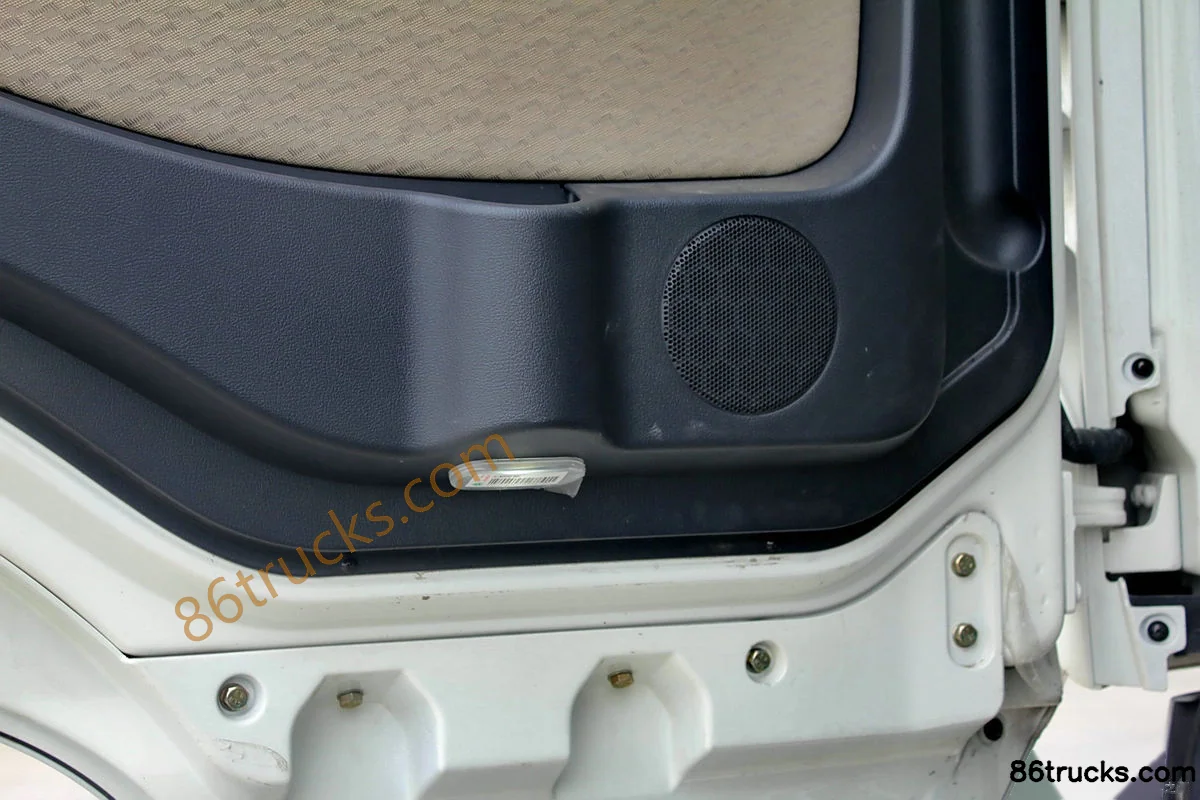

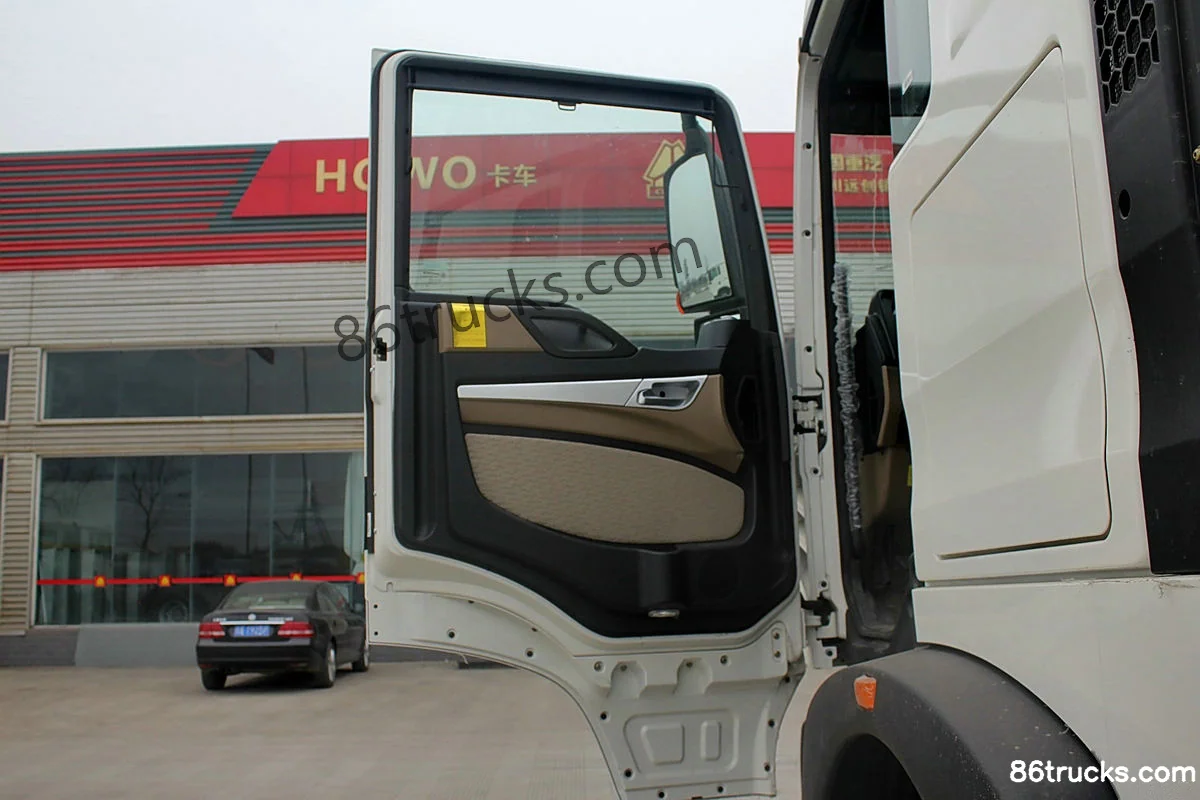

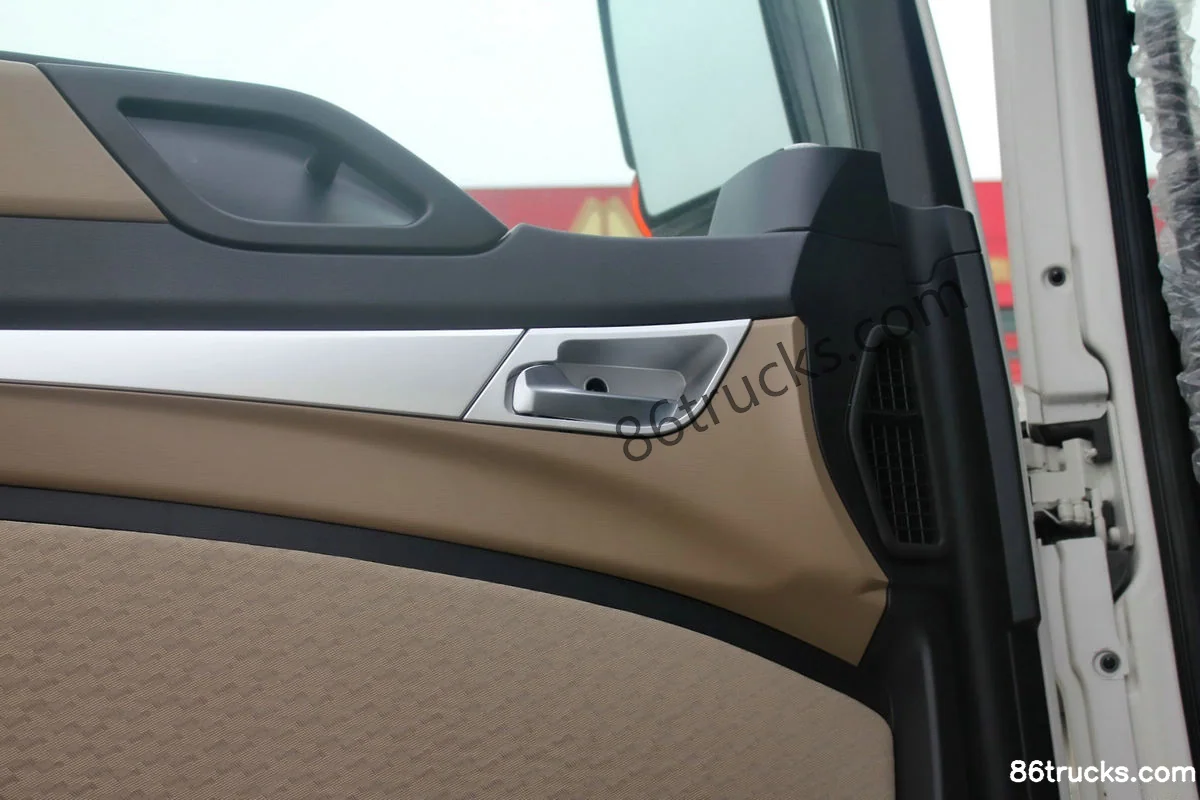

Cab3

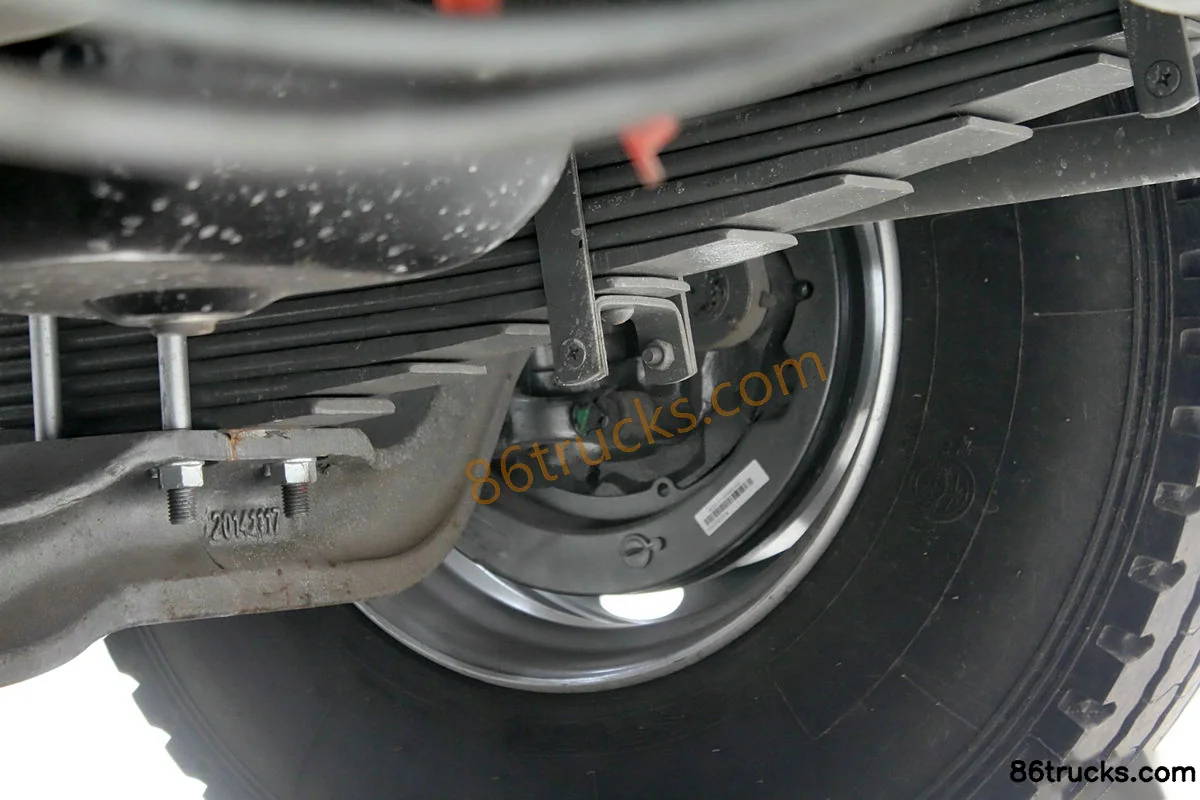

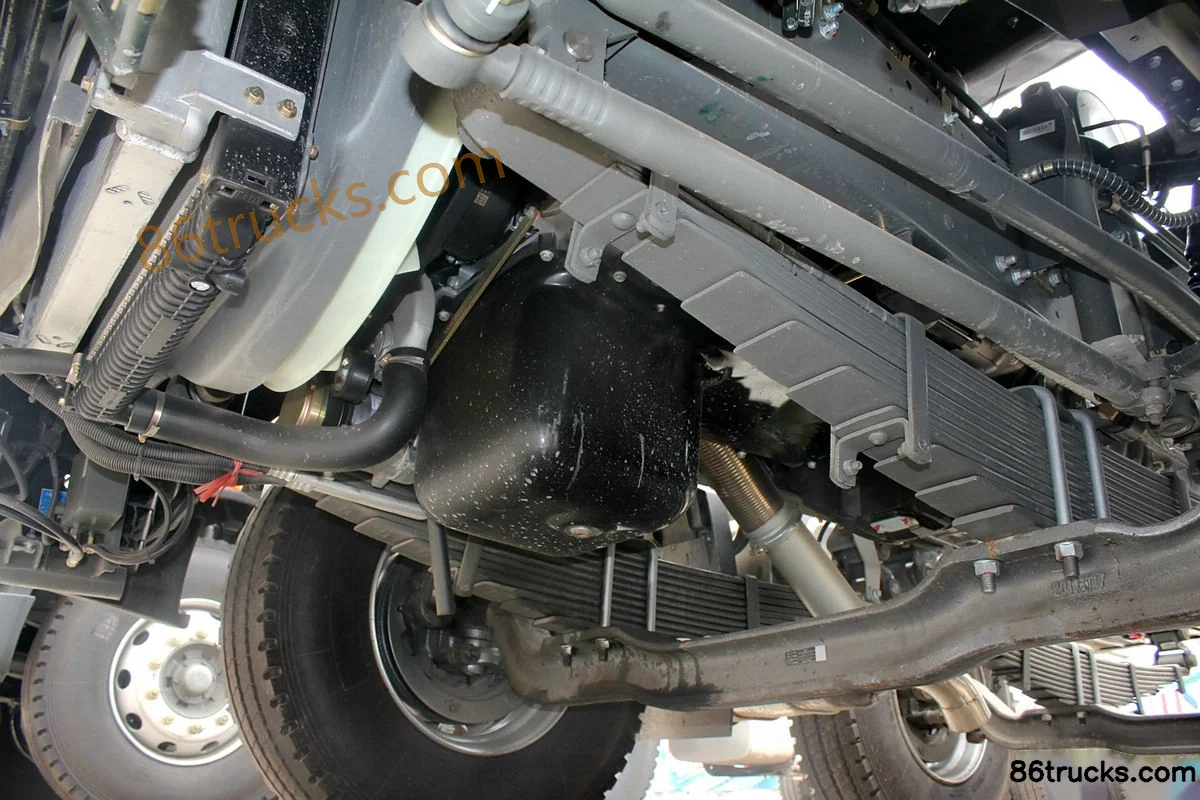

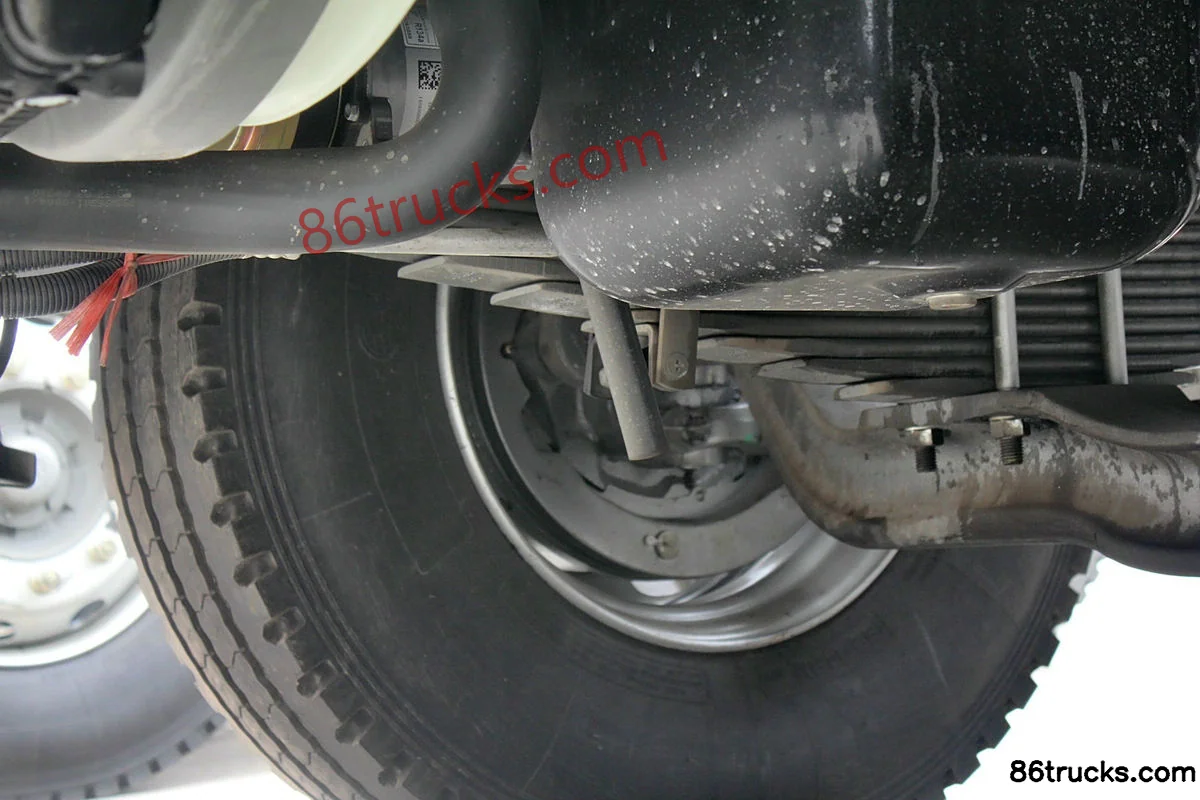

Chassis3

9 photos

FAQ

What is the export price of Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis, and what does it include?

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis export reference is about From $42,875; MSRP is ¥30.87M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis?

Key specs of Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis: Drive: 8x4; Horsepower: 340 hp; Emission: China IV; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis suited for?

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis belongs to Sinotruk HOWO T5G medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
