Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh

Export reference
MSRP N/A
Rated payload:: 8.37ton
Wheelbase:: 5000mm
Cargo box type:: Van body
Model code (announced):: DFH5180XXYEEV13
Type:: enclosed cargo truck
Box length class:: 6.8m
Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 350km
Motor 1 Brand: Suzhou Green Control
Curb Weight: 9.5ton

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh is a Medium-duty truck featuring 350km battery/range, Suzhou Green Control motor, 4X2 (6 wheels) drive and 8.37t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFH5180XXYEEV13
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
Cab length: 9.05m
Cab width: 2.55m
Cab height: 4m
CLTC range: 350km
Curb Weight: 9.5ton
Rated payload: 8.37ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ270XS-LKM0592
Motor Type: Permanent magnet synchronous motor
total rated power: 150kW
Peak power: 252kW
total peak torque: 550N·m
total rated torque: 260N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 310kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 2.6m
Cab parameters
Cab: D560e Flat Roof with Half Sleeper
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: LvKong STEA39000
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Mirrors:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

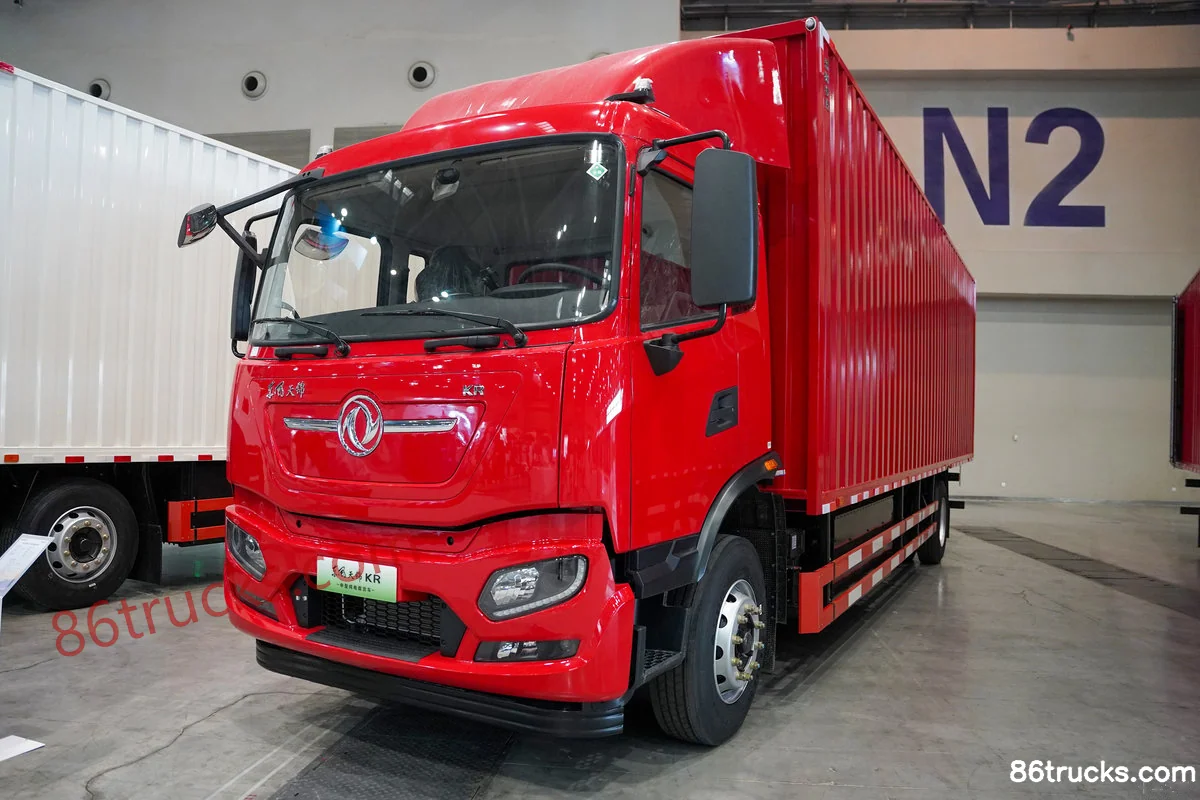

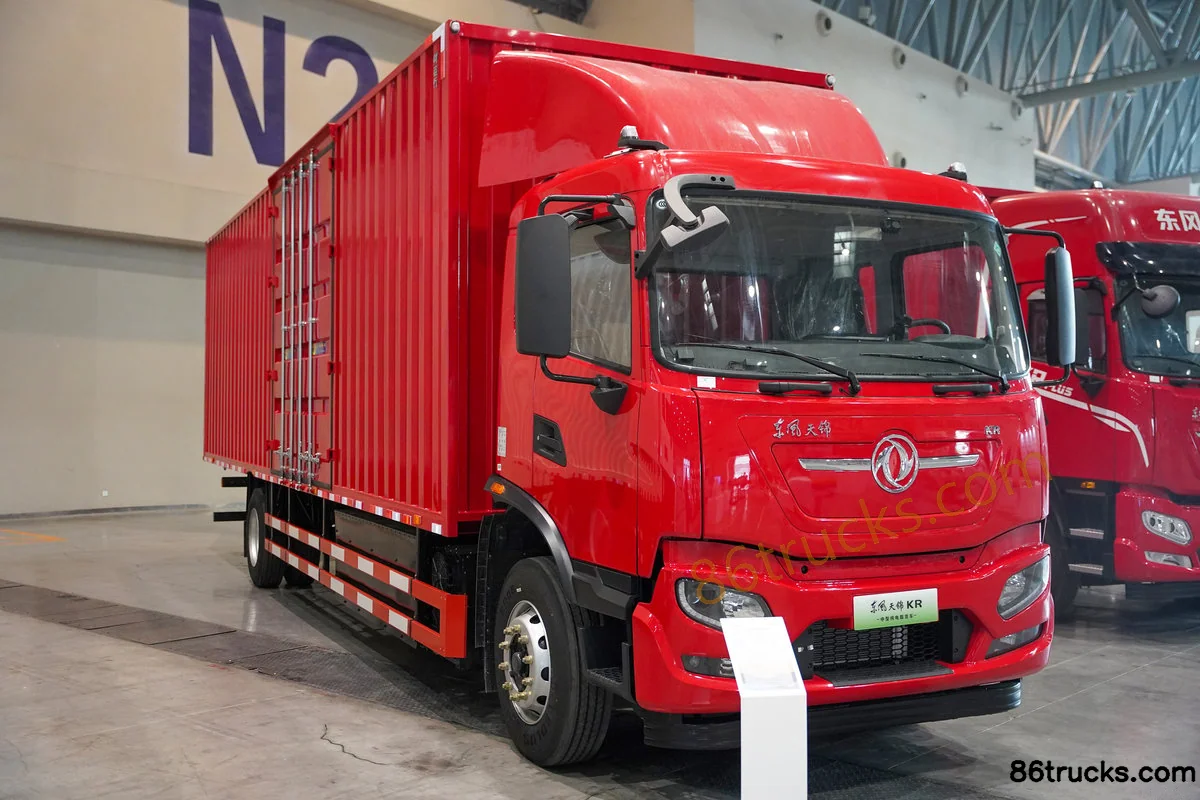

Exterior3

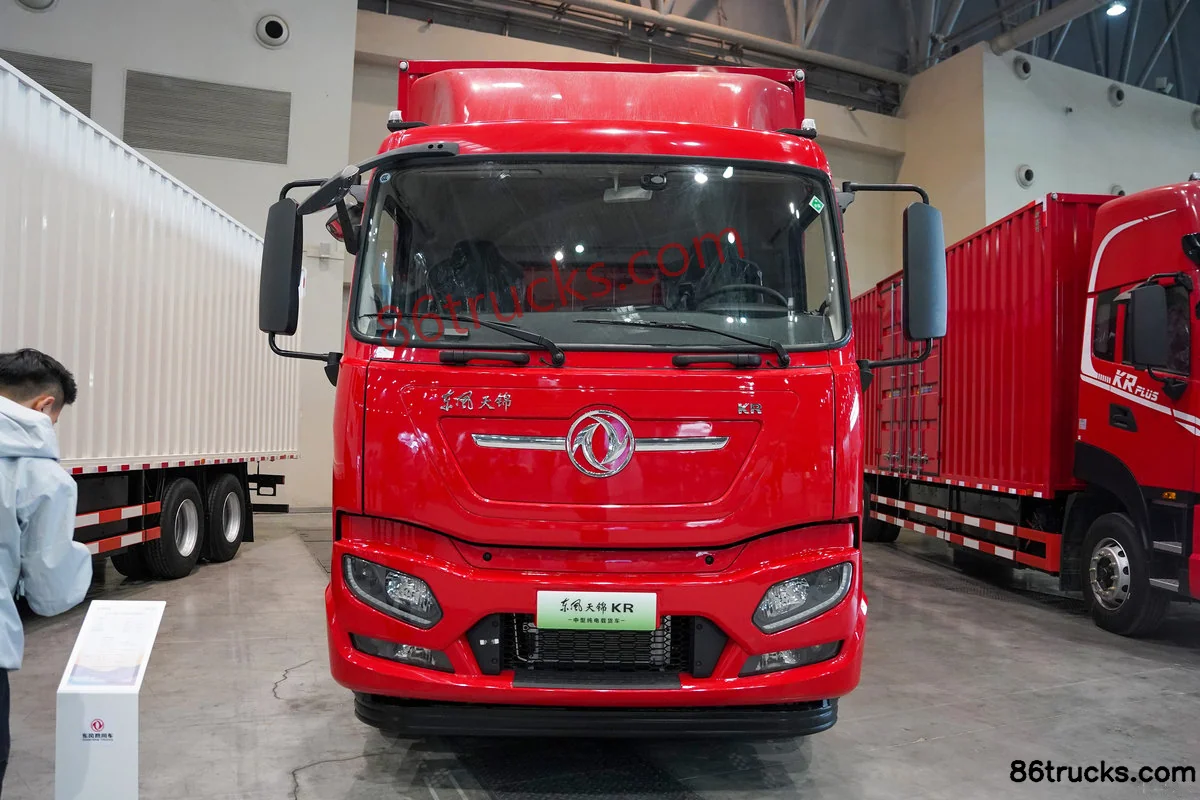

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Exterior (1) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Exterior (2) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Exterior (3) | 86Trucks

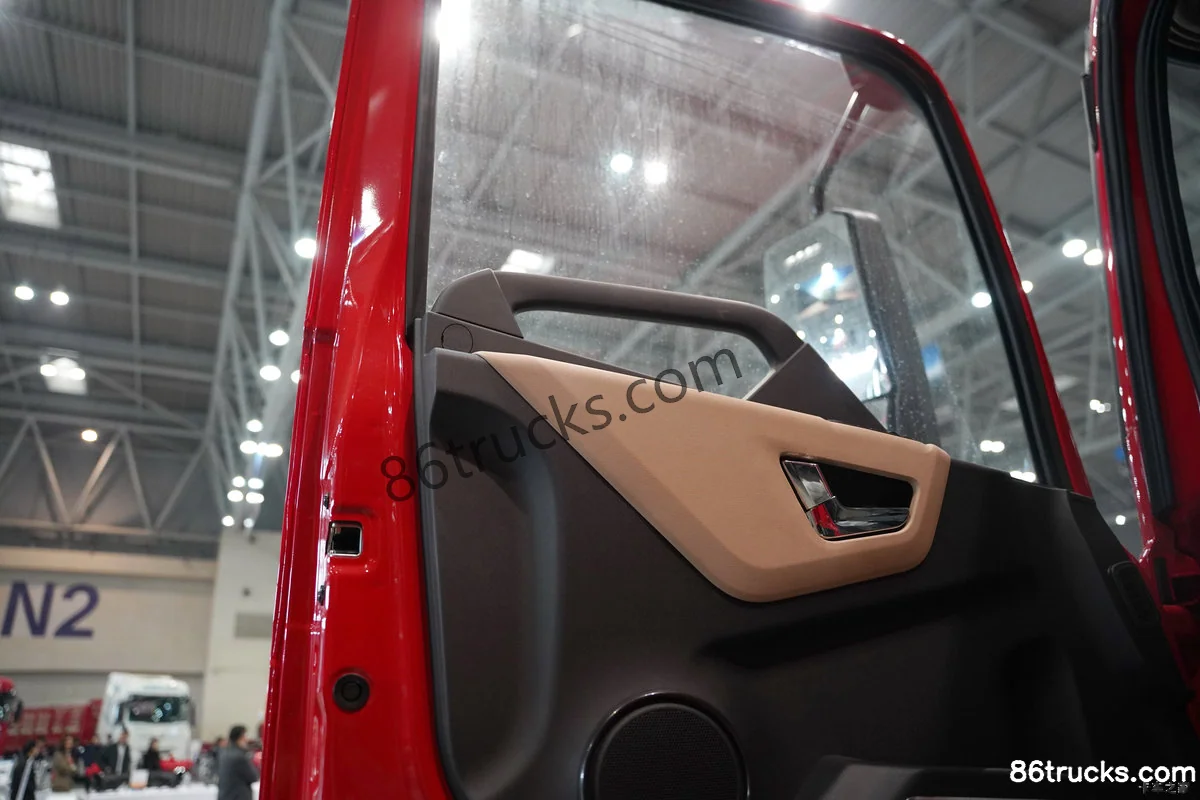

Cab3

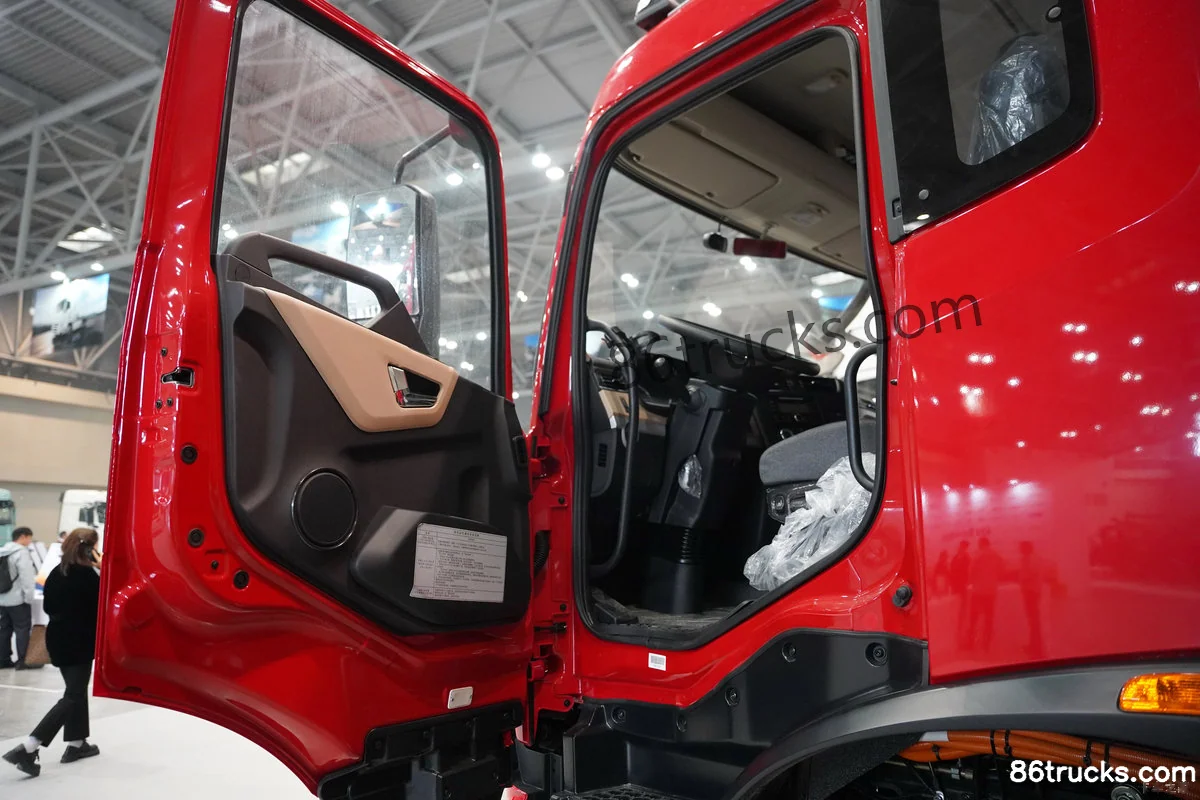

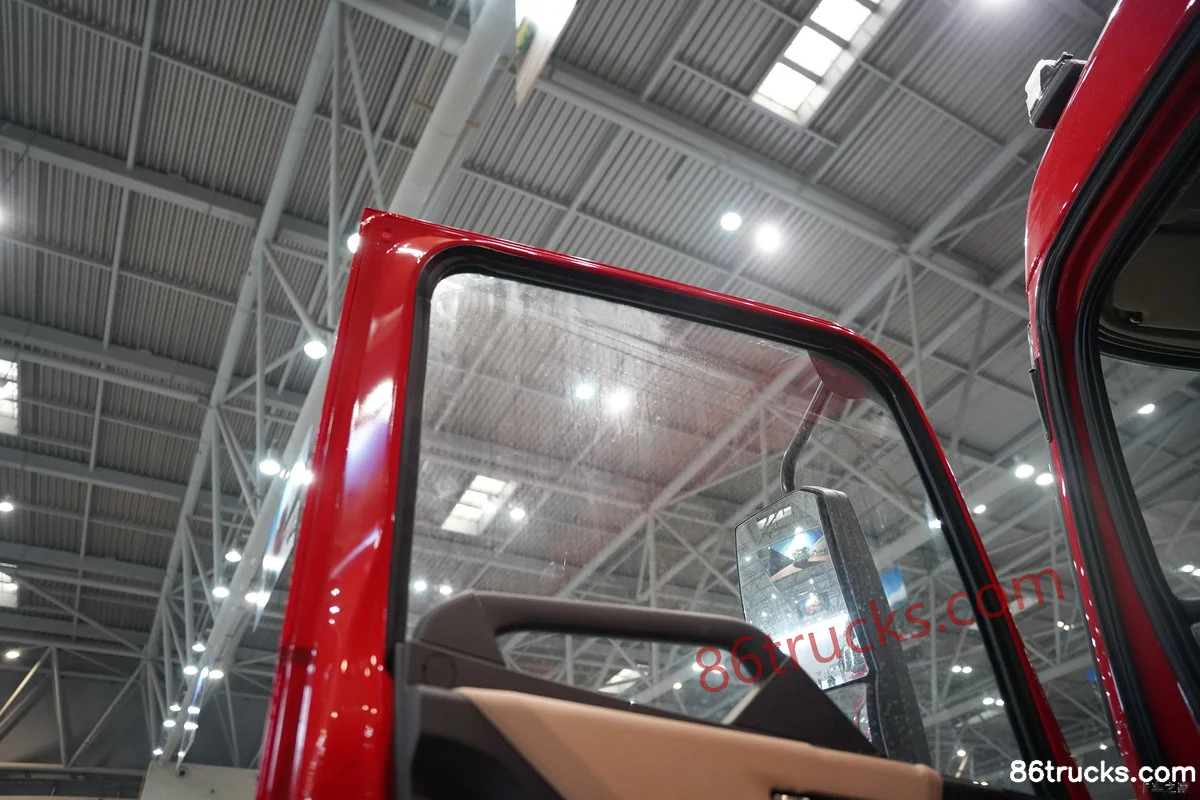

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Cab (1) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Cab (2) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Cab (3) | 86Trucks

Chassis3

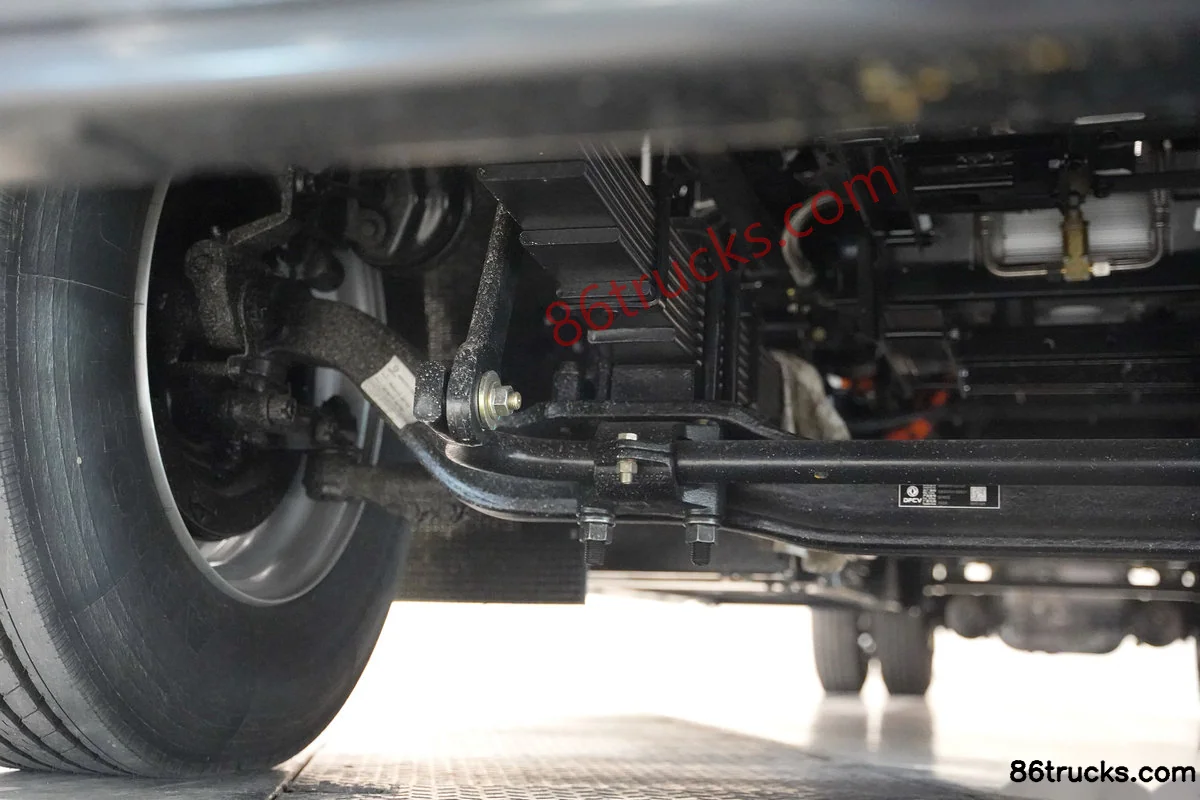

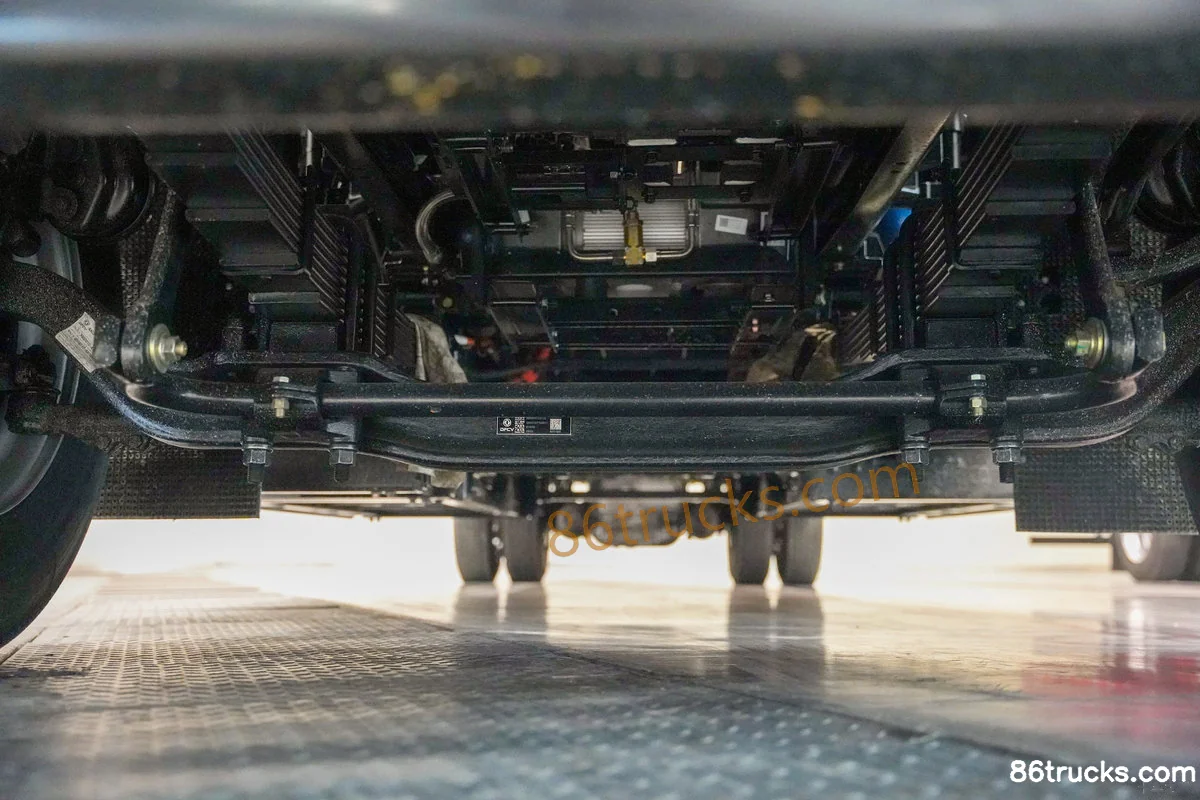

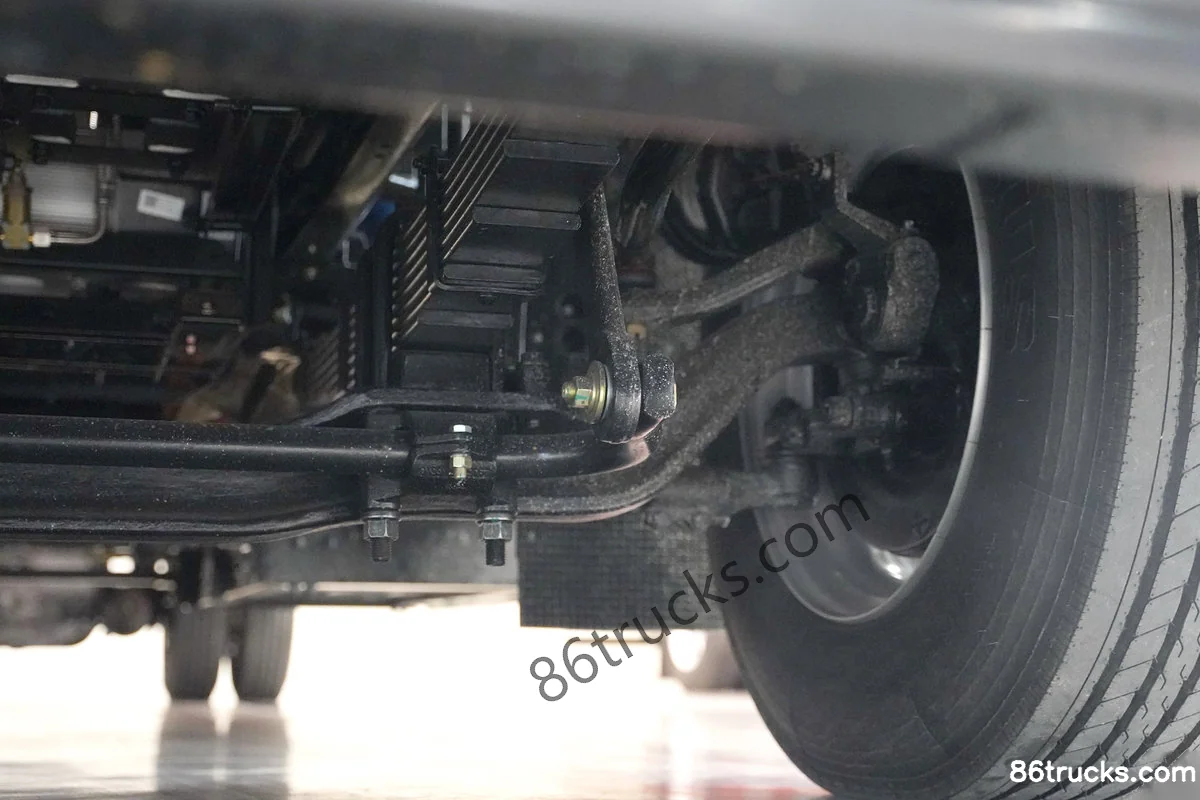

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Chassis (1) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Chassis (2) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Chassis (3) | 86Trucks

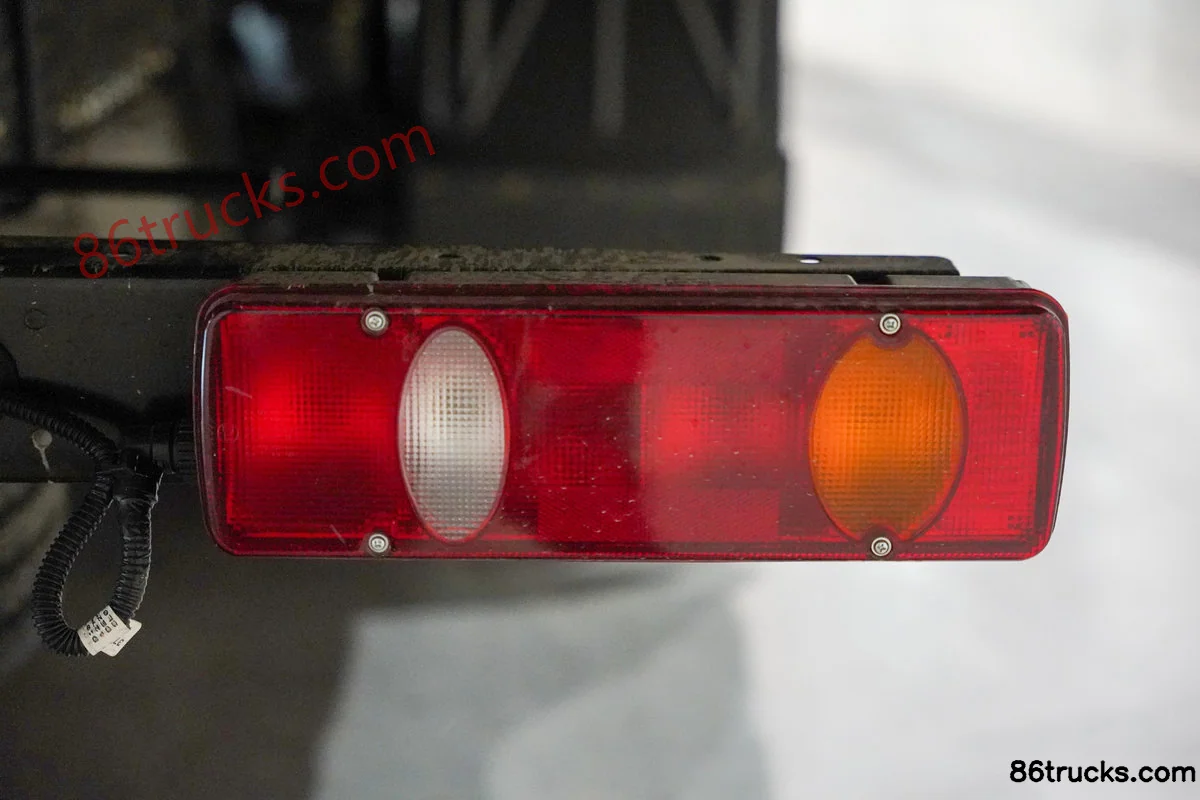

Body3

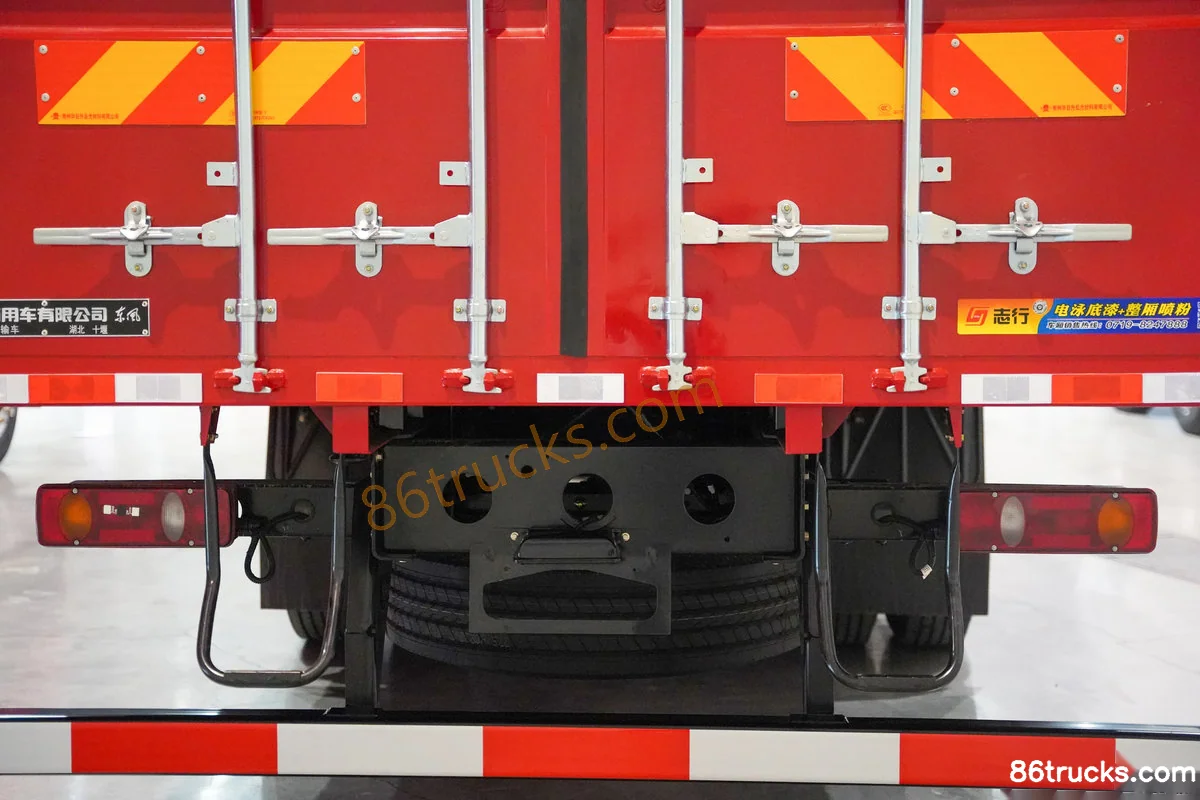

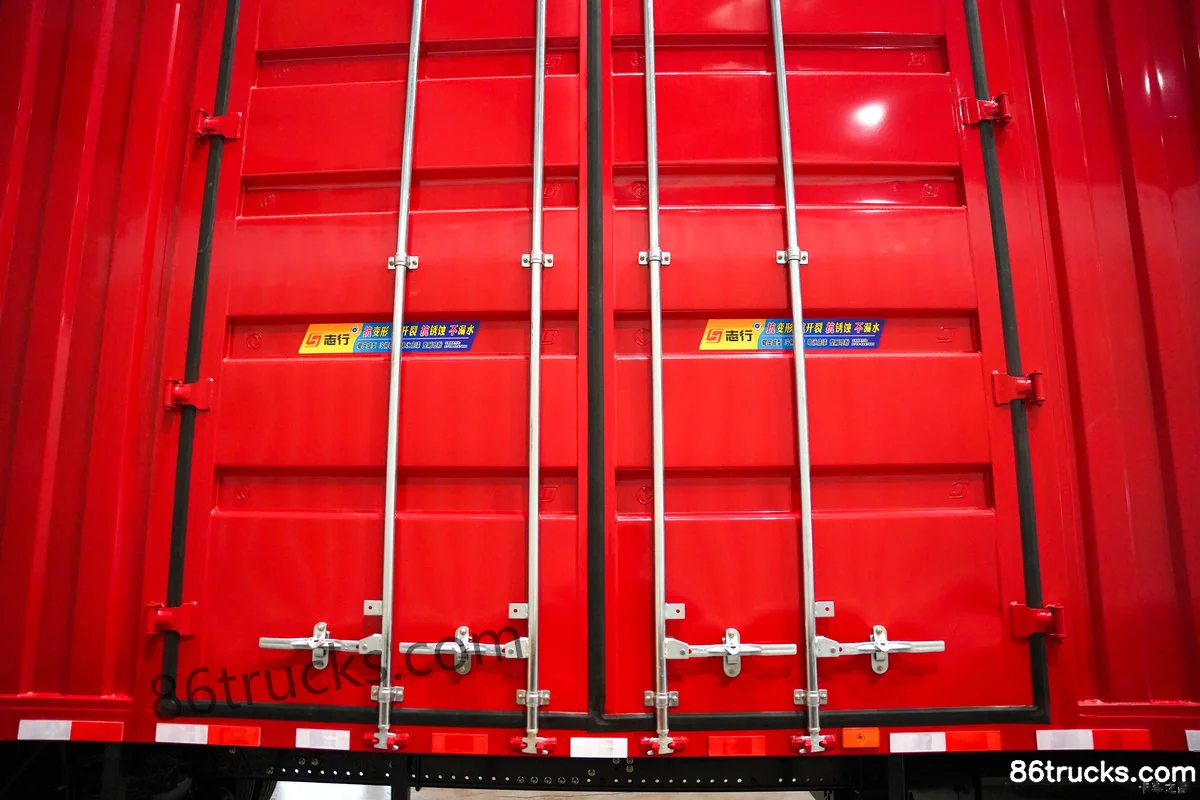

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Body (1) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Body (2) | 86Trucks Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh?

Key specs of Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh suited for?

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh differ from other variants in the same series?

Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh belongs to Dongfeng Tianjin KR (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KR 4X2(6 wheels) 6.8m Pure Electric Van Cargo Truck CATL 310kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
