Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis

Export reference
From $40,958
MSRP ¥29.49M CNY
Horsepower: 310
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 11.35ton
seating capacity: 3Personnel
Rated payload: 19.455ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 8m cargo length, Chassis cargo body, 3Personnel volume and 19.455t payload. On the powertrain side, it comes with a WeichaiWP10 engine, 310 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1315VPPHJ-2
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4700+1350mm
engine: WeichaiWP10.310E42
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 4.444
Cab length: 11.99m
Cab width: 2.495m
Cab height: 3.55m
Front track width: 1921/1921mm
rear track: 1860/1860mm
Curb Weight: 11.35ton
Rated payload: 19.455ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Heavy-duty cargo trucks
Approach angle: 26°
departure angle: 13°
Front/rear suspension: 1.39/2.78m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E42
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1420N·m
Max torque speed: 1200-1500rpm
Rated speed: 2200rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 8m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6600/6600kg
rear axle description: 457S
rear axle allowable load: 17800 (tandem axle)kg
Axle ratio: 4.444
Leaf spring count: 10/10/11,10/10/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

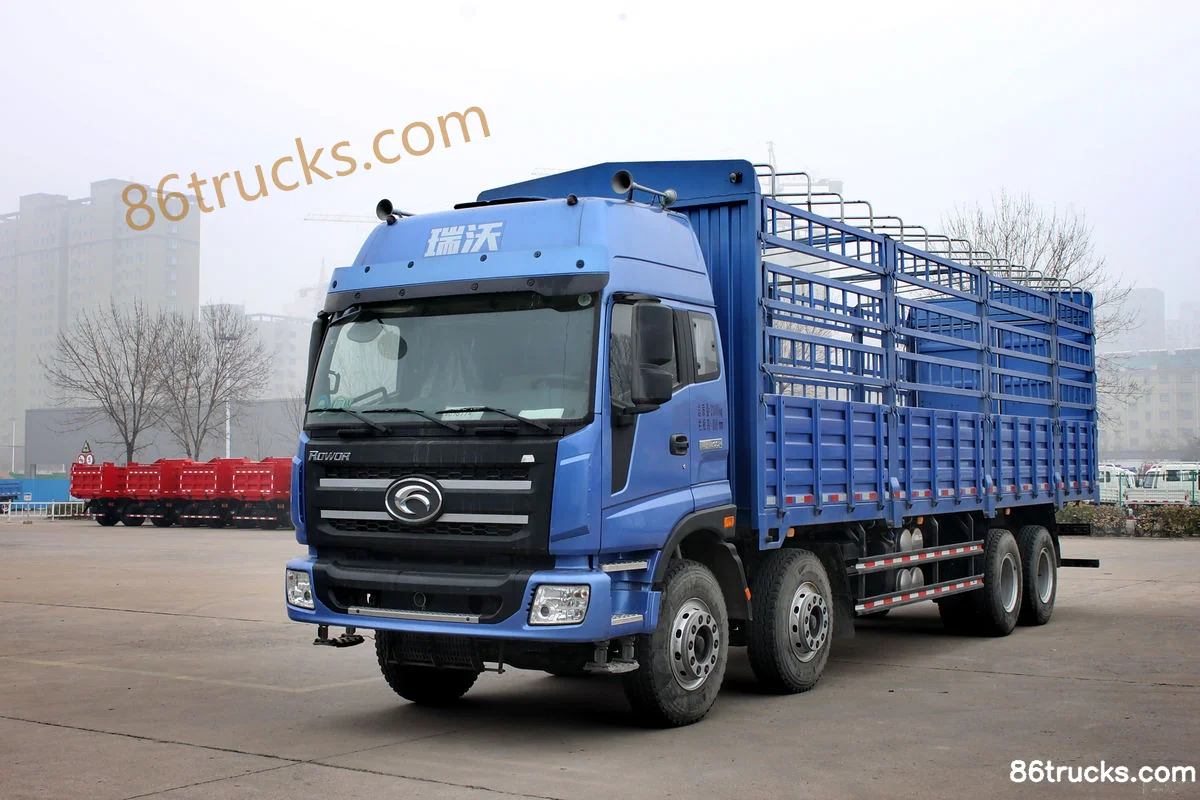

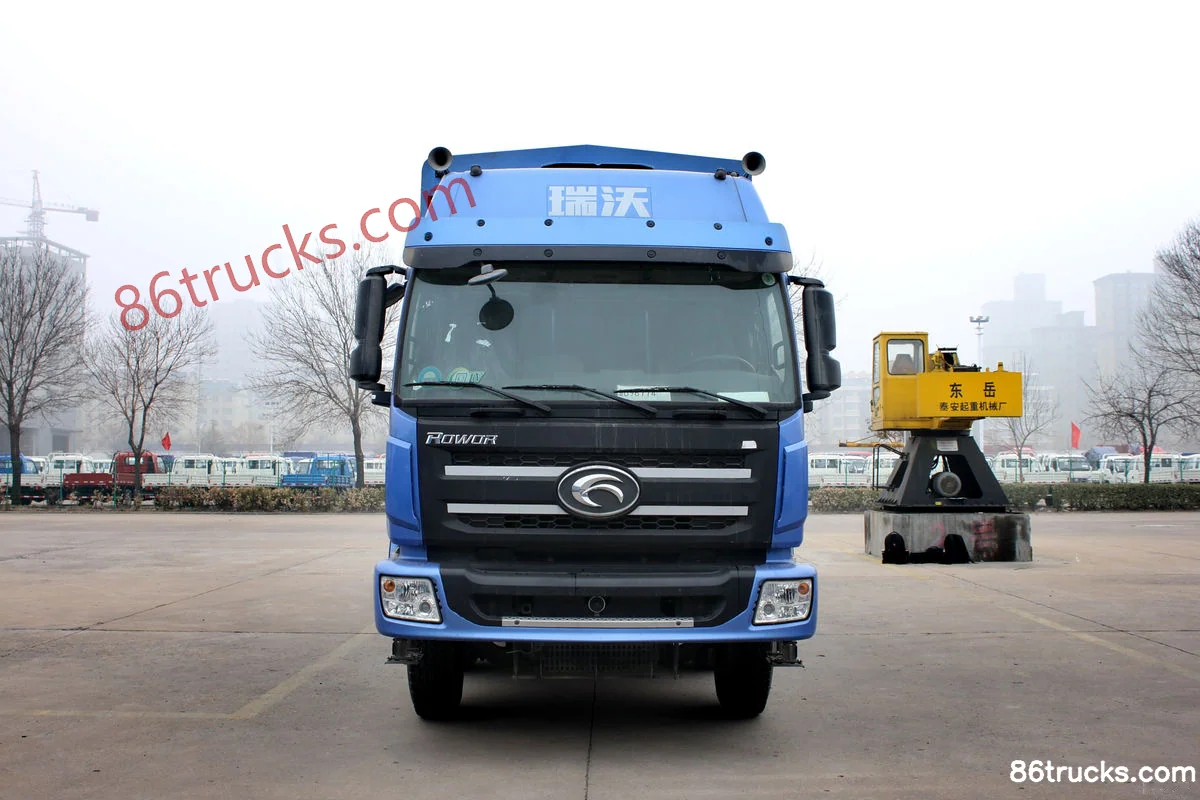

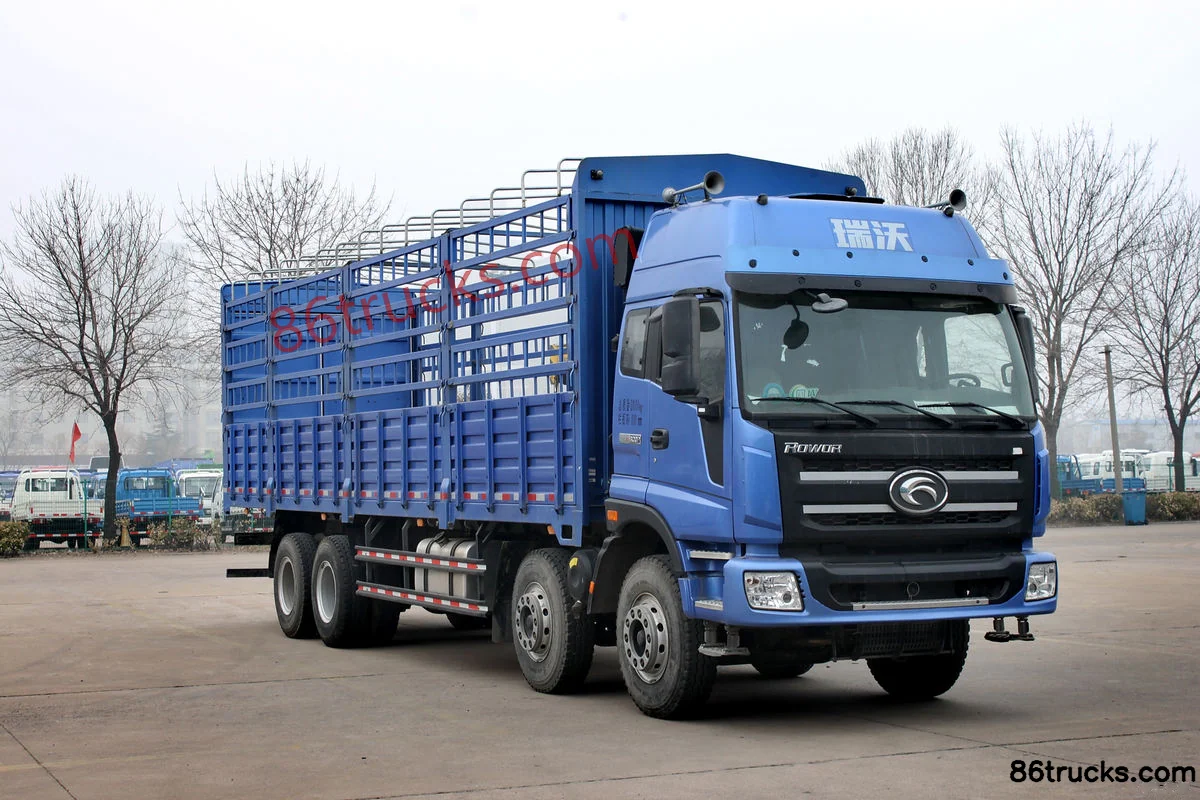

Exterior3

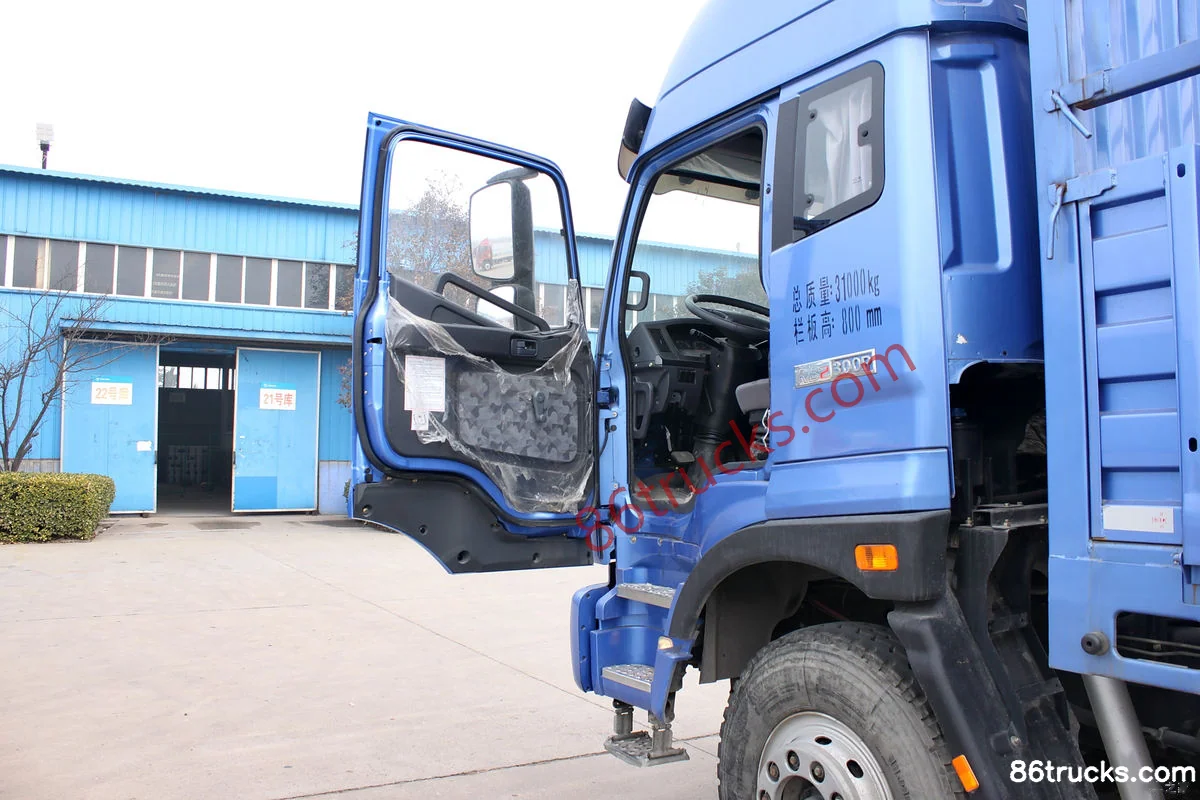

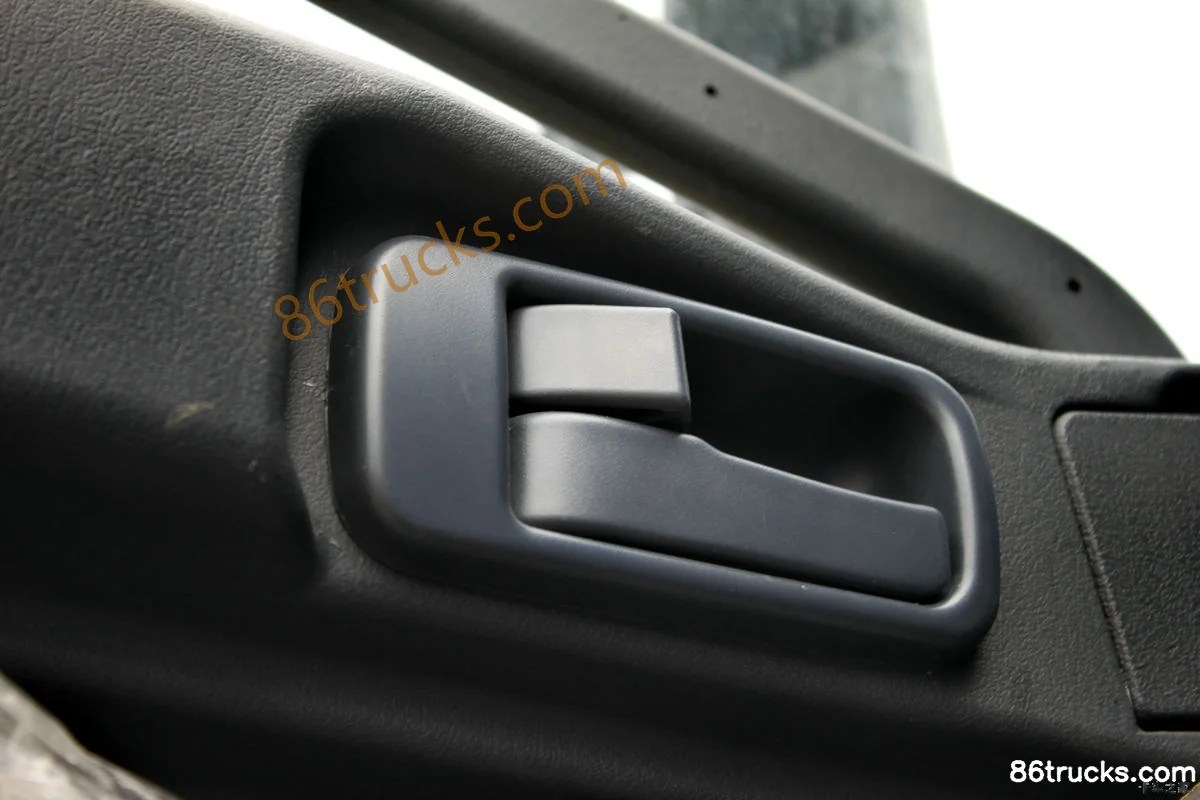

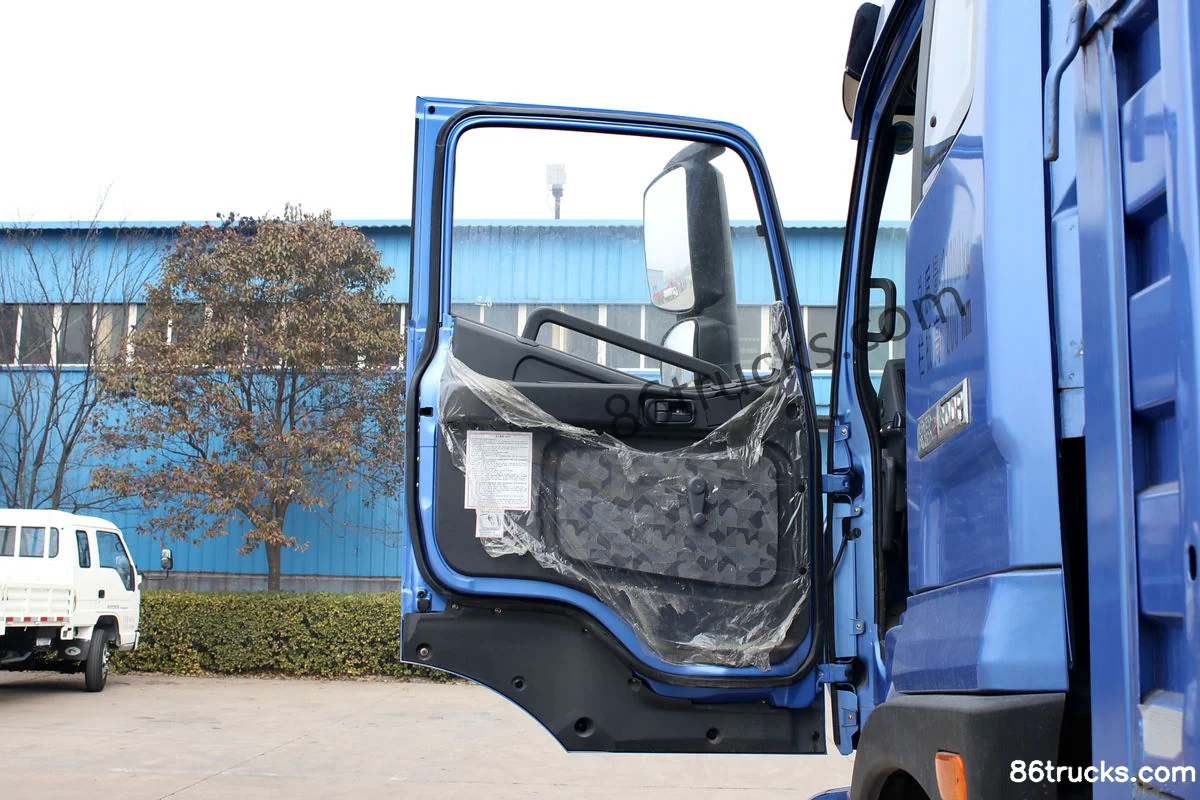

Cab3

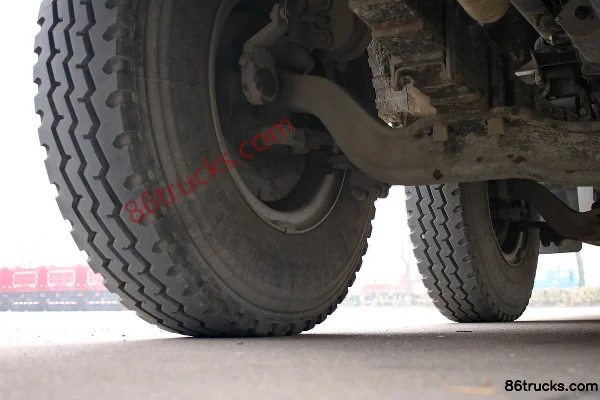

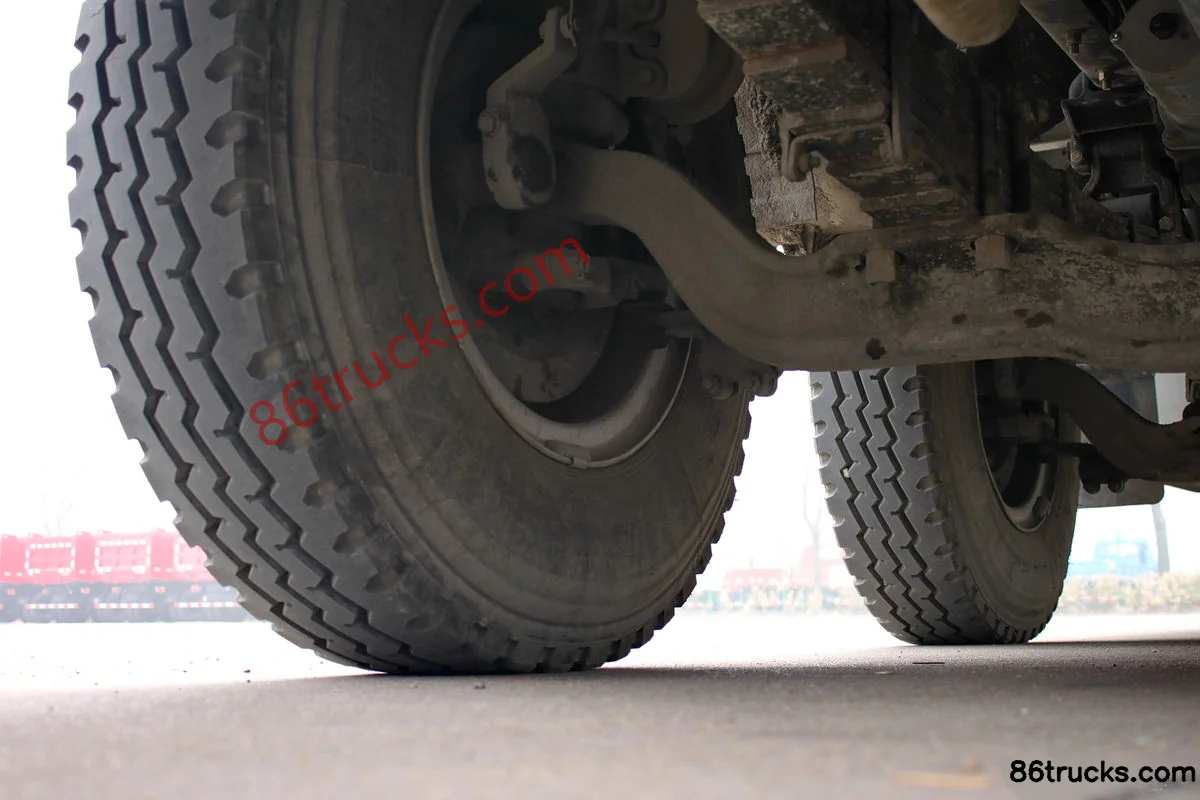

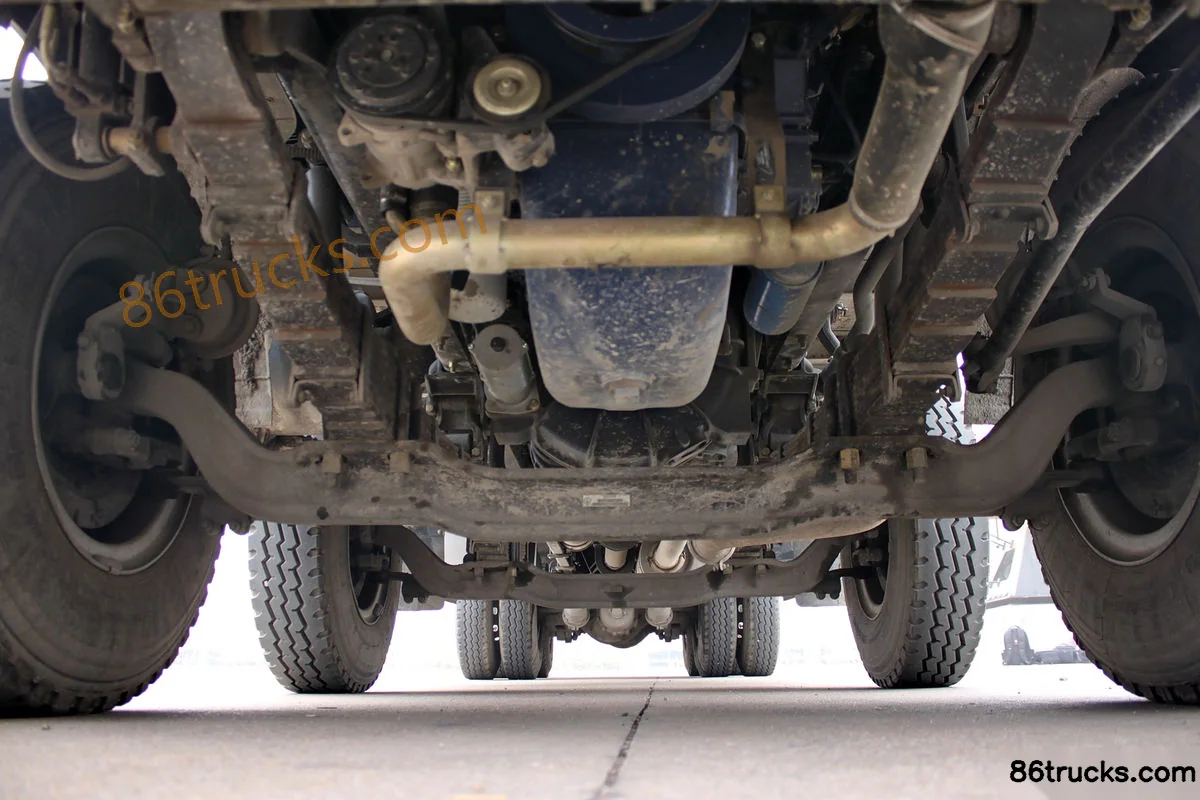

Chassis3

9 photos

FAQ

What is the export price of Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis, and what does it include?

Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis export reference is about From $40,958; MSRP is ¥29.49M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis?

Key specs of Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis: Drive: 8x4; Horsepower: 310 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis suited for?

Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis differ from other variants in the same series?

Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 310 hp 8X4(12 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
