SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI)

Export reference
MSRP N/A
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.875ton
seating capacity: 2Personnel
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) is a Heavy-duty cargo trucks featuring 6.5m cargo length, Stake type cargo body, 2Personnel volume and 9.995t payload. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ5187CCYEY05501AJ
Type: stake truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.5m
engine: YuchaiYCK05240-60
transmission: Fast Gear8JS95E-C AL
Cab length: 9m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1920mm
rear track: 1840mm
Curb Weight: 7.875ton
Rated payload: 9.995ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 11°
Front/rear suspension: 1.37/2.43m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05240-60
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS95E-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.5m
Cargo box width: 2.47m
*Cargo box interior width: 2.4700000286102
Cab parameters
Cab: High-roof double bunk
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 940_865/250×70×7mm
rear axle description: HY400 axle
rear axle allowable load: 11500kg
Leaf spring count: 3/3+1
Suspension (front/rear): Front 3 / Rear 3+1
Tire
Tire Size: 275/80R22.5 18PR
Tire Type: Low rolling resistance
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Aluminum air tank:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

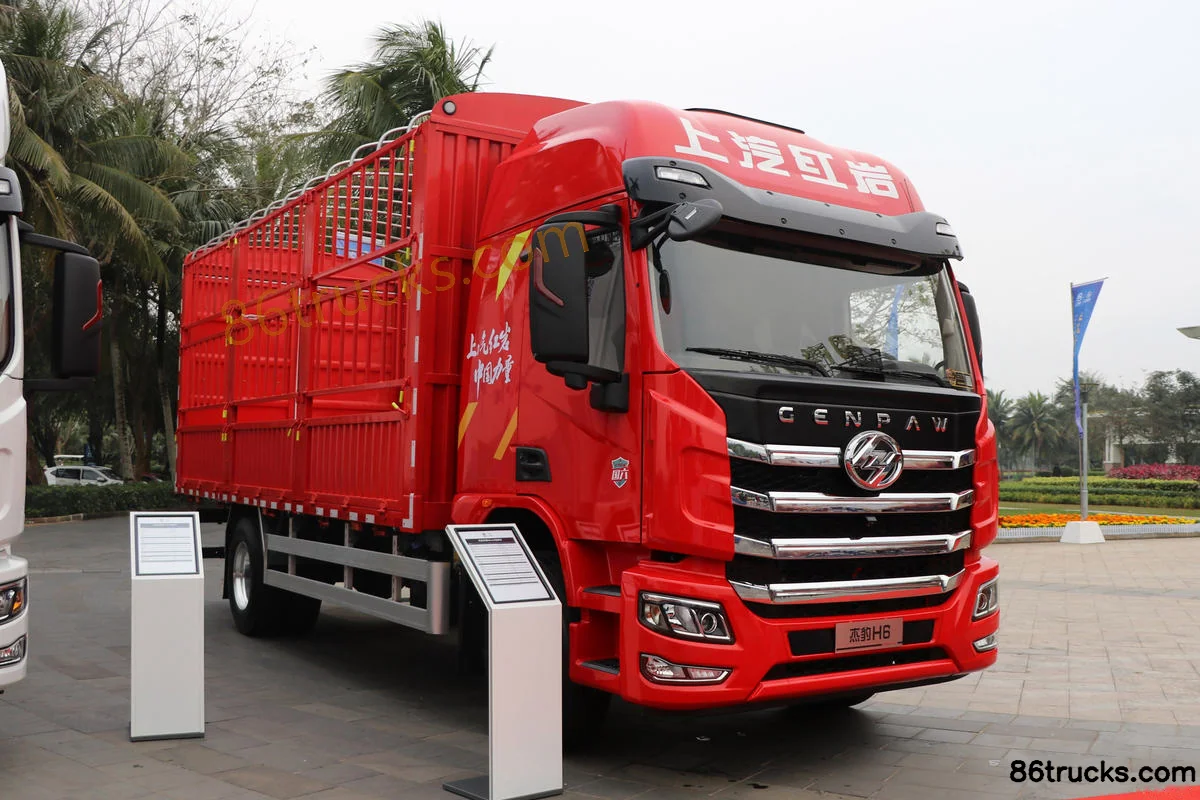

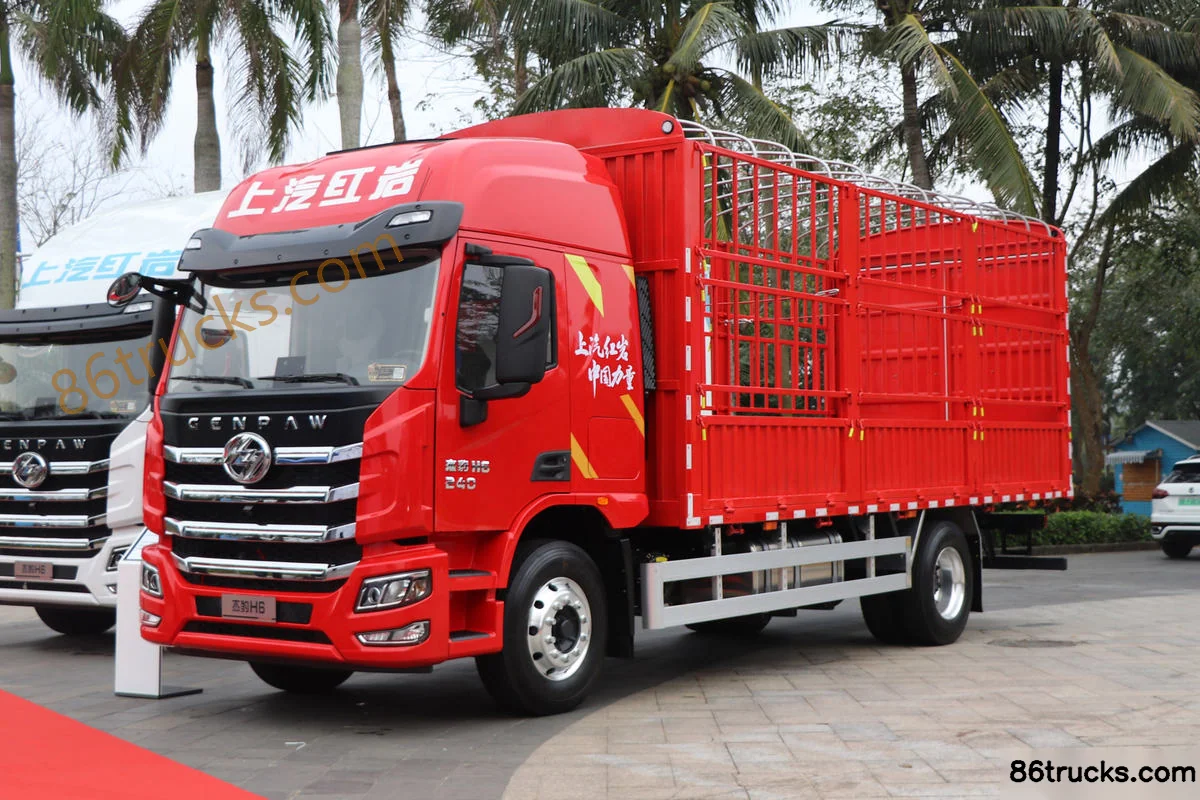

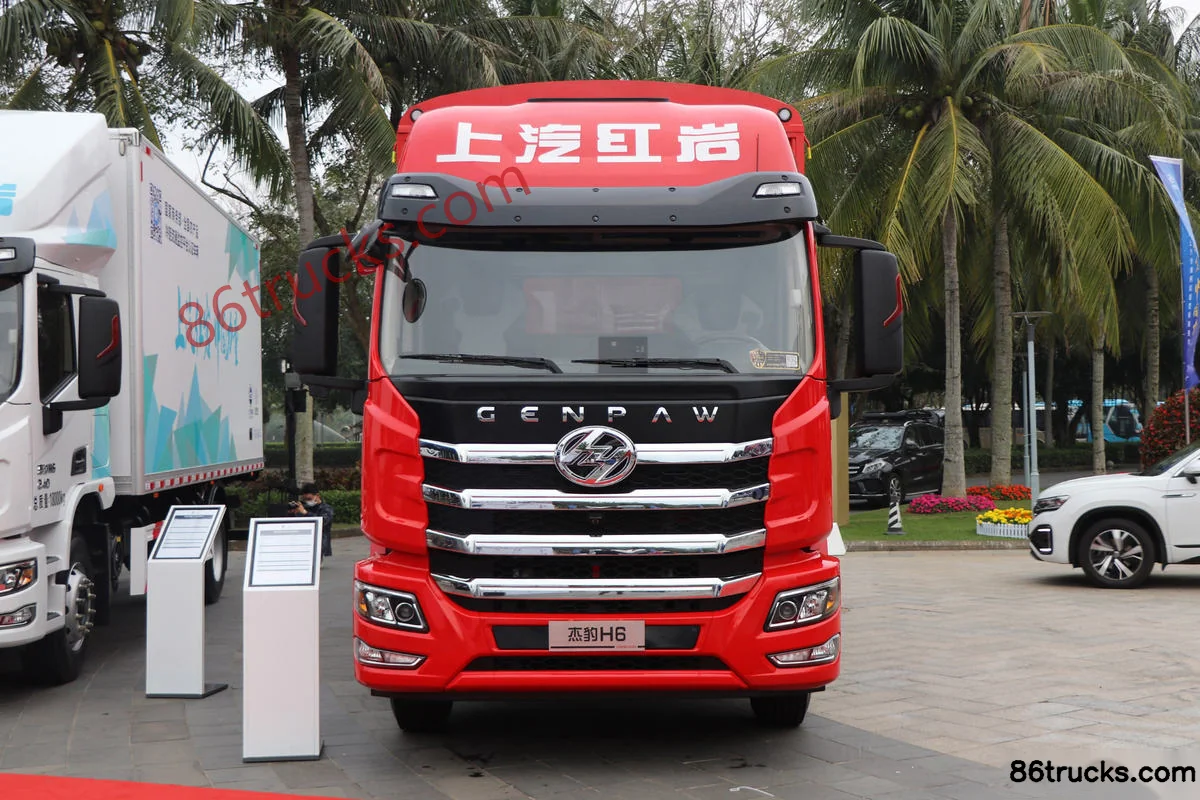

Exterior3

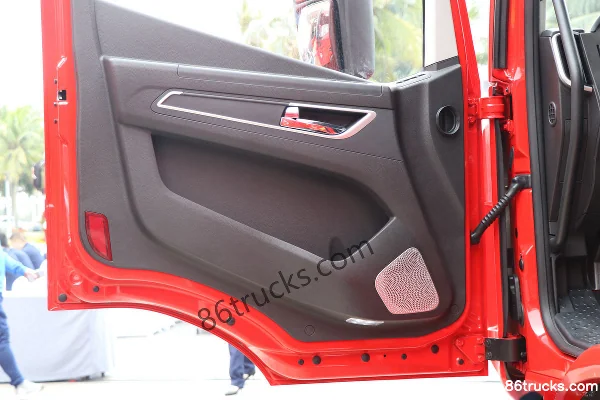

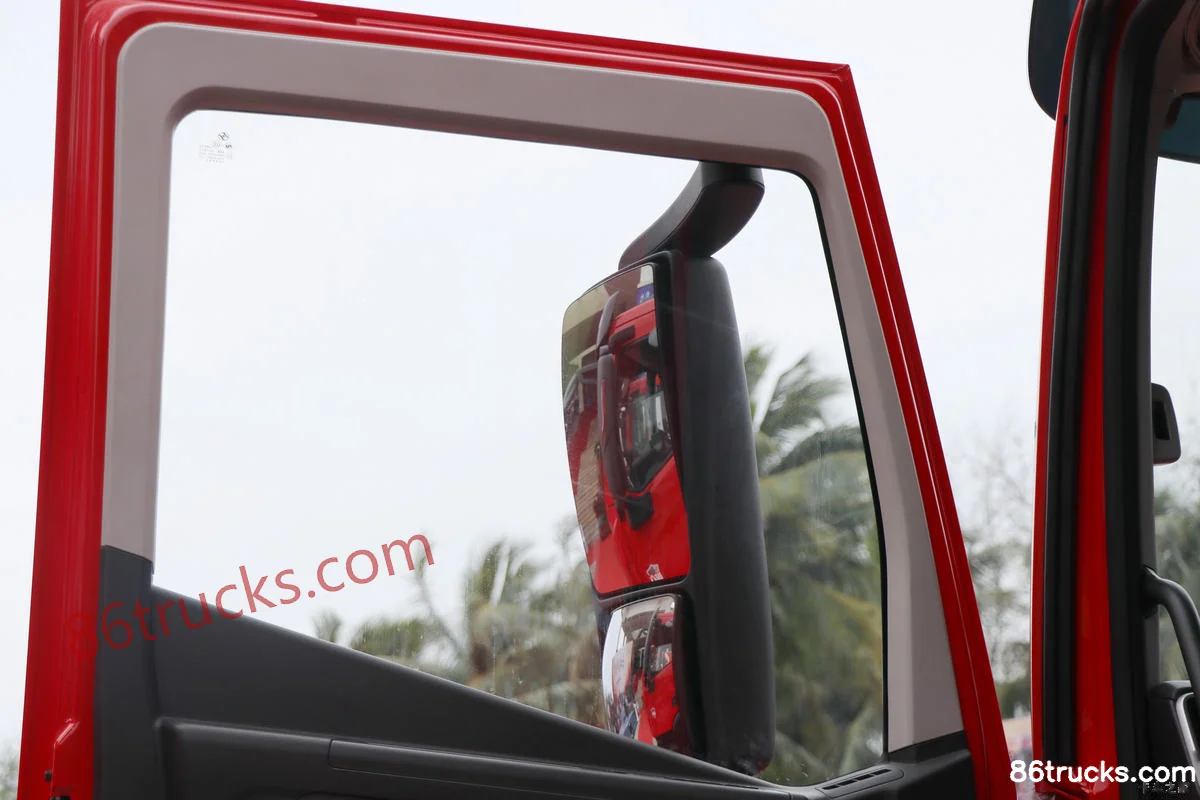

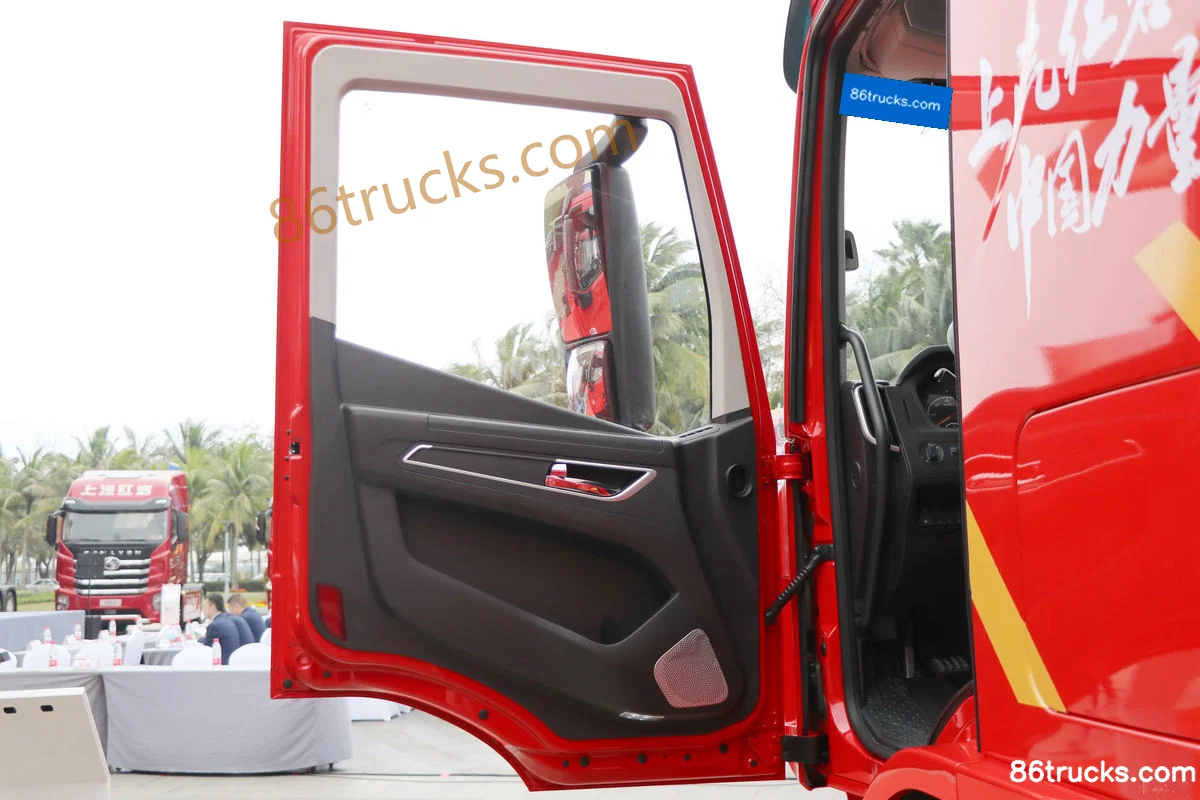

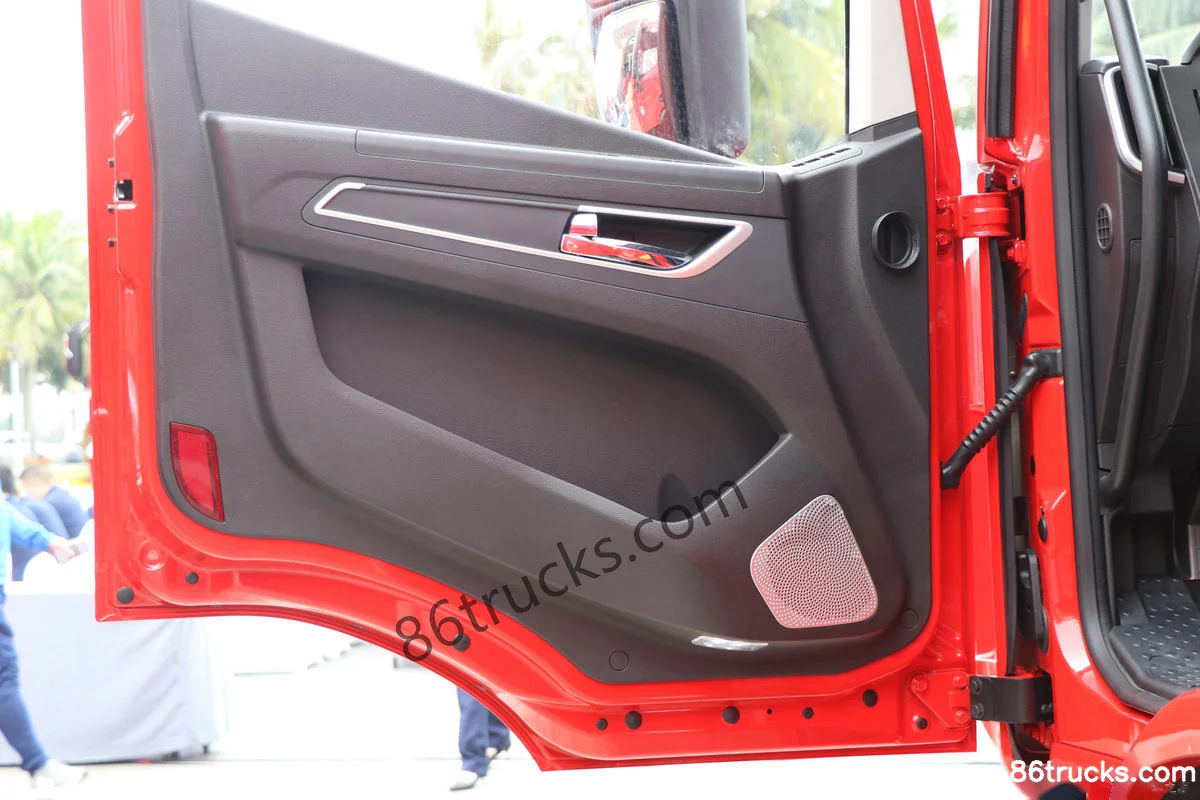

Cab3

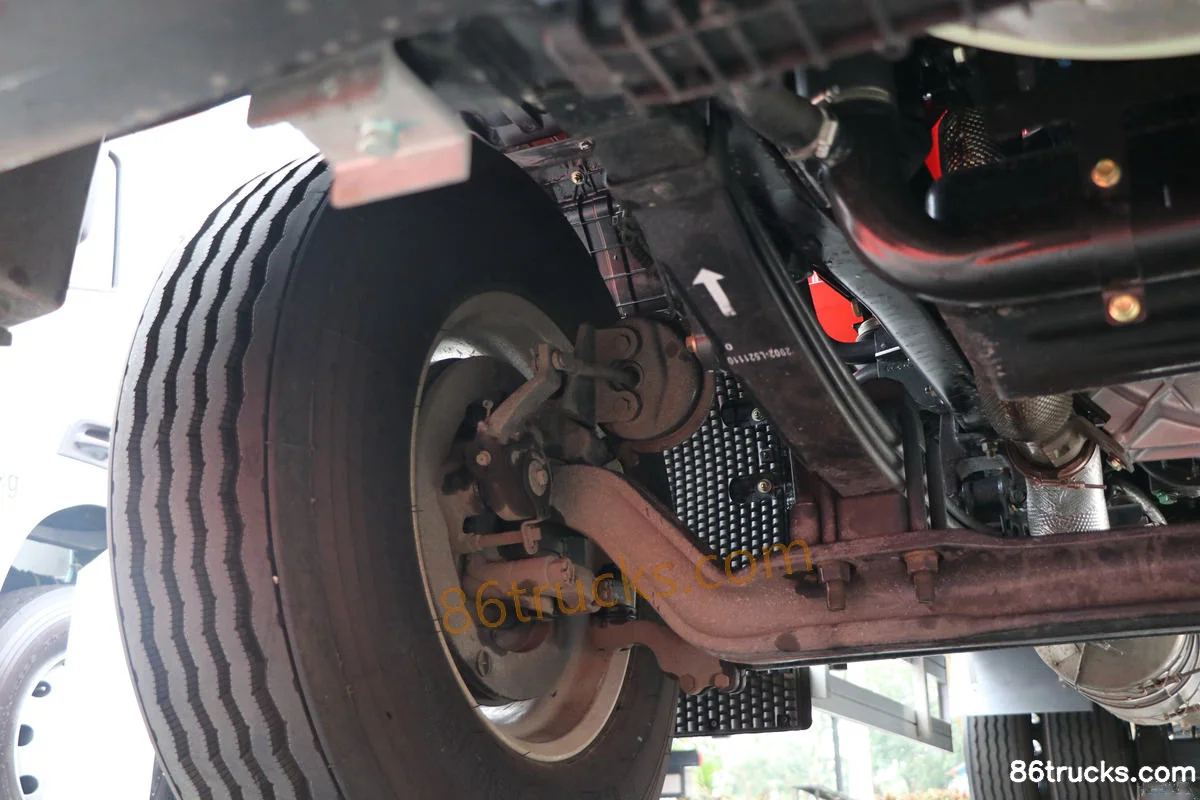

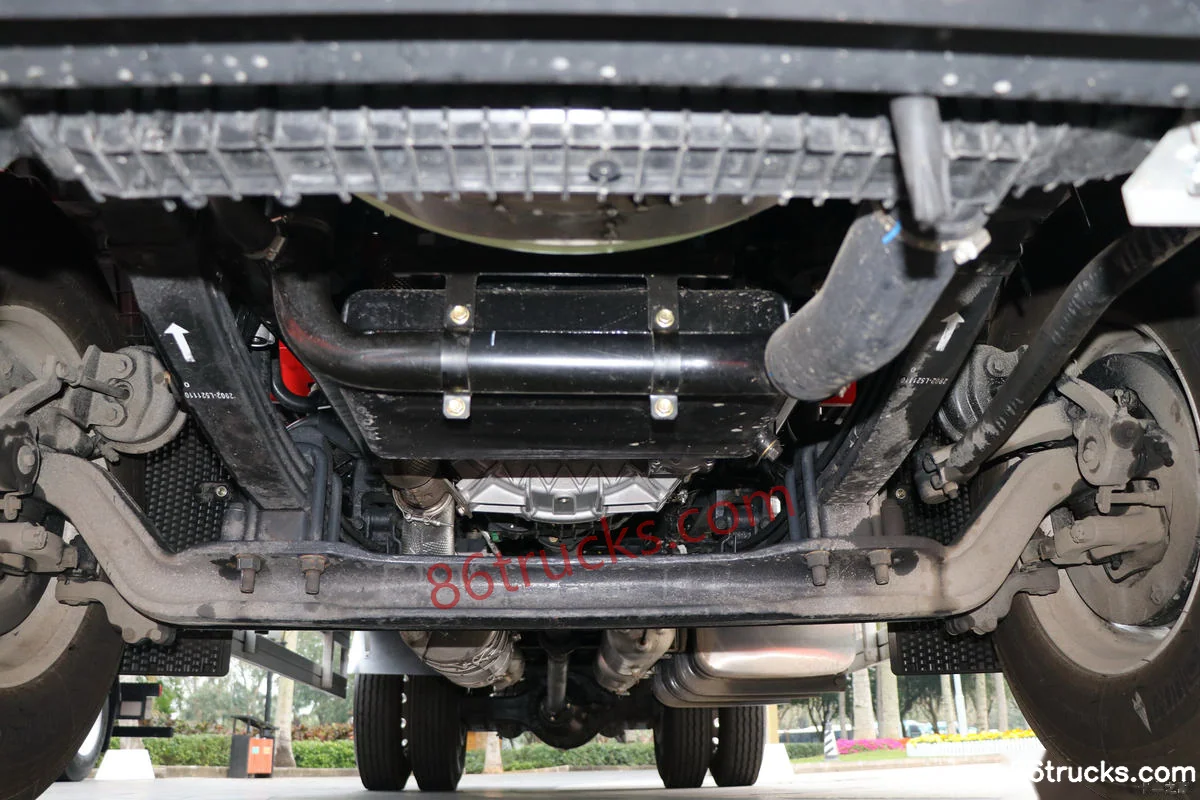

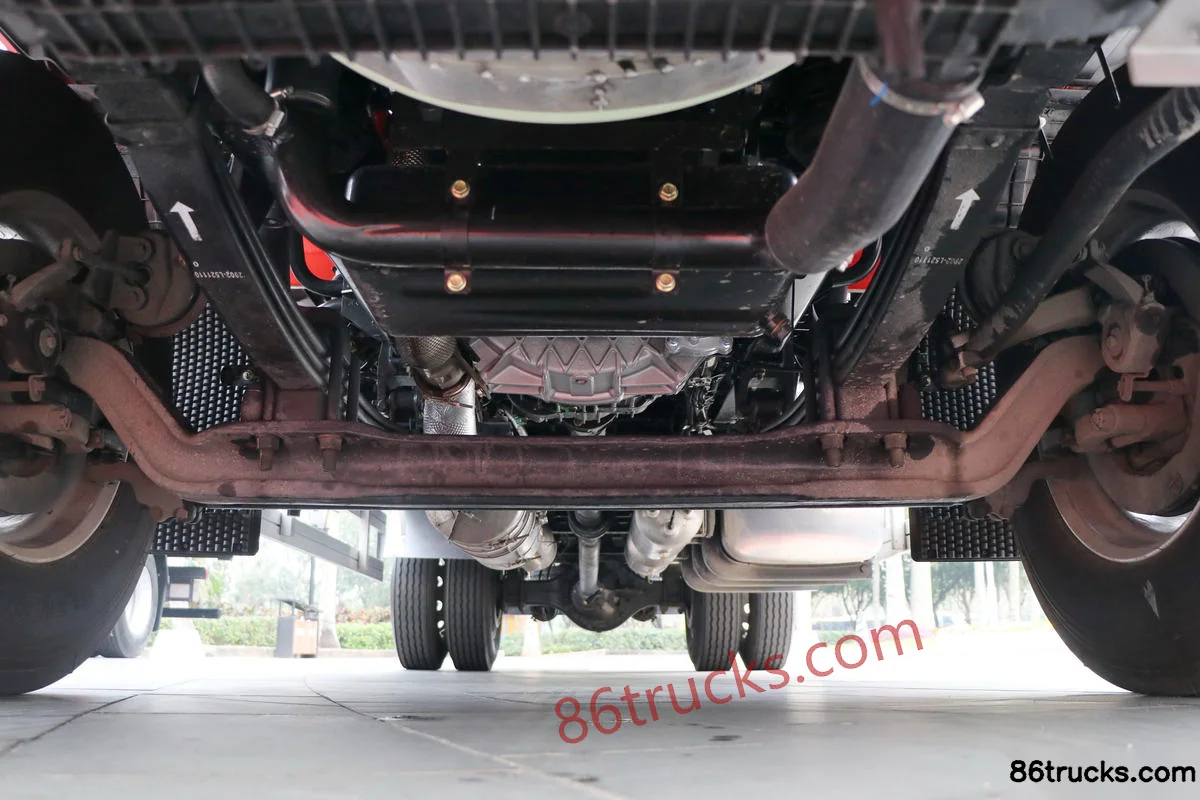

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI)?

Key specs of SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI): Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) suited for?

SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) differ from other variants in the same series?

SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI) belongs to SAIC Hongyan Jiebao Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan JieBao H6 240hp 4X2(6 wheels) 6.5m Stake Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
