Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels)

Export reference
From $26,361
MSRP ¥18.98M CNY
Rated payload:: 1.995ton
Wheelbase:: 3180mm
Cargo box type:: stake body
Model code (announced):: KMC1040BEVA318X1
Type:: Cargo Trucks
Box length class:: 4m
Drive 4X2 (6 wheels)
CLTC range: 290km
Motor 1 Brand: Kama
Curb Weight: 2.2ton

Overview

The Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) is a mini truck featuring 290km battery/range, Kama motor, 4X2 (6 wheels) drive and 1.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1040BEVA318X1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3180mm
Box length class: 4m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.1m
CLTC range: 290km
Curb Weight: 2.2ton
Rated payload: 1.995ton
GVWR: 4.325ton
Max. speed: 80km/h
Origin: Shouguang, Shandong
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Kama
Motor 1 Model: TZ210XS102
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 105kW
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: EVE
Charging method: Fast/Slow
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 66.54kWh
Battery total voltage: 396.06V
Energy Density: 145
Battery Model: LF168
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.02m
Cargo box width: 2.01m
Cargo box height: 0.4m
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1260kg
rear axle allowable load: 2235kg
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

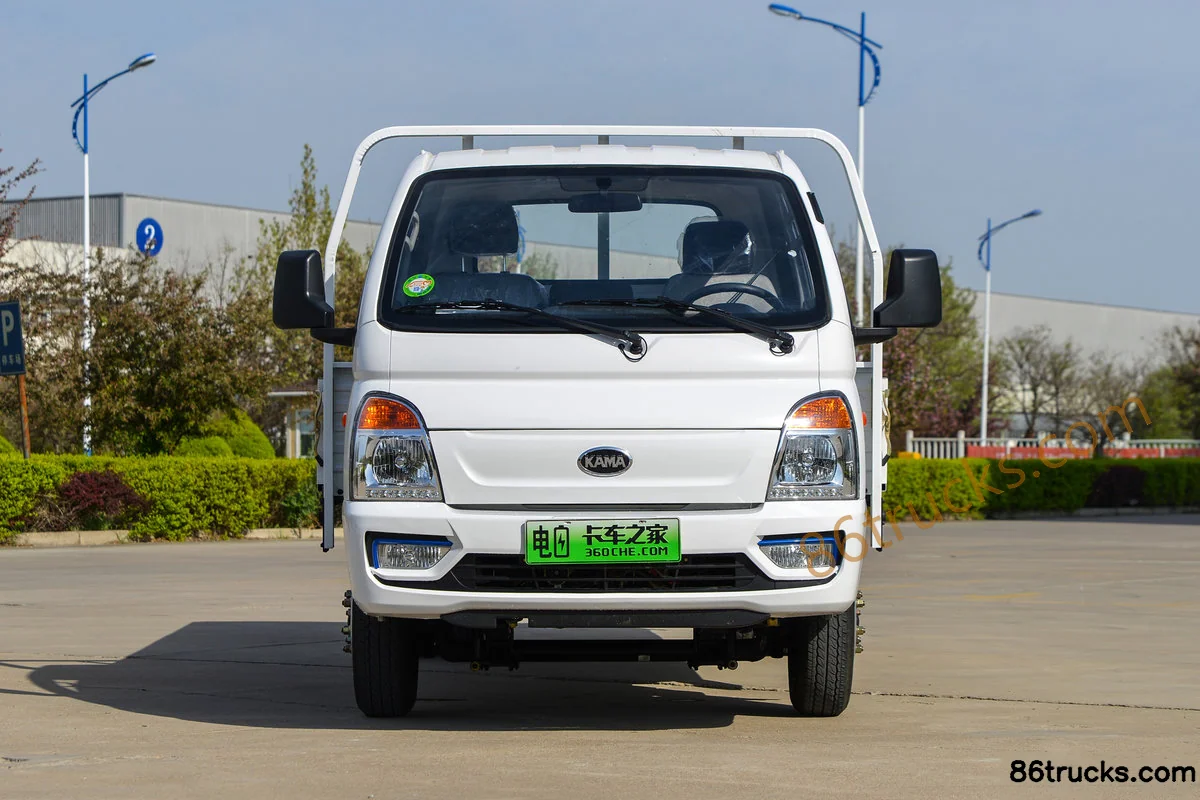

Exterior3

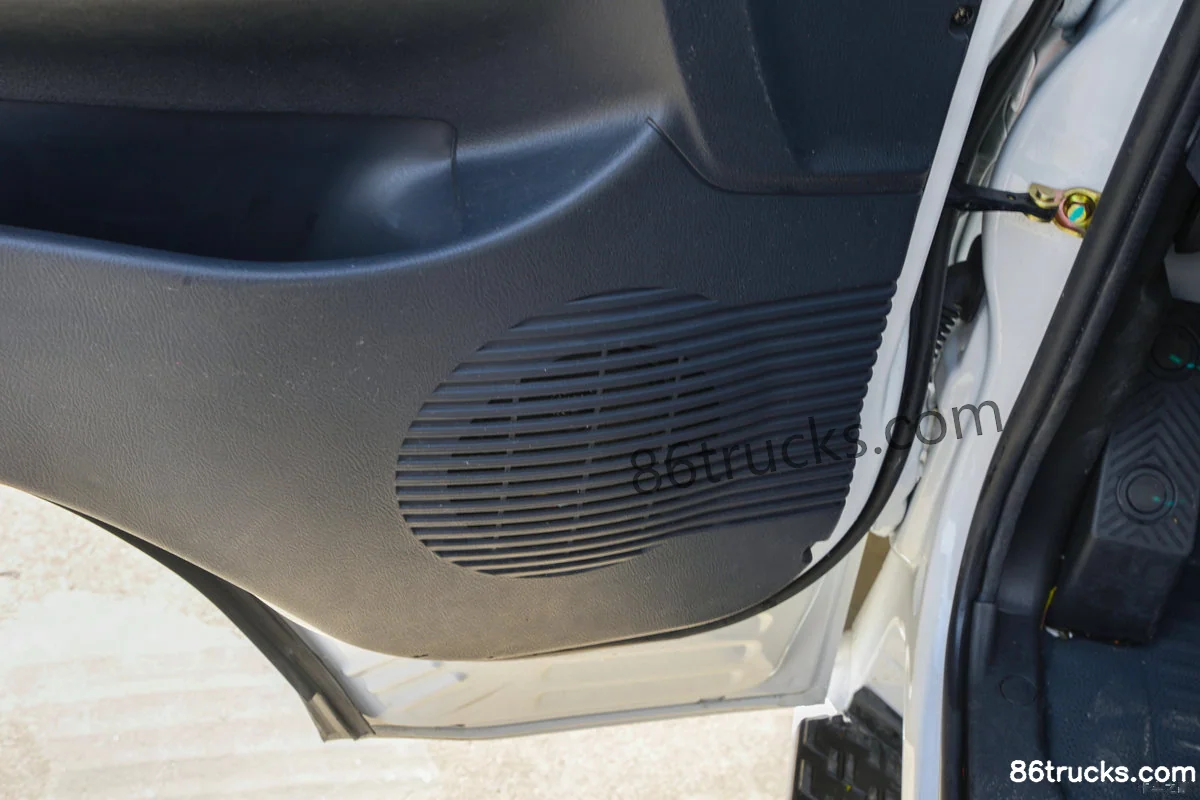

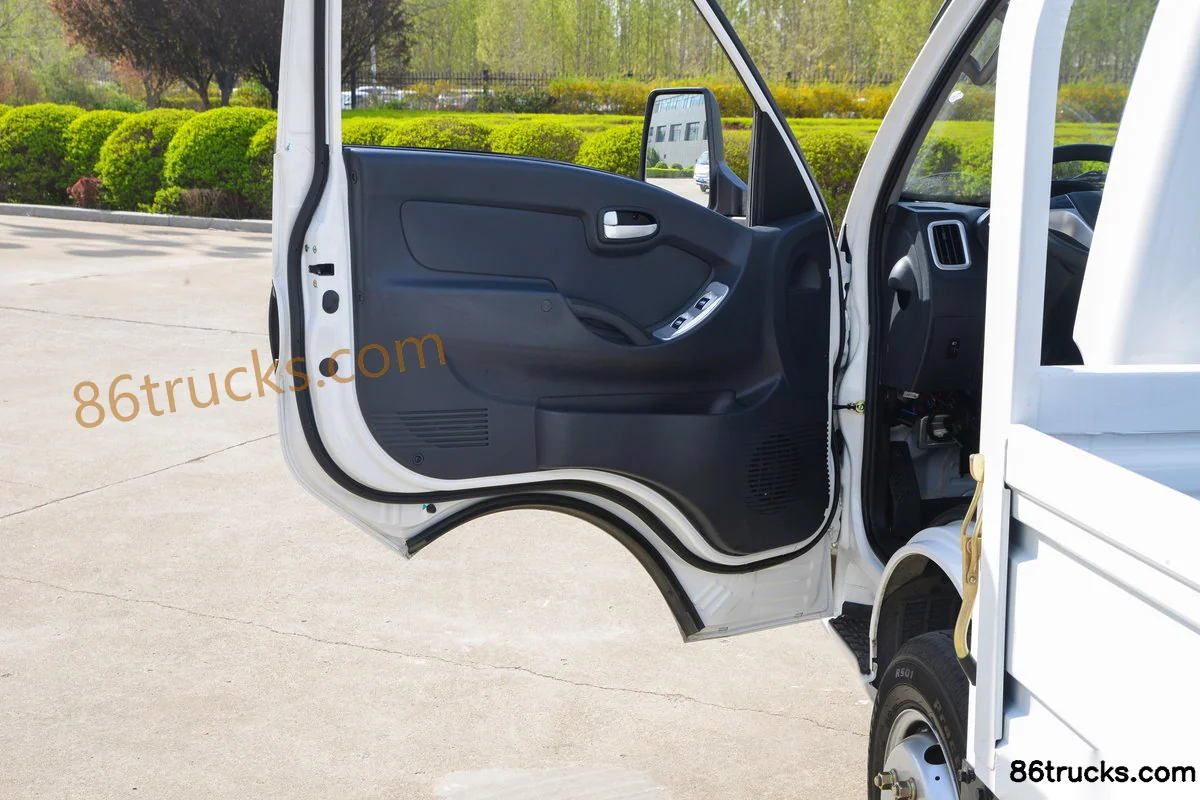

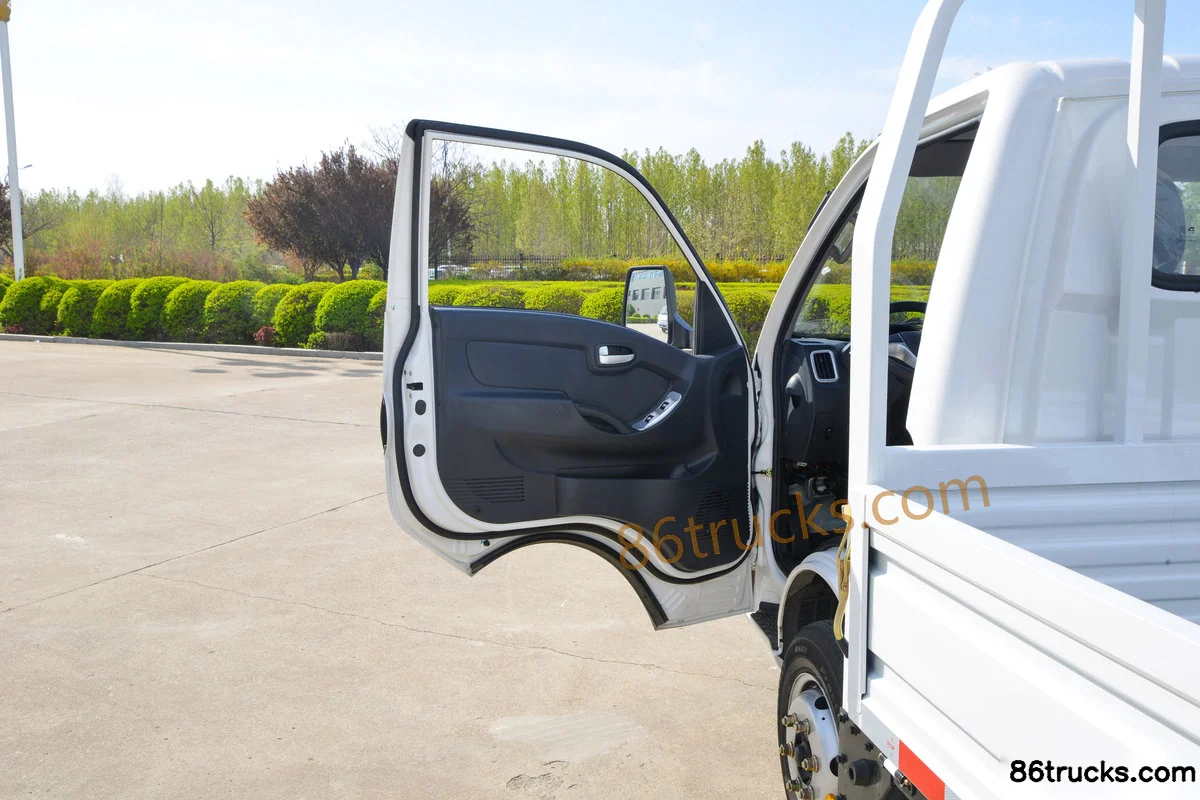

Cab3

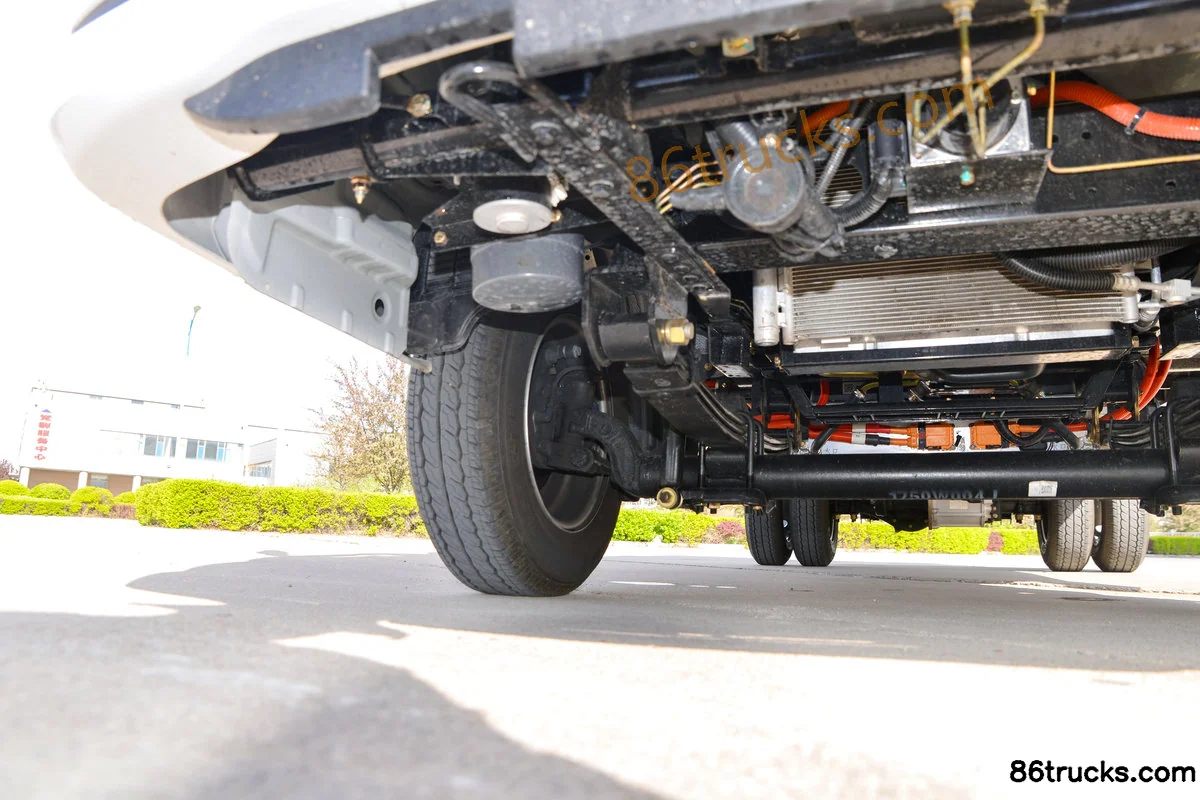

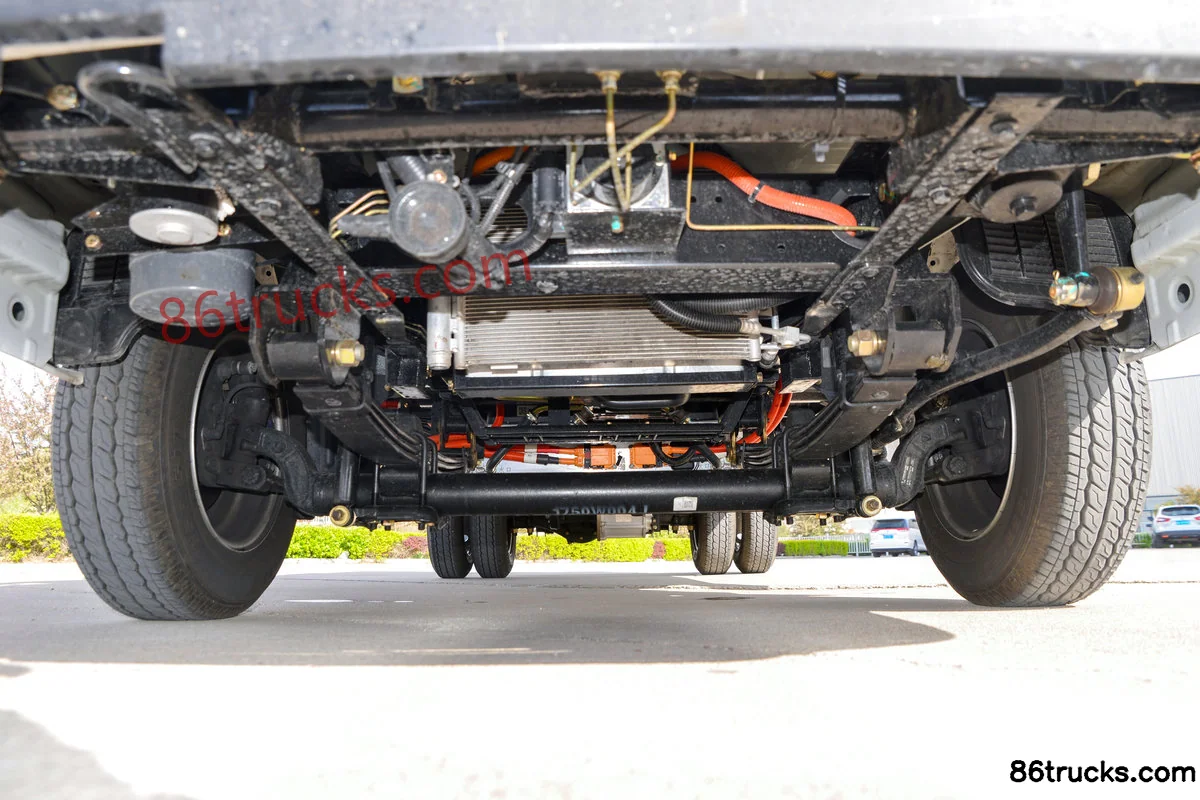

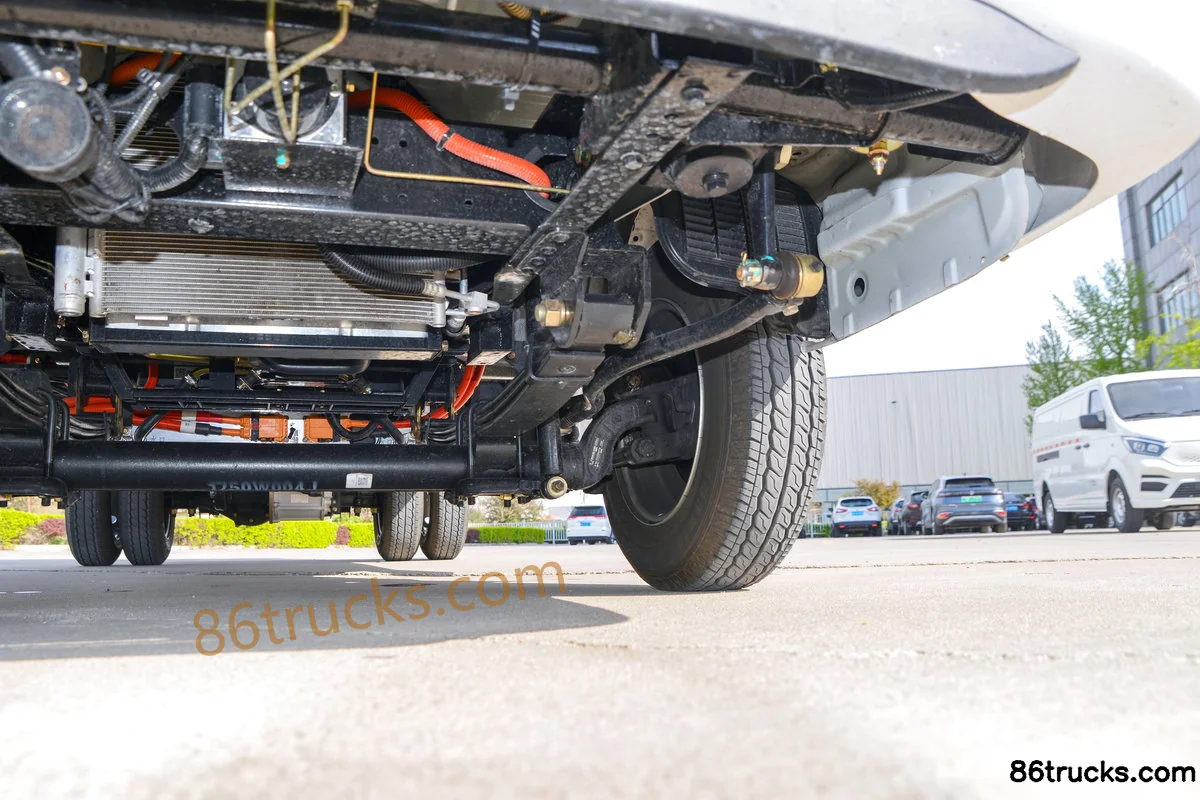

Chassis3

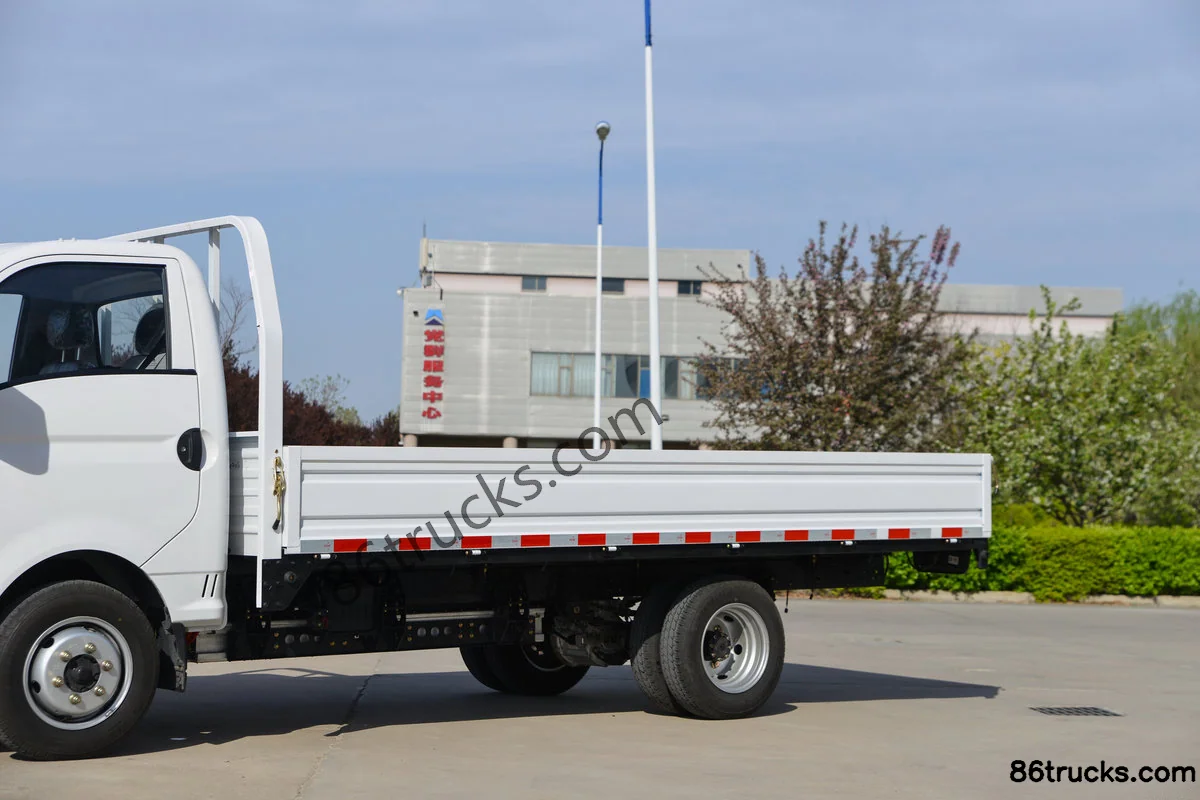

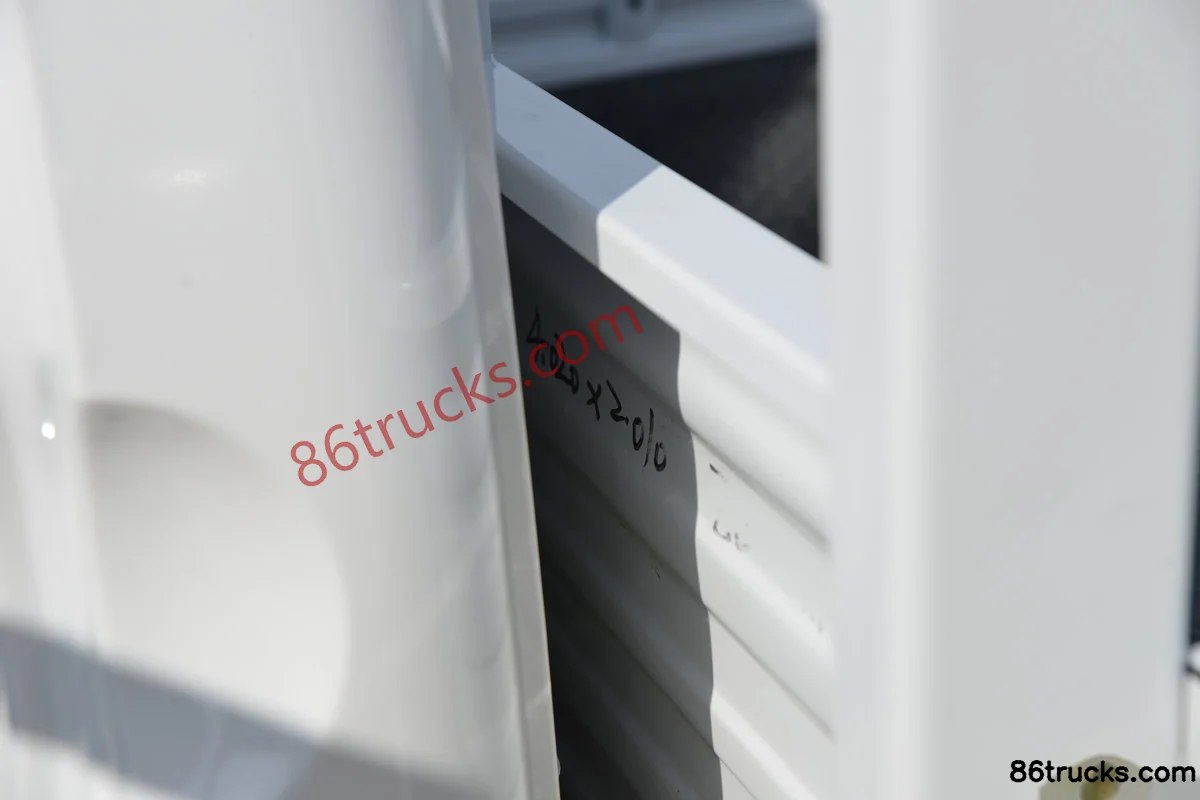

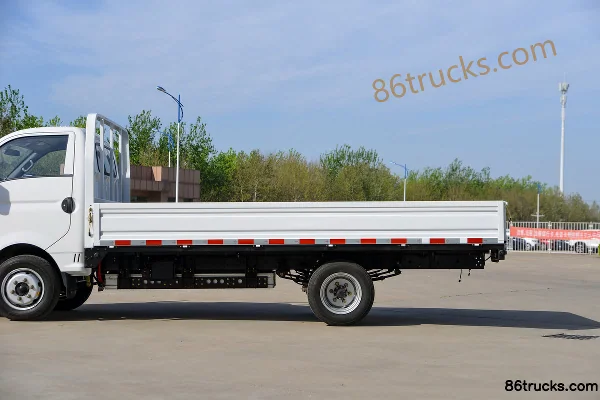

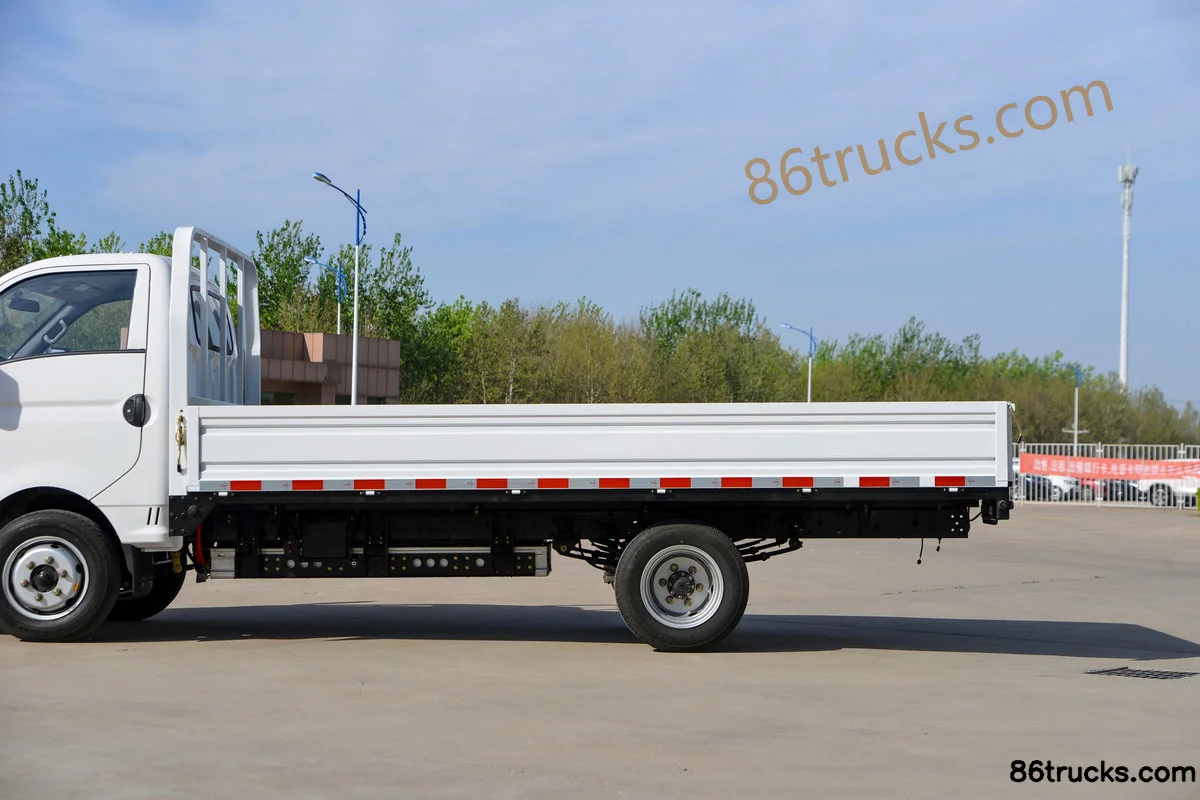

Body3

12 photos

FAQ

What is the export price of Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels), and what does it include?

Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) export reference is about From $26,361; MSRP is ¥18.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels)?

Key specs of Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) suited for?

Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) differ from other variants in the same series?

Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels) belongs to Kama Ruihang EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang EX1 4.02m Single Row Pure Electric Flatbed Mini Truck Yiwei 66.54kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
