Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels)
EXW
Export quote
Chengdu Yajun Yajun Sinotruk Ace chassis electric
Main model photos
15 photos
Models
Inventory
Chengdu Yajun Sinotruk Wangpai Chassis 4.5T 4.12m Single Row Pure Electric Cargo Box Light Truck 75.3kWh 4X2(6 wheels)
EXW
Export quote

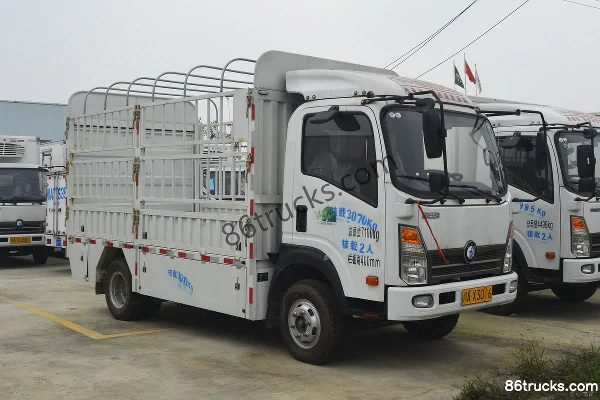

Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.15m Single Row Pure Electric Cargo Box Light Truck 75.3kWh 4X2(6 wheels)
EXW
Export quote
Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.15m Single Row Pure Electric Box Light Truck 75.3kWh 4X2(6 wheels)
EXW
Export quote

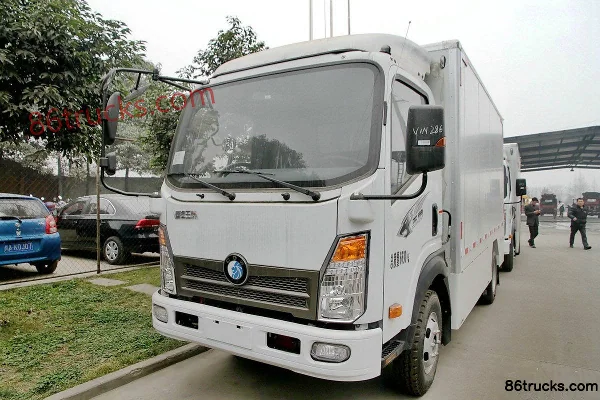

Chengdu Yajun Sinotruk Wangpai Chassis 4.5T 4.15m Single Row Pure Electric Box Light Truck 75.3kWh 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CTT5071XLCGW1BEV / CTT5041CCYGW1BEV / CTT5071CCYGW1BEV / CTT5040XXYGW1BEV / CTT5042XXYGW1BEV / CTT5041XXYBEV
Type: enclosed cargo truck / stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.1 / 4.2m
Cab length: 5.995m
Cab width: 2.14 / 2.155 / 2.16 / 1.98 / 2.12m
Cab height: 3.22 / 3.01 / 2.98 / 2.9m
CLTC range: 170 / 250 / 255km
Curb Weight: 4.2 / 3.21 / 3.9 / 4.05 / 3.2 / 3.37 / 1.165ton
Rated payload: 2.77 / 1.155 / 3.07 / 2.92 / 1.165 / 0.995 / 3.2ton
GVWR: 7.1 / 4.495ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
electric motor
Motor 1 Brand: Jiangxi Tedian / Dadihe / Chengdu Yajun / Jiangte Motor
Motor 1 Model: YPQ200L-8-HT / TZ260XSD64 / YR321XS-060-01YJ
Max torque: 1200N·m
Motor Type: AC motor
Energy Type: Electric
total rated power: 55 / 60kW
Peak power: 90 / 60kW
total peak torque: 1000N·m
Battery/Charging
Battery Brand: EVE
Battery type: NMC lithium battery pack
Battery capacity: 75.3kWh
Battery total voltage: 518.4V
Energy Density: 103.08
Battery Model: 3.6V2.6Ah
Cargo box parameters
Cargo box type: Van body / Stake type
Cargo box length: 4.1 / 4.12 / 4.15m
Cargo box width: 2.065 / 2.06 / 2.015 / 1.92 / 2.05m
Cargo box height: 1.92 / 1.95 / 1.85m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2500 / 1740kg
rear axle allowable load: 4600 / 2755kg
Tire
Tire Size: 7.00R16LT / 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
FAQ
What kind of truck is Chengdu Yajun Yajun Sinotruk Ace chassis electric cargo truck?
Chengdu Yajun Yajun Sinotruk Ace chassis is an export-oriented electric cargo truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengdu Yajun Yajun Sinotruk Ace chassis electric cover?
Chengdu Yajun Yajun Sinotruk Ace chassis electric mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengdu Yajun Yajun Sinotruk Ace chassis electric?
For Chengdu Yajun Yajun Sinotruk Ace chassis electric: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does Chengdu Yajun Yajun Sinotruk Ace chassis electric include?
Chengdu Yajun Yajun Sinotruk Ace chassis electric currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengdu Yajun Yajun Sinotruk Ace chassis electric?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
