Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 2.77ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: CTT5071XLCGW1BEV
Type:: enclosed cargo truck
Box length class:: 4.1m
Drive 4X2 (6 wheels)
CLTC range: 170km
Motor 1 Brand: Jiangxi Tedian
Curb Weight: 4.2ton

Overview

The Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels) is a Light Truck featuring 170km battery/range, Jiangxi Tedian motor, 4X2 (6 wheels) drive and 2.77t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CTT5071XLCGW1BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.1m
Cab length: 5.995m
Cab width: 2.14m
Cab height: 3.22m
CLTC range: 170km
Curb Weight: 4.2ton
Rated payload: 2.77ton
GVWR: 7.1ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jiangxi Tedian
Motor 1 Model: YPQ200L-8-HT
Motor Type: AC motor
Fuel Type: Electric
total rated power: 55kW
Peak power: 90kW
total peak torque: 1000N·m
Battery/Charging
Battery Brand: EVE
Battery type: NMC lithium battery pack
Battery capacity: 75.3kWh
Battery total voltage: 518.4V
Energy Density: 103.08
Battery Model: 3.6V2.6Ah
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.1m
Cargo box width: 2.065m
Cargo box height: 1.92m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2500kg
rear axle allowable load: 4600kg
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:

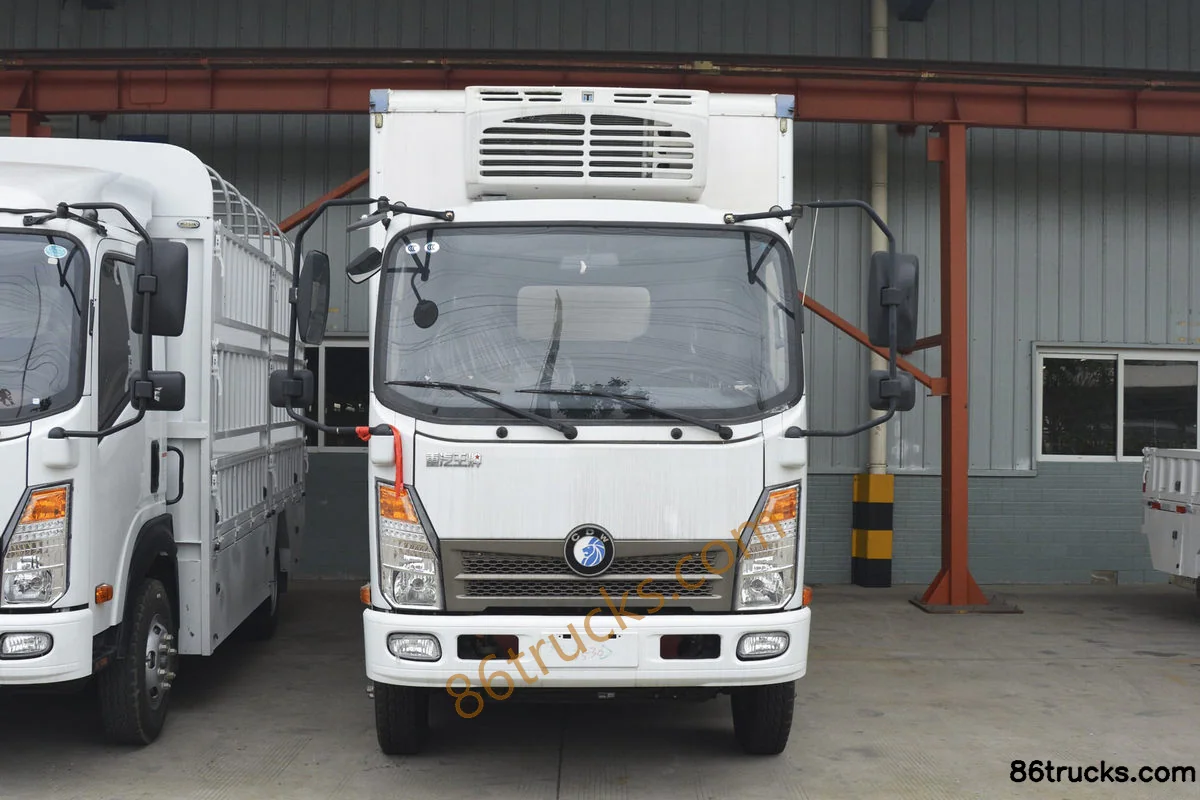

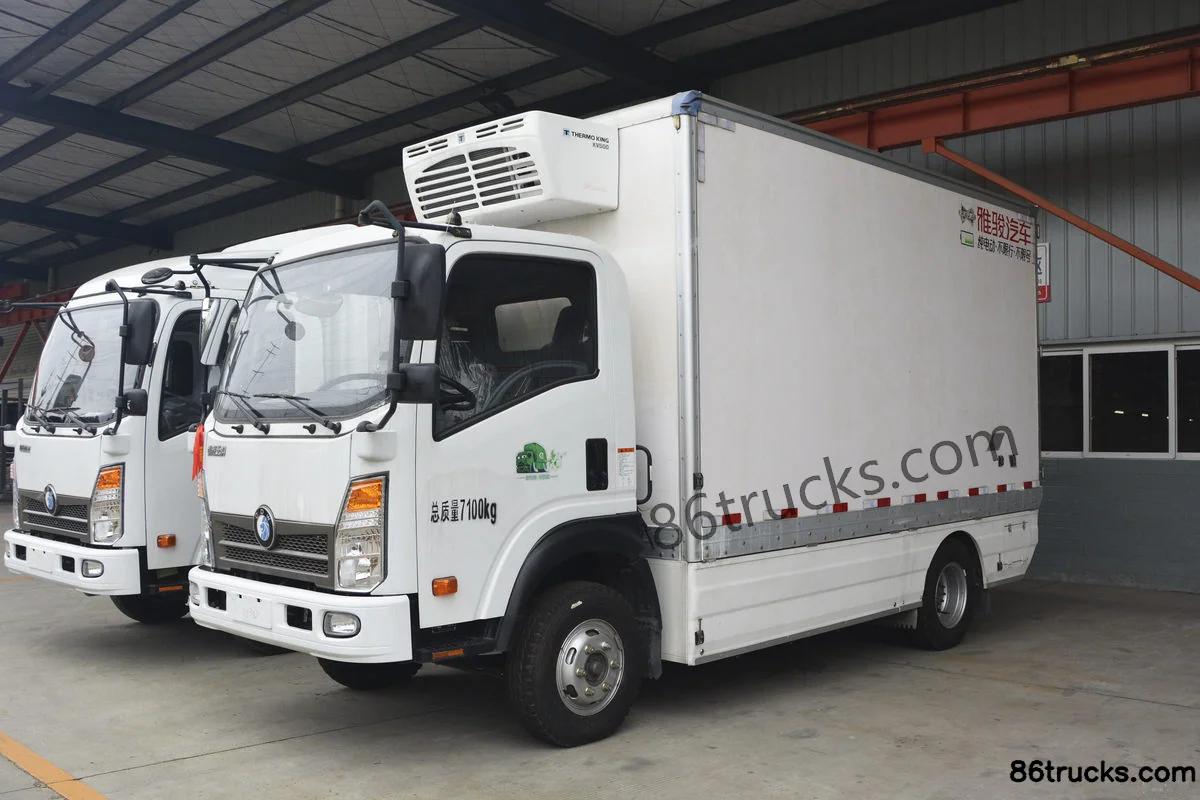

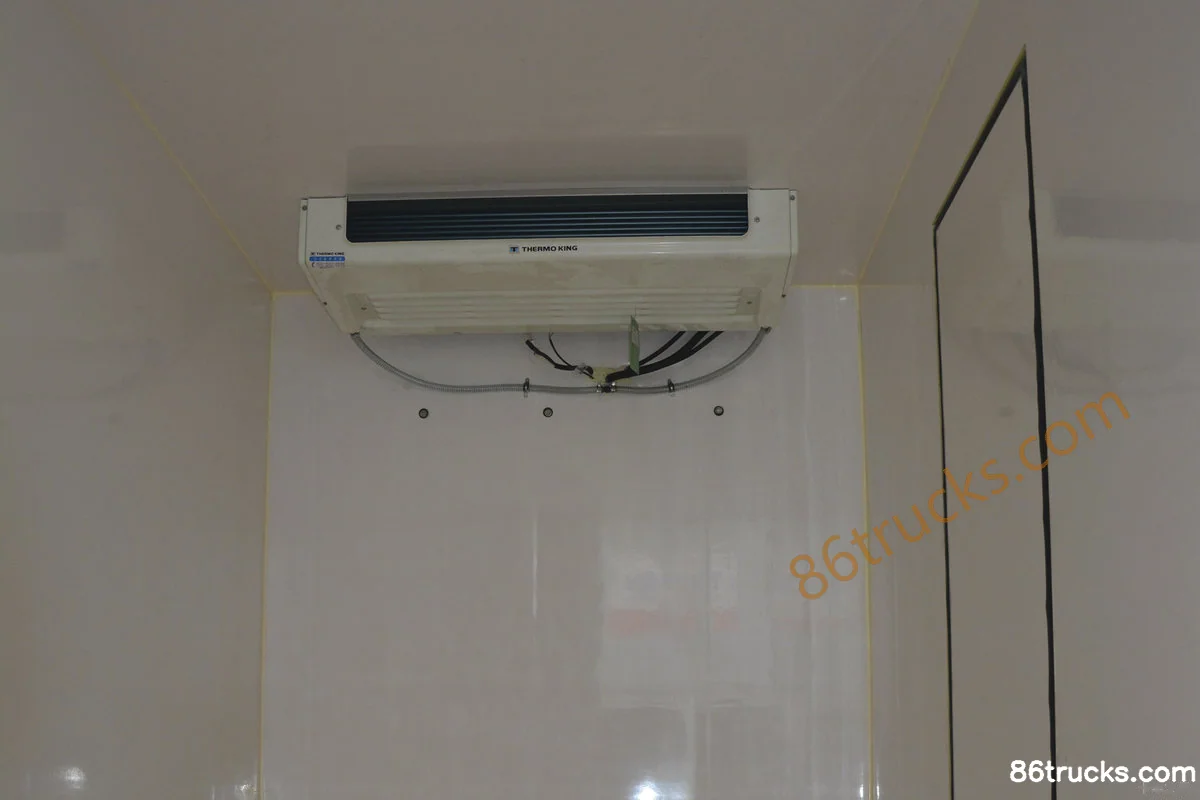

Photos

Exterior3

3 photos

FAQ

What are the key specs of Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels)?

Key specs of Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels) suited for?

Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels) differ from other variants in the same series?

Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels) belongs to Yajun Sinotruk Ace chassis (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengdu Yajun Sinotruk Wangpai Chassis 7.1T 4.1m Single Row Pure Electric Refrigerated Truck 75.3kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
