JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.7ton
Wheelbase:: 3365mm
Cargo box width:: 2.1m
Model code (announced):: HFC5041XLCPHEV2Q
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: Shaanxi Coal Industry
Motor Type: Permanent magnet synchronous motor
Curb Weight: 3.6ton

Overview

The JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring Shaanxi Coal Industry battery/range, Permanent magnet synchronous motor motor, 4X2 (6 wheels) drive and 0.7t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XLCPHEV2Q
Drive type: 4X2
Wheelbase: 3365mm
Cab length: 5.995m
Cab width: 2.11m
Cab height: 3.18m
Curb Weight: 3.6ton
Rated payload: 0.7ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Hefei, Anhui
Energy Type: Hybrid
electric motor
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 125kW
total rated torque: 175N·m
Battery/Charging
Battery Brand: Shaanxi Coal Industry
Battery type: Lithium Iron Phosphate Battery
Chassis Specs
Chassis Series: Junling HV5
Chassis Model: HFC1041PHEV2Q
Leaf spring count: 4/4+2
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

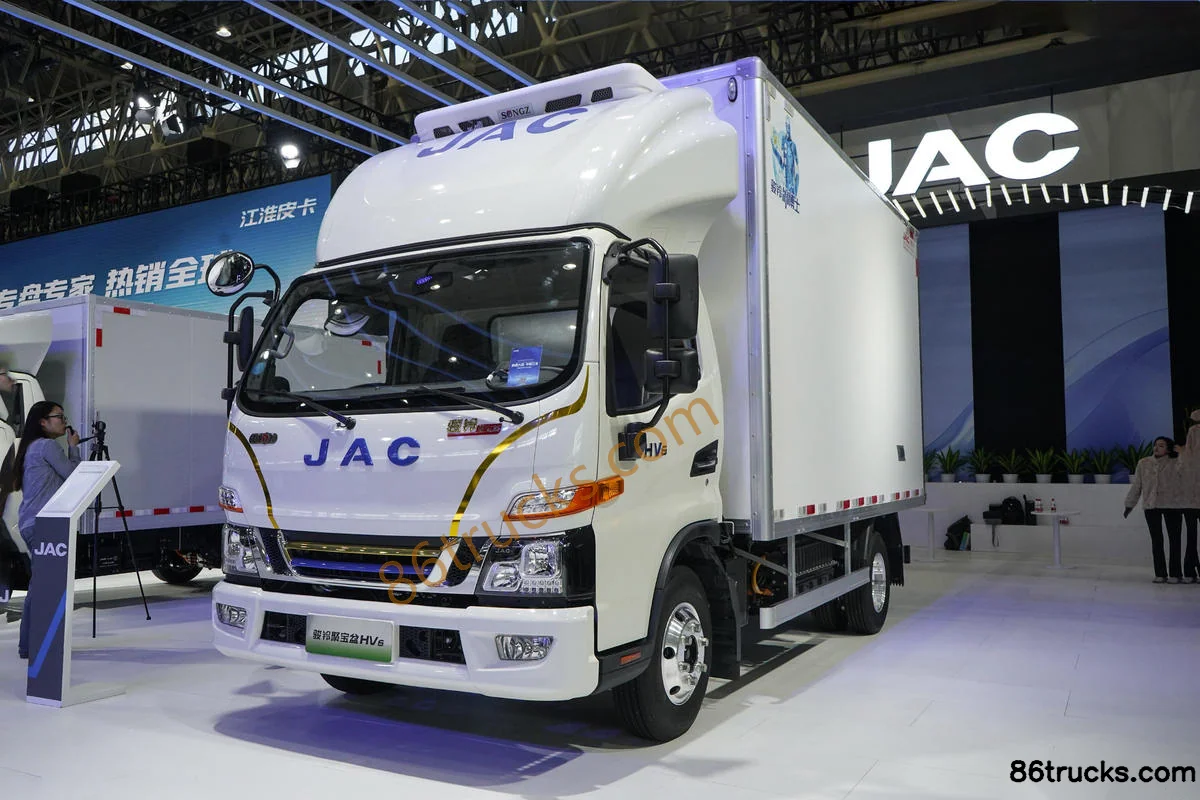

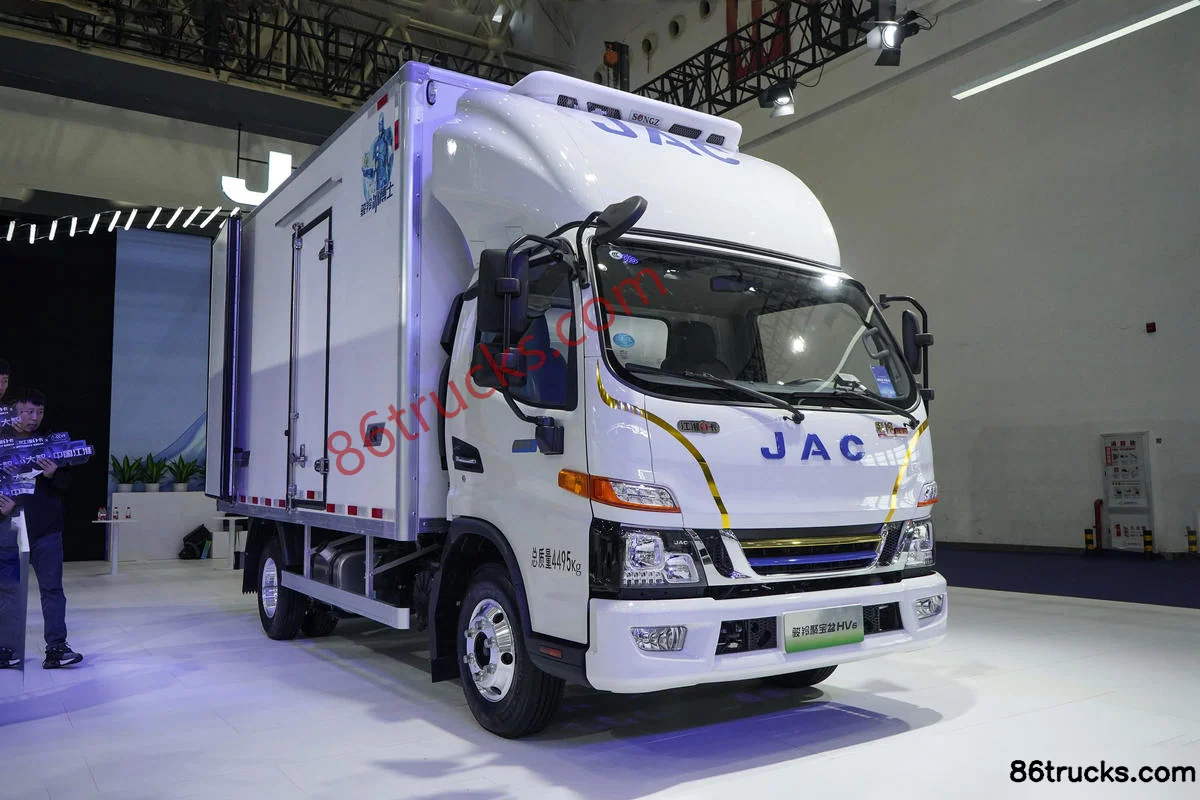

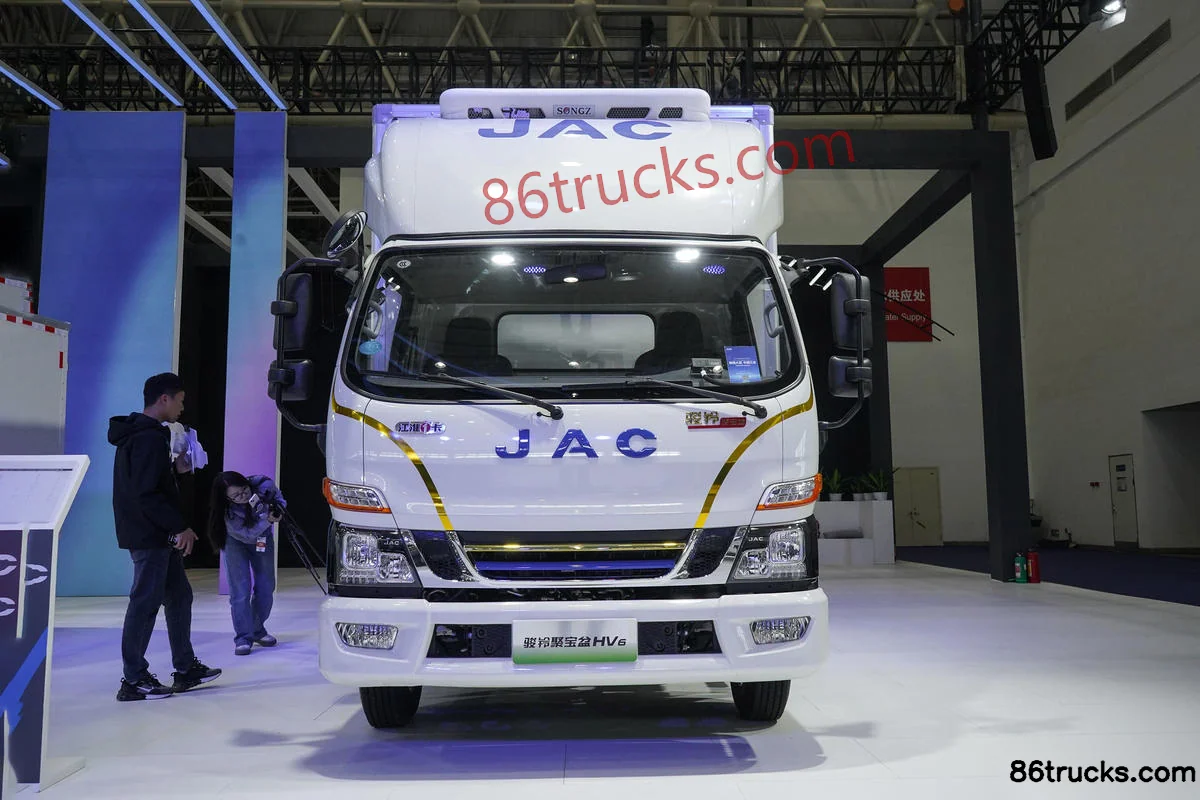

Exterior3

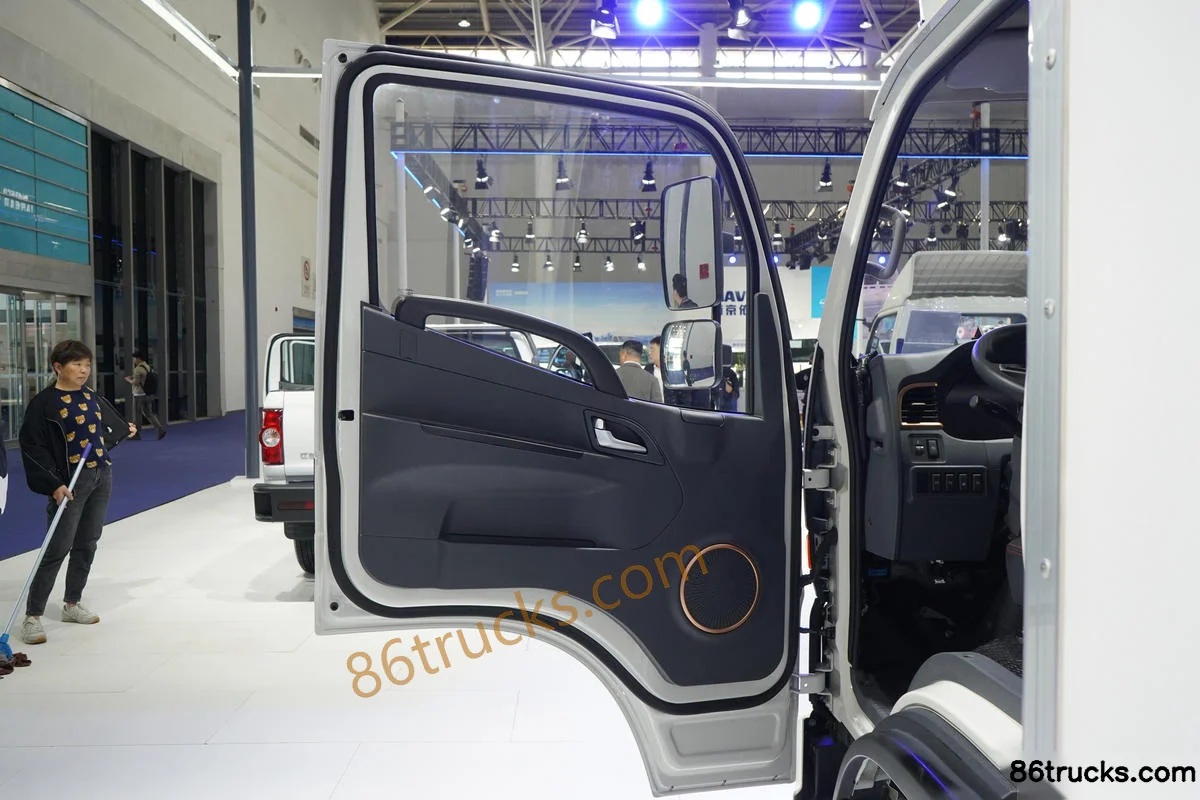

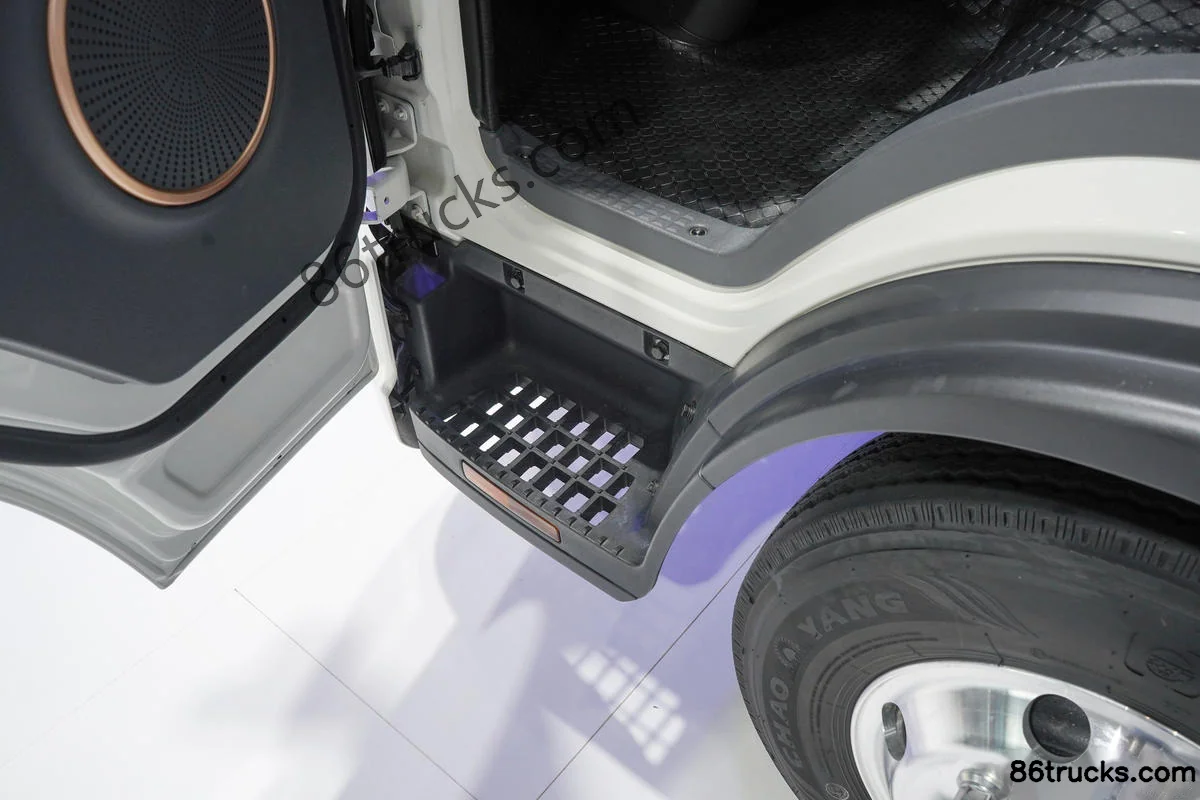

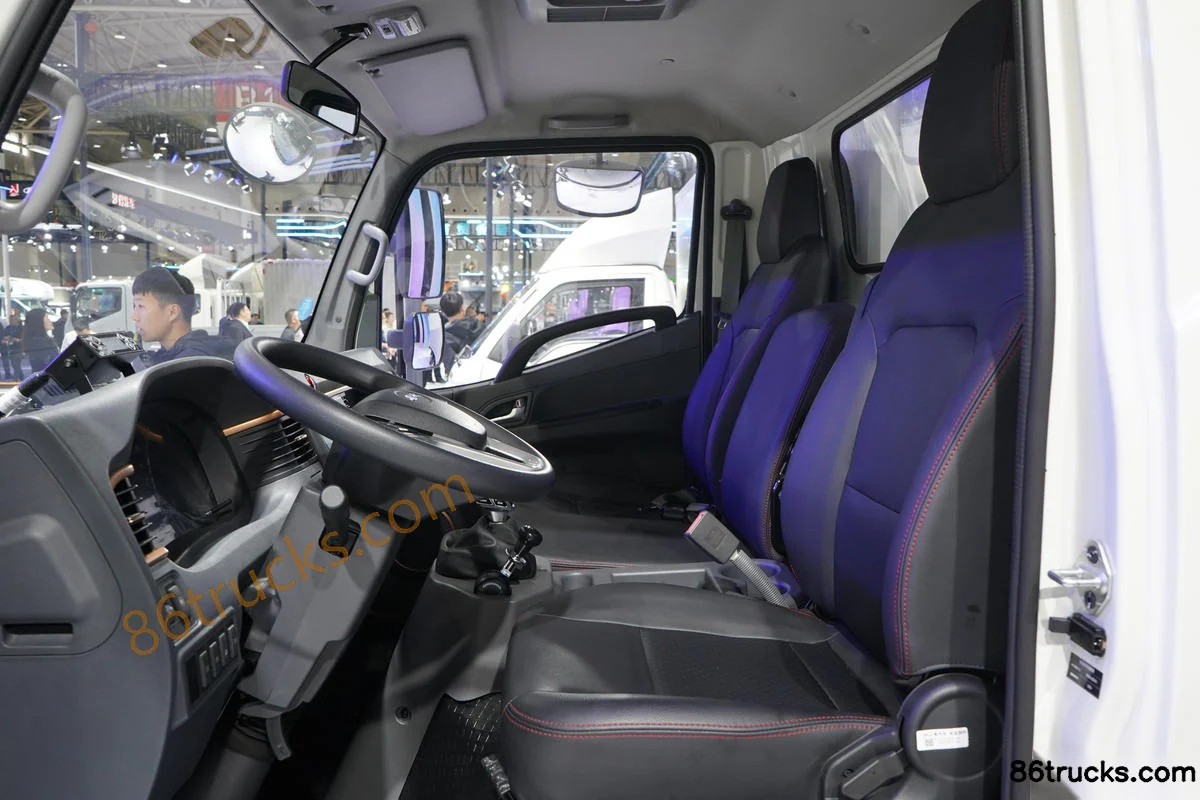

Cab3

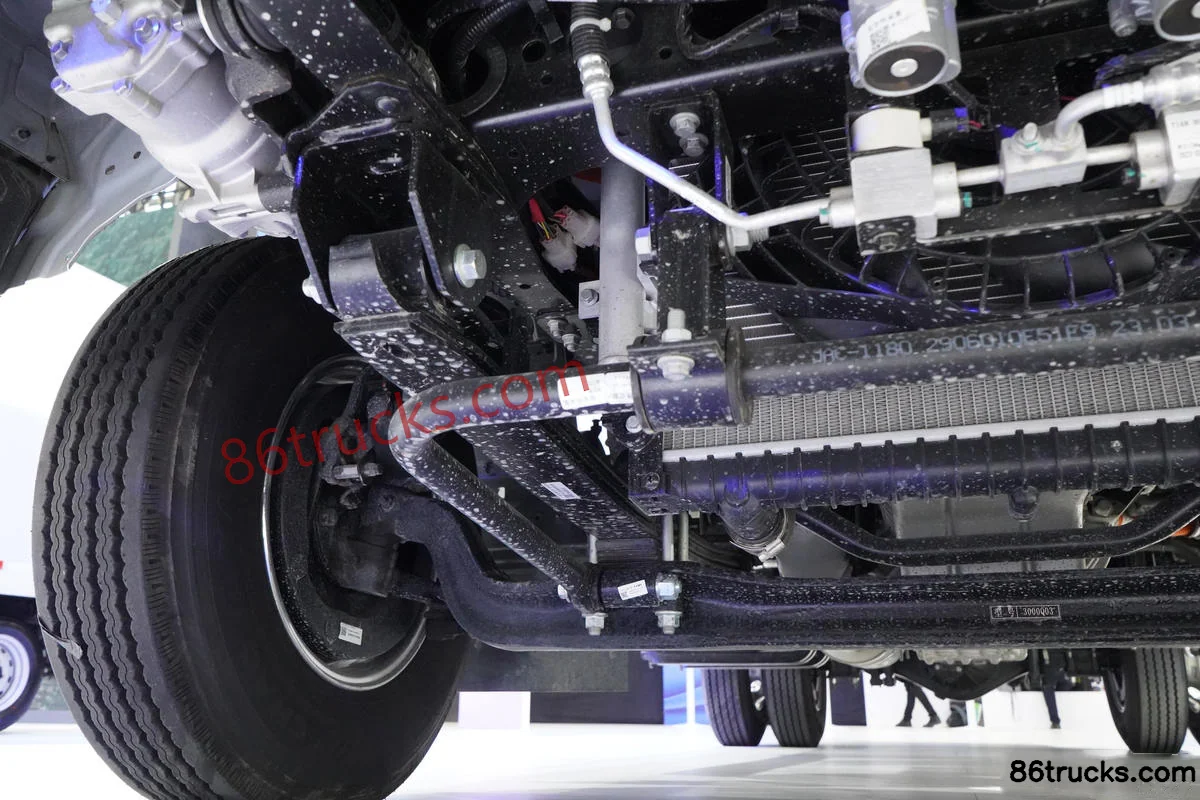

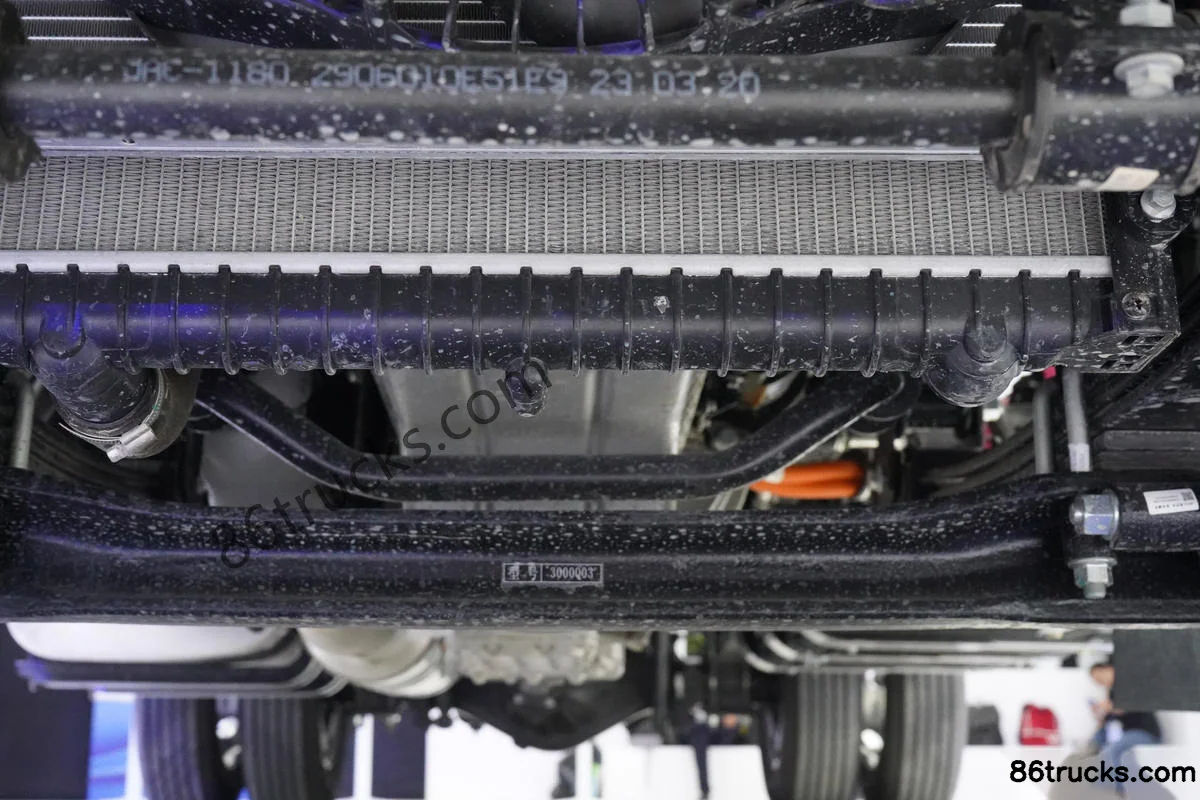

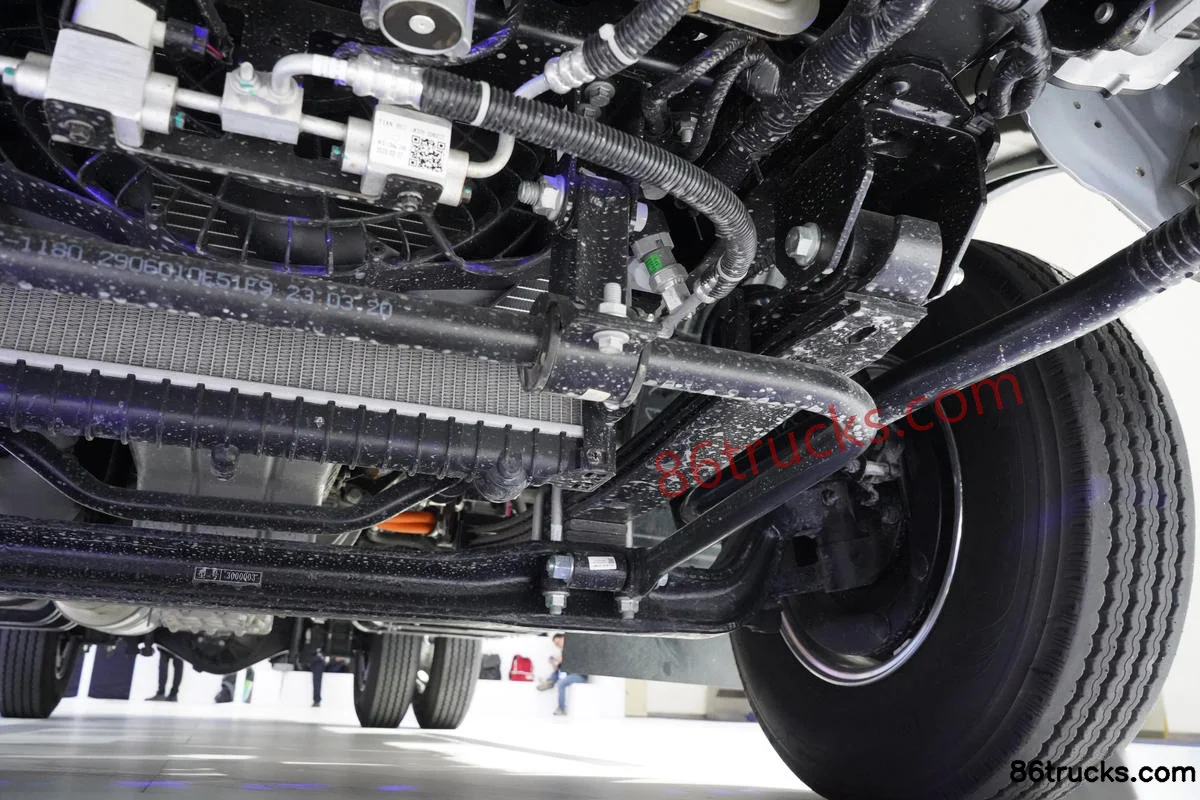

Chassis3

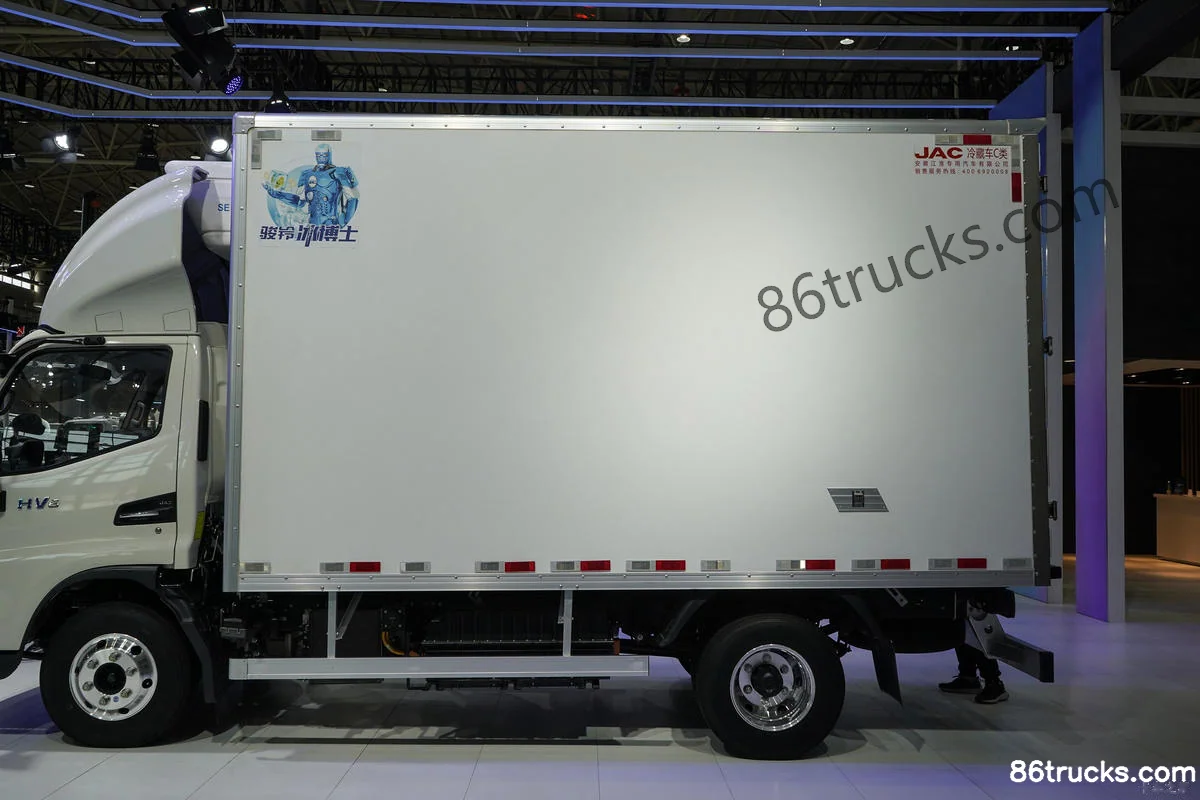

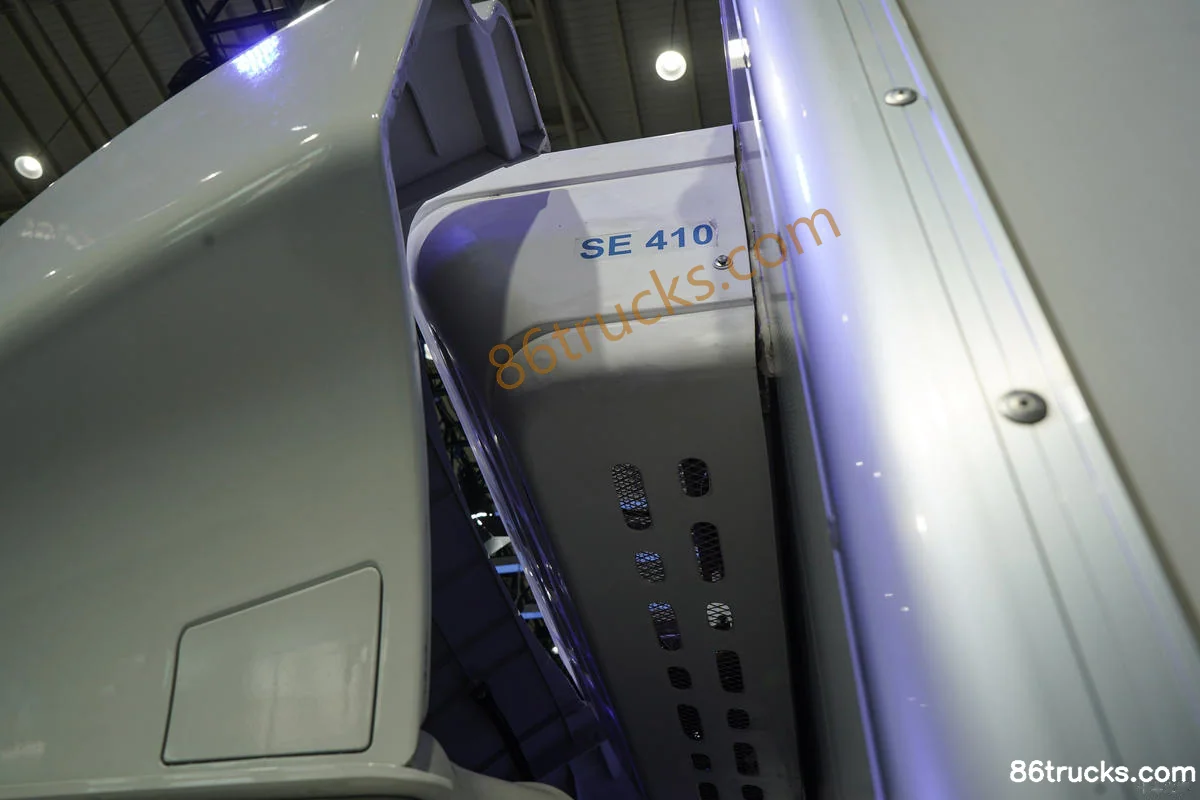

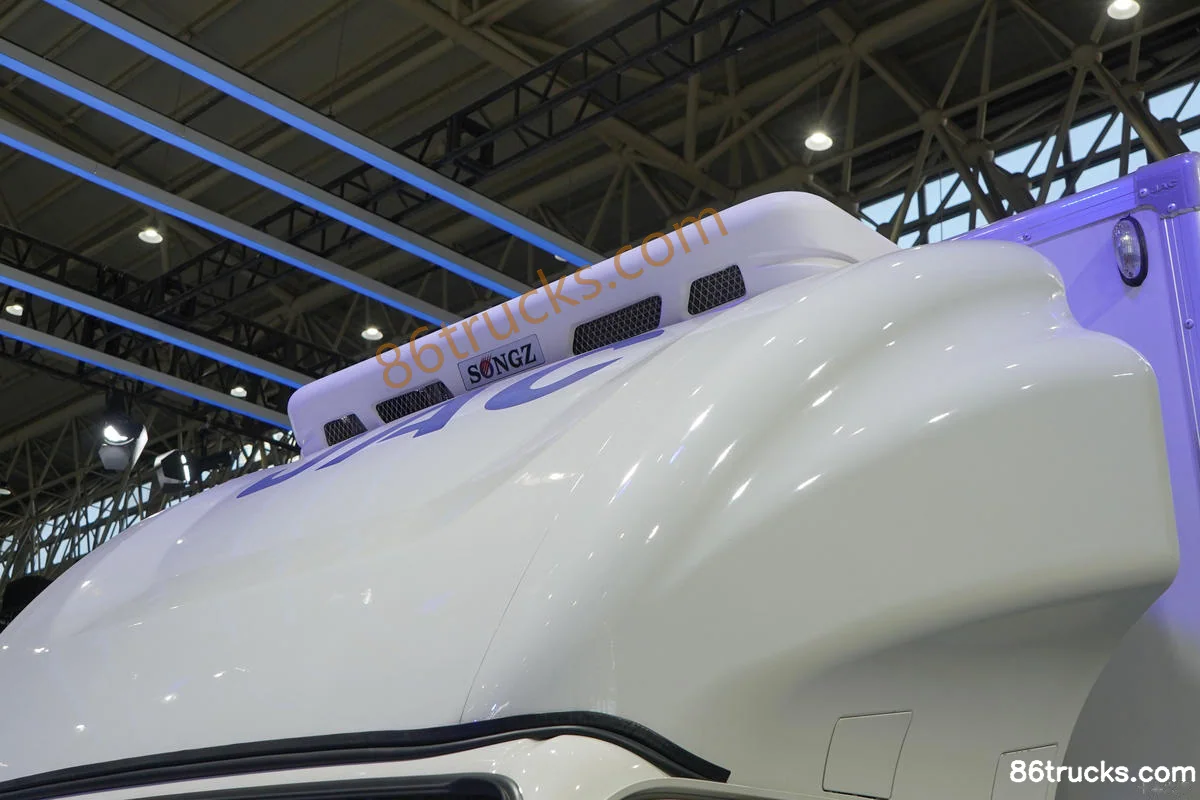

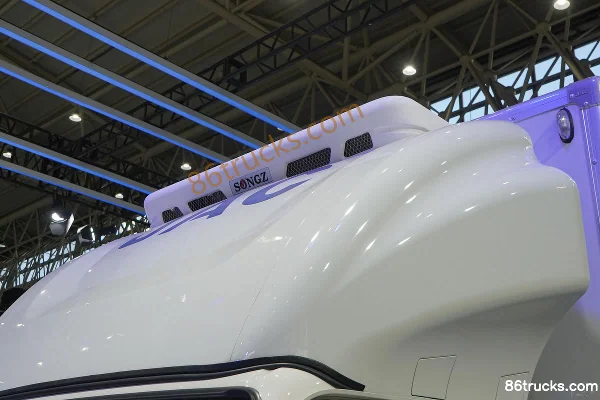

Body3

12 photos

FAQ

What are the key specs of JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels)?

Key specs of JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels) suited for?

JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels) belongs to JACHV6 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling HV6 4.5T 4.015m Plug-in Hybrid Refrigerated Truck 15.55kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
