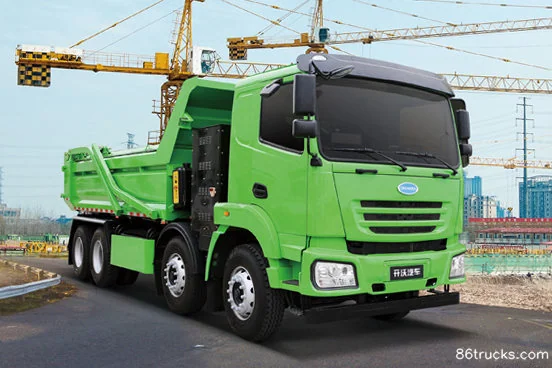

King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck

Export reference
MSRP N/A
Rated payload:: 14.07ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Model code (announced):: NJL3310ZHJBEV
Cab length:: 9.56m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 310km
Motor 1 Brand: Fast Gear
Curb Weight: 16.8ton

Overview

The King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck is a Heavy truck featuring 310km battery/range, Fast Gear motor, 8X4 (12 wheels) drive and 14.07t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL3310ZHJBEV
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.56m
Cab width: 2.55m
Cab height: 3.4m
CLTC range: 310km
Curb Weight: 16.8ton
Rated payload: 14.07ton
GVWR: 31ton
Max. speed: 88km/h
Origin: Nanjing, Jiangsu
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ388XSSFE01
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360kW
Battery/Charging
Charging method: DC fast charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 422kWh
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20,12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior1

1 photos

FAQ

What are the key specs of King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck?

Key specs of King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck suited for?

King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck differ from other variants in the same series?

King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck belongs to King Long Skyworth new energy (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long New Energy 8X4(12 wheels) 5.6m Electric Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
