Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh
EXW
From $109,028
Export quote
Dongfeng Commercial Vehicle Dongfeng Tianlong KC
Main model photos
702 photos
Models
On sale

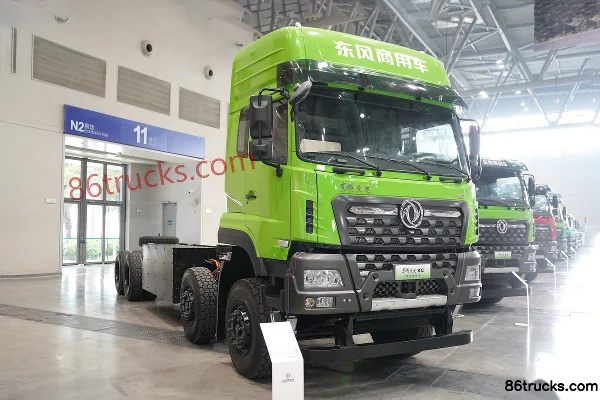

Dongfeng Commercial Vehicle Dongfeng Tianlong KC 8X4(12 wheels) 8.8m Electric Dump Truck CATL 600kWh
EXW
From $104,167
Export quote

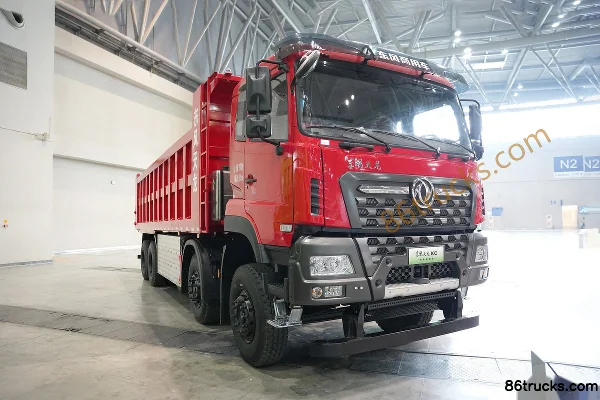

Dongfeng Commercial Vehicle Dongfeng Tianlong KC 8X4(12 wheels) 8m Pure Electric Dump Truck Hubei EVE 432kWh
EXW
Export quote
Dongfeng Tianlong KC 8X4(12 wheels) 5.6m Electric Dump Truck CATL 282kWh
EXW
Export quote
Dongfeng Commercial Vehicle Tianlong KC 8X4(12 wheels) 6m Electric Dump Truck CATL 353kWh
EXW
Export quote
Series Specs
Basic Info
Model code (announced): DFH3310ABEV4 / DFH3310AEV2 / DFH3310ASEV / DFH3310DBEV1 / DFH3310ASEV5 / DFH3310ASEV4 / DFH3310ASEV3 / DFH3310ASEV2 / DFH3310AEV3 / DFH3310AEV1 / DFH3310AEV / DFH3250DSEV / DFH3250DEV1 / DFH3250DEV
Drive type: 8X4 / 6X4
Wheelbase: 2050+4800+1350 / 2050+4100+1350 / 1850+3200+1350 / 2050+3200+1350 / 2050+4000+1350 / 2050+3000+1350 / 2050+3800+1350 / 2050+4600+1350 / 5400+1350 / 4700+1350 / 2050+3500+1350mm
Cab length: 11.775 / 11.995 / 9.75 / 10.125 / 11.825 / 10.925 / 10.725 / 9.925 / 9.825 / 10.525 / 11.725 / 11.525 / 10.735 / 10.535 / 9.635 / 9.435 / 10.435 / 9.835 / 10.325m
Cab width: 2.55m
Cab height: 3.54 / 3.42 / 3.6 / 3.45 / 3.65 / 3.55 / 3.7 / 3.35 / 3.5m
CLTC range: 400 / 245 / 216 / 320 / 300km
Curb Weight: 26.3 / 21.85 / 18.5 / 15 / 22.56 / 21.6 / 18.7 / 19.5 / 22.3 / 18.75 / 19.1 / 17.5 / 19.6ton
Rated payload: 4.57 / 9.02 / 10.97 / 15.87 / 8.31 / 9.27 / 12.17 / 12.37 / 11.37 / 8.57 / 6.12 / 5.77 / 7.37 / 11.27ton
GVWR: 31 / 25ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Remarks: Battery side-mounted, two 165Ah batteries
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong / Zhonglian Nengchuang / Suzhou Green Control
Motor 1 Model: TZ460XS-LKM3004 / TZ460XS-LKM3101 / TZ420XS360K01 / TZ460XS-LKM2810
Motor Type: Permanent magnet synchronous motor
total rated power: 400 / 270 / 250 / 315kW
Peak power: 550 / 450 / 360 / 510kW
total peak torque: 2800 / 3100 / 2400N·m
total rated torque: 2010 / 1450 / 1200 / 1650N·m
Battery/Charging
Battery Brand: CATL / EVE Energy, Hubei / Rongchu
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600 / 432 / 282 / 353 / 400 / 350 / 423 / 422.87kWh
Transmission Parameters
shift type: AMT manual/auto
Transmission Model: J4S280 DD / J4S240 DD / 6E240AMT
Transmission Brand: Fast Gear
Cargo box parameters
Cargo box type: Rear dump type / Dump type
Cargo box length: 8.6 / 8.8 / 8 / 5.6 / 6 / 7.8 / 6.8 / 6.6 / 5.8 / 6.5 / 7.6 / 6.2 / 5.4m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: D320KC standard-roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500 / 7000kg
rear axle description: 16THandeMAN300 / Hande300 wheel reduction axle / HandeMAN300 / Axle φ300 cast steel wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R20 18PR / 11.00R20 18PR,12.00R20 18PR / 11.00R20 18PR / 12.00R20 18PR / 12.00R20 16PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Dongfeng Commercial Vehicle Dongfeng Tianlong KC electric dump truck?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC is an export-oriented electric dump truck lineup with about 45 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC export reference is about $104,167 – $109,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Commercial Vehicle Dongfeng Tianlong KC cover?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC mainly covers: Drive: 8x4. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
For Dongfeng Commercial Vehicle Dongfeng Tianlong KC: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Commercial Vehicle Dongfeng Tianlong KC include?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC currently lists about 45 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
