Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh

Export reference
From $109,028
MSRP ¥78.5M CNY
Rated payload:: 4.57ton
Wheelbase:: 2050+4800+1350mm
Cargo box type:: Rear dump type
Model code (announced):: DFH3310ABEV4
Cab length:: 11.775m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 400km
Motor 1 Brand: Lv Kong
Curb Weight: 26.3ton

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh is a Heavy truck featuring 400km battery/range, Lv Kong motor, 8X4 (12 wheels) drive and 4.57t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3310ABEV4
Drive type: 8X4
Wheelbase: 2050+4800+1350mm
Cab length: 11.775m
Cab width: 2.55m
Cab height: 3.54m
CLTC range: 400km
Curb Weight: 26.3ton
Rated payload: 4.57ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Remarks: Battery side-mounted, two 165Ah batteries
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ460XS-LKM3004
Motor Type: Permanent magnet synchronous motor
total rated power: 400kW
Peak power: 550kW
total rated torque: 2010N·m
total peak torque: 2800N·m
Motor 1 Peak Power: 550kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Transmission Parameters
Transmission Model: J4S280 DD
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 8.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 16THandeMAN300
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Multimedia features
Center Console Color Screen:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

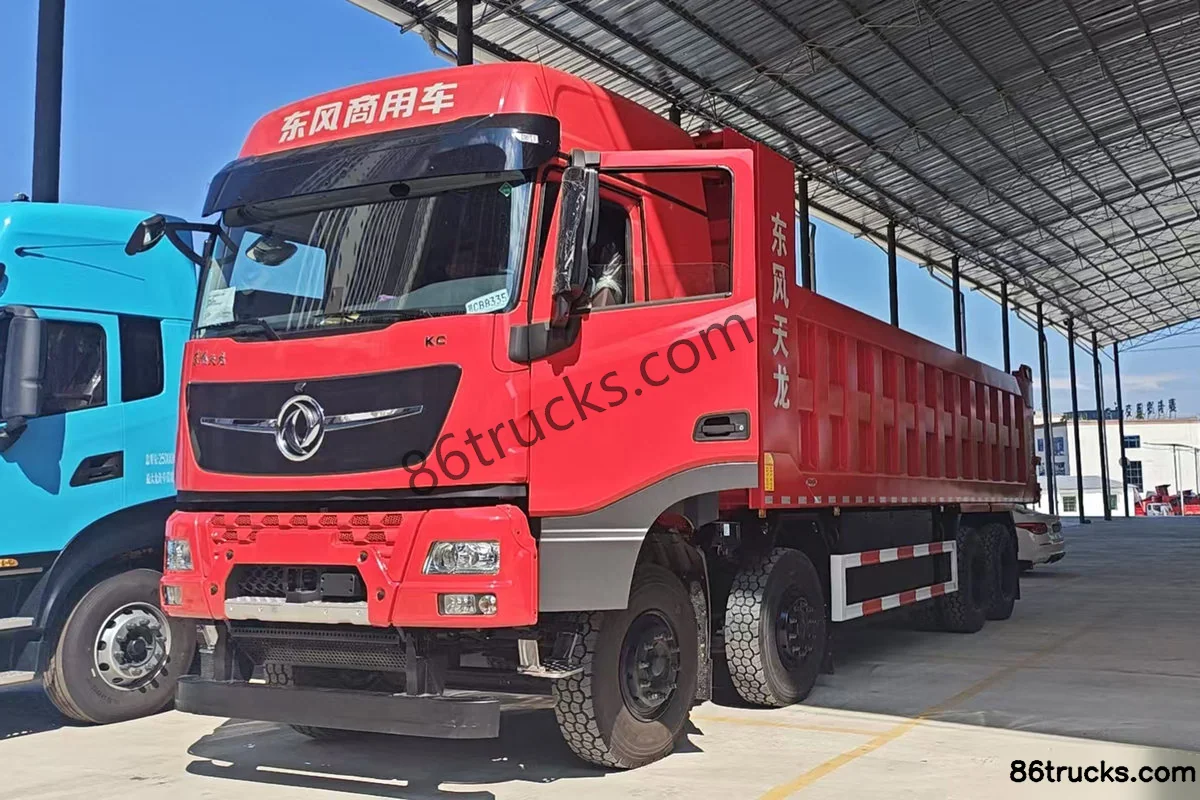

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh, and what does it include?

Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh export reference is about From $109,028; MSRP is ¥78.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh?

Key specs of Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh suited for?

Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh differ from other variants in the same series?

Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh belongs to Dongfeng Tianlong KC (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianlong KC 8X4(12 wheels) 8.6m Single Row Pure Electric Dump Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
