Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)

Export reference
From $19,444
MSRP ¥14M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 5.995×2.1×2.25m
Truck Type:: Water Sprinkler Truck
Vehicle origin:: Jinan, Shandong
Tank Dimensions (L×W×H): 3.4X1.7X1.15m
Rated payload: 4.45ton
Horsepower 110
Curb Weight: 8.28ton

Overview

The Sinotruk Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) is a water sprinkler truck featuring 3.4X1.7X1.15m tank capacity, 4.45t payload, 4.6m³ volume and 8.28ton GVW. On the powertrain side, it comes with 110 hp, China V emissions and Diesel fuel.

China V 110 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.1×2.25m
Truck Type: Water Sprinkler Truck
Vehicle origin: Jinan, Shandong
Wheelbase: 3360mm
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 8.28ton
Rated payload: 4.45ton
Max. speed: 110km/h
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 3.4X1.7X1.15m
Vehicle certification code: JYJ5080GSSE
Body Brand: Luye Brand
Engine parameters
Engine Model: Foton4J28TC5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Cargo box parameters
Box volume: 4.6m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1089VEJEA-F3
Axle ratio: 4
Leaf spring count: 3+1/6+7,9/11+7
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY5G40
Tire
Tire Size: 7.50R16
Number of tires: 6pcs

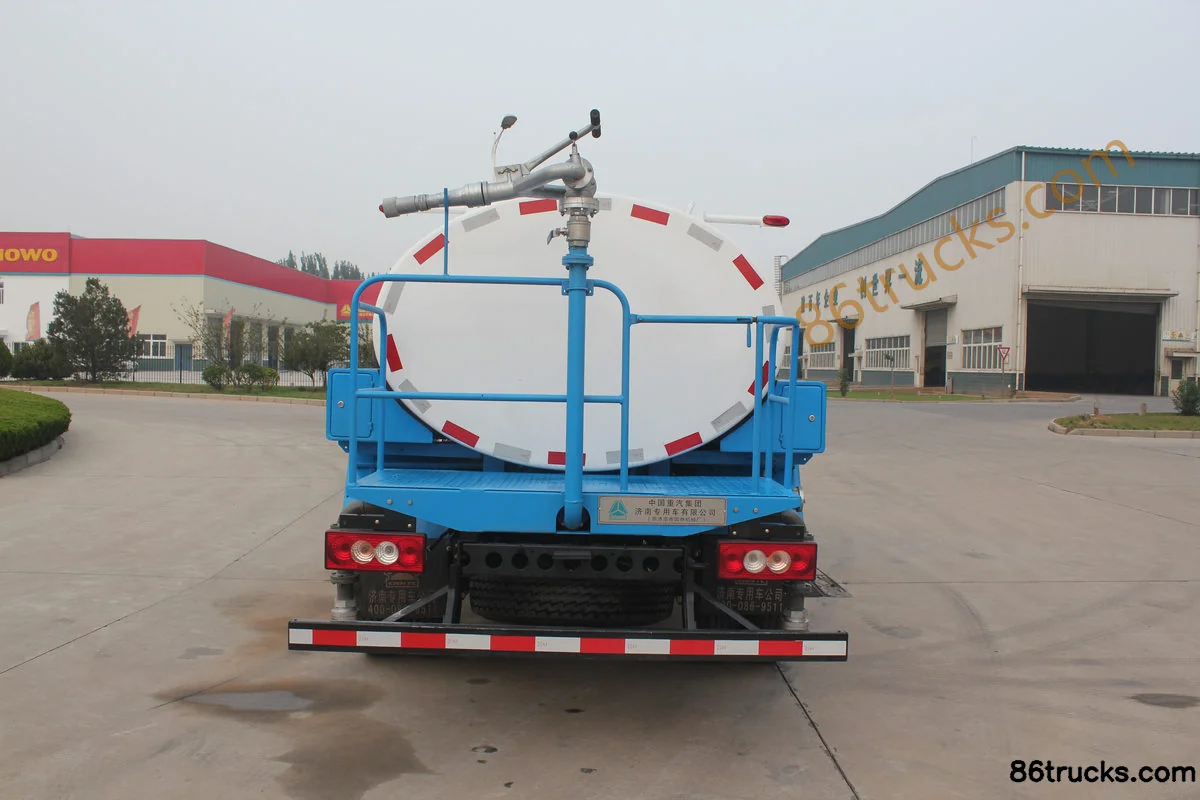

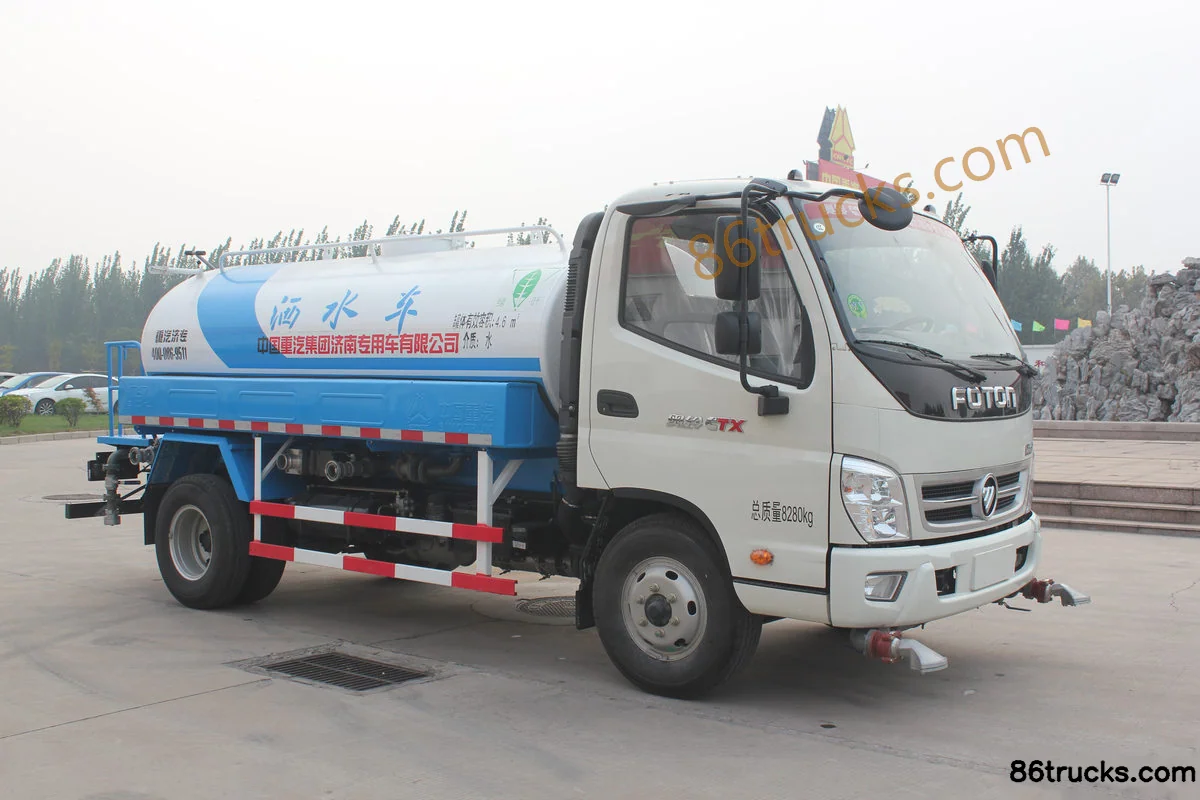

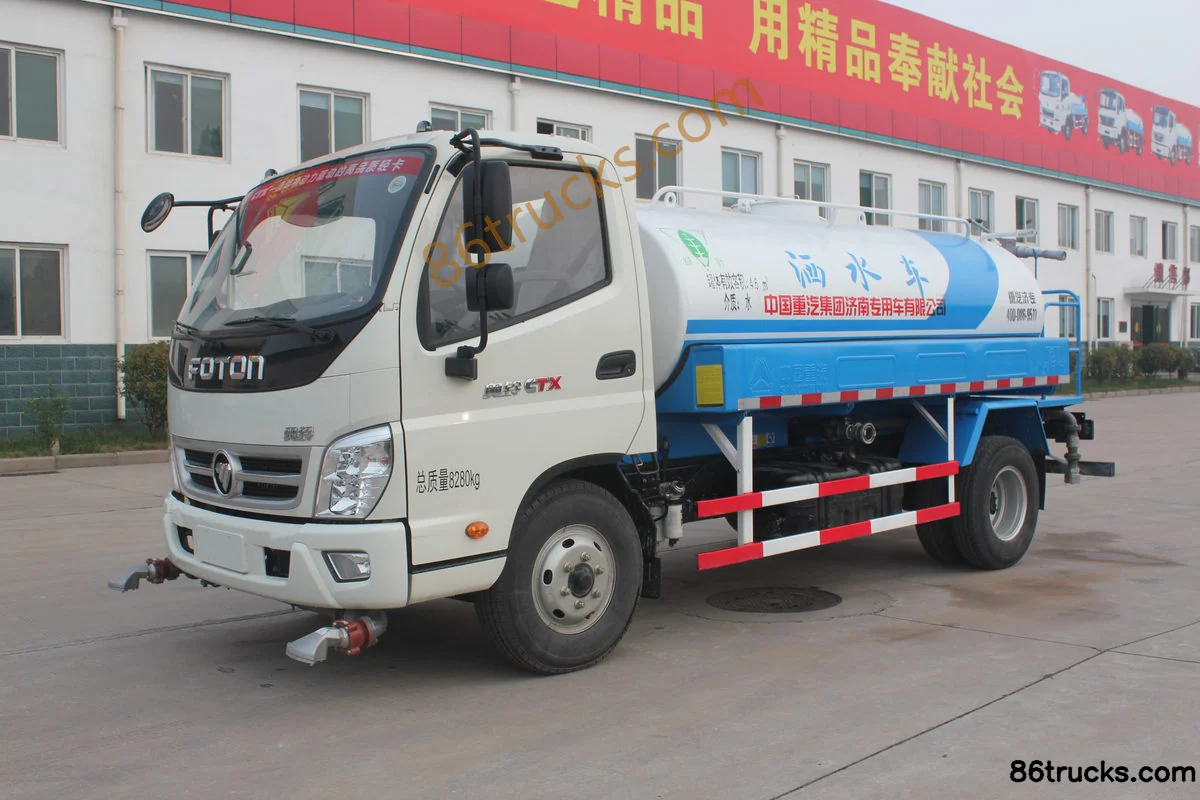

Photos

Exterior3

3 photos

FAQ

What is the export price of Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand), and what does it include?

Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) export reference is about From $19,444; MSRP is ¥14M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Key specs of Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand): Horsepower: 110 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) suited for?

Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) differ from other variants in the same series?

Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) belongs to Jinan Sinotruk (Lvye Brand) Foton Chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
