Foton Aoling CTX 156 hp 4X2(6 wheels) Water Sprinkler Truck (Luye Brand)
EXW
From $24,306
Export quote
Jinan Sinotruk (Lvye Brand) Foton Chassis water
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling CTX 156 hp 4X2(6 wheels) Water Sprinkler Truck (Luye Brand) | 4x2 / 156hp / China V | From $24,306 | |
| Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) | 110hp / China V | From $19,444 |

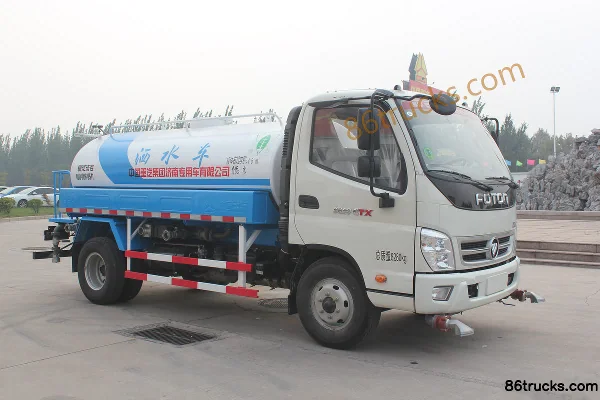

Foton Aoling CTX 110 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)
EXW
From $19,444
Export quote
Series Specs
Basic Info
Cab dimensions: 6.96X2.14X2.335 / 5.995×2.1×2.25m
Drive type: 4X2
Truck Type: Water Sprinkler Truck
Vehicle origin: Jinan, Shandong
Wheelbase: 3800 / 3360mm
Front track width: 1730 / 1530mm
rear track: 1680 / 1485mm
Curb Weight: 4.51 / 8.28ton
Rated payload: 5.29 / 4.45ton
Max. speed: 110km/h
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF3.8s5154 / Foton4J28TC5
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.771L
Emission standard: China V
Max output power: 115 / 81kW
Max hp: 156 / 110Horsepower
Engine Type: Electronically controlled high-pressure common rail
Body Parameters
Tank Dimensions (L×W×H): 4.15X1.745X1.145 / 3.4X1.7X1.15m
Vehicle certification code: JYJ5109GSSE / JYJ5080GSSE
Body Brand: Luye Brand
Cargo box parameters
Box volume: 5.55 / 4.6m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1109VEJEA-FB / BJ1089VEJEA-F3
Axle ratio: 4.33 / 4
Leaf spring count: 3+1/6+7,9/11+7
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: WLY 6-speed / WLYWLY5G40
Tire
Tire Size: 8.25-16,8.25R16,8.25R20 12PR / 7.50R16
Number of tires: 6pcs
FAQ
What kind of truck is Sinotruk Jinan Sinotruk (Lvye Brand) Foton Chassis water sprinkler truck?
Sinotruk Jinan Sinotruk (Lvye Brand) Foton Chassis is an export-oriented water sprinkler truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Jinan Sinotruk (Lvye Brand) Foton Chassis water?
Jinan Sinotruk (Lvye Brand) Foton Chassis water export reference is about $19,444 – $24,306. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Jinan Sinotruk (Lvye Brand) Foton Chassis water cover?
Jinan Sinotruk (Lvye Brand) Foton Chassis water mainly covers: Drive: 4x2; Horsepower: 110 hp / 156 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jinan Sinotruk (Lvye Brand) Foton Chassis water?
For Jinan Sinotruk (Lvye Brand) Foton Chassis water: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jinan Sinotruk (Lvye Brand) Foton Chassis water include?
Jinan Sinotruk (Lvye Brand) Foton Chassis water currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jinan Sinotruk (Lvye Brand) Foton Chassis water?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
