Zhonglian HNQ055D-305 Drive Axle

Export reference
MSRP N/A
Application Scope:: Suitable for different body and frame widths
Front/rear track width:: 1586mm
Brake:: air drum brake

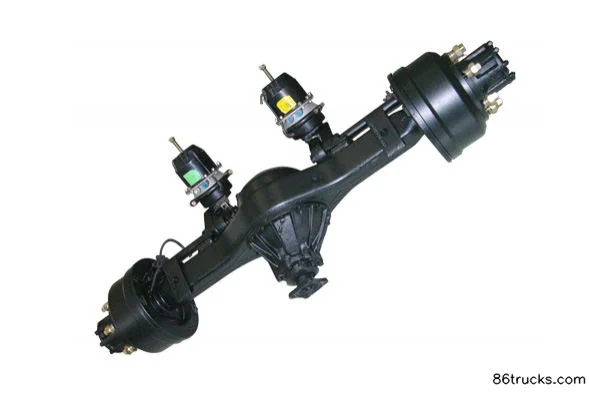

Zhonglian HNQ055D-305 Drive Axle exterior
View more photos (1)
Axle Model: ZOOMLION HNQ055D-305
Brake size: Φ310×130
Axle Type: Drive axle

Overview

The Zhonglianqiao Zhonglian HNQ055D-305 Drive Axle is a parts product with spec ZOOMLION HNQ055D-305 and Φ310×130 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: ZOOMLION HNQ055D-305
Axle Type: Drive axle
Application Scope: Suitable for different body and frame widths
Front/rear track width: 1586mm
Rated axle load: 5500ton
Brake: air drum brake
Transmission Ratio: 4.875
curb weight: 310kg
Brake size: Φ310×130
Max output torque: 9000N·m
Wheel Bolts: 6×M20×1.5mm
Remarks: Cast axle housing, single-stage central reduction

Photos

Exterior1

Zhonglian HNQ055D-305 Drive Axle Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Zhonglian HNQ055D-305 Drive Axle suited for?

Match Zhonglian HNQ055D-305 Drive Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Zhonglian HNQ055D-305 Drive Axle differ from other variants in the same series?

Zhonglian HNQ055D-305 Drive Axle belongs to Zhonglianqiao Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zhonglian HNQ055D-305 Drive Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zhonglian HNQ055D-305 Drive Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
