NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck

Export reference
From $17,153
MSRP ¥12.35M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 3.82ton
Wheelbase:: 2800mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 7.25ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box thickness: floor 2 side 2

Overview

The NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck is a Medium-duty truck featuring 7.25t payload, 11.2t GVW, floor 2 side 2 cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and Fast Gear transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3110EDH33A
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerD30TCIF1
transmission: 8-speed gearbox
Rear Axle Ratio: 6.33
Cab length: 5.365m
Cab width: 2.03m
Cab height: 2.26m
Front track width: 1430mm
rear track: 1490mm
Curb Weight: 3.82ton
Rated payload: 7.25ton
GVWR: 11.2ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 15°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8-speed gearbox
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 2TG-90×500
Cargo box thickness: floor 2 side 2
Cargo box length: 3.55m
Cargo box width: 2m
Cargo box height: 0.8m
Body Parameters
Lifting type: dual cylinder
Cab parameters
Cab: Single Row
Cab width: 1735mm
seating capacity: 2Personnel
Chassis Specs
Front axle description: 2.3T
Front axle allowable load: 4000kg
Frame Dimensions: 206mm
rear axle description: 6.5T
rear axle allowable load: 7200kg
Axle ratio: 6.33
Leaf spring count: 3/4+3
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

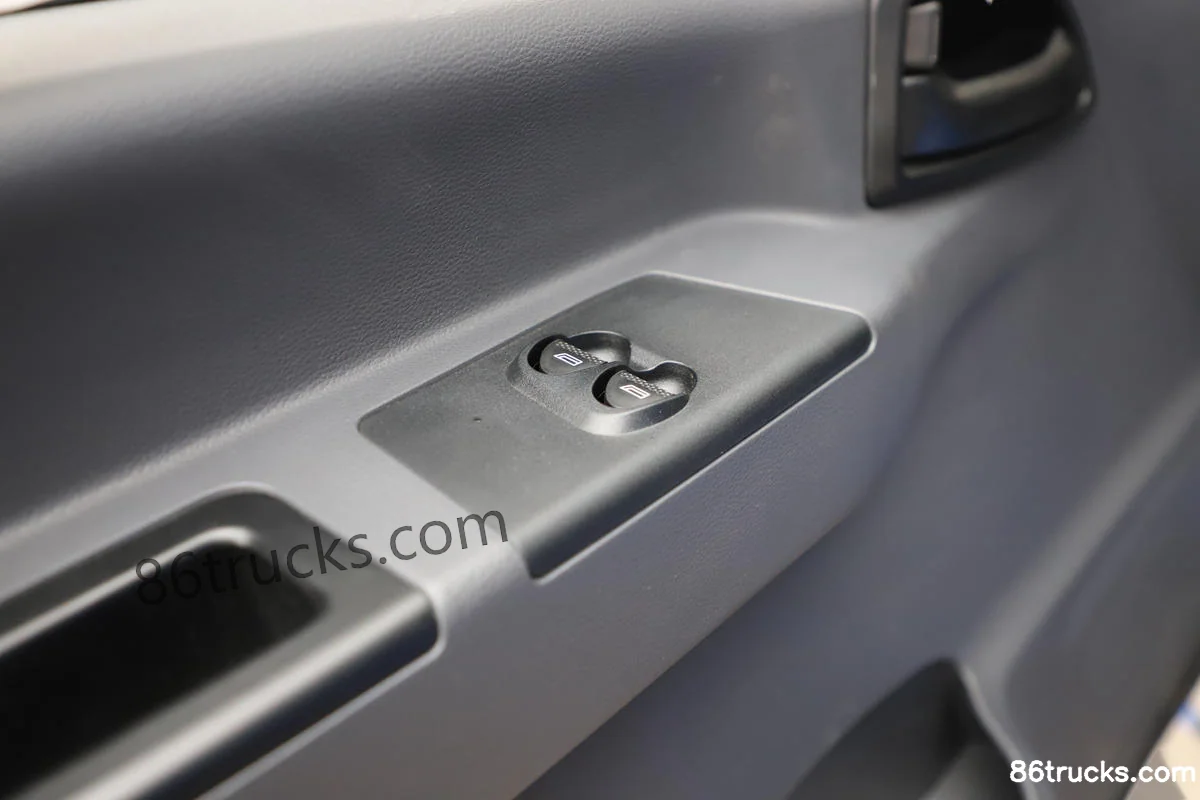

Power Windows:
Electronic Central Lock:

Photos

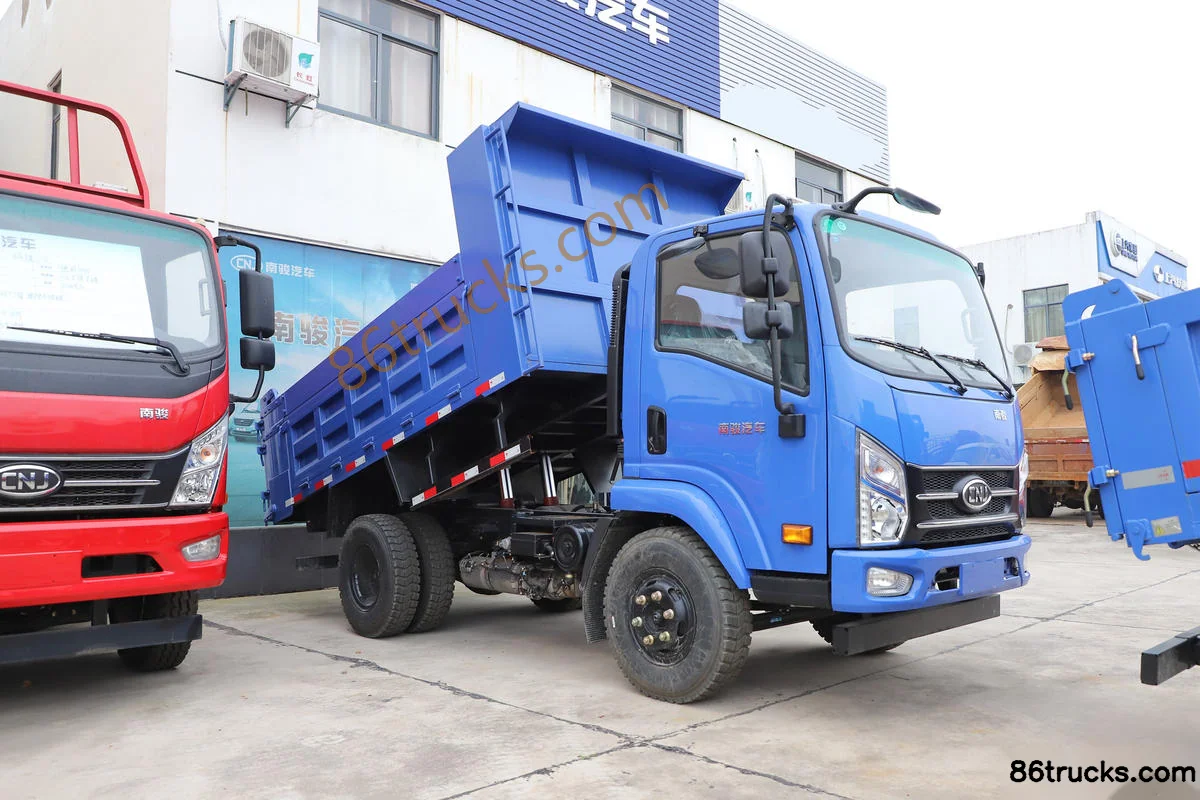

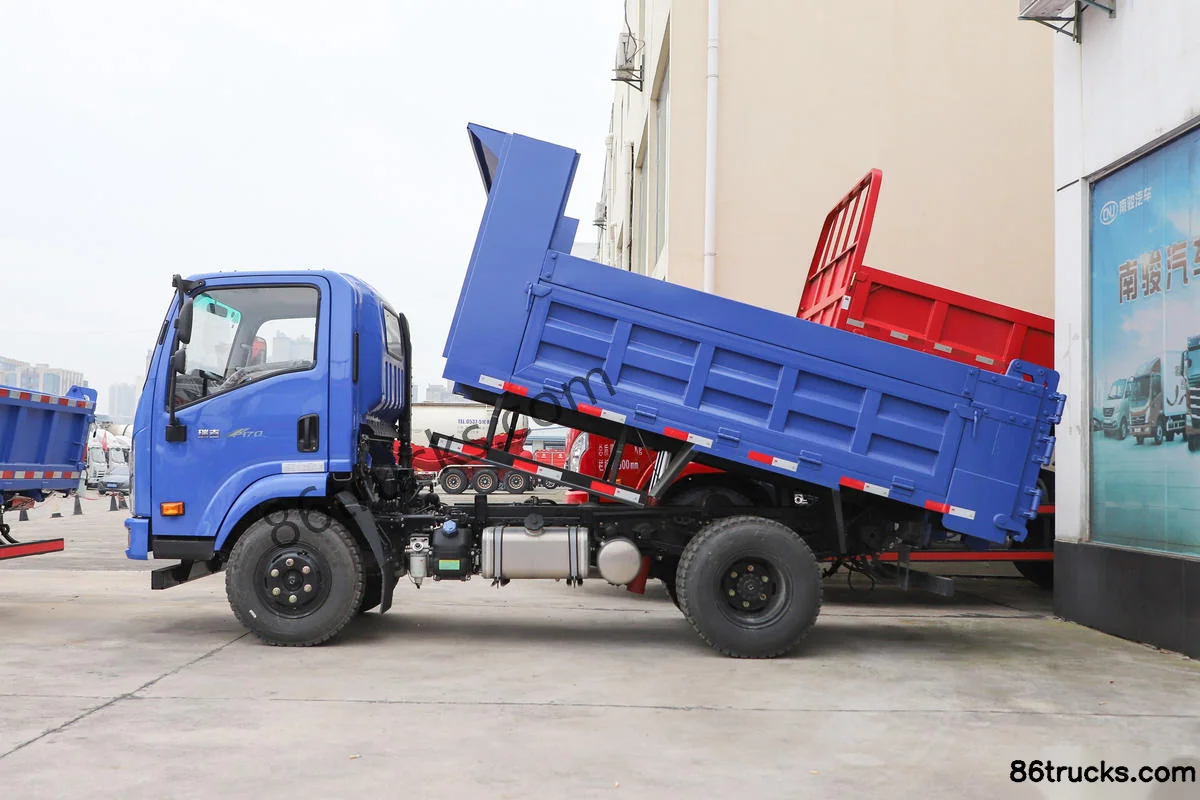

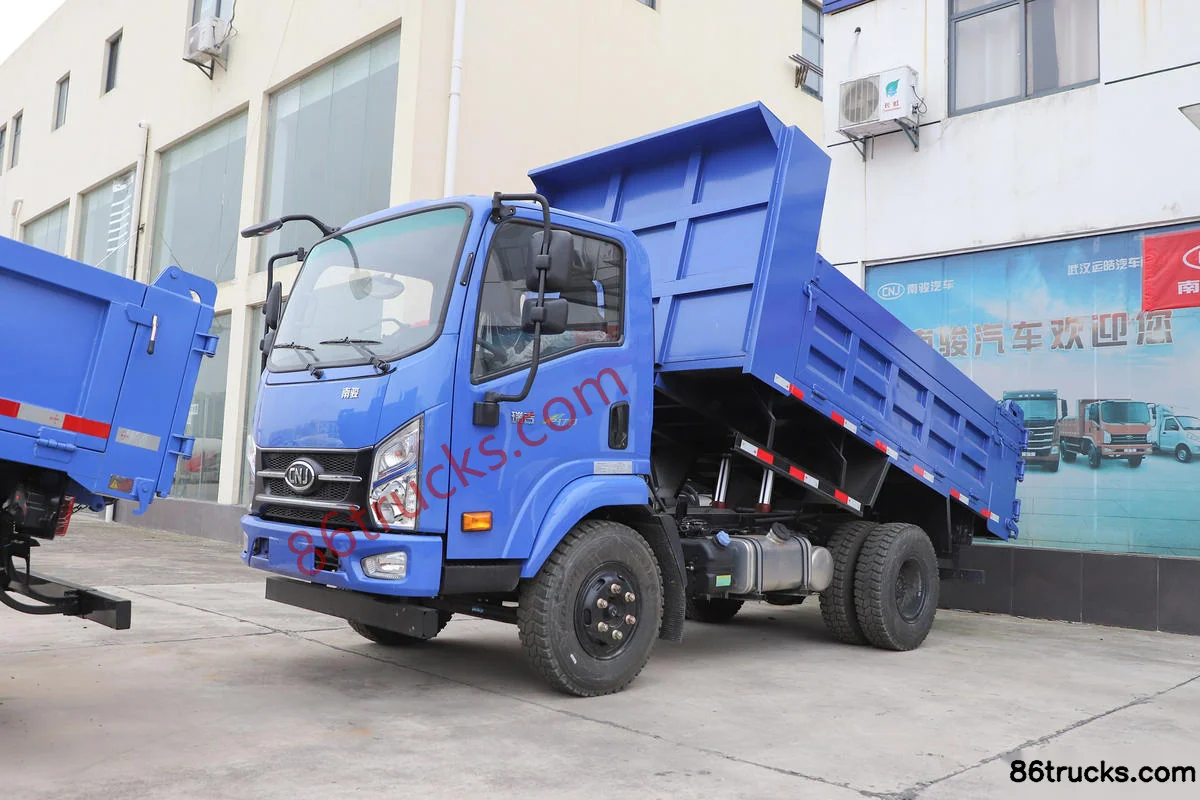

Exterior3

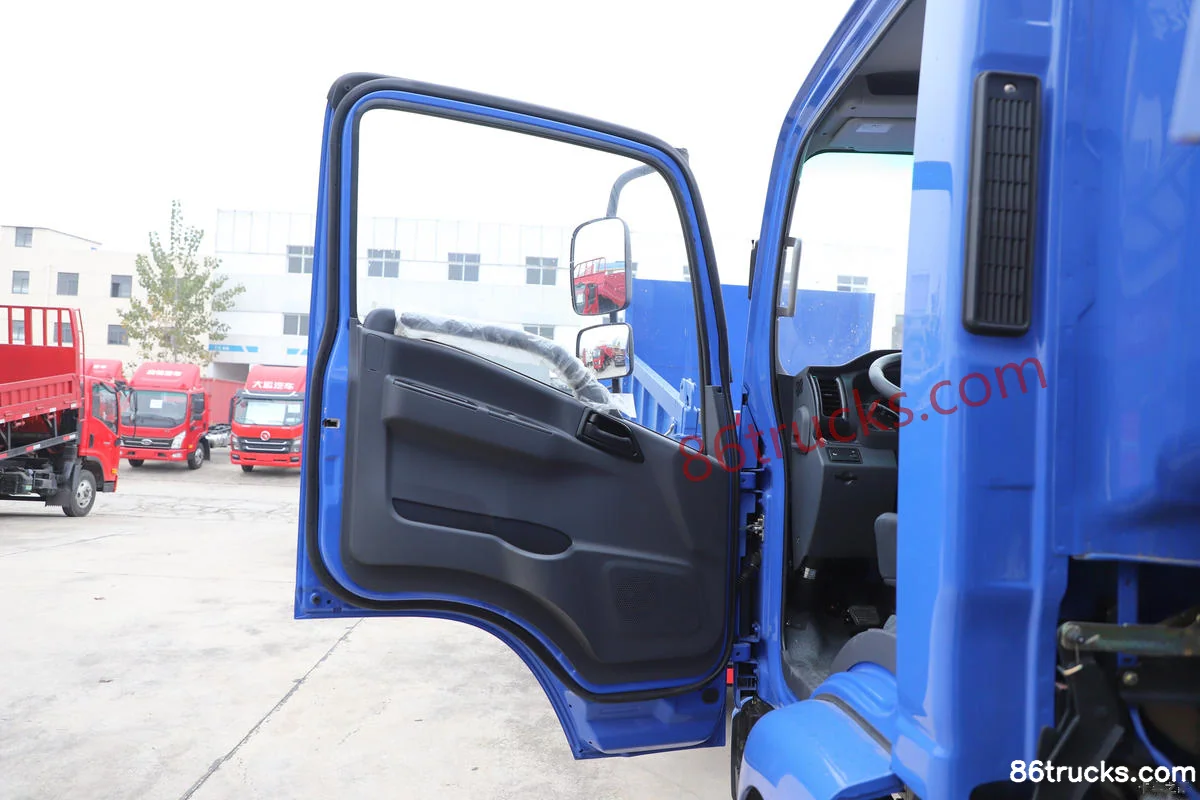

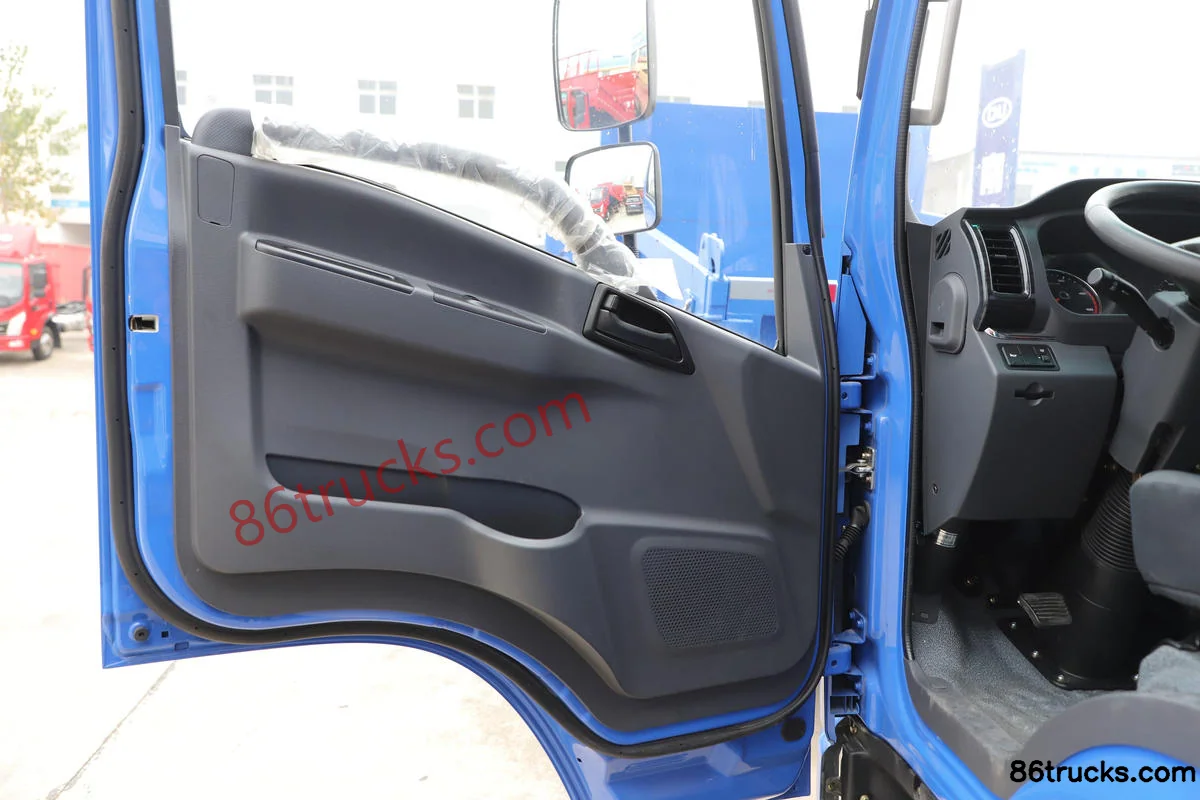

Cab3

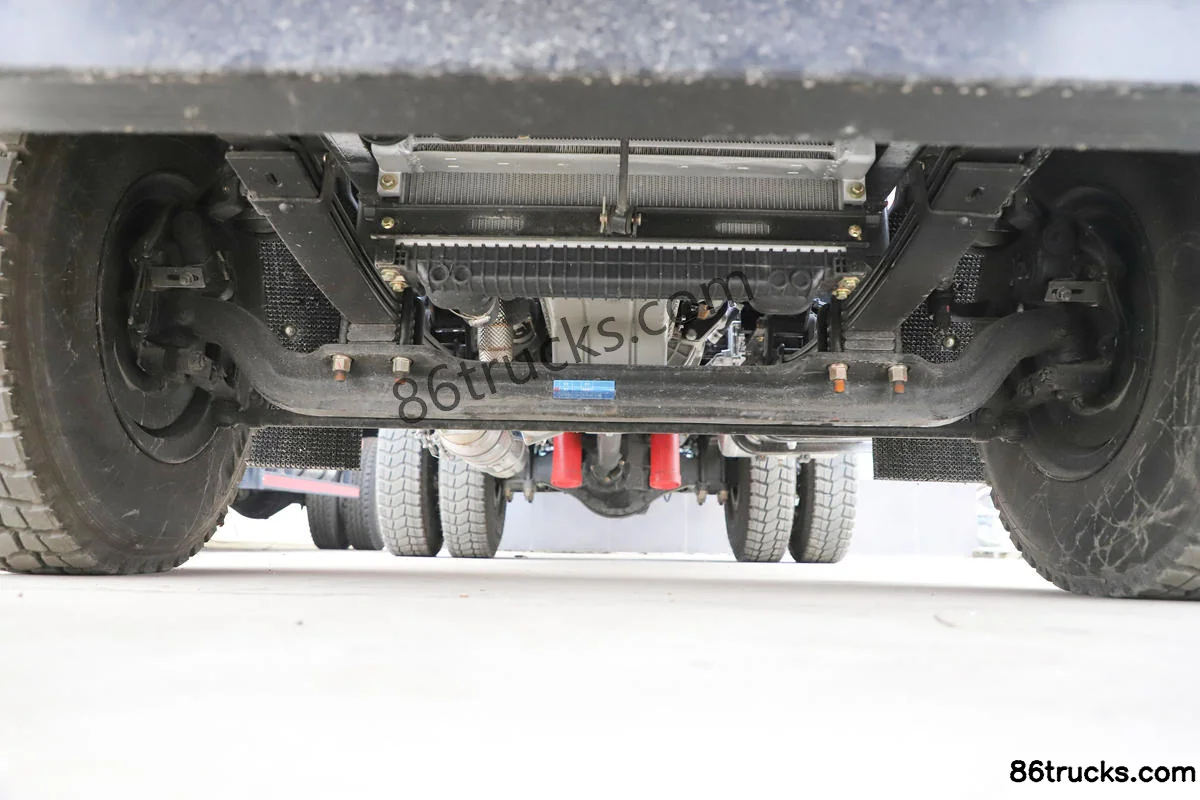

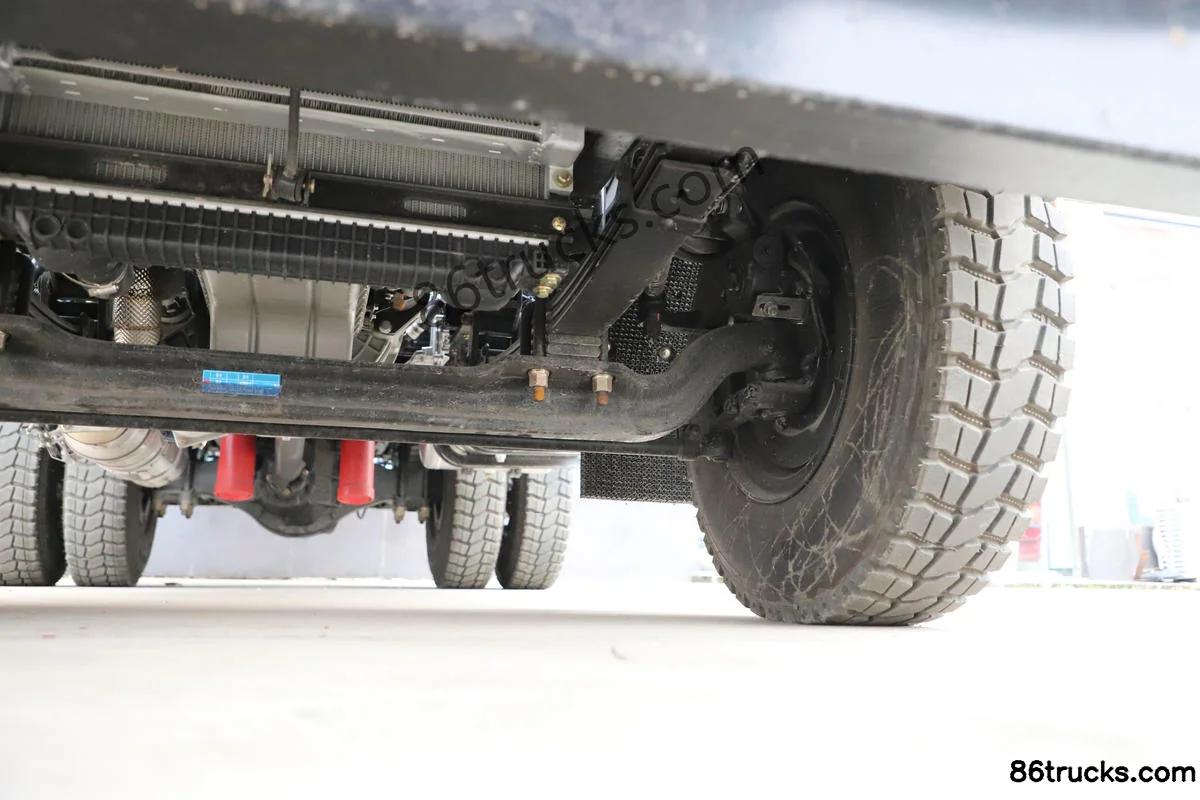

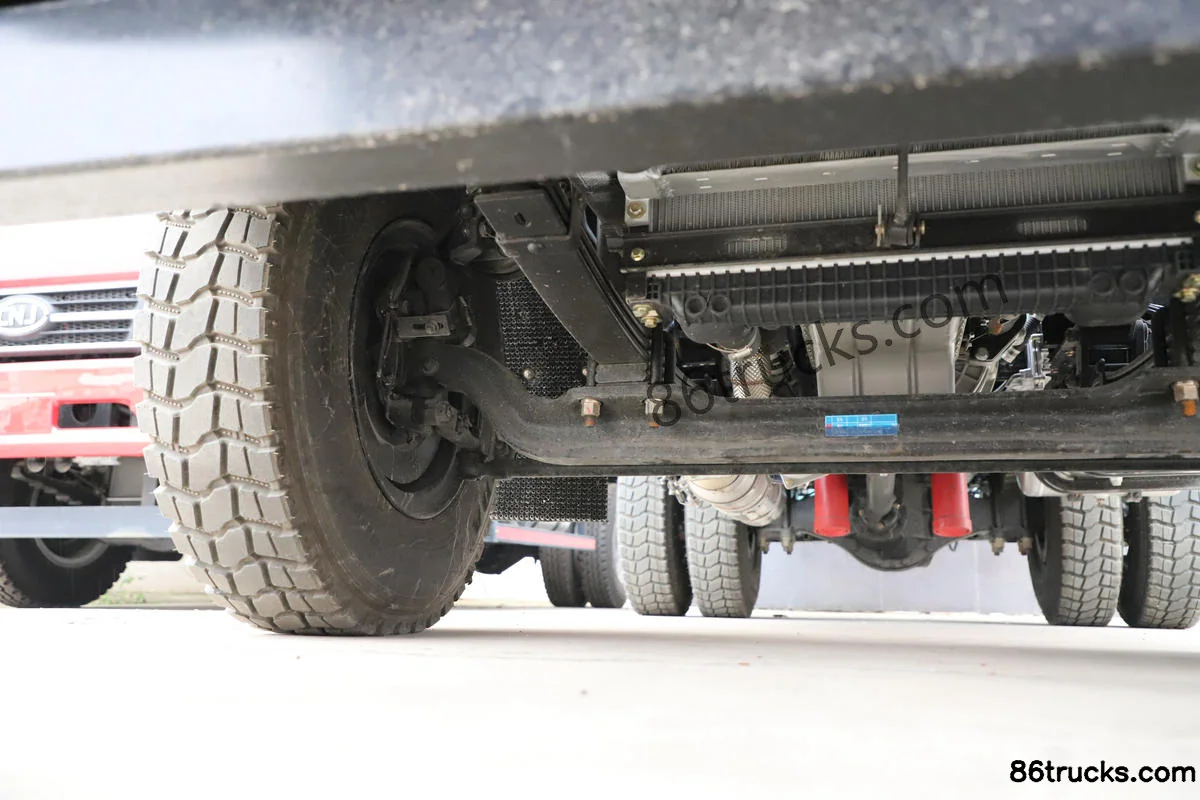

Chassis3

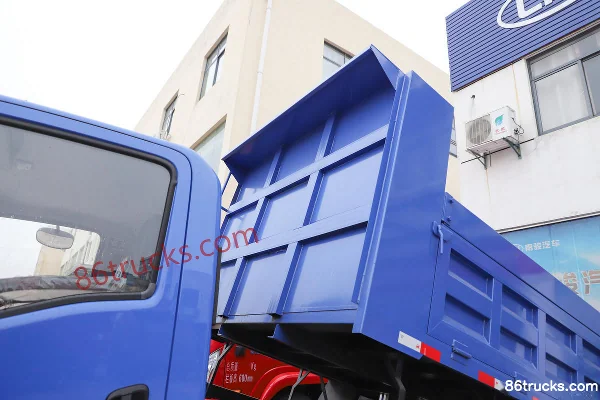

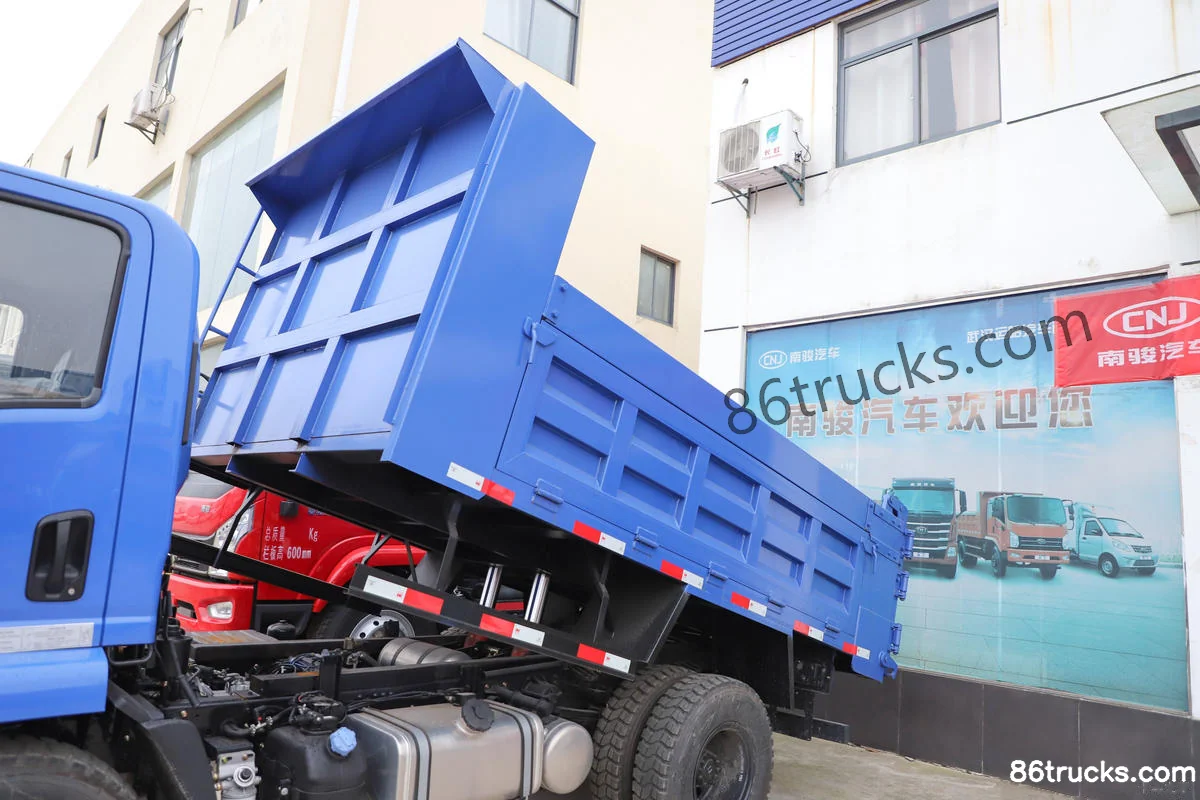

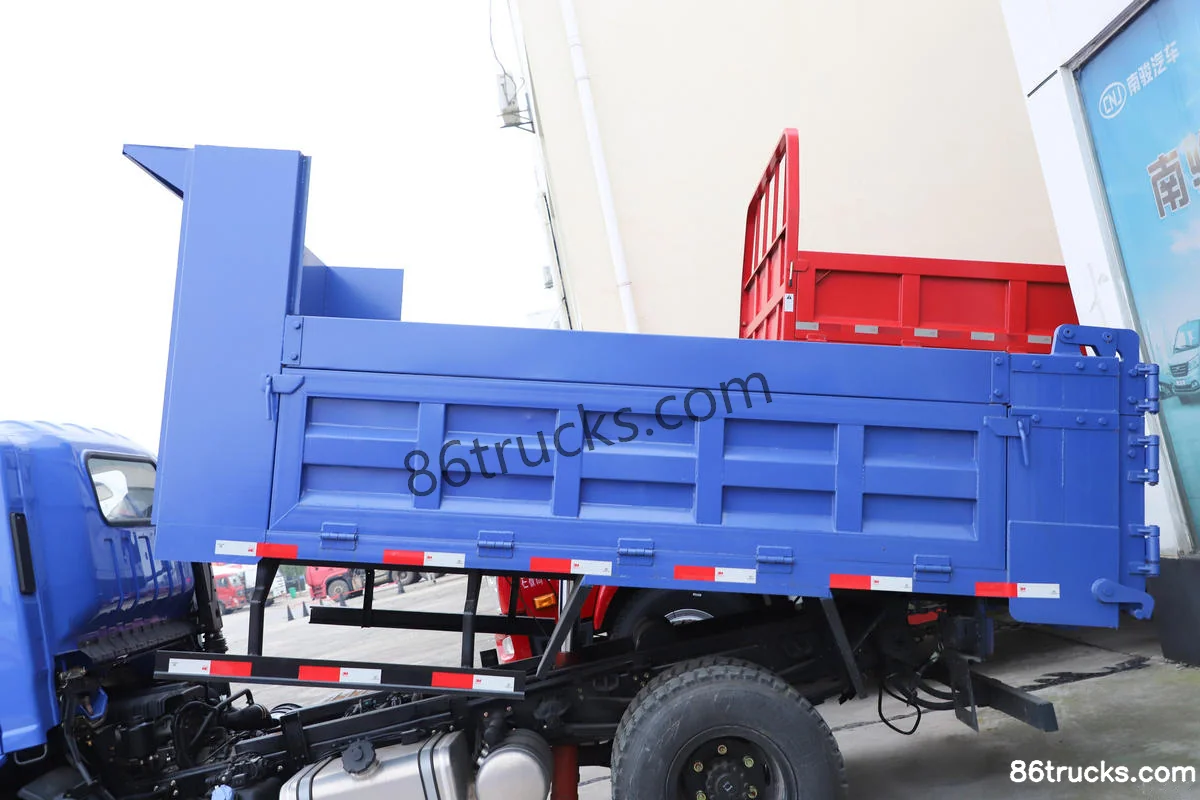

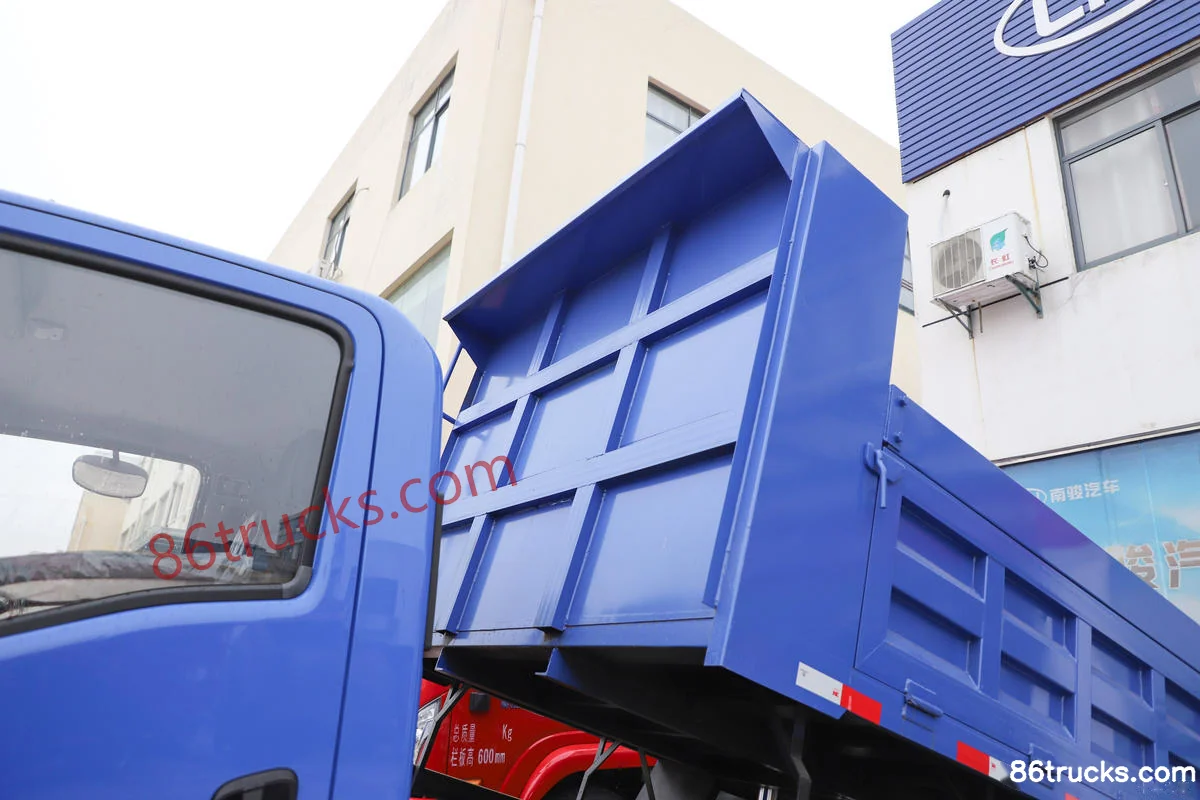

Body3

12 photos

FAQ

What is the export price of NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck, and what does it include?

NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck export reference is about From $17,153; MSRP is ¥12.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck?

Key specs of NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck suited for?

NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck differ from other variants in the same series?

NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck belongs to NanJun Ruiji J30 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji J30 Luxury Edition 170hp 4X2(6 wheels) 3.55m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
