Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer

Export reference
From $12,847
MSRP ¥9.25M CNY
Cab width:: 2.55m
suspension:: 4-leaf leaf spring
Fifth Wheel Pin:: 90#
Design load capacity:: 40ton
Cab height:: 1.8m
Wheel brand:: Better / Rishang
Axle Brand: Fuhua Wosheng
Curb Weight: 6.1ton
Cab length: 13m
Spare Tire Carrier: 1 piecepcs

Overview

The Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer is a Stake Semi-trailer featuring Fuhua Wosheng-axle setup, 6.1ton GVW, 13m length and 40ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 40ton
Cab length: 13m
Cab width: 2.55m
Cab height: 1.8m
Curb Weight: 6.1ton
Chassis Specs
Axle Brand: Fuhua Wosheng
Number of Axles: 3
Axle Load Rating: 13 tons
Wheel brand: Better / Rishang
Number of wheels: 12
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 90#
Brake chamber: 4/2Ruili
Outrigger: aluminum landing gear
Toolbox: aluminum alloy, 1 pcpcs
Spare Tire Carrier: 1 piecepcs
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700L
frame rail height: 480mm
Web Plate: 5mm
upper wing panel: 8mm
Box panel: 0.8 corrugated
Lower Wing Plate: 10mm
Number of openings: 7-open
Other notes
Other: aluminum alloy side guard, aluminum alloy air tank, 1 ladder, 12 bow rods; drop-side opening form: other forms optional; tailgate form: same as sides, other forms optional; full-vehicle E-coat + waterborne paint, 2 bars per door
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs

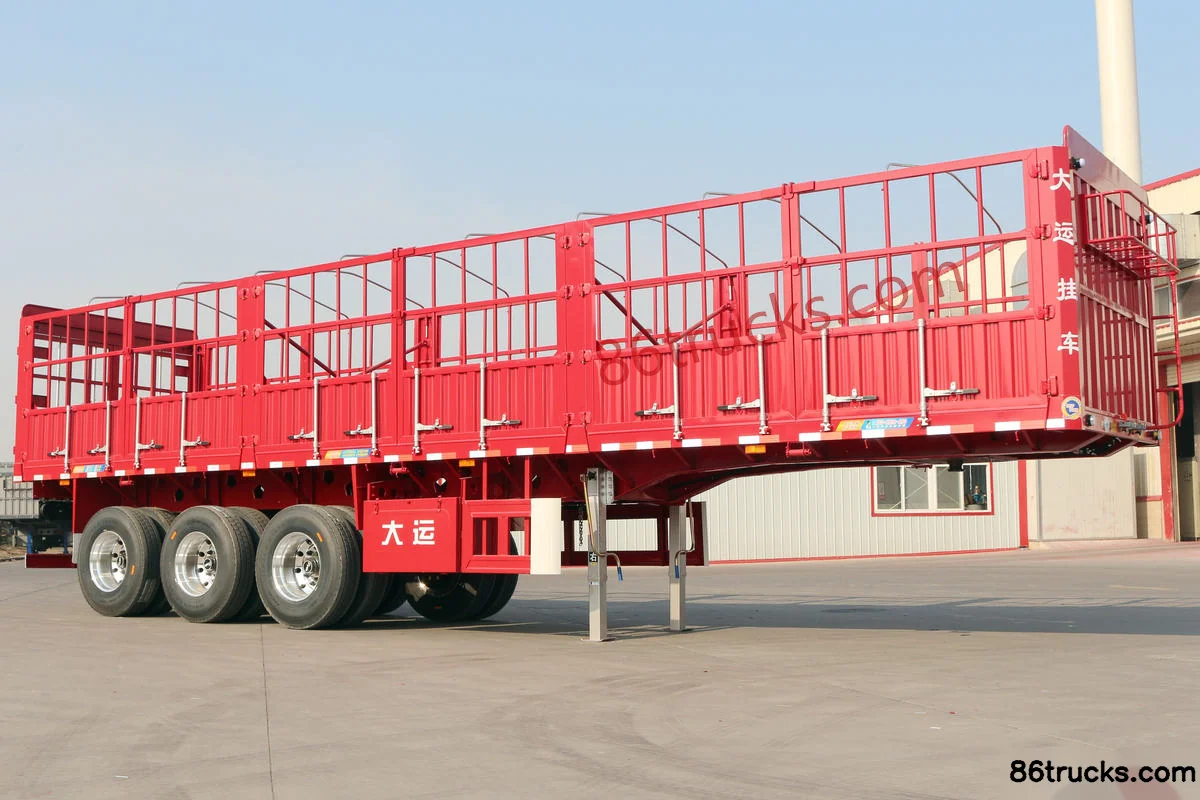

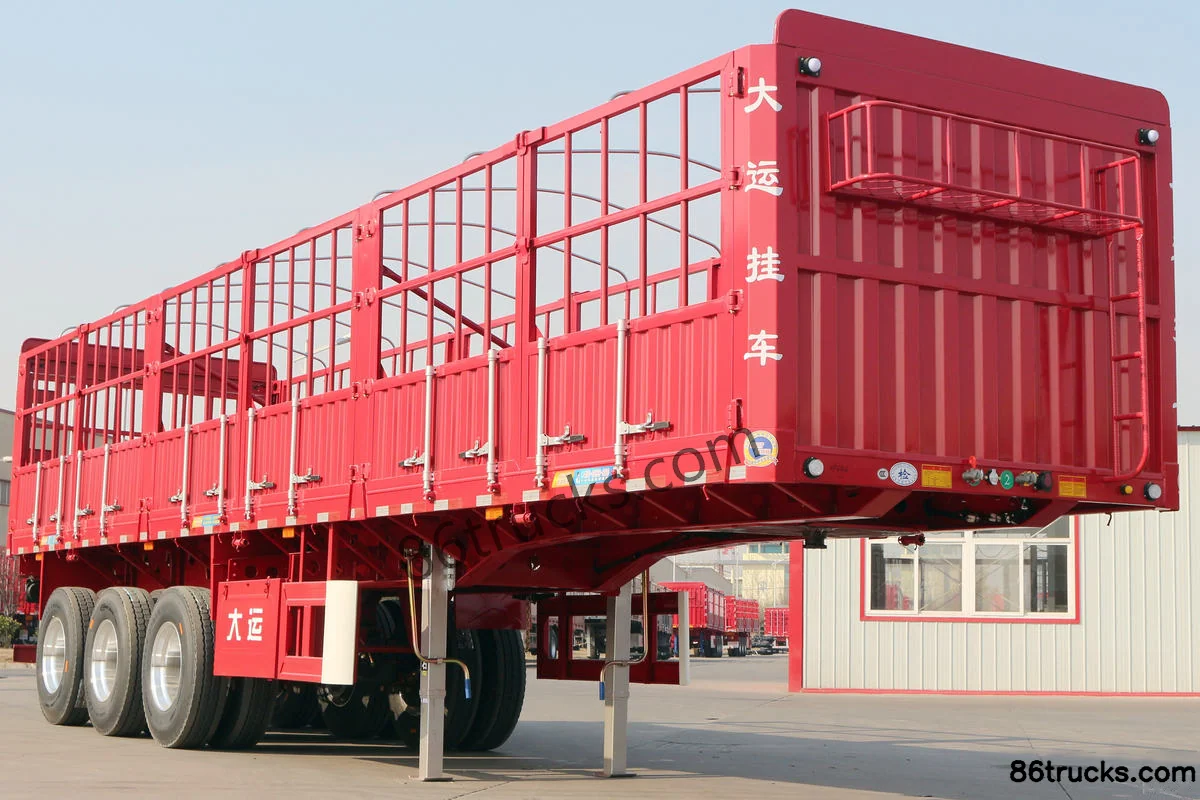

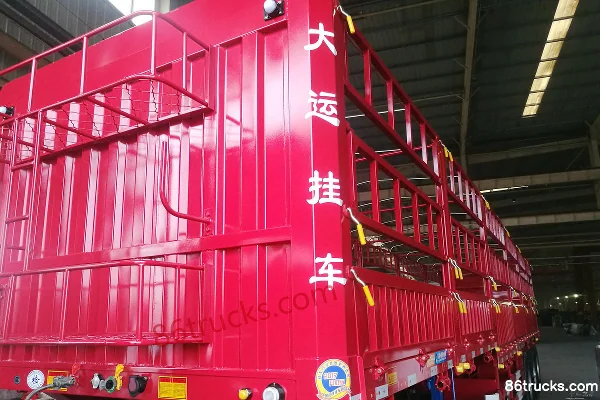

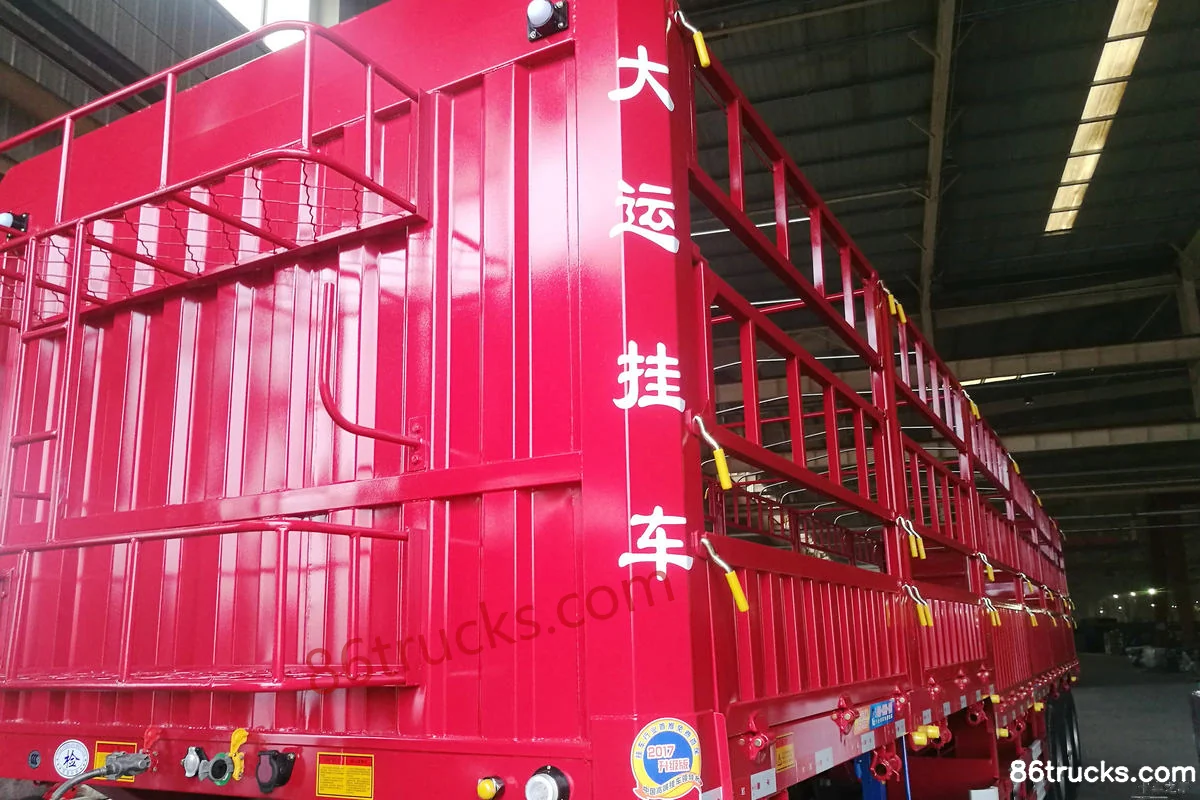

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer, and what does it include?

Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer export reference is about From $12,847; MSRP is ¥9.25M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer suited for?

Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer is a Stake Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer differ from other variants in the same series?

Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer belongs to Dayun 13m Semi-trailer (Stake Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
