Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer
EXW
From $12,847
Export quote
Dayun 13m Semi-trailer Stake Semi-trailer
Main model photos
34 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun 13m flatbed with flower-bar double-opening half-lock-bar grid sides semi-trailer | — | From $12,847 | |
| Dayun 13m flatbed with flower-bar double-opening grid sides semi-trailer | — | From $12,986 | |
| Dayun 13m flatbed with flower-bar and grid sides semi-trailer | — | From $12,778 | |
| Dayun 13m gooseneck flower-bar double-opening half-lock-bar stake semi-trailer | — | From $12,917 | |
| Dayun 13m gooseneck flower-bar double-opening stake semi-trailer | — | From $12,986 |

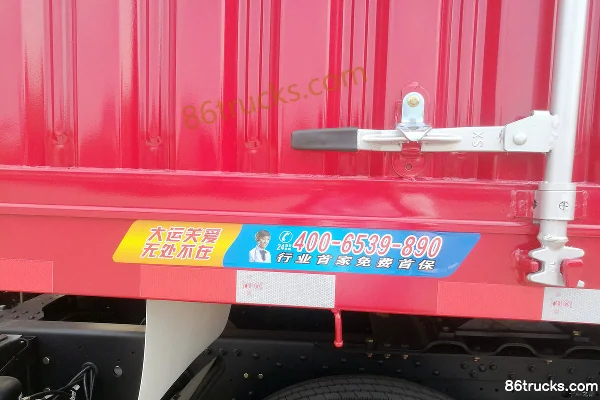

Dayun 13m flatbed with flower-bar double-opening grid sides semi-trailer
EXW
From $12,986
Export quote

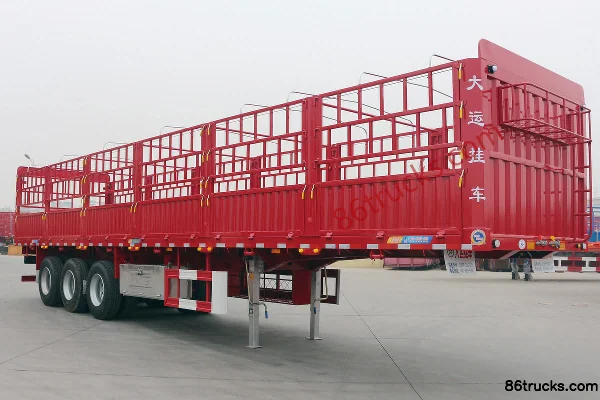

Dayun 13m flatbed with flower-bar and grid sides semi-trailer
EXW
From $12,778
Export quote
Dayun 13m gooseneck flower-bar double-opening half-lock-bar stake semi-trailer
EXW
From $12,917
Export quote
Dayun 13m gooseneck flower-bar double-opening stake semi-trailer
EXW
From $12,986
Export quote
Series Specs
Basic Info
Design load capacity: 40ton
Cab length: 13m
Cab width: 2.55m
Cab height: 1.8m
Curb Weight: 6.1 / 6.2 / 6.3ton
Chassis Specs
Axle Brand: Fuhua Wosheng
Number of Axles: 3
Axle Load Rating: 13 tons
Wheel brand: Better / Rishang
Number of wheels: 12
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 90#
Brake chamber: 4/2Ruili
Outrigger: aluminum landing gear
Toolbox: aluminum alloy, 1 pcpcs
Spare Tire Carrier: 1 piecepcs
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700L
frame rail height: 480mm
Web Plate: 5mm
upper wing panel: 8mm
Box panel: 0.8 corrugated
Lower Wing Plate: 10mm
Number of openings: 7-open / 6-way opening
Other notes
Other: aluminum alloy side guard, aluminum alloy air tank, 1 ladder, 12 bow rods; drop-side opening form: other forms optional; tailgate form: same as sides, other forms optional; full-vehicle E-coat + waterborne paint, 2 bars per door / aluminum alloy side guard, aluminum alloy air tank, 1 ladder, 12 bow rods; drop-side opening form: removable, other forms optional; tailgate form: same as sides, other forms optional; full-vehicle E-coat + waterborne paint, 2 bars per door / aluminum alloy side guard, aluminum alloy air tank, 1 ladder, 12 bow rods; drop-side form: 2nd & 3rd tier side-opening removable, other forms optional; tailgate form: same as sides, other forms optional
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs
FAQ
What kind of truck is Dayun Dayun 13m Semi-trailer Stake Semi-trailer?
Dayun Dayun 13m Semi-trailer is an export-oriented Stake Semi-trailer lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dayun 13m Semi-trailer Stake Semi-trailer?
Dayun 13m Semi-trailer Stake Semi-trailer export reference is about $12,778 – $12,986. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What is Stake Semi-trailer typically used for?
Stake Semi-trailer specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dayun 13m Semi-trailer Stake Semi-trailer include?
Dayun 13m Semi-trailer Stake Semi-trailer currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dayun 13m Semi-trailer Stake Semi-trailer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
