Dachi DC7J120T (9.204 ratio) 7-speed manual transmission

Export reference
MSRP N/A
Features:: , developed on the Nissan Diesel MPS62B transmission technology platform, a multi-speed, high-torque transmission. 2. Available with overdrive for higher speed and fuel economy. 3. Synchronizers on gears 2–7; optional pneumatic assist on top cover for easier shifting.
Max input torque:: 900-1200N·m
1st gear ratio:: 9.204

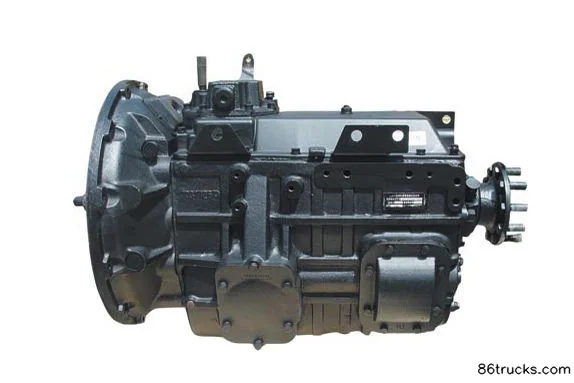

Dachi DC7J120T (9.204 ratio) 7-speed manual transmission exterior
View more photos (1)
Transmission Model: DC7J120T
Transmission Brand: Dachi
Matching Range: 180-260PS on-road vehicles and 180-240PS low-speed construction vehicles

Overview

The Dachi DC7J120T (9.204 ratio) 7-speed manual transmission is a parts product with spec DC7J120T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Dachi
Transmission series: DC7J series
Matching Range: 180-260PS on-road vehicles and 180-240PS low-speed construction vehicles
Features: , developed on the Nissan Diesel MPS62B transmission technology platform, a multi-speed, high-torque transmission. 2. Available with overdrive for higher speed and fuel economy. 3. Synchronizers on gears 2–7; optional pneumatic assist on top cover for easier shifting.
Max input torque: 900-1200N·m
1st gear ratio: 9.204
synchronizer: Yes
Main box center distance: 165mm
2nd gear ratio: 6.082
3rd gear ratio: 3.982
4th gear ratio: 2.506
5th gear ratio: 1.586
6th gear ratio:
7th gear ratio: 0.829
Reverse Gear 1 Ratio: 9.056
Transmission weight: 320kg
Transmission oil capacity: 15L
Number of gears: 7Gear
shift type: Manual
Transmission Model: DC7J120T
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:

Photos

Exterior1

Dachi DC7J120T (9.204 ratio) 7-speed manual transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Dachi DC7J120T (9.204 ratio) 7-speed manual transmission suited for?

Match Dachi DC7J120T (9.204 ratio) 7-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dachi DC7J120T (9.204 ratio) 7-speed manual transmission differ from other variants in the same series?

Dachi DC7J120T (9.204 ratio) 7-speed manual transmission belongs to Dachi DC7J Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dachi DC7J120T (9.204 ratio) 7-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dachi DC7J120T (9.204 ratio) 7-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
