Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh

Export reference
From $23,194
MSRP ¥16.7M CNY
Rated payload:: 1.07ton
Wheelbase:: 3360mm
Cargo box width:: 2.1m
Model code (announced):: LZ5048XLCL2AZBEV01
Cab length:: 5.998m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Jingjin
Curb Weight: 3.23ton

Overview

The Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh is a Electric Refrigerated Truck featuring 300km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.07t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5048XLCL2AZBEV01
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.998m
Cab width: 2.26m
Cab height: 3.15m
CLTC range: 300km
Curb Weight: 3.23ton
Rated payload: 1.07ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XSA17
Motor Type: Permanent magnet synchronous motor
total rated power: 80kW
Peak power: 160kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.07kWh
Chassis Specs
Chassis Series: ChenglongL2V
Chassis Model: LZ1048L2AZBEVT
Leaf spring count: 3/6+7
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Safety features
Remote key:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
automatic slack adjuster:
interior configuration
AC control type: Manual
Exterior features
Air deflector:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

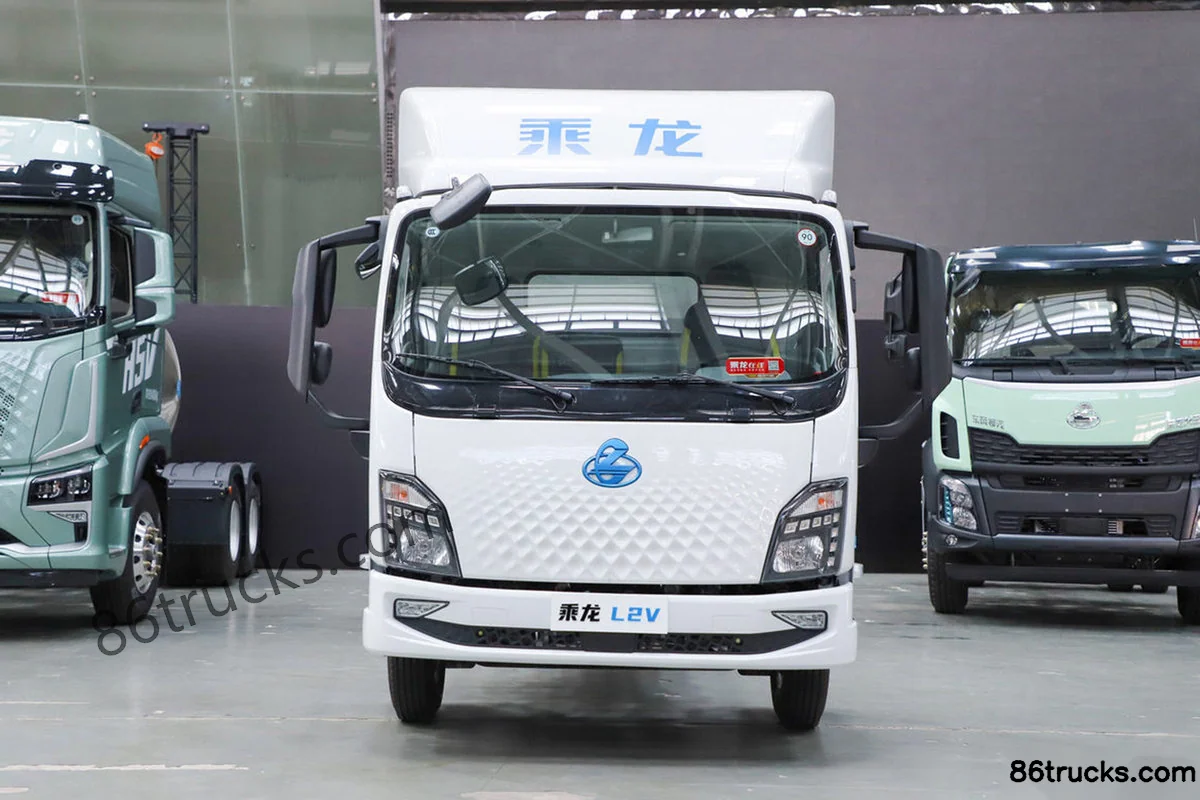

Exterior1

1 photos

FAQ

What is the export price of Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh, and what does it include?

Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh export reference is about From $23,194; MSRP is ¥16.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh?

Key specs of Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh suited for?

Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh differ from other variants in the same series?

Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh belongs to Dongfeng Chenglong L2V Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng L2V Standard Load 4X2(6 wheels) 4.08m single-row pure electric refrigerated truck CATL 100.07kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
