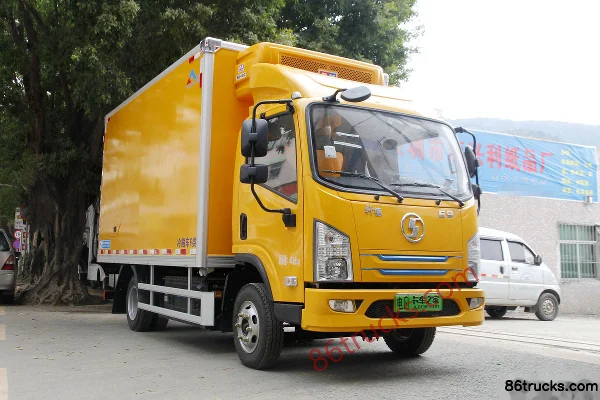

SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m single-row pure electric refrigerated truck 89.12kWh 4X2(6 wheels)
EXW
Export quote
SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light
Main model photos
133 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m single-row pure electric refrigerated truck 89.12kWh 4X2(6 wheels) | 4x2 | ||
| SHACMAN Commercial Vehicle Xuande E9 4.5T 4.05m Single Row Pure Electric Refrigerated Truck 96.7kWh 4X2(6 wheels) | 4x2 | From $37,333 |
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.05m Single Row Pure Electric Refrigerated Truck 96.7kWh 4X2(6 wheels)
EXW
From $37,333
Export quote
Inventory
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)
EXW
From $32,639
Export quote
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.05m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)
EXW
From $32,639
Export quote
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.05m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)
EXW
From $23,111
Export quote
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)
EXW
From $32,639
Export quote
SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single-row Pure Electric Refrigerated Truck 103.42kWh 4X2(6 wheels)
EXW
From $33,472
Export quote
Series Specs
Basic Info
Model code (announced): SX5043XLCBEV331N / SX5041XLCBEV331G / SX5044XLCBEV331S / SX5043XLCBEV331S / SX5048XLCBEV331L / SX5041XLCBEV331S / SX5070XLCBEV331L
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995m
Cab width: 2.25 / 2.3 / 2.1/2.15/2.2/2.25/2.3/2.35 / 2.1 / 2.35 / 2.28m
Cab height: 3.25 / 2.98 / 2.88/2.95/3.05/3.15 / 2.85 / 3.29m
CLTC range: 260 / 220 / 350 / 395 / 180km
Curb Weight: 3.25 / 3.2 / 3.1 / 2.99 / 4.56ton
Rated payload: 1.115 / 1.165 / 1.2 / 1.265 / 1.31 / 1.375 / 2.545ton
GVWR: 4.495 / 7.3ton
Max. speed: 90 / 89 / 85km/h
Origin: Xi'an, Shaanxi / Baoji, Shaanxi
Energy Type: Electric
electric motor
Motor 1 Brand: Nanjing Yuebo / Land
Motor 1 Model: TZ365XSA02 / TZ230XS-YBM407 / TZ220XS-YBM408 / TZ205XS-LDMB045 / TZ365XS-YBM303
Motor Type: Permanent magnet synchronous motor
total rated power: 54 / 45 / 67 / 60kW
Peak power: 89 / 85 / 159 / 100kW
total rated torque: 280N·m
Battery/Charging
Charging method: DC fast charging
Battery Brand: CATL / Guoxuan High-Tech / Sandun / Lishen
Battery type: Lithium Iron Phosphate Battery / NMC lithium battery pack
Battery rated voltage: 569.4V
Battery capacity: 89.12 / 96.7 / 91.1 / 103.42 / 77.79kWh
fast charge time: 2h
Energy Density: 154.59 / 142.64 / 140.1
Battery Model: EV-014-569160-01 / LP2714897(37Ah)
Body Parameters
Others: Cab (1835) part: Pearl White, heating and A/C, FARIZON monitor, power windows, reverse camera and reverse radar, deflector (refrigerated spec); Chassis part: 4-in-1 integrated controller, high-efficiency permanent magnet synchronous motor, lever-type shift actuator, electro-hydraulic steering, ABS, hydraulic brakes; Cold chain vehicle - primary agricultural products, processed food, refrigerated goods, frozen goods; Urban roads, urban expressways / Transmission 4D380 / Ratio 4.655; 1.8T Front Axle; 3.5T Rear Axle / Ratio 5.857; Leaf Springs Front 3 Rear 3+3 / Transmission 2D282 / Ratio 3.765; 1.8T Front Axle; 3.5T Rear Axle / Ratio 5.857; Leaf Springs Front 3 Rear 3+3
Chassis Specs
Chassis Series: Xuande E9
Chassis Model: SX1043EV331N / SX1041EV331G / SX1044EV331S / SX1043EV331S / SX1048EV331L / SX1041EV331S / SX1070EV331L
Leaf spring count: 2/2+1 / 3/3+3 / 8/9+6,6/6+5,3/3+3,3/2+1,2/2+1 / 8/9+5
Cargo box parameters
Cargo box width: 2.1 / 2/2.1/2.2 / 2 / 2.2 / 2.05m
Cargo box height: 2.2 / 1.9 / 1.8/1.9/2/2.1 / 1.8 / 2.1 / 2m
Tire
Tire Size: 7.00R16LT 8PR / 6.50R16LT 12PR / 6.50R16LT 12PR tubeless tire / 7.00R16LT 8PR,6.50R16LT 12PR / 7.50R16LT 14PR
Number of tires: 6pcs
FAQ
What kind of truck is SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light Truck Electric Refrigerated Truck?
SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light Truck is an export-oriented Electric Refrigerated Truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light?
SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light export reference is about $23,111 – $37,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light cover?
SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light?
For SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is Electric Refrigerated Truck typically used for?
Electric Refrigerated Truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light include?
SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Commercial Vehicle SHACMAN Xuande E9 Light?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
