SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)

Export reference
From $32,639
MSRP ¥23.5M CNY
Rated payload:: 1.31ton
Wheelbase:: 3300mm
Cargo box width:: 2.05m
Model code (announced):: SX5041XLCBEV331S
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: Sandun
Motor 1 Brand: Land
Curb Weight: 2.99ton

Overview

The SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring Sandun battery/range, Land motor, 4X2 (6 wheels) drive and 1.31t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5041XLCBEV331S
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995m
Cab width: 2.25m
Cab height: 3.25m
Curb Weight: 2.99ton
Rated payload: 1.31ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Xi'an, Shaanxi
Energy Type: Electric
electric motor
Motor 1 Brand: Land
Motor 1 Model: TZ205XS-LDMB045
Motor Type: Permanent magnet synchronous motor
total rated power: 45kW
Peak power: 85kW
Battery/Charging
Battery Brand: Sandun
Battery type: NMC lithium battery pack
Battery capacity: 91.1kWh
Battery rated voltage: 569.4V
Battery Model: EV-014-569160-01
Body Parameters
Others: Transmission 4D380 / Ratio 4.655; 1.8T Front Axle; 3.5T Rear Axle / Ratio 5.857; Leaf Springs Front 3 Rear 3+3
Chassis Specs
Chassis Series: Xuande E9
Chassis Model: SX1041EV331S
Leaf spring count: 3/3+3
Cargo box parameters
Cargo box width: 2.05m
Cargo box height: 2.1m
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs

Photos

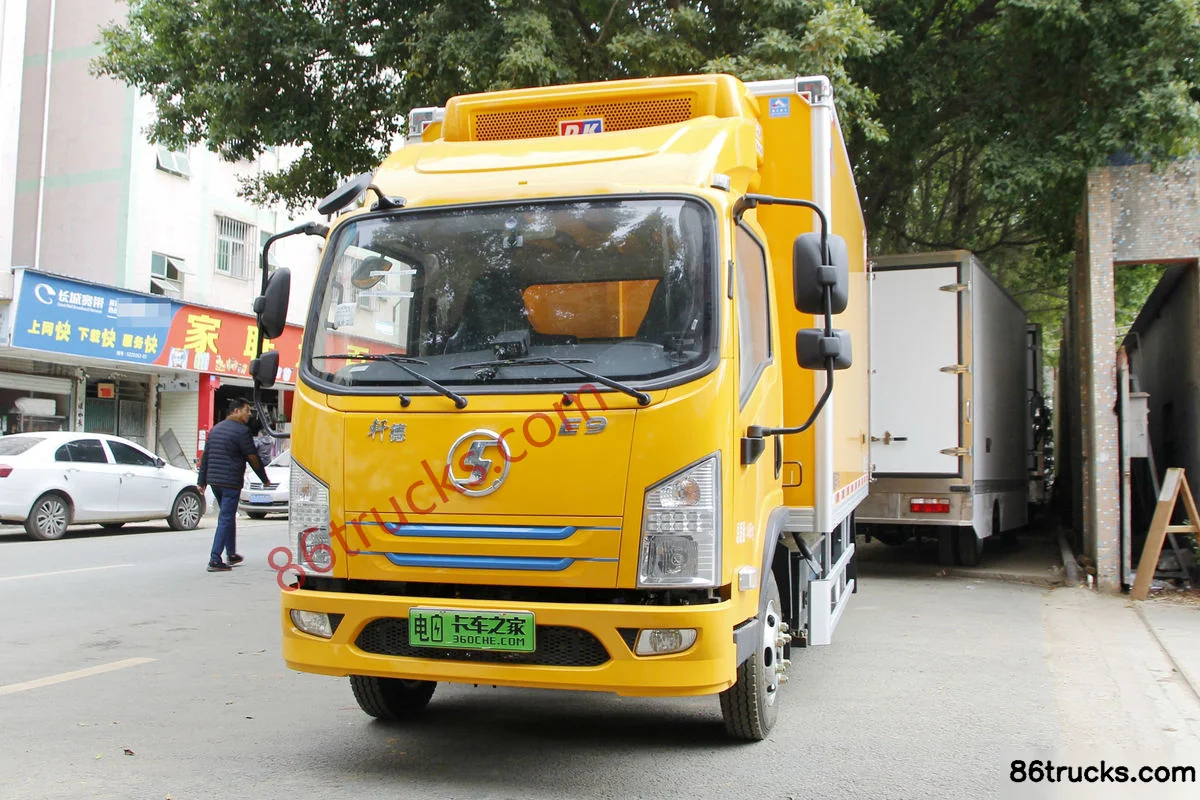

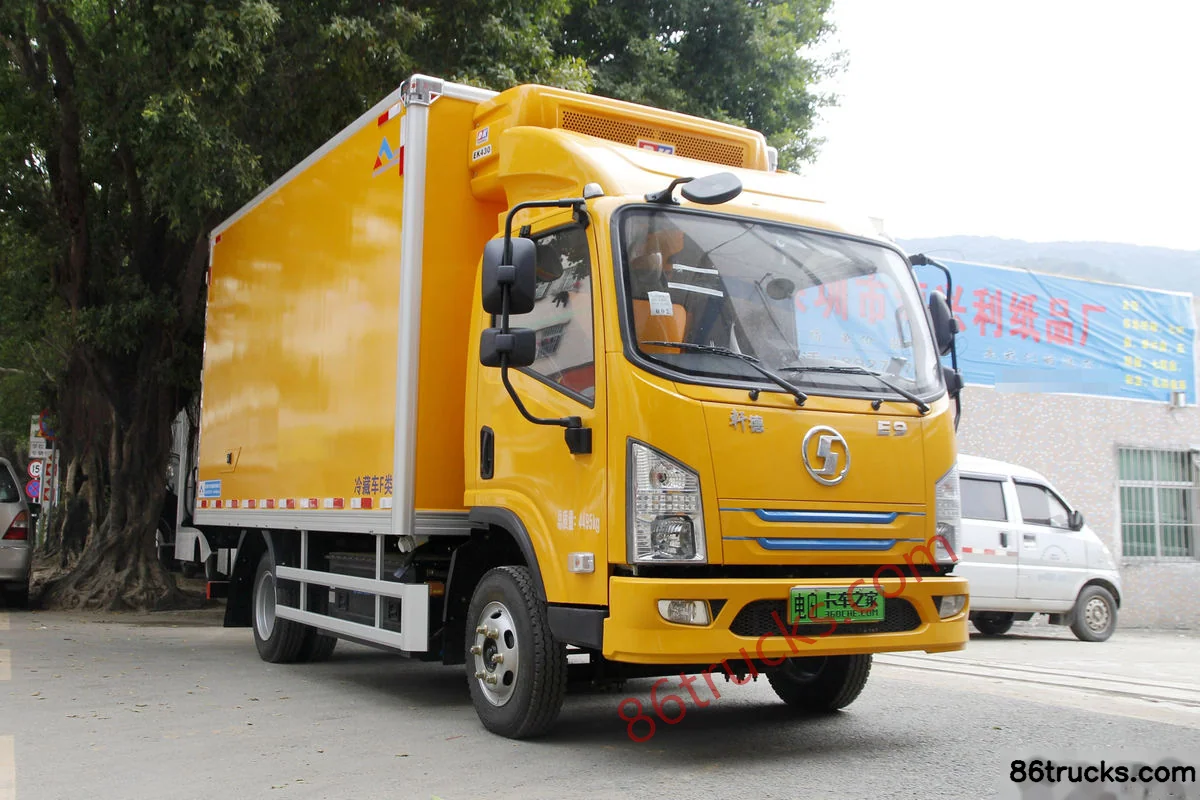

Exterior3

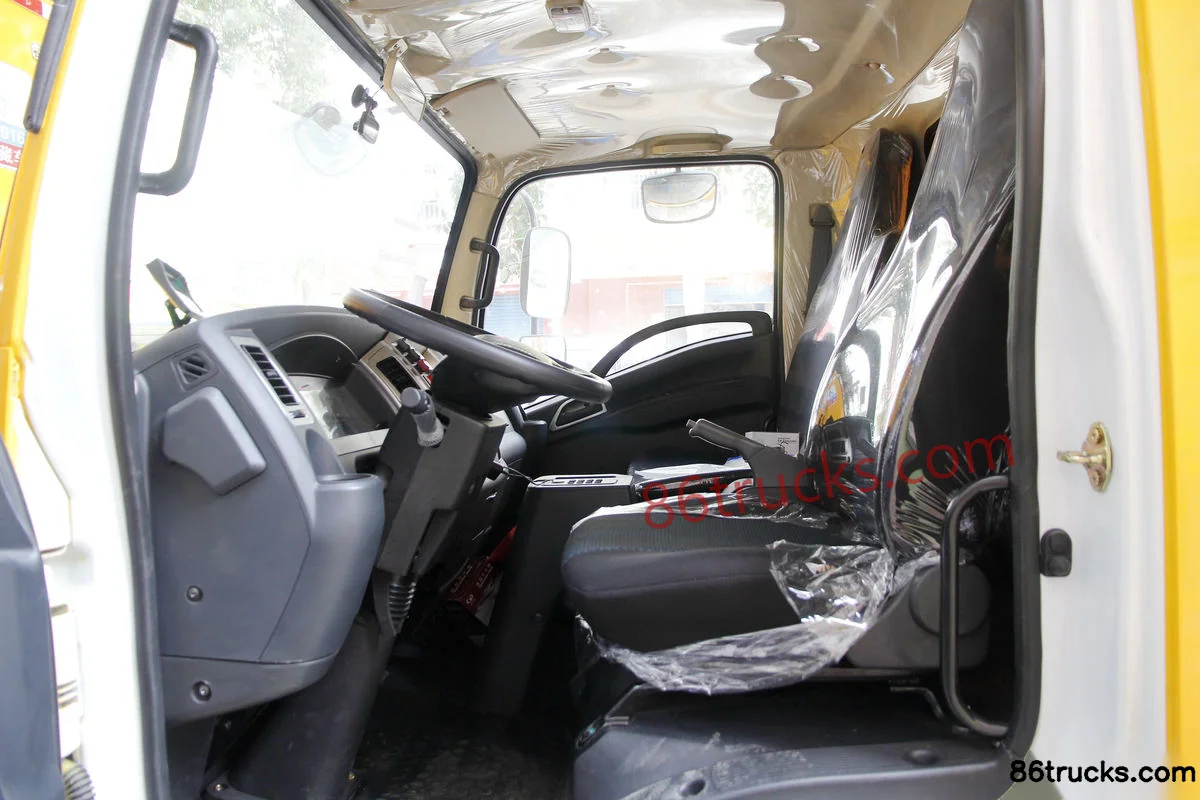

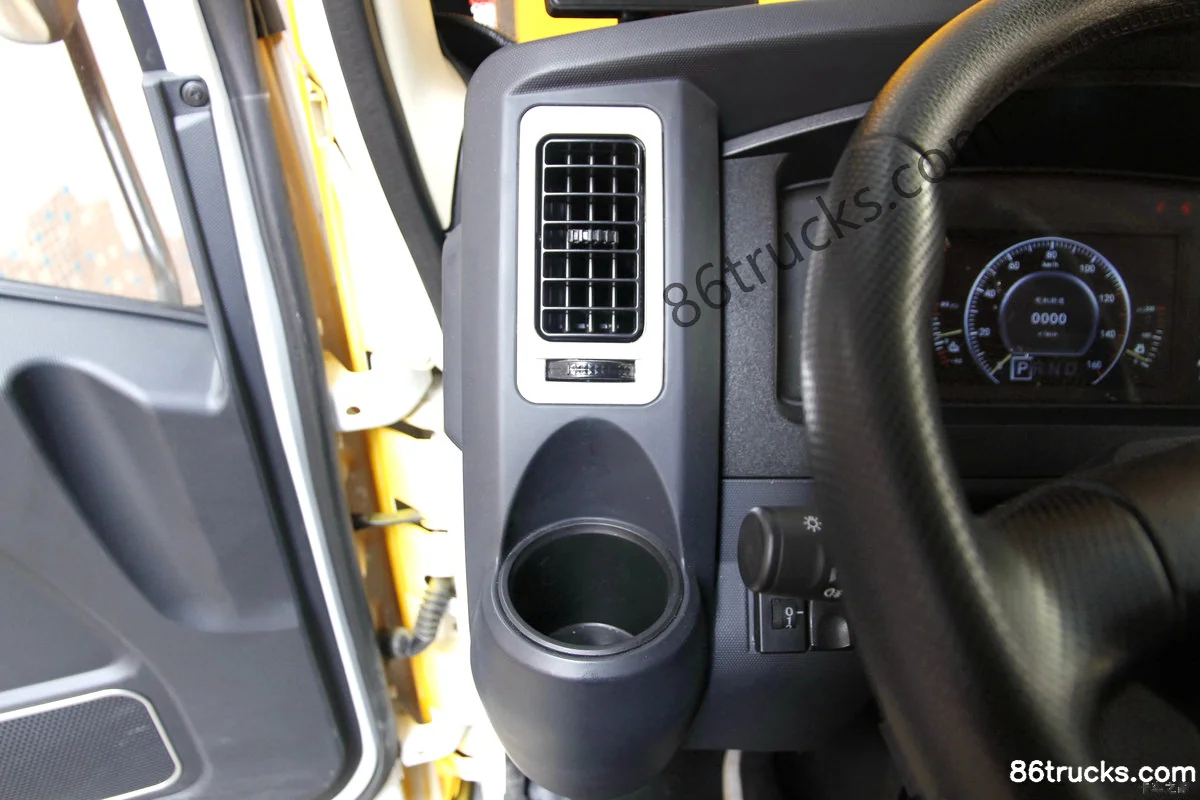

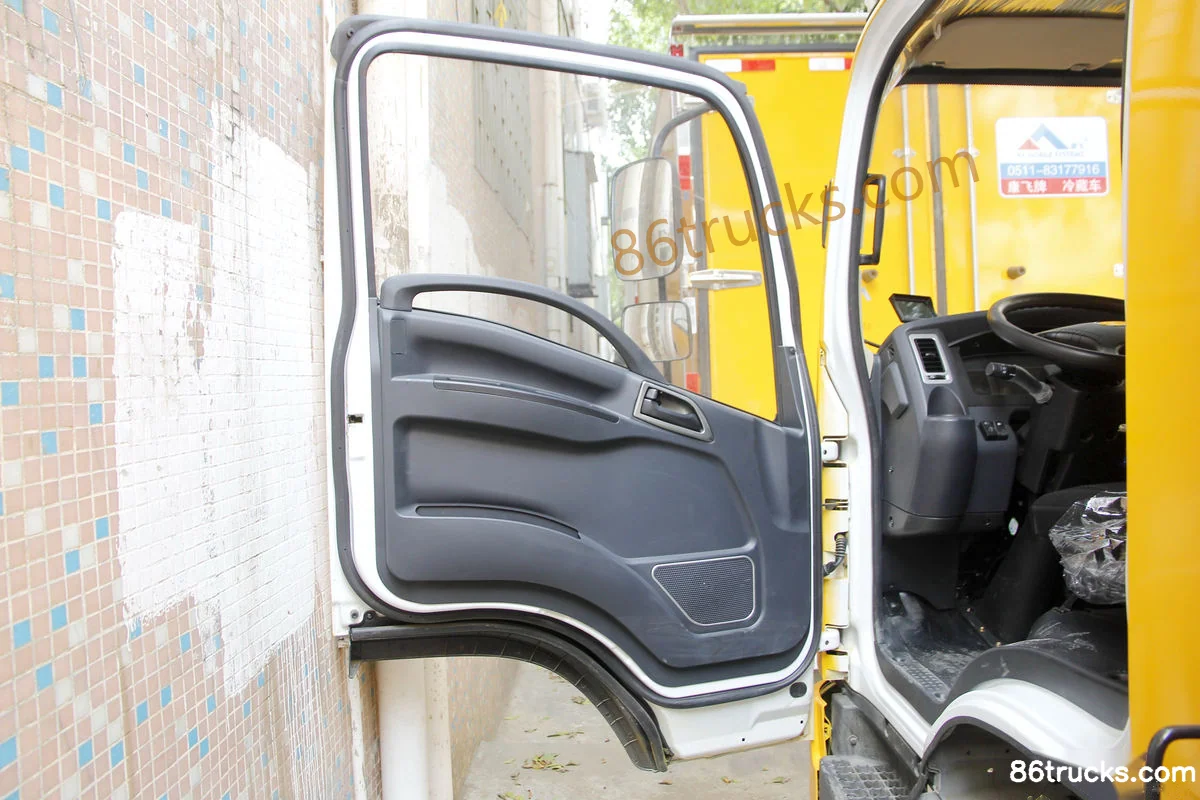

Cab3

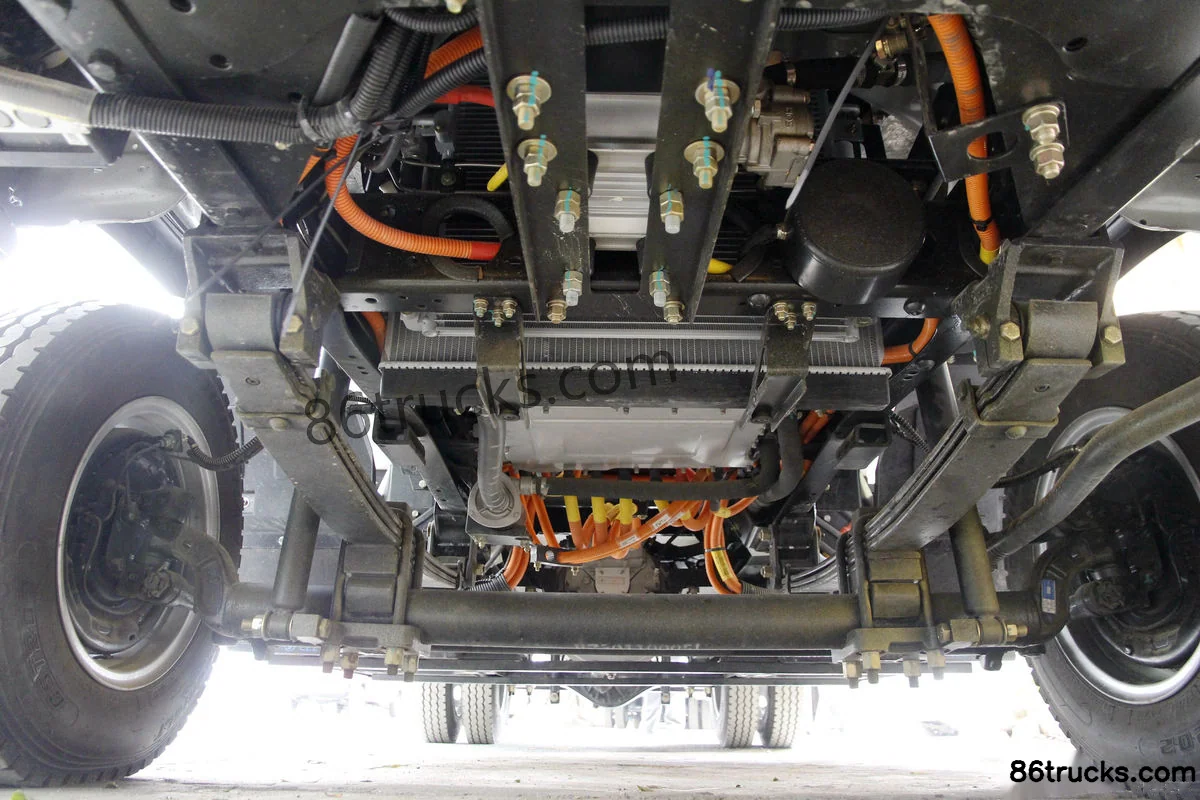

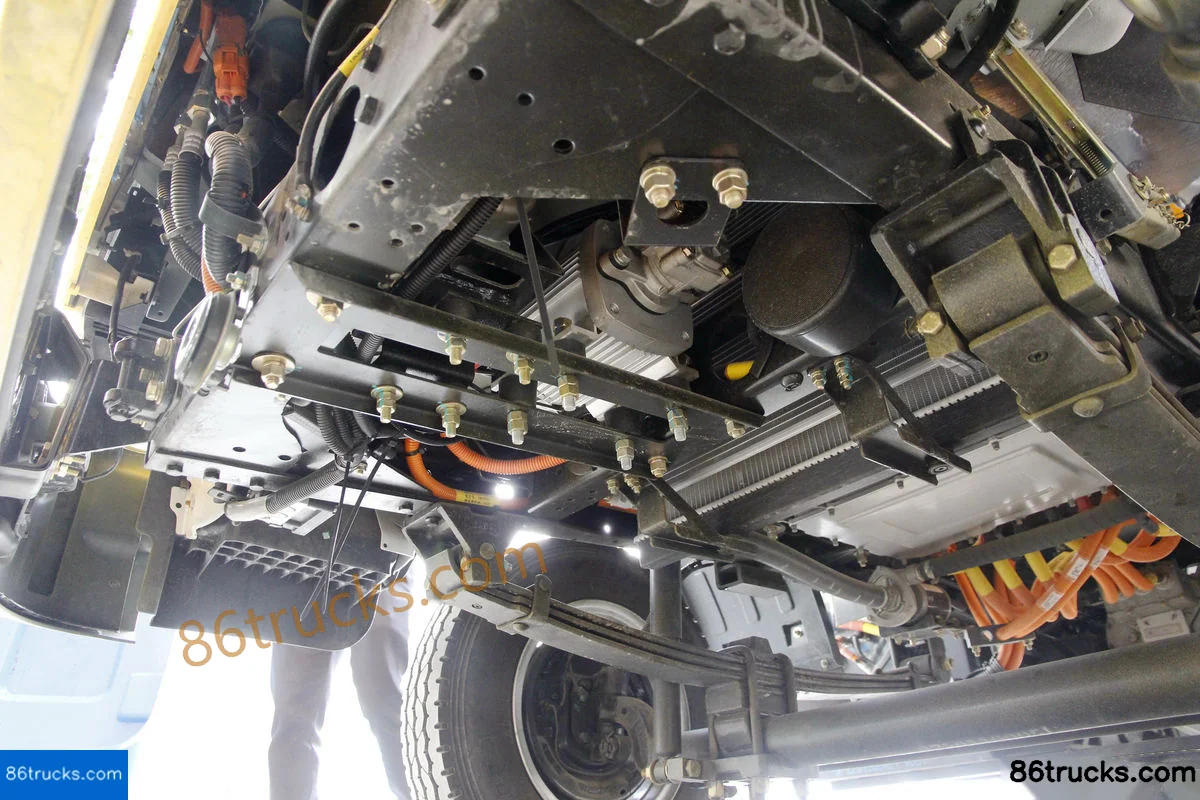

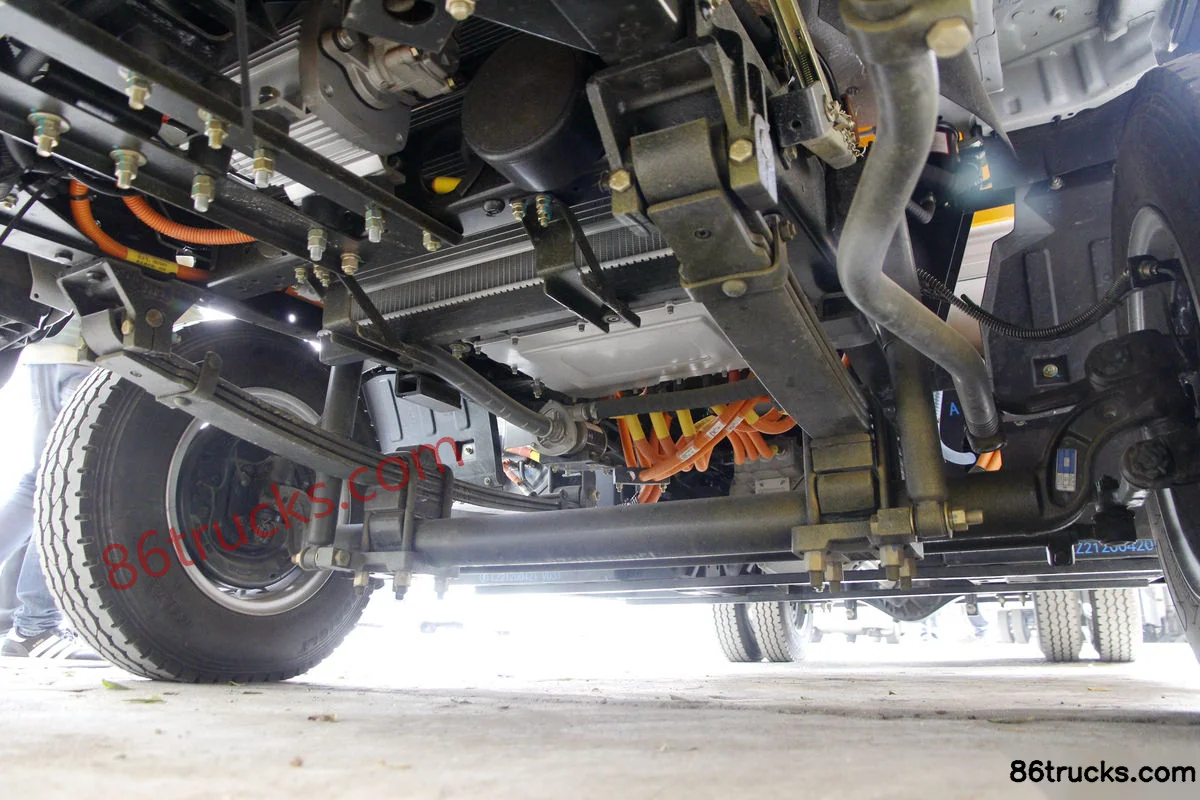

Chassis3

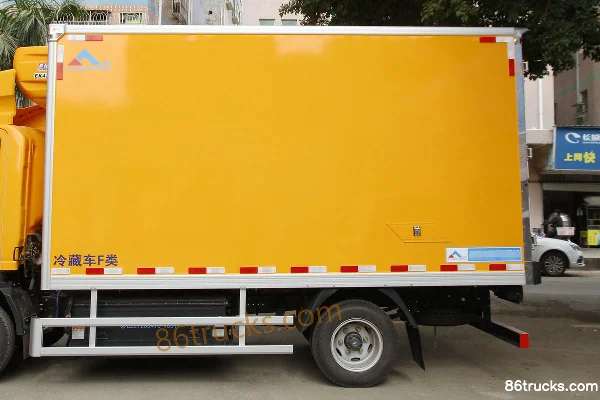

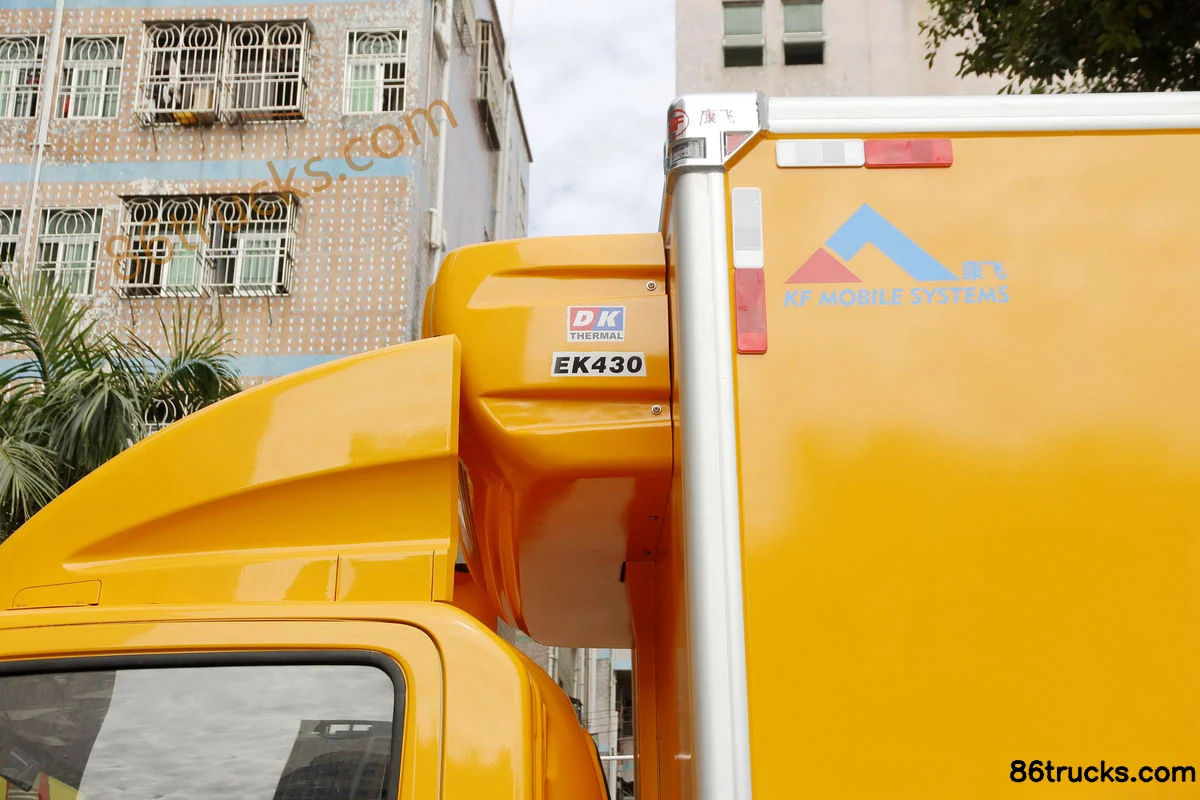

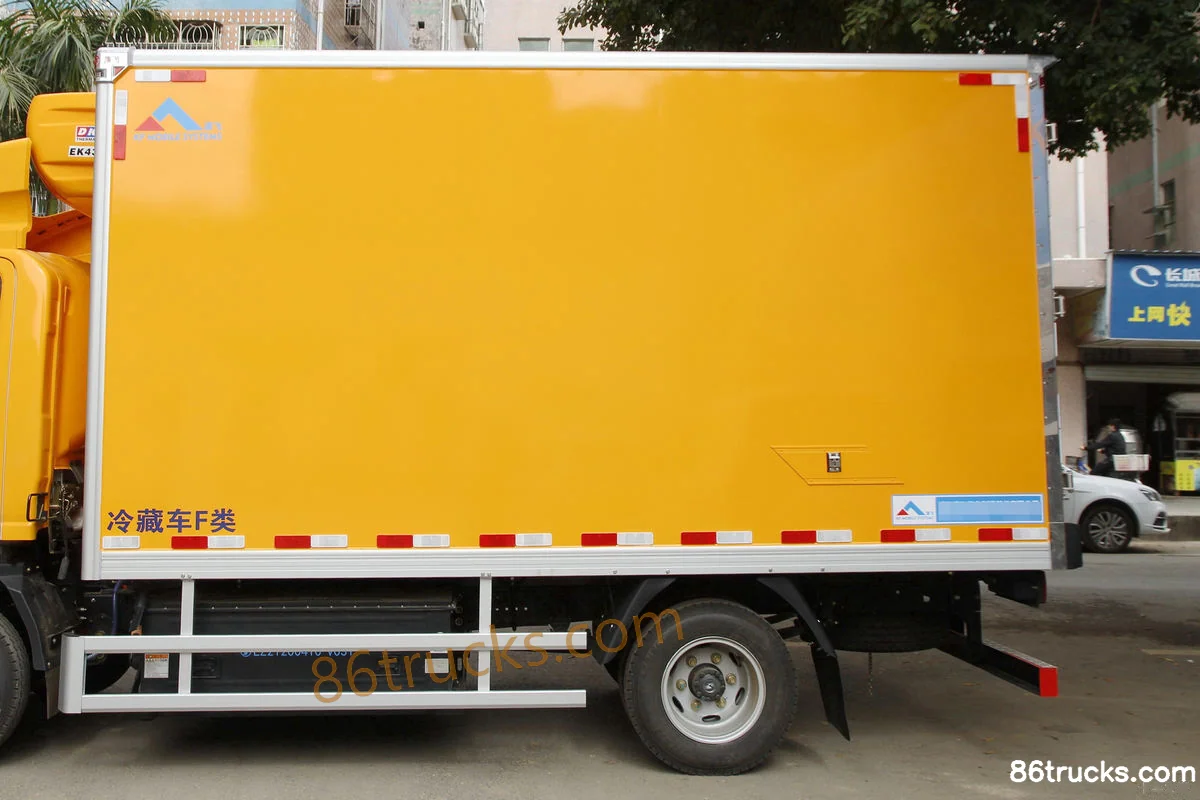

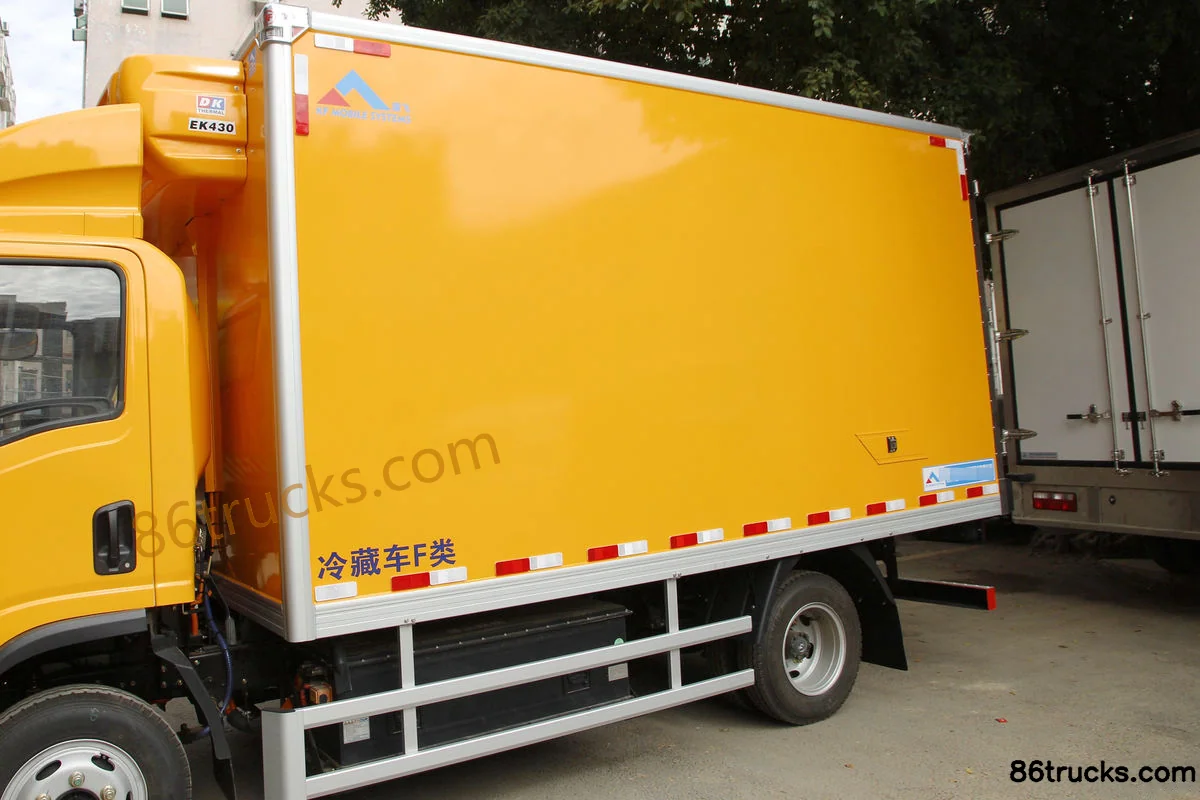

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels), and what does it include?

SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) export reference is about From $32,639; MSRP is ¥23.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)?

Key specs of SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) suited for?

SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels) belongs to SHACMAN Xuande E9 Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande E9 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 91.1kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
