Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4350+1300mm
Cab dimensions:: 9.96×2.51×3.375m
Type:: Explosives Transport Truck
Front/rear track width:: Front track: 1986 Rear track: 1860mm; Rear track: 1860mm
Front track width:: 1986 rear track: 1860mm

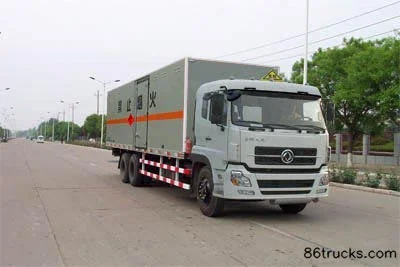

Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) exterior
View more photos (1)
Drive 6X4 (10 wheels)
Horsepower 230
Rated mass: 9.615ton
Emission China III / Euro III

Overview

The Zhengzhou Hongyu Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) is a Explosives Transport Truck featuring 20.49t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 230 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 230 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 9.96×2.51×3.375m
Type: Explosives Transport Truck
Drive type: 6X4
Front/rear track width: Front track: 1986 Rear track: 1860mm; Rear track: 1860mm
Wheelbase: 4350+1300mm
Rated mass: 9.615ton
Front track width: 1986 rear track: 1860mm
rear track: 1860mm
GVWR: 20.49ton
Max. speed: 89km/h
Front/rear suspension: 1.46/2.85m
Energy Type: Diesel
Body Parameters
Other special notes: Compartment roof sealed, non-openable. Optional side-doorless compartment, only compatible with ISDe230 30 and ISDe245 30 engines. Side and rear guards bolted to vehicle, material: Q235, rear guard section (mm): 100×60, ground clearance: 500 mm. ABS system manufacturer: WABCO, model: 4460034130. Tachograph installed.
rear guard section size: 100×60mm
Vehicle certification code: HYJ5203XQY
Body Brand: Hongyu brand
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng ISDe23030
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.7L
Emission standard: China III / Euro III
Max output power: 169kW
Max hp: 230Horsepower
Max torque: 900N·m
Max torque speed: 1400rpm
Rated speed: 2500rpm
Cargo box parameters
Cargo box dimensions: 7.2×2.38×1.95m
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL1200AX8
Leaf spring count: 8/9,8/10
Transmission Parameters
Number of gears: 8Gear
shift type: Manual
Transmission Model: Fast Gear 8JS118T-B
Tire
Tire Size: 11.00-2012PR；11.00R2012PR；10.00-2014PR；10.00R2012PR
Number of tires: 10pcs

Photos

Exterior1

Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) Exterior (1) | 86Trucks

1 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand)?

Key specs of Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand): Drive: 6x4; Horsepower: 230 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) suited for?

Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) belongs to Zhengzhou Hongyu Dongfeng Commercial Vehicle Chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
