Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand)
EXW
Export quote
Zhengzhou Hongyu Dongfeng Commercial Vehicle
Main model photos
4 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin 230hp 6X4(10 wheels) Explosive Material Transport Truck (Hongyu Brand) | 6x4 / 230hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Explosive Material Transport Truck (Hongyu Brand) | 4x2 / 180hp / China III / Euro III |

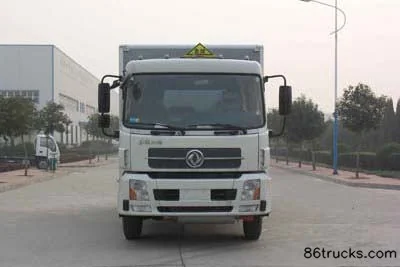

Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Explosive Material Transport Truck (Hongyu Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.96×2.51×3.375 / 8.58×2.495×3.35m
Type: Explosives Transport Truck
Drive type: 6X4 / 4X2
Front/rear track width: Front track: 1986 Rear track: 1860mm; Rear track: 1860mm / Front track: 1880 Rear track: 1800; 1860
Wheelbase: 4350+1300 / 5000mm
Rated mass: 9.615 / 5.56ton
Front track width: 1986 rear track: 1860mm
rear track: 1860mm
GVWR: 20.49 / 12.495ton
Max. speed: 89 / 85km/h
Front/rear suspension: 1.46/2.85 / 1.43/2.45m
Energy Type: Diesel
Body Parameters
Other special notes: Compartment roof sealed, non-openable. Optional side-doorless compartment, only compatible with ISDe230 30 and ISDe245 30 engines. Side and rear guards bolted to vehicle, material: Q235, rear guard section (mm): 100×60, ground clearance: 500 mm. ABS system manufacturer: WABCO, model: 4460034130. Tachograph installed. / Explosive item numbers: 0154, 0226, 0484, 0072, 0483, 0209, 0150, 0411, etc. Side guards and rear guards bolted to vehicle, rear guards welded to vehicle, material: Q235, rear guard section dimensions (mm): 100×60, ground clearance: 500 mm. ABS system manufacturer: WABCO Vehicle Control Systems (China) Co., Ltd., model: 4460043200. Tachograph installed.
rear guard section size: 100×60mm
Transport medium: Trinitrophenol, cyclotetramethylene tetranitramine, cyclotrimethylene trinitramine, trinitrotoluene, pentaerythritol tetranitrate, etc.
Vehicle certification code: HYJ5203XQY / HYJ5120XQY
Body Brand: Hongyu brand
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng ISDe23030 / Dongfeng ISDe18030
Number of cylinders: 6cylinder
Displacement: 6.7 / 4.5L
Emission standard: China III / Euro III
Max output power: 169 / 132kW
Max hp: 230 / 180Horsepower
Max torque: 900N·m
Max torque speed: 1400rpm
Rated speed: 2500rpm
Cargo box parameters
Cargo box dimensions: 7.2×2.38×1.95 / 6.1×2.365×1.95m
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL1200AX8 / DFL1120B
Leaf spring count: 8/9,8/10 / 7/9+6,8/10+8
Transmission Parameters
Number of gears: 8 / 6Gear
shift type: Manual
Transmission Model: Fast Gear 8JS118T-B / DF6S900
Tire
Tire Size: 11.00-2012PR；11.00R2012PR；10.00-2014PR；10.00R2012PR / 9.00-20；9.00R20；10.00-2014PR；10.00R2014PR
Number of tires: 10 / 6pcs
