JAC Shuailing H 130hp 4X2(6 wheels) 4.08m Single Row Gas Cylinder Transport Truck
EXW
Export quote
JAC H light truck Explosives Transport Truck
Main model photos
757 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Shuailing H 130hp 4X2(6 wheels) 4.08m Single Row Gas Cylinder Transport Truck | 4x2 / 130hp / China V | ||
| JAC Shuailing H 130 hp 4X2(6 wheels) 4.1m Single Row Gas Cylinder Transport Truck | 4x2 / 130hp / China V | From $13,889 | |
| JAC Shuailing H 185 hp 4X2(6 wheels) Explosive Material Transport Truck (Chassis) | 4x2 / 185hp / China IV | ||
| JAC Shuailing H 165 hp 4X2(6 wheels) Explosive Material Transport Truck (Chassis) | 4x2 / 165hp / China IV |

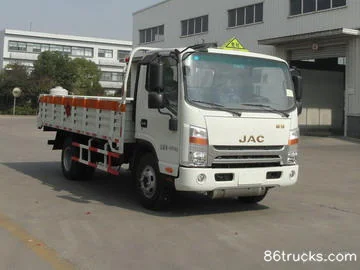

JAC Shuailing H 130 hp 4X2(6 wheels) 4.1m Single Row Gas Cylinder Transport Truck
EXW
From $13,889
Export quote
JAC Shuailing H 185 hp 4X2(6 wheels) Explosive Material Transport Truck (Chassis)
EXW
Export quote

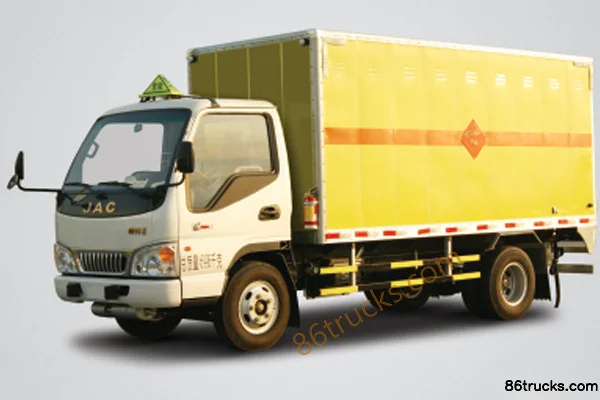

JAC Shuailing H 165 hp 4X2(6 wheels) Explosive Material Transport Truck (Chassis)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.295×3.31 / 5.995×2.34×2.53 / 9×2.468×2.747 / 8.29×2.468×2.747m
Type: Gas cylinder transport truck / Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3308 / 5300 / 4700mm
Front/rear track width: Front: 1685mm; Rear: 1525 / 1880/1860 / Front track: 1880mm; Rear track: 1860mm
Rated mass: 1.495ton
Front track width: 1880mm
rear track: 1860mm
GVWR: 4.495 / 16ton
Max. speed: 80km/h
Front/rear suspension: 1.105/1.582 / 1.29/1.57m
Energy Type: Diesel
Body Parameters
Other special notes: This chassis can also be used for chemical liquid tankers and liquefied gas tankers.
Vehicle certification code: HFC5043TQPXVZ / HFC5043TQPVZ
Body Brand: JAC
Engine parameters
Engine Brand: Weichai / Dongfeng / JAC
Engine Model: WeichaiWP3Q130E50 / Dongfeng ISDe185 40 / JACJND412D165-42
Number of cylinders: 4cylinder
Displacement: 2.97 / 6.7 / 4.748L
Emission standard: China V / China IV
Max output power: 96 / 136 / 121kW
Max hp: 130 / 185 / 165Horsepower
Max torque: 350 / 700 / 600N·m
Max torque speed: 1400-1800 / 1400 / 1200-1600rpm
Rated speed: 3000 / 2500 / 2200rpm
Cargo box parameters
Cargo box dimensions: 4.08×2.15×2.2 / 4.1x2.15x0.55m
Chassis Specs
Chassis Brand: JAC
Chassis Series: Shuailing H
Chassis Model: HFC1043P71K1C2V / HFC1160P70K5D4Z
rear axle description: Rear axle ratio 4.33 / 5T axle / Front axle 6T / Rear axle 10T
Leaf spring count: 13/8+6,8/7+6,9/7+6 / 10/9+7
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: WLYWLY6S46B-71-78 / Lu'an LC6T450 / Dongfeng DF6S900
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR / 9.00R20 14PR
Number of tires: 6pcs
FAQ
What kind of truck is JAC JAC H light truck Explosives Transport Truck?
JAC JAC H light truck is an export-oriented Explosives Transport Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC H light truck Explosives Transport Truck?
JAC H light truck Explosives Transport Truck export reference is about From $13,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC H light truck Explosives Transport Truck cover?
JAC H light truck Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 130 hp / 165 hp / 185 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC H light truck Explosives Transport Truck?
For JAC H light truck Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC H light truck Explosives Transport Truck include?
JAC H light truck Explosives Transport Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC H light truck Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
