JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chunxing Brand)
EXW
From $15,944
Export quote
Shandong Zhengtai JMC Chassis Explosives Transport
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chunxing Brand) | 4x2 / 116hp / China V | From $15,944 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Corrosive Substances Van Truck (Xier Brand) | 4x2 / 116hp / China V | From $12,056 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosives Transport Truck (Xier Brand) | 4x2 / 116hp / China V | From $12,056 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m gas cylinder transport truck (Jiangchi) (Xier brand) | 4x2 / 116hp / China V | From $12,056 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosives Transport Truck (Xier Brand) | 4x2 / 116hp / China V | From $12,056 |
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Corrosive Substances Van Truck (Xier Brand)
EXW
From $12,056
Export quote

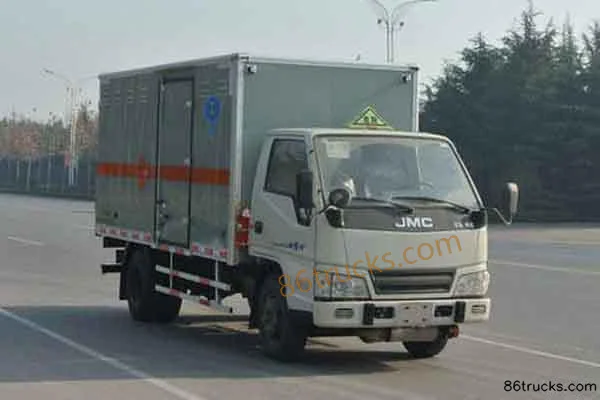

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosives Transport Truck (Xier Brand)
EXW
From $12,056
Export quote

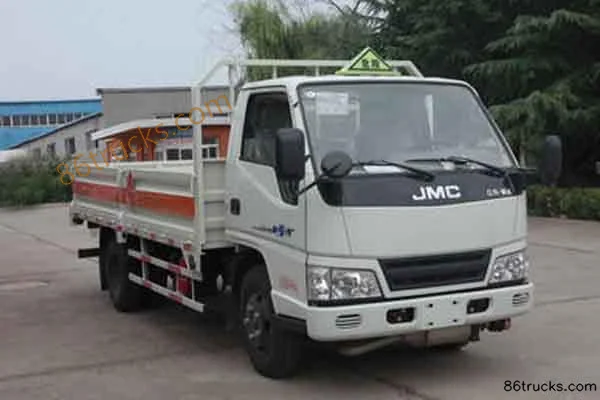

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m gas cylinder transport truck (Jiangchi) (Xier brand)
EXW
From $12,056
Export quote
JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosives Transport Truck (Xier Brand)
EXW
From $12,056
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.08×2.17 / 5.995×2×2.76 / 5.995×2×3.01 / 4.99×2×2.76 / 5.995×2×2.79 / 4.92×2.08×2.195 / 4.99×2×3.01 / 5.995×2×3.04m
Type: Gas cylinder transport truck / corrosive goods van truck / Explosives Transport Truck / Flammable liquid van truck / Flammable gas van truck / fireworks & firecrackers special transport truck
Drive type: 4X2
Wheelbase: 3360 / 2490mm
Front/rear track width: Front track: 1385mm; Rear track: 1425 / Front: 1385mm; Rear: 1425
Rated mass: 1.745 / 1.43 / 1.33 / 2.79 / 1.69 / 2.8 / 2.85ton
GVWR: 4.495 / 4.19 / 5.88ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57 / 1.065/1.435m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: Individually container (bottle) packaged ammonia solution, sulfuric acid, acid battery fluid, alkaline battery fluid, waste sulfuric acid, soda lime, formaldehyde solution, acetic anhydride, solid chromium fluoride, chromium fluoride solution, solid sodium hydroxide, sodium hydroxide solution / Individually packaged black powder, compressed black powder, electric detonators, blasting explosives, fuse igniters, nitroamine explosives, special pyrotechnic articles / Individually packaged black powder, compressed black powder, nitroamine explosives, electric detonators, blasting explosives, fuse igniters, special pyrotechnic articles
Vehicle certification code: ZZT5043TQP-5 / ZZT5040XFW-5 / ZZT5043XRQ-5 / ZZT5043XQY-5 / ZZT5060XQY-5 / ZZT5042XQY-5 / ZZT5042XRY-5 / ZZT5044TQP-5 / ZZT5044XRQ-5 / ZZT5060XYN-5 / ZZT5060XRY-5 / ZZT5060XRQ-5
Body Brand: Chunxing / Xier brand
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ5 / Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.2×1.88×0.5 / 4.2×1.88×1.75 / 4.2×1.85×1.75 / 4.2×1.85×2 / 3.1×1.88×1.75 / 3.1×1.85×0.5 / 3.1×1.85×2 / 4.2×1.88×2m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body
Chassis Model: JX1041TG25 / JX1041TA25 / JX1061TG25
rear axle description: Ratio 4.1 / Ratio 6.142
Leaf spring count: 7/4+6 / 7/5+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Getrag 5MTI280S / Jiangchi JC528T8 / Jiangchi JC528
Tire
Tire Size: 7.00R16LT 8PR / 7.00R16LT 10PR
Number of tires: 6pcs
FAQ
What kind of truck is Shandong Zhengtai Shandong Zhengtai JMC Chassis Explosives Transport Truck?
Shandong Zhengtai Shandong Zhengtai JMC Chassis is an export-oriented Explosives Transport Truck lineup with about 14 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Shandong Zhengtai JMC Chassis Explosives Transport?
Shandong Zhengtai JMC Chassis Explosives Transport export reference is about $12,056 – $15,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Shandong Zhengtai JMC Chassis Explosives Transport cover?
Shandong Zhengtai JMC Chassis Explosives Transport mainly covers: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shandong Zhengtai JMC Chassis Explosives Transport?
For Shandong Zhengtai JMC Chassis Explosives Transport: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Shandong Zhengtai JMC Chassis Explosives Transport include?
Shandong Zhengtai JMC Chassis Explosives Transport currently lists about 14 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shandong Zhengtai JMC Chassis Explosives Transport?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
