Foton New Jieyun 150hp 4X2(6 wheels) 4.1m flammable gas van truck (Chufei brand)
EXW
From $15,931
Export quote
Chufei Foton chassis Explosives Transport Truck
Main model photos
65 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton New Jieyun 150hp 4X2(6 wheels) 4.1m flammable gas van truck (Chufei brand) | 4x2 / 150hp / China VI | From $15,931 | |
| Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) | 4x2 / 156hp / China VI | ||
| Foton Aoling Supu 156hp 4X2(6 wheels) 4.1m flammable gas van truck (Chufei brand) | 4x2 / 156hp / China VI | ||
| Foton Aoling Jieyun 132hp 4X2(6 wheels) 4.1m Gas Cylinder Transport Truck (Chufei Brand) | 4x2 / 132hp / China VI |

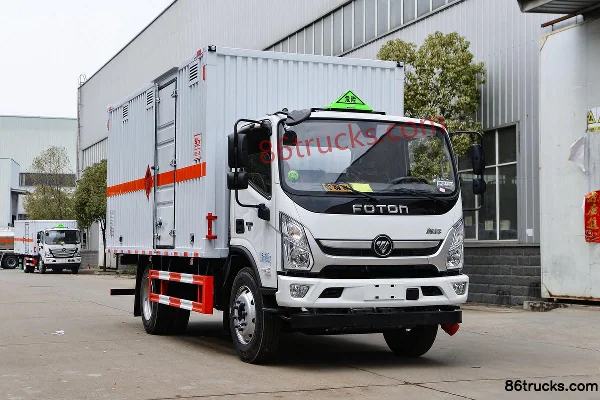

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand)
EXW
Export quote
Foton Aoling Supu 156hp 4X2(6 wheels) 4.1m flammable gas van truck (Chufei brand)
EXW
Export quote
Foton Aoling Jieyun 132hp 4X2(6 wheels) 4.1m Gas Cylinder Transport Truck (Chufei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.2×2.95 / 7.15×2.5×3.475 / 6.095×2.39×3.06 / 5.995×2×2.46m
Type: Flammable gas van truck / Gas cylinder transport truck
Drive type: 4X2
Front/rear track width: Front track: 1590mm; Rear track: 1485mm / Front: 1765mm; Rear: 1680 / Front: 1730mm; Rear: 1715mm / Front: 1415mm; Rear: 1425
Wheelbase: 3360 / 3800mm
Rated mass: 0.95 / 6.85 / 4 / 1.8ton
Curb weight: 3.35ton
Front track width: 1590mm
rear track: 1485mm
GVWR: 4.495 / 4.95 / 8.275ton
Max. speed: 80km/h
Front/rear suspension: 1.11/1.525 / 1.13/2.22 / 1.105/1.625 / 1.105/1.53m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Vehicle certification code: CLQ5048XRQ6BJ / CLQ5120XRQ6BJ / CLQ5080XRQ6BJ / CLQ5043TQP6BJ
Body Brand: Chufei Brand
Engine parameters
Engine Brand: Yunnei Power / Quanchai
Engine Model: D25TCIF1 / FotonF3.8NS6B156 / FotonF2.8NS6B156 / QuanchaiQ23-132E60
Number of cylinders: 4cylinder
Displacement: 2.5 / 3.8 / 2.78 / 2.3L
Emission standard: China VI
Max output power: 110 / 115 / 97kW
Max hp: 150 / 156 / 132Horsepower
Max torque: 400 / 550 / 450 / 320N·m
Max torque speed: 1400-2400 / 1100-1900 / 1500-2400rpm
Rated speed: 3000 / 2600 / 2900rpm
Cargo box parameters
Cargo box dimensions: 4.1×2.1×1.9 / 5.2×2.3×2.2 / 4.2×2.3×2 / 4.1×1.85×0.55m
Cargo box type: Van body
Cargo box length: 4.1 / 5.2 / 4.2m
Cargo box width: 2.1 / 2.3 / 1.85m
Cargo box height: 1.9 / 2.2 / 2 / 0.55m
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling New Jieyun / Aoling CTS / Aoling Express / Aoling Jieyun
Chassis Model: BJ1048V9JDA-AB3 / BJ1128VGJEA-AC1 / BJ1088VFJEA-AB1 / BJ1041VAJB4-AA1
Leaf spring count: 3/5+2 / 9/8+6 / 7/7+5
Transmission Parameters
Number of gears: 5 / 6Gear
shift type: Manual
Transmission Model: 5-speed gearbox / 6-speed transmission / WLY 6-speed / WLYWLY5TS32
Tire
Tire Size: 7.00R16LT 8PR / 9R22.5 14PR / 7.50R16LT 14PR / 6.50R16LT 10PR
Number of tires: 6pcs
FAQ
What kind of truck is Chufei Chufei Foton chassis Explosives Transport Truck?
Chufei Chufei Foton chassis is an export-oriented Explosives Transport Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chufei Foton chassis Explosives Transport Truck?
Chufei Foton chassis Explosives Transport Truck export reference is about From $15,931. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chufei Foton chassis Explosives Transport Truck cover?
Chufei Foton chassis Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 132 hp / 150 hp / 156 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chufei Foton chassis Explosives Transport Truck?
For Chufei Foton chassis Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chufei Foton chassis Explosives Transport Truck include?
Chufei Foton chassis Explosives Transport Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chufei Foton chassis Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
