Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 7.15×2.5×3.475m
Type:: Flammable gas van truck
Front/rear track width:: Front: 1765mm; Rear: 1680
GVWR:: 4.95ton
Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Horsepower 156
Rated mass: 6.85ton
Emission China VI

Overview

The Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) is a Explosives Transport Truck featuring 4.95t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 156 hp, China VI emissions and Diesel fuel.

China VI 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 7.15×2.5×3.475m
Type: Flammable gas van truck
Drive type: 4X2
Wheelbase: 3800mm
Front/rear track width: Front: 1765mm; Rear: 1680
Rated mass: 6.85ton
GVWR: 4.95ton
Max. speed: 80km/h
Front/rear suspension: 1.13/2.22m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Vehicle certification code: CLQ5120XRQ6BJ
Body Brand: Chufei Brand
Engine parameters
Engine Brand: Quanchai
Engine Model: FotonF3.8NS6B156
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.8L
Emission standard: China VI
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 550N·m
Max torque speed: 1100-1900rpm
Rated speed: 2600rpm
Cargo box parameters
Cargo box dimensions: 5.2×2.3×2.2m
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 2.2m
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTS
Chassis Model: BJ1128VGJEA-AC1
Leaf spring count: 9/8+6
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: 6-speed transmission
Tire
Tire Size: 9R22.5 14PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

Exterior3

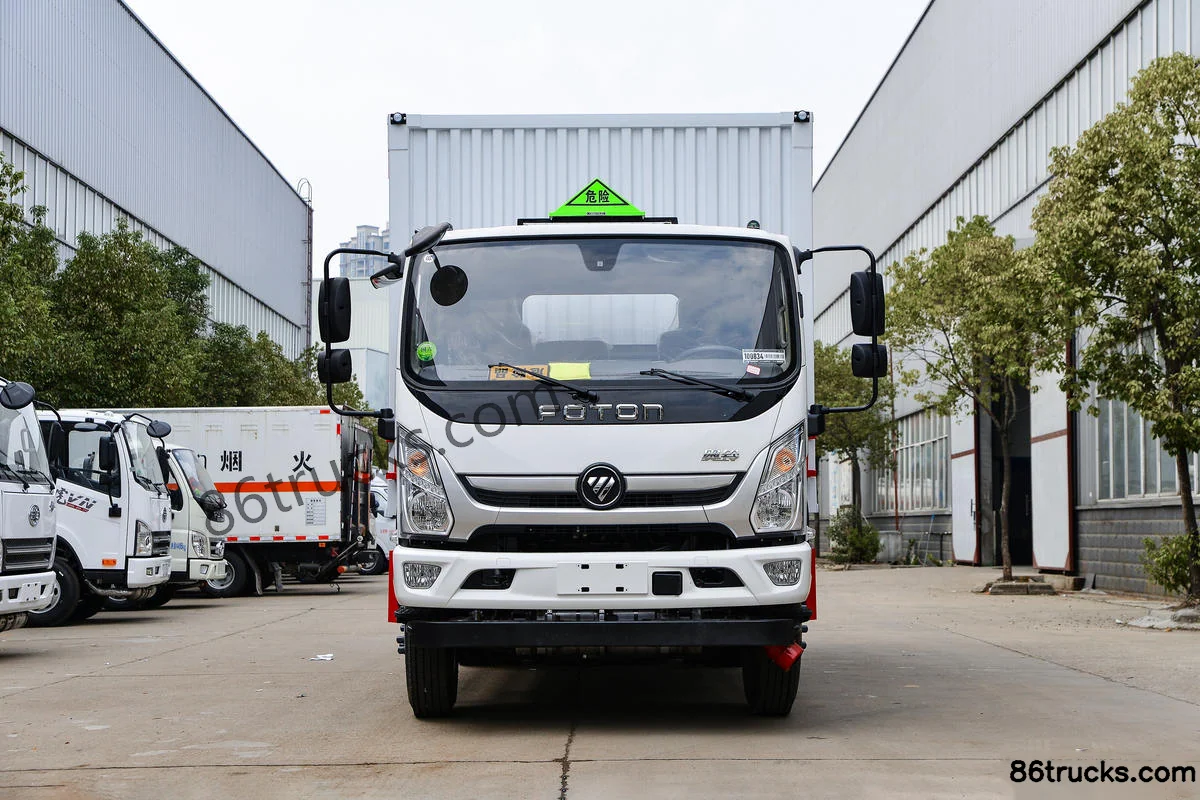

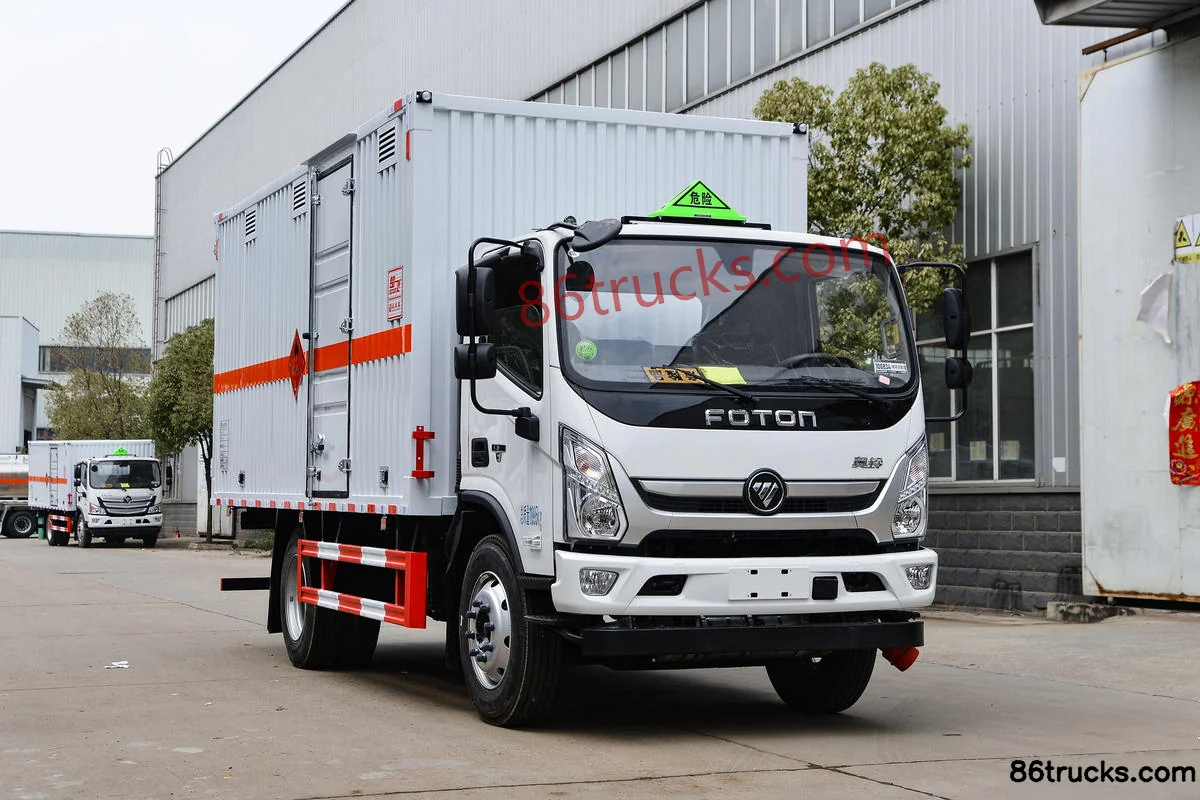

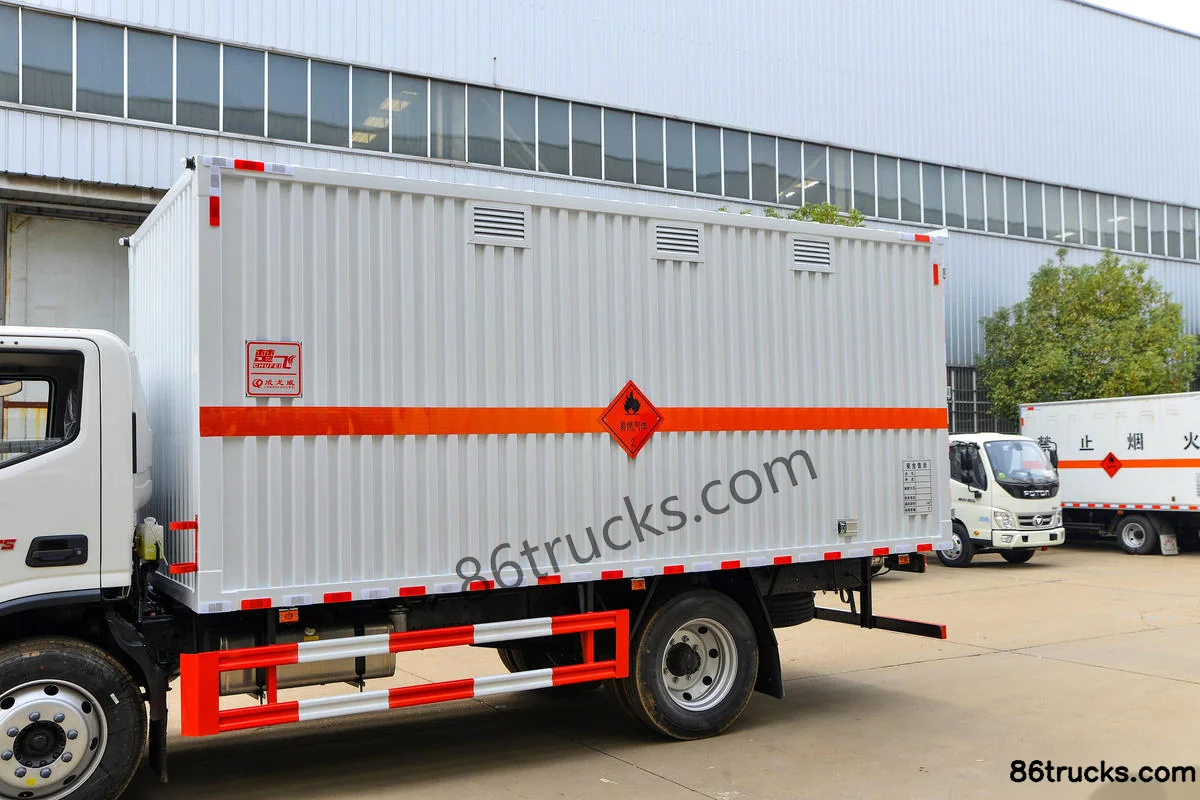

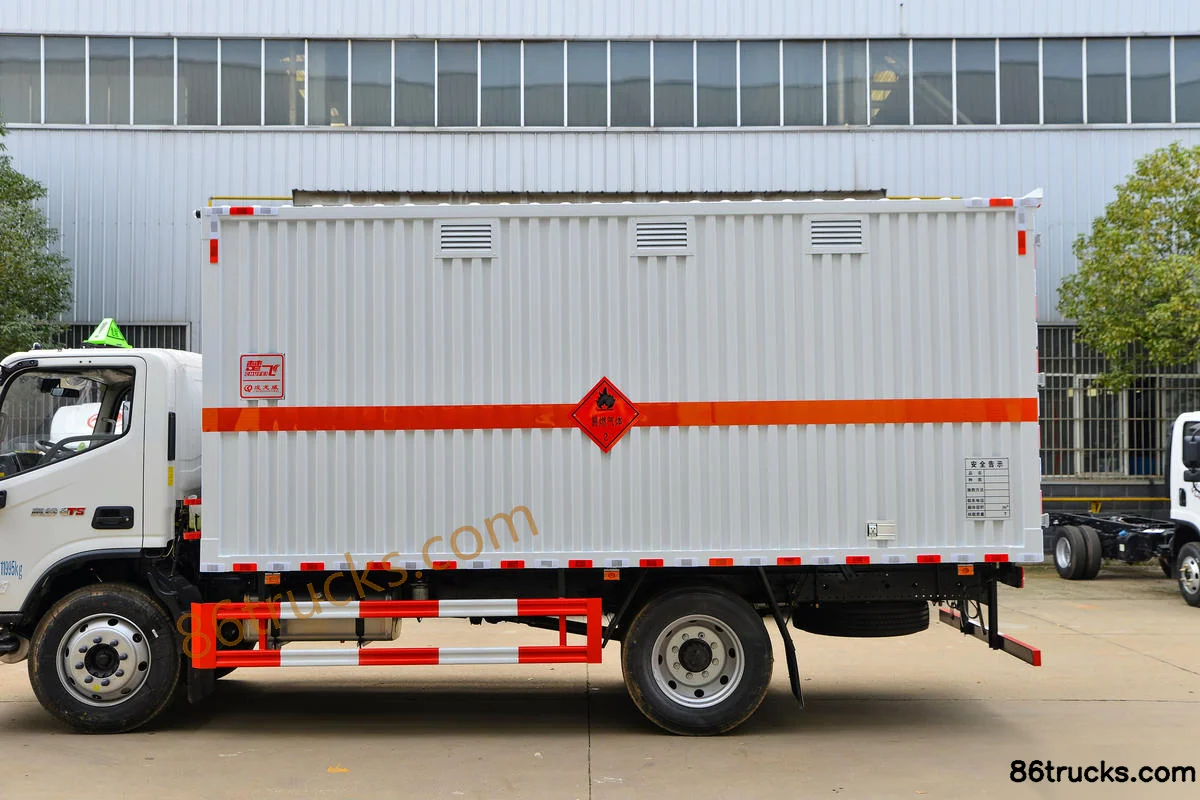

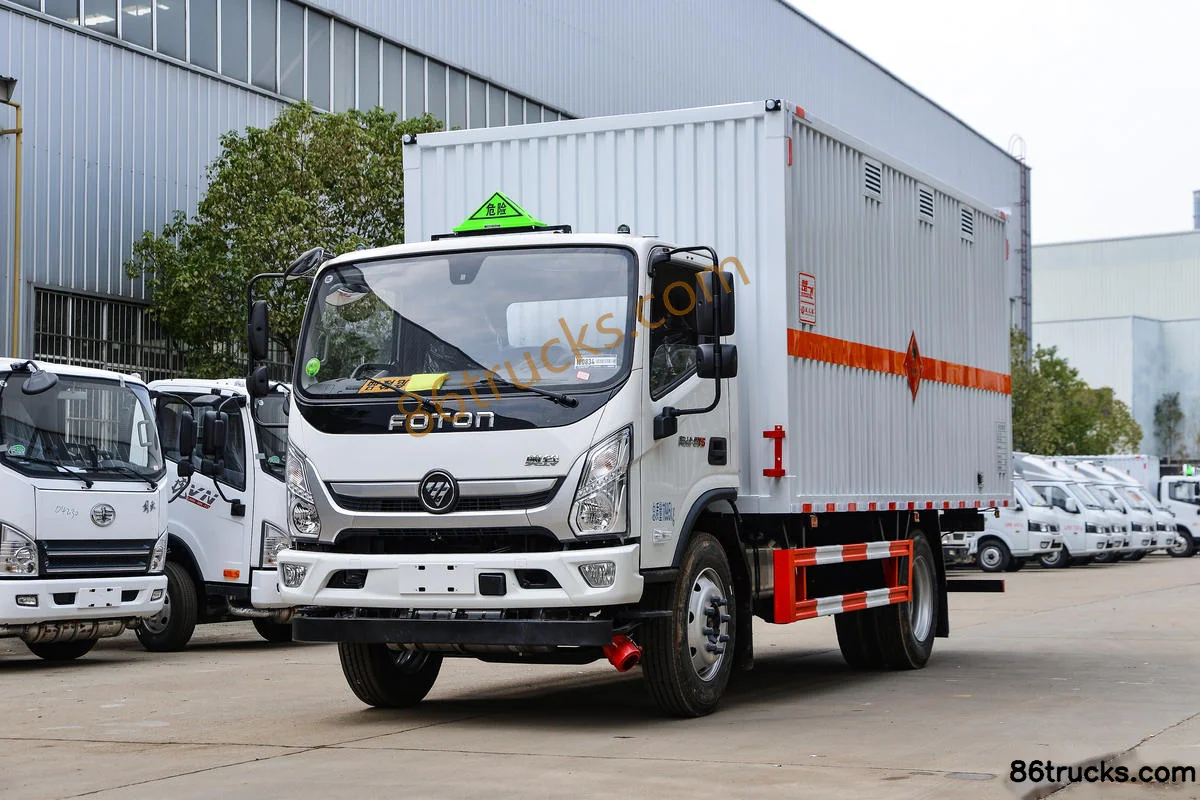

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Exterior (1) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Exterior (2) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Exterior (3) | 86Trucks

Cab3

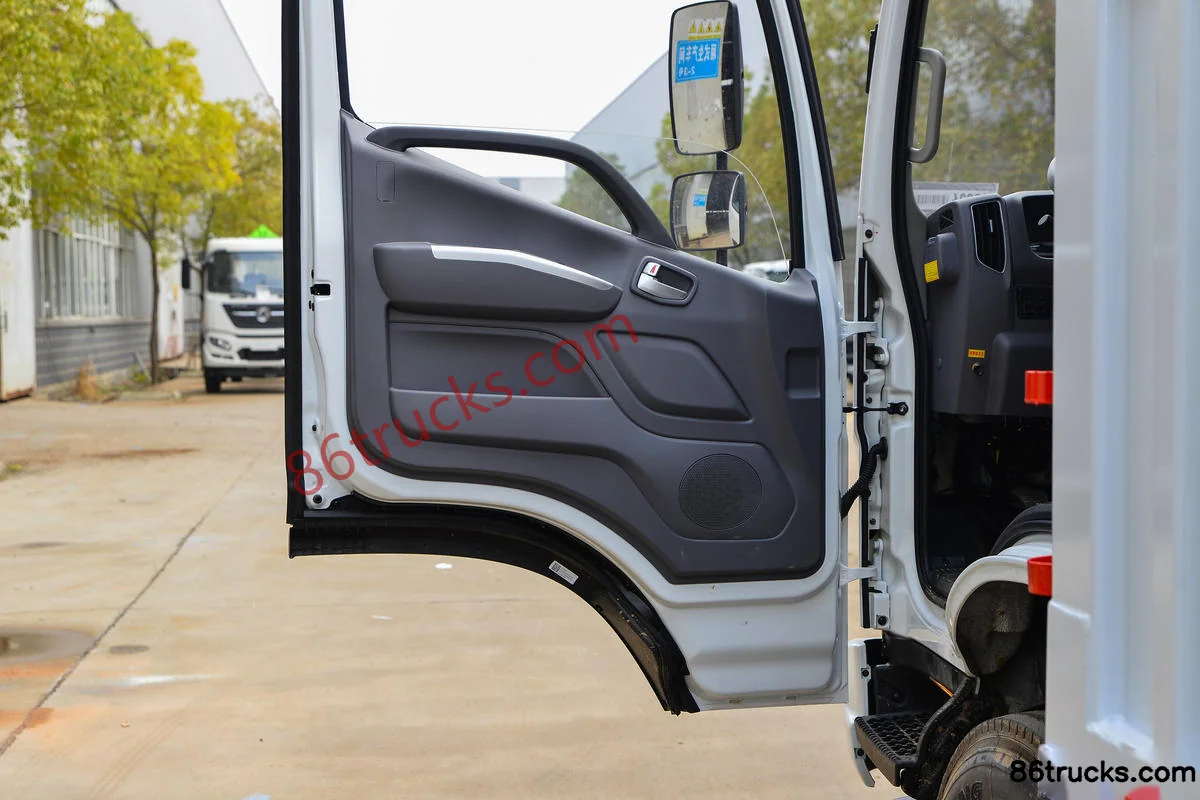

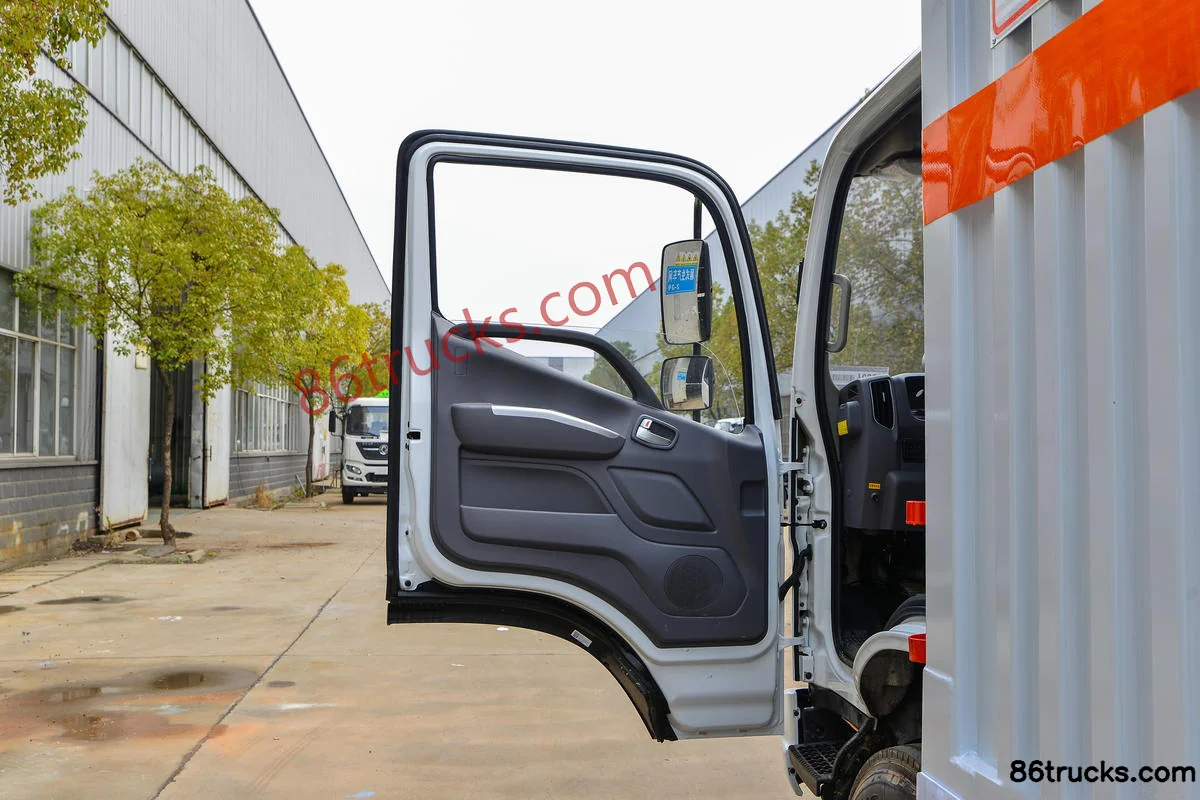

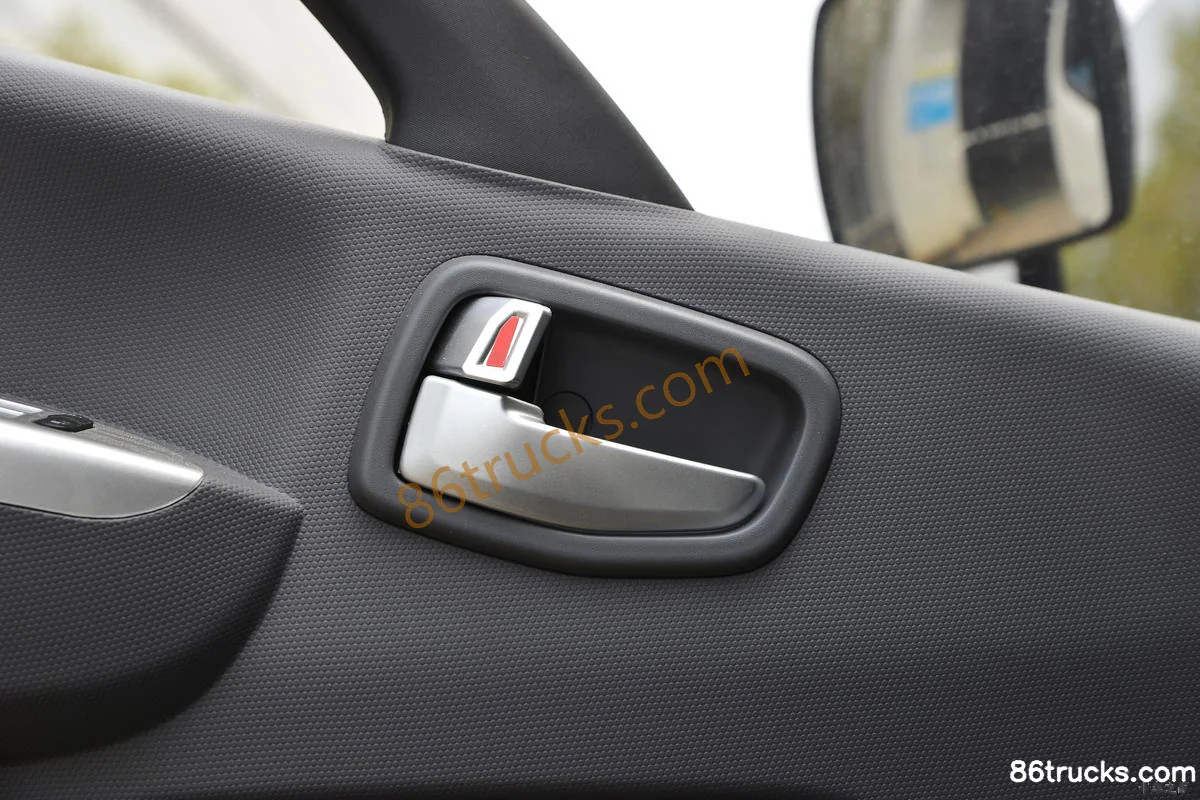

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Cab (1) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Cab (2) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Cab (3) | 86Trucks

Chassis3

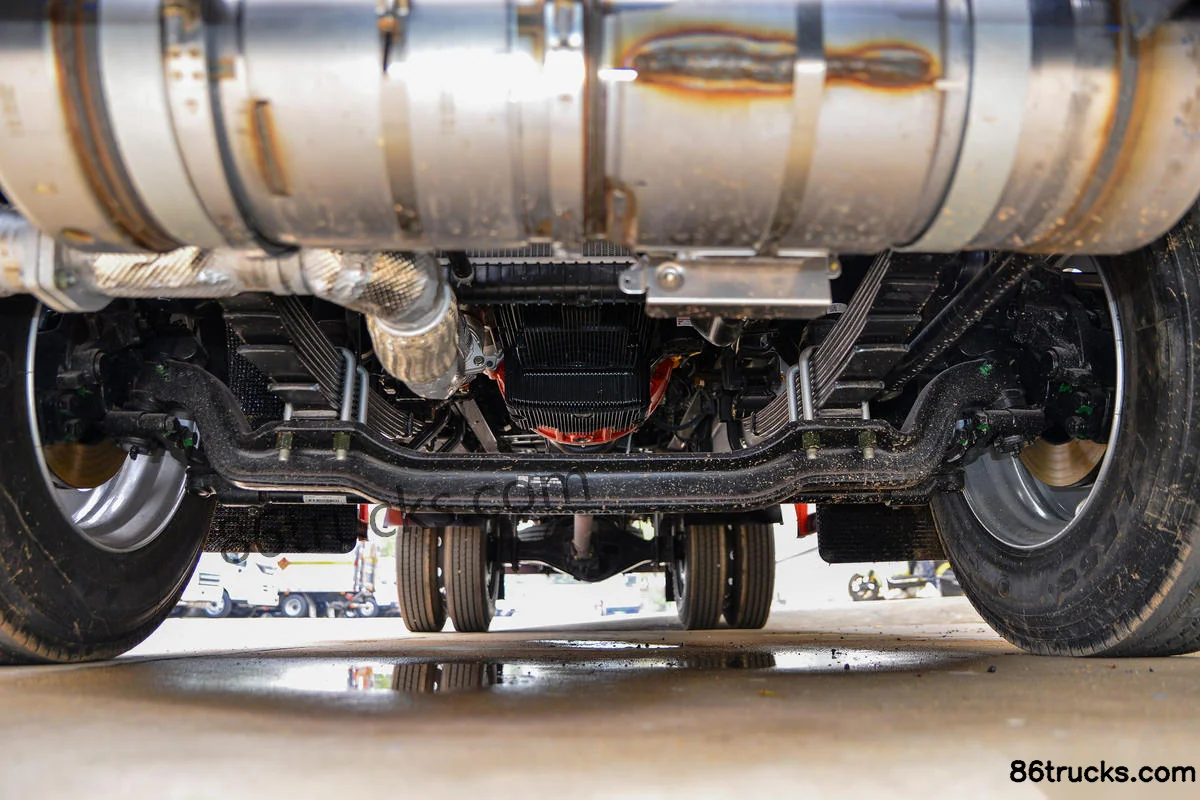

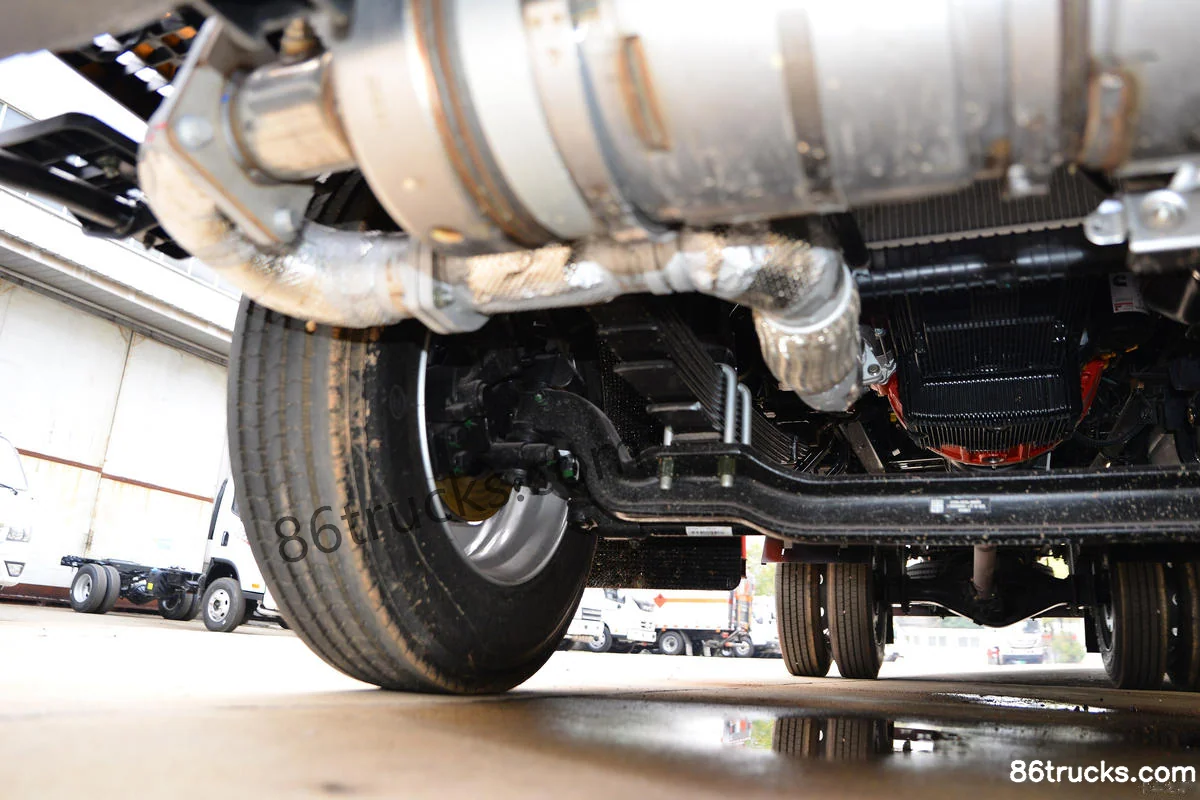

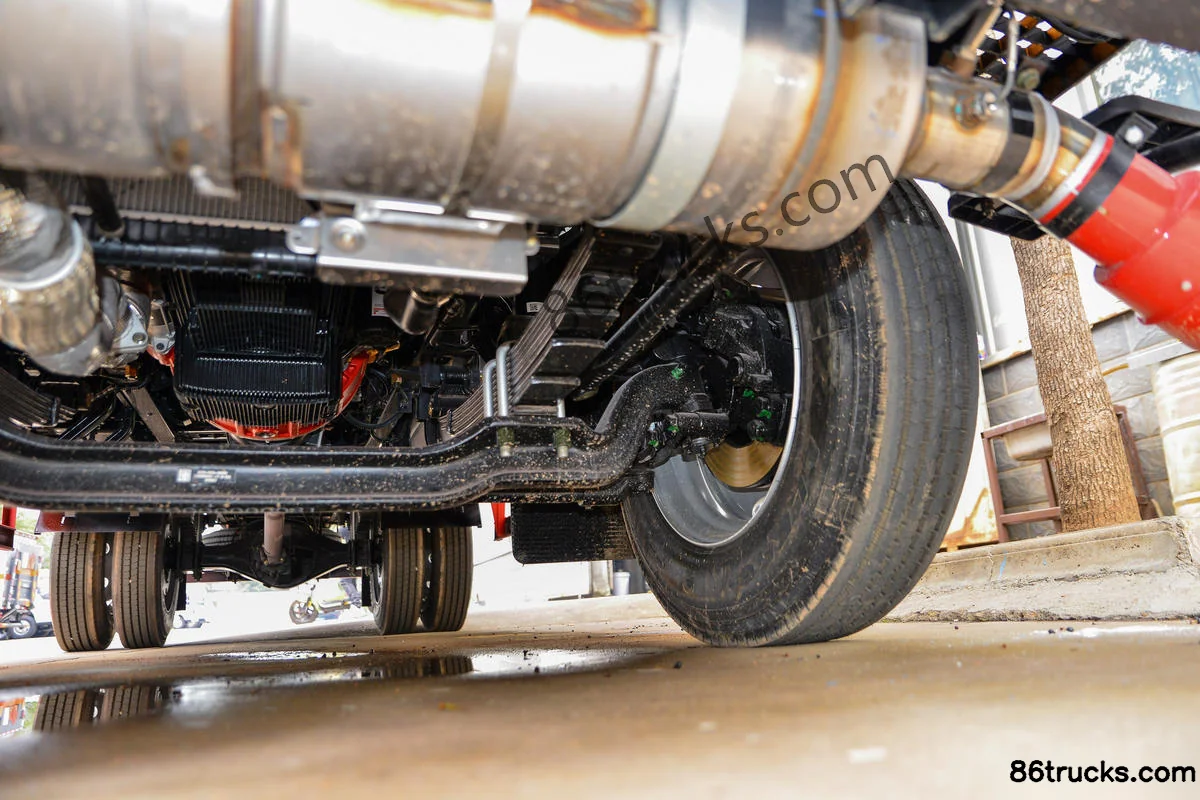

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Chassis (1) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Chassis (2) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Chassis (3) | 86Trucks

Body3

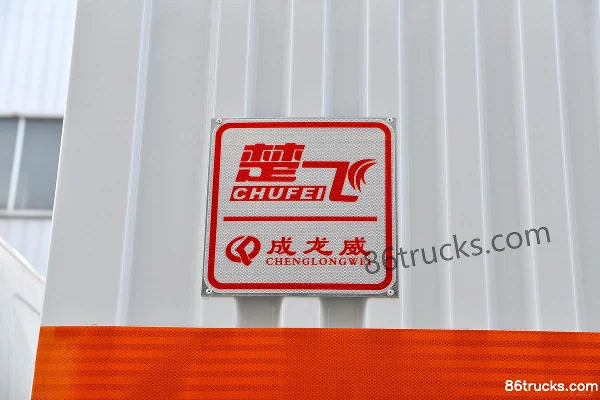

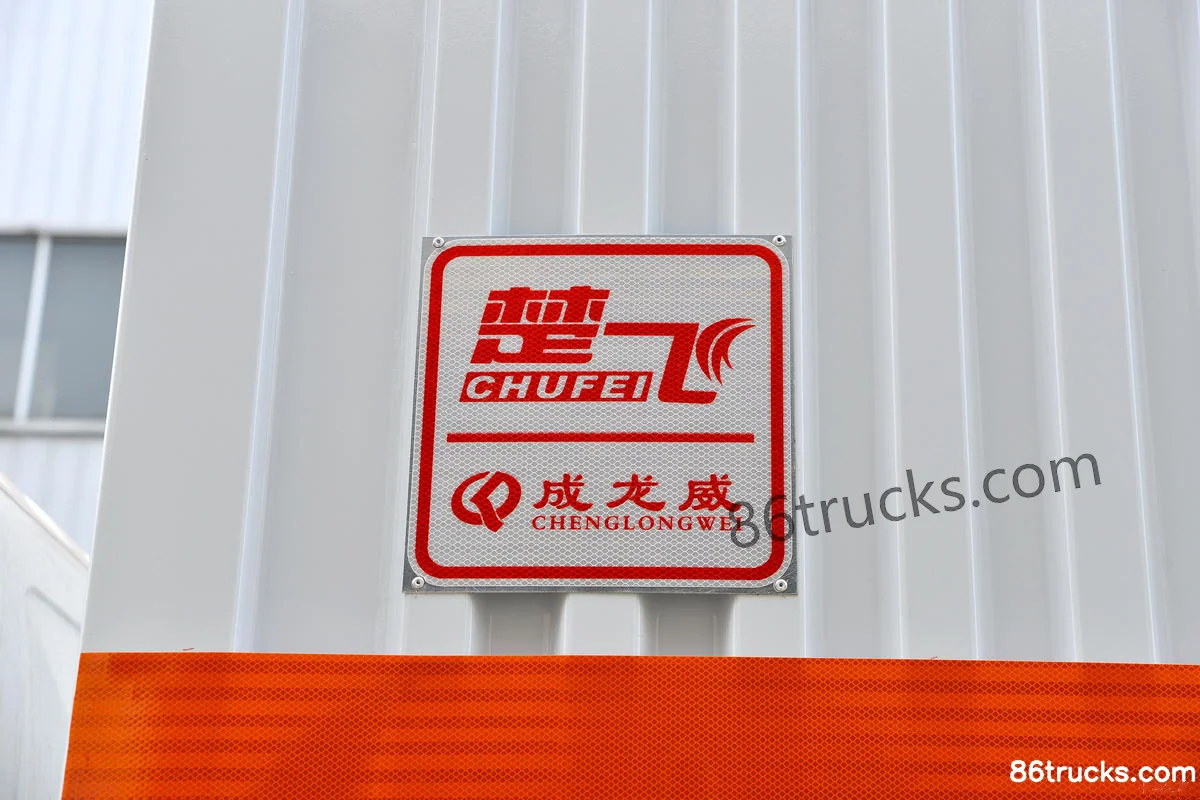

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Body (1) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Body (2) | 86Trucks Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand)?

Key specs of Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand): Drive: 4x2; Horsepower: 156 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) suited for?

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) differ from other variants in the same series?

Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand) belongs to Chufei Foton chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTS 156hp 4X2(6 wheels) 5.2m flammable gas van truck (Chufei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
