ZOOMLION 500-ton 6-axle All-terrain Crane

Export reference
MSRP N/A
Model:: ZLJ5720JQZ500H
Max travel speed:: 72km/h
Approach/departure angle:: 16/11°
Rated lifting moment:: 1600KN.m
Min working radius:: 16.1m
Max lift height - base boom:: 62.5m
ZOOMLION 500-ton 6-axle All-terrain Crane exterior
View more photos (6)
Operating weight: 500ton
Crane rated power: 240kW
Wheelbase: 1650+3500+1650+2500+1650mm
Machine dimensions: L×W×H: 18×3×4m

Overview

The ZOOMLION 500-ton 6-axle All-terrain Crane is a crane truck featuring 500ton GVW and 240kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 18×3×4m
Model: ZLJ5720JQZ500H
Operating weight: 500ton
Wheelbase: 1650+3500+1650+2500+1650mm
Max travel speed: 72km/h
Approach/departure angle: 16/11°
Lifting capacity
Rated lifting capacity: 500ton
Rated lifting moment: 1600KN.m
Min working radius: 16.1m
Max lift height - base boom: 62.5m
Max lift height: 85m
Max lifting height - main boom + jib: 148m
Chassis Specs
Crane rated power: 240kW
Chassis Model: ZLJ5720JQZH6
Operating Parameters
Max hoisting speed of main winch: 130m/min
Outrigger span: longitudinal × lateral: 9.4×9.4m
Engine parameters
Engine Model: WeichaiWP15H660E61
Max output power: 485kW
Rated speed: 1800rpm

Photos

Exterior3

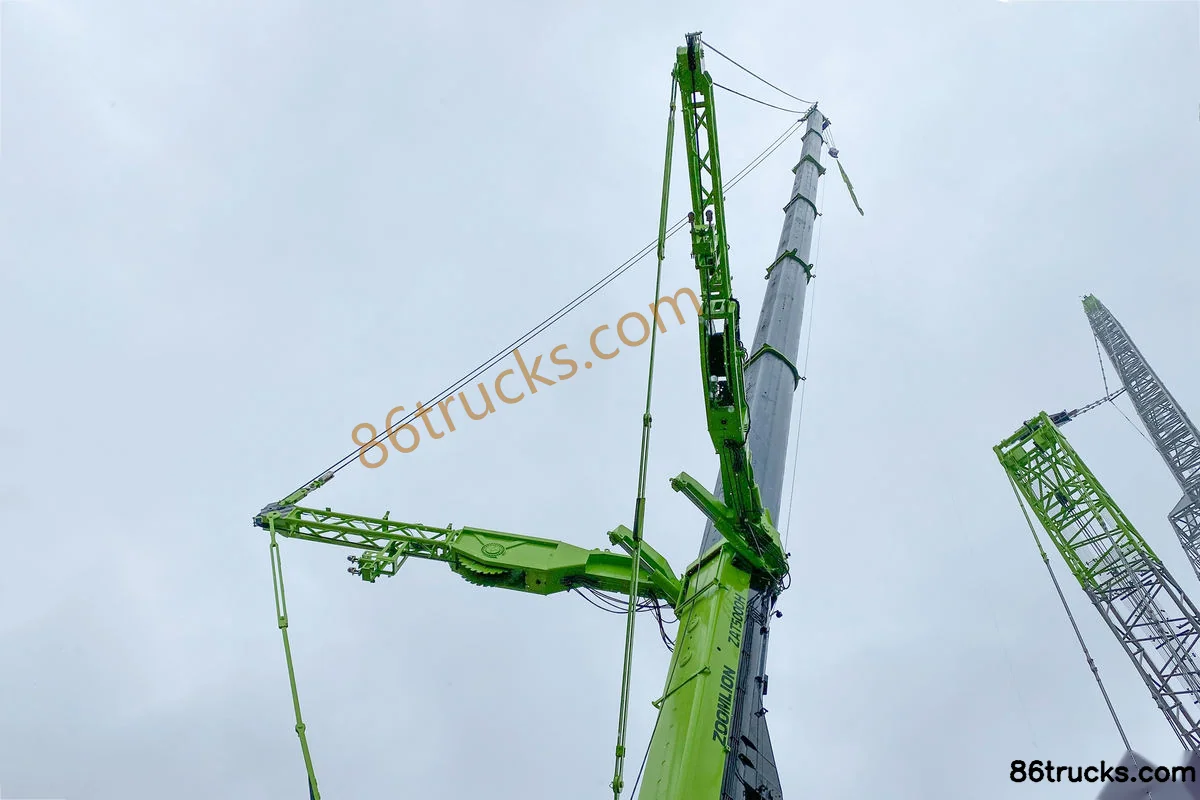

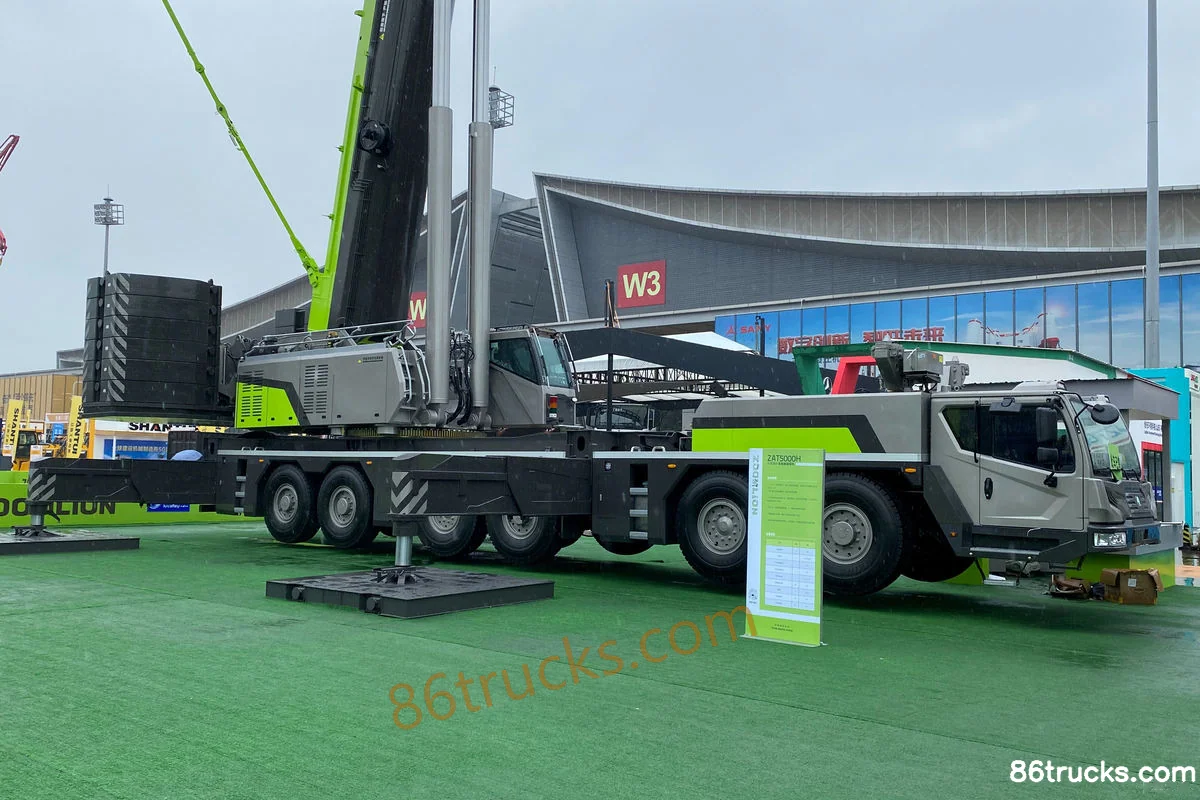

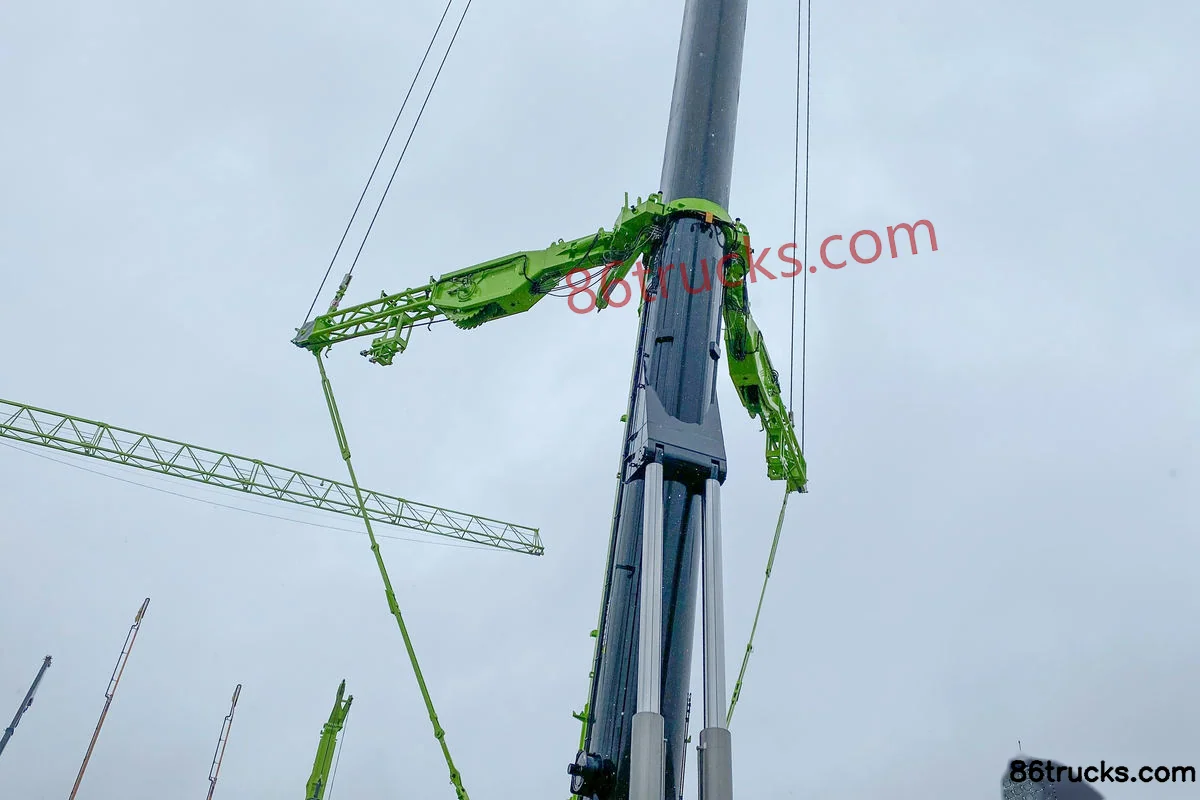

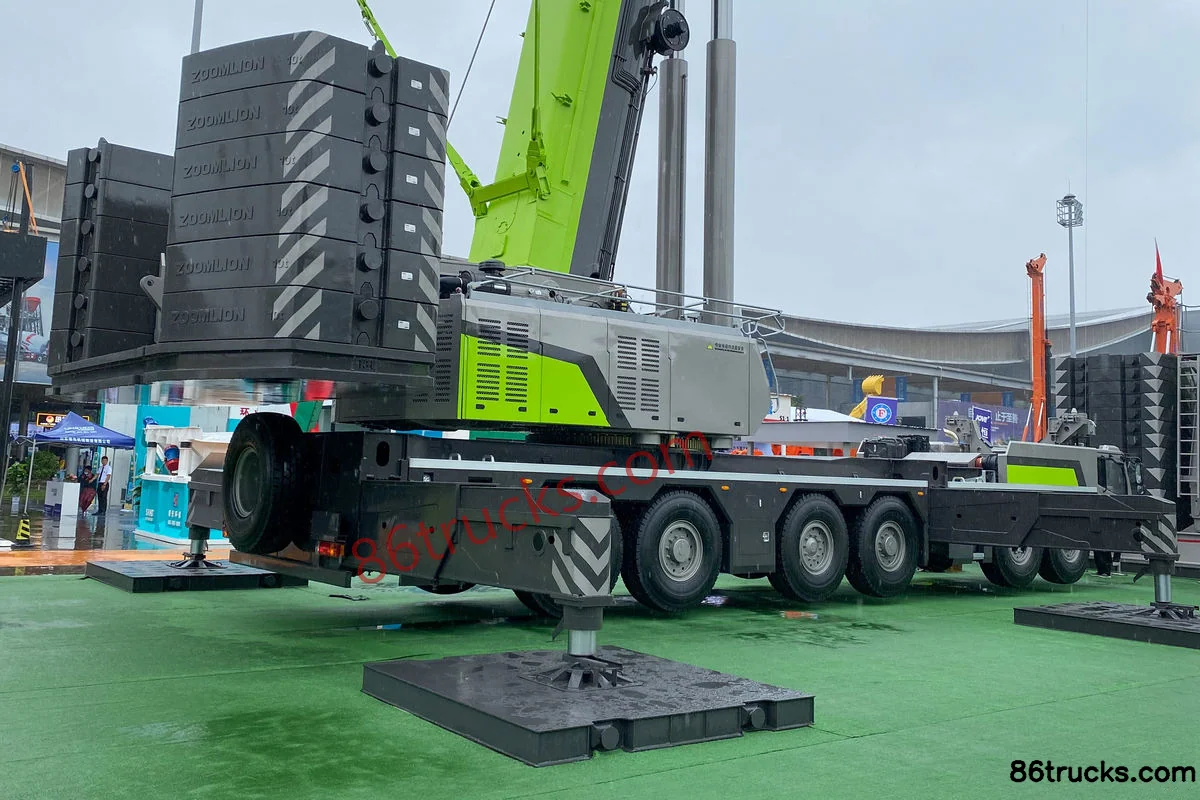

ZOOMLION 500-ton 6-axle All-terrain Crane Exterior (1) | 86Trucks ZOOMLION 500-ton 6-axle All-terrain Crane Exterior (2) | 86Trucks ZOOMLION 500-ton 6-axle All-terrain Crane Exterior (3) | 86Trucks

Cab3

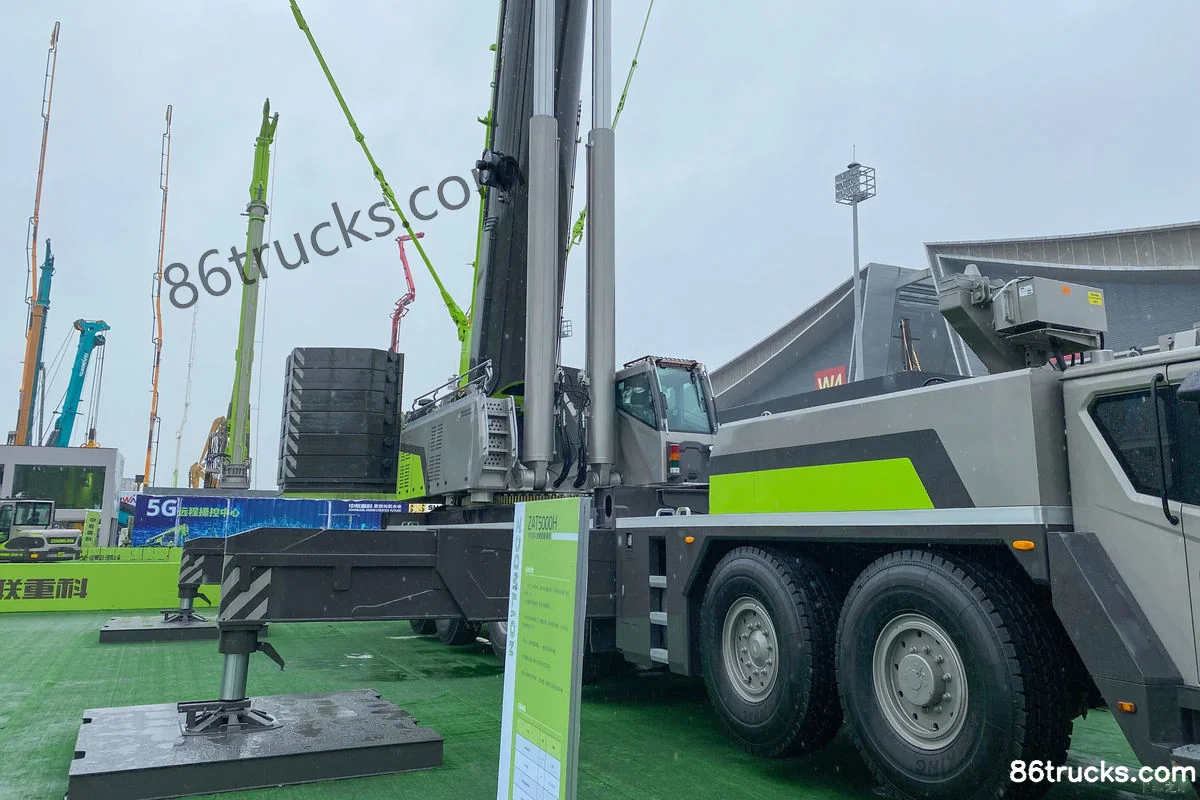

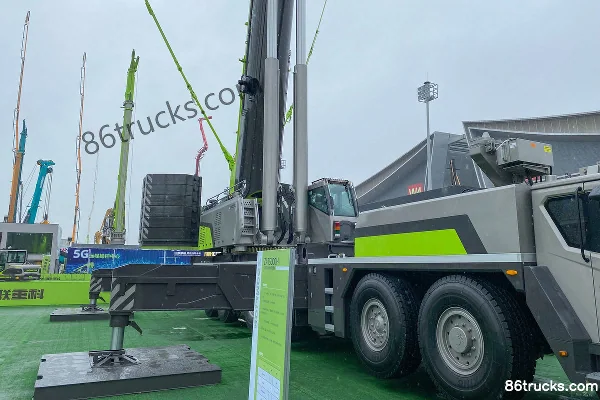

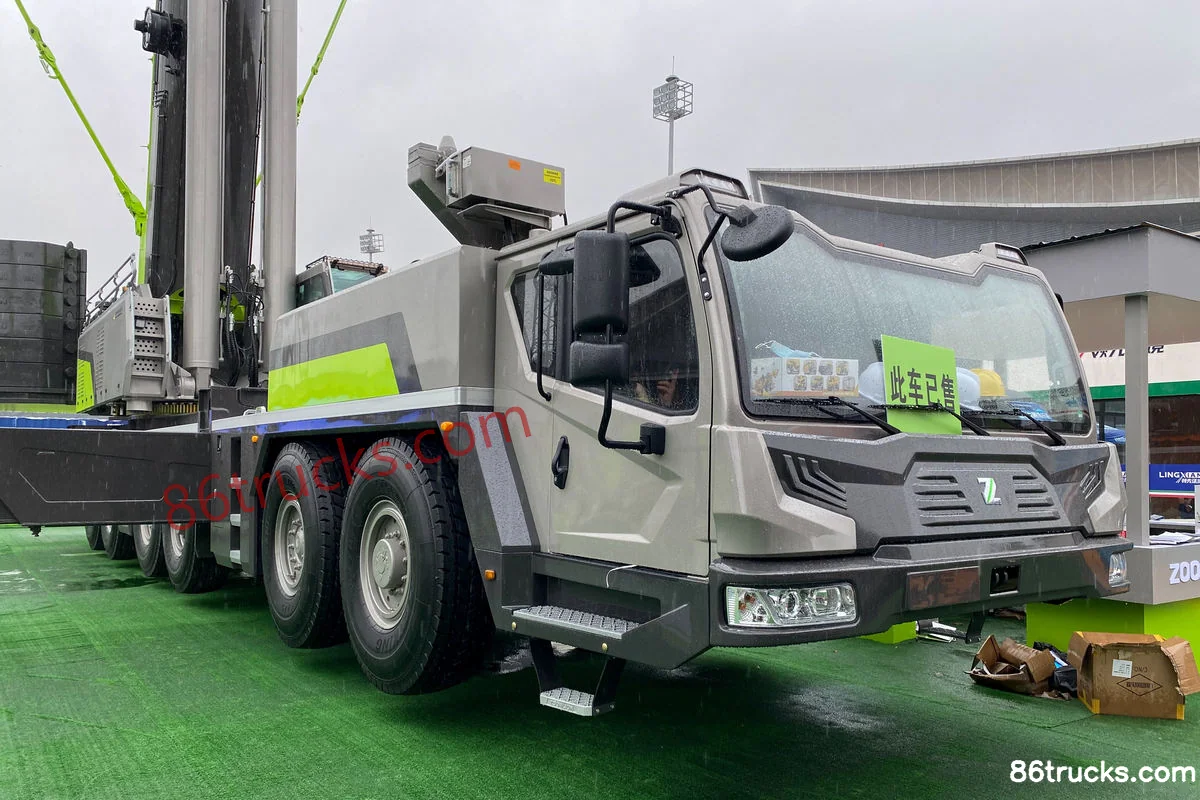

ZOOMLION 500-ton 6-axle All-terrain Crane Cab (1) | 86Trucks ZOOMLION 500-ton 6-axle All-terrain Crane Cab (2) | 86Trucks ZOOMLION 500-ton 6-axle All-terrain Crane Cab (3) | 86Trucks

6 photos

FAQ

What transport jobs is ZOOMLION 500-ton 6-axle All-terrain Crane suited for?

ZOOMLION 500-ton 6-axle All-terrain Crane is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does ZOOMLION 500-ton 6-axle All-terrain Crane differ from other variants in the same series?

ZOOMLION 500-ton 6-axle All-terrain Crane belongs to ZOOMLION All-Terrain Crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION 500-ton 6-axle All-terrain Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION 500-ton 6-axle All-terrain Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
