Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.97ton
Wheelbase:: 3400+1350mm
Tire Size:: 10.00R20 18PR
Rated payload: 14.335ton
Drive 6X4 (10 wheels)
Horsepower 220
Cargo box length: 4.6m

Overview

The Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck is a Medium-duty truck featuring 14.335t payload, 24.5t GVW, 4.6m cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E61A engine, 220 hp, China VI emissions and Fast Gear transmission.

China VI 220 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3248K40FB0
Drive type: 6X4
Wheelbase: 3400+1350mm
engine: WeichaiWP4.6NQ220E61A
transmission: Fast Gear10JS90A-B
Cab length: 7.335m
Cab width: 2.37m
Cab height: 2.68m
Front track width: 1840mm
rear track: 1750/1750mm
Curb Weight: 9.97ton
Rated payload: 14.335ton
GVWR: 24.5ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.6m
Cargo box width: 2.3m
Cargo box height:
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/10
Tire
Tire Size: 10.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

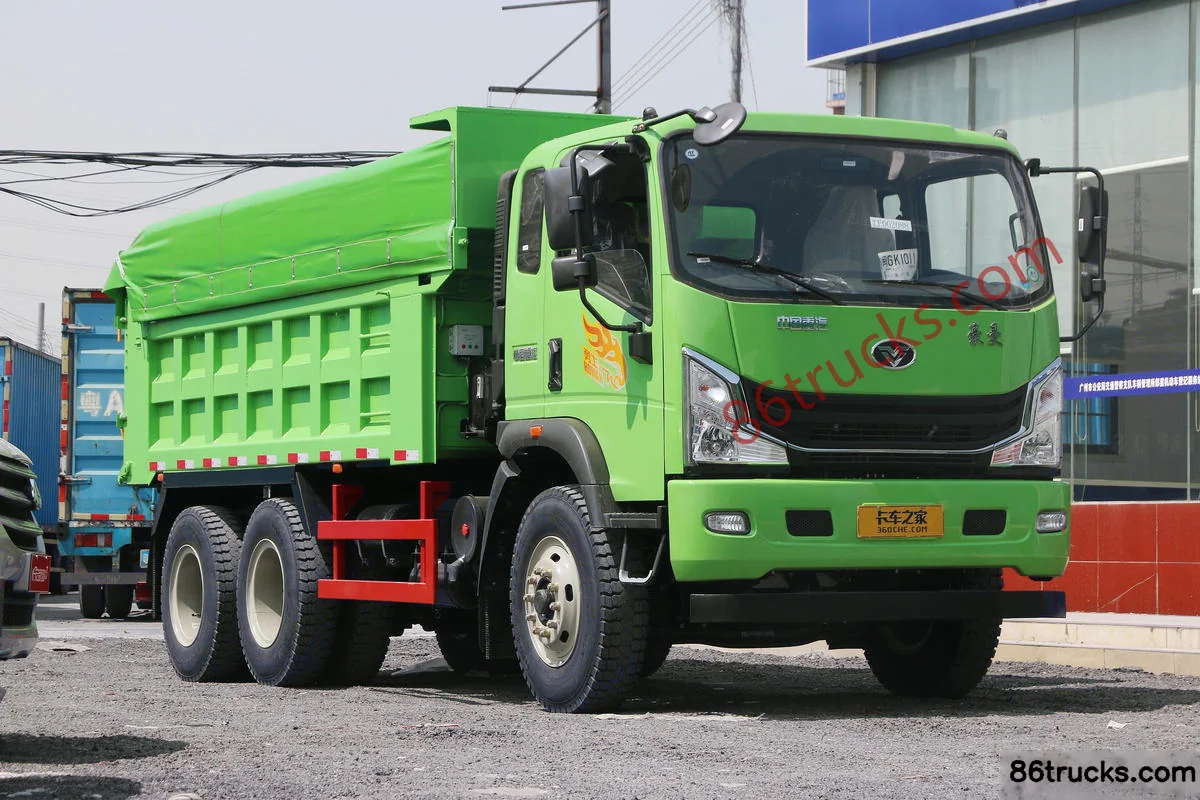

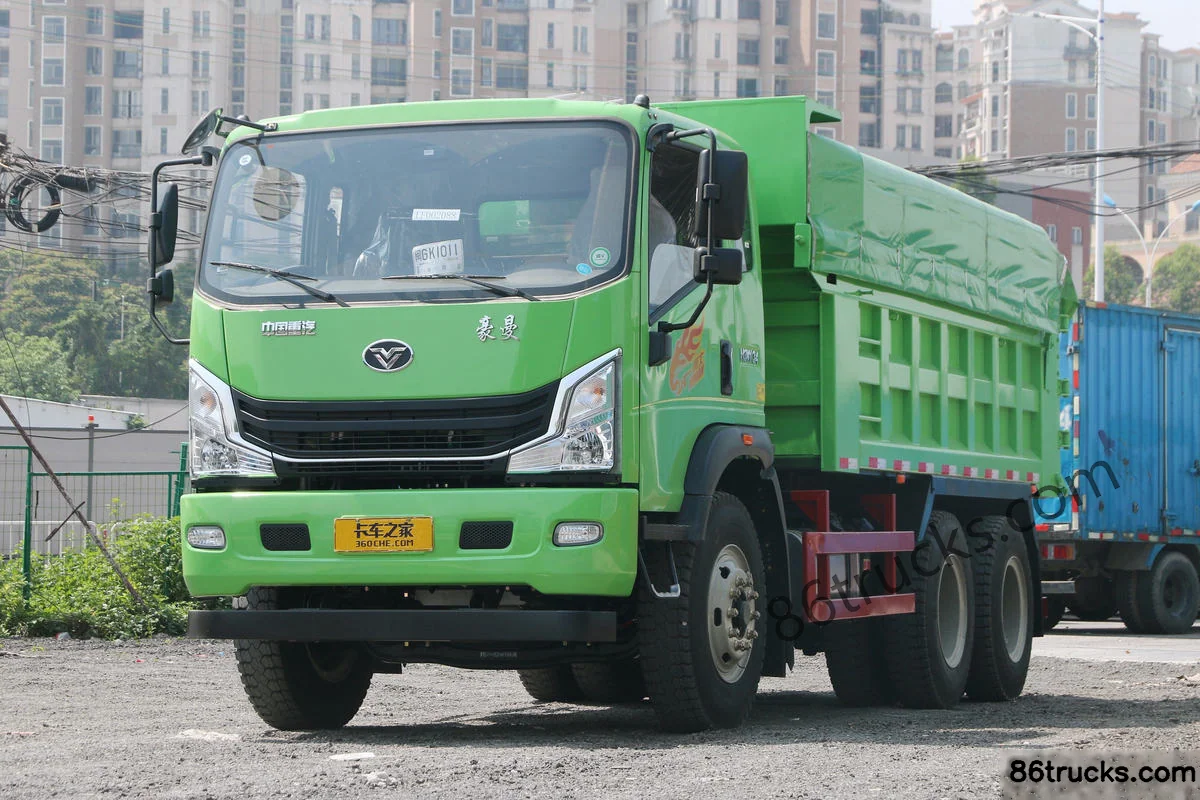

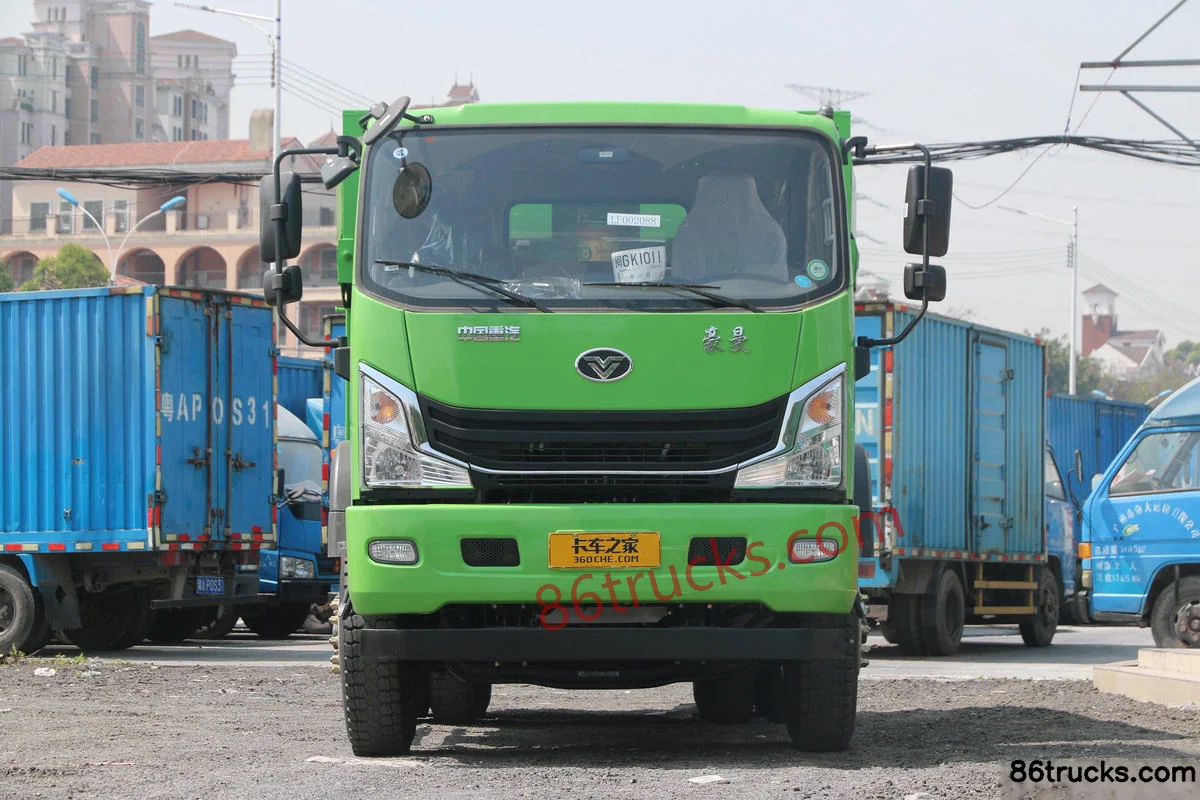

Exterior3

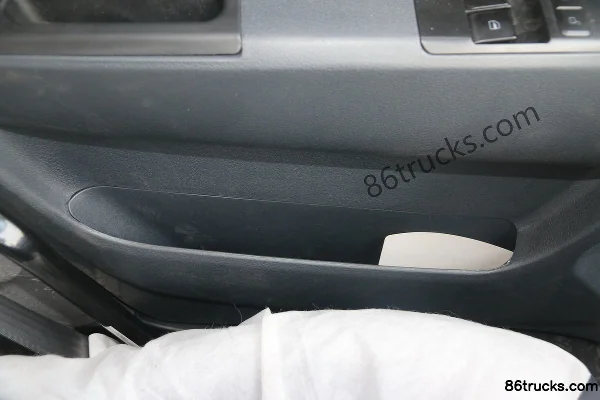

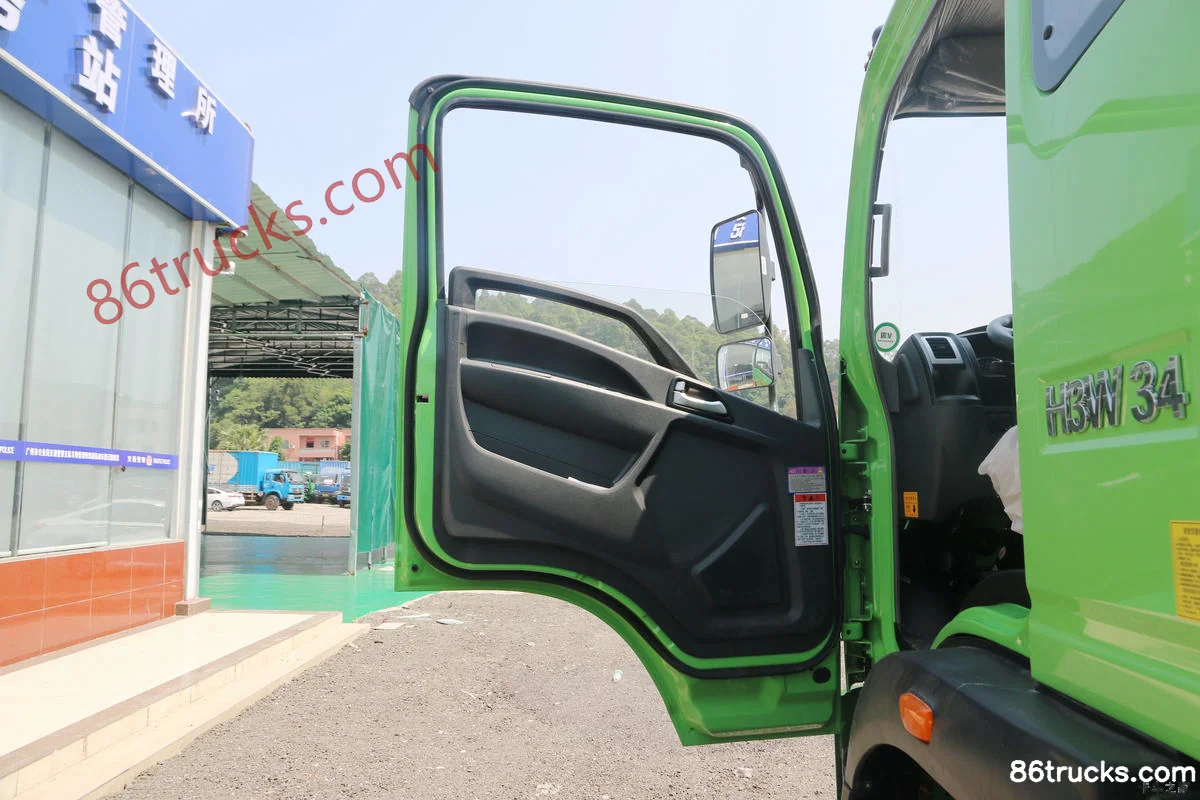

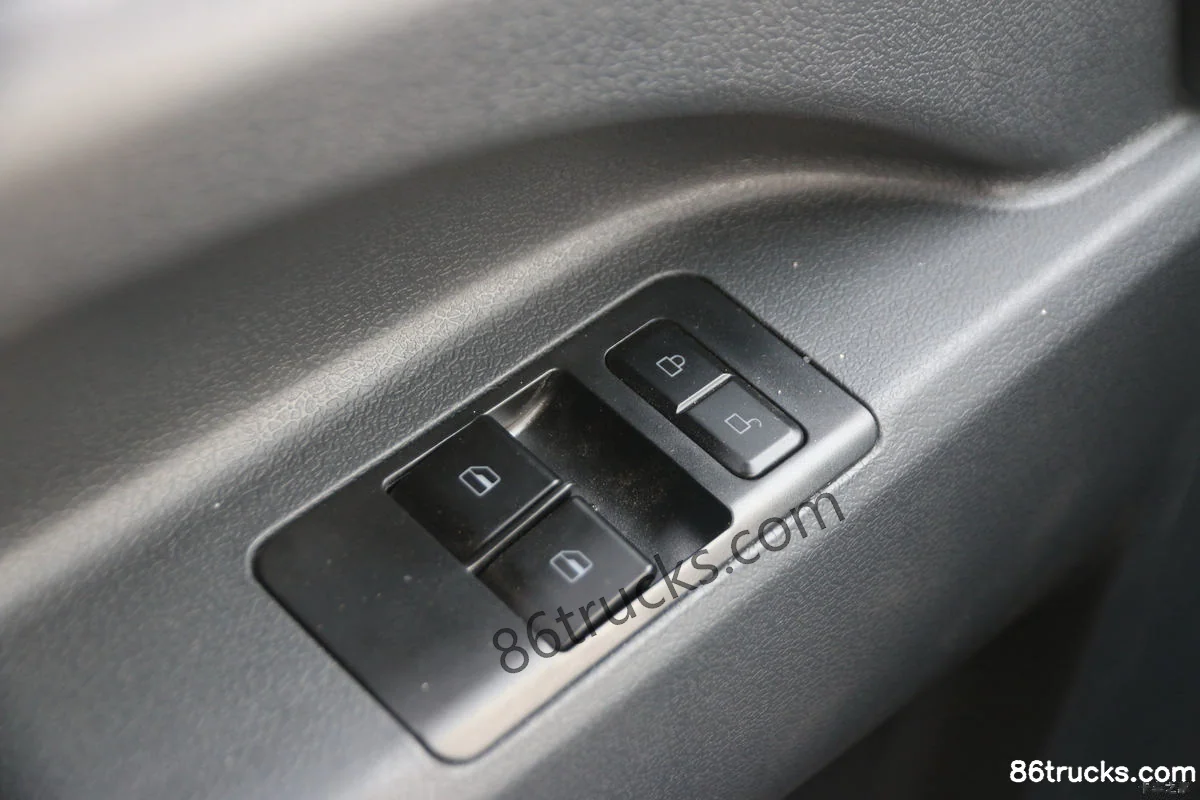

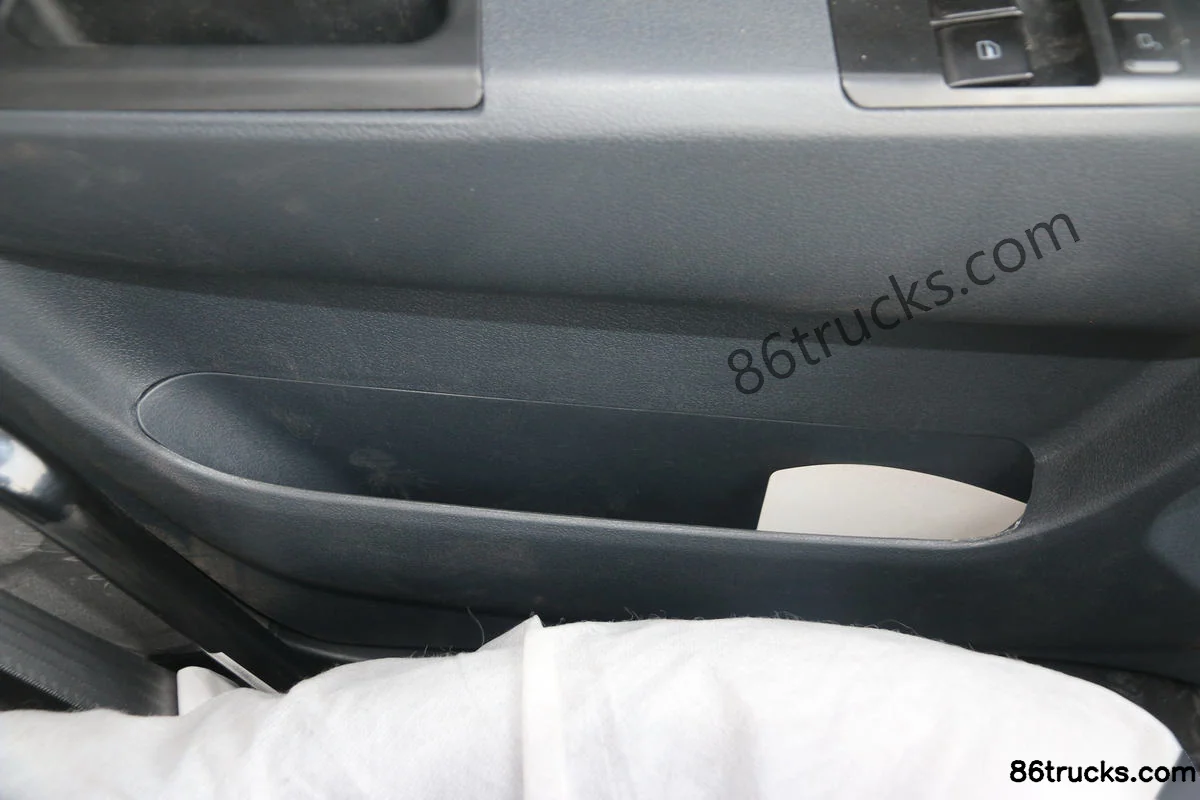

Cab3

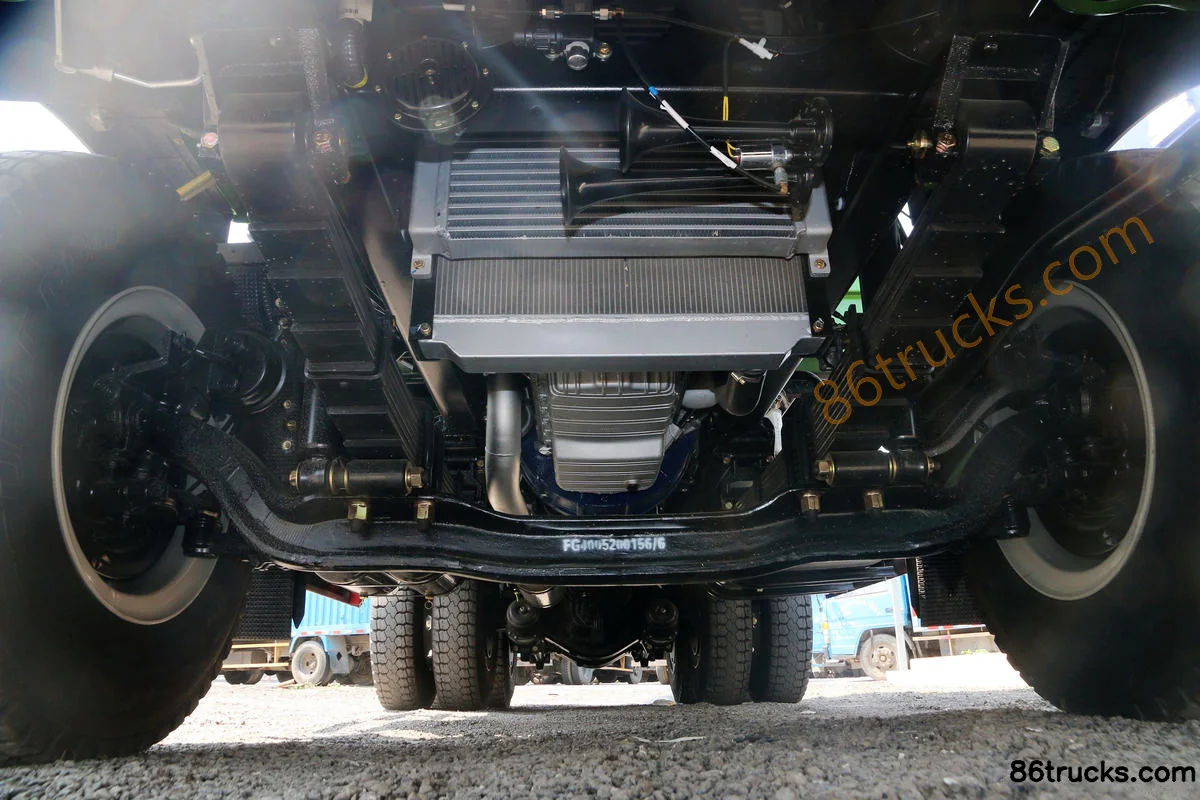

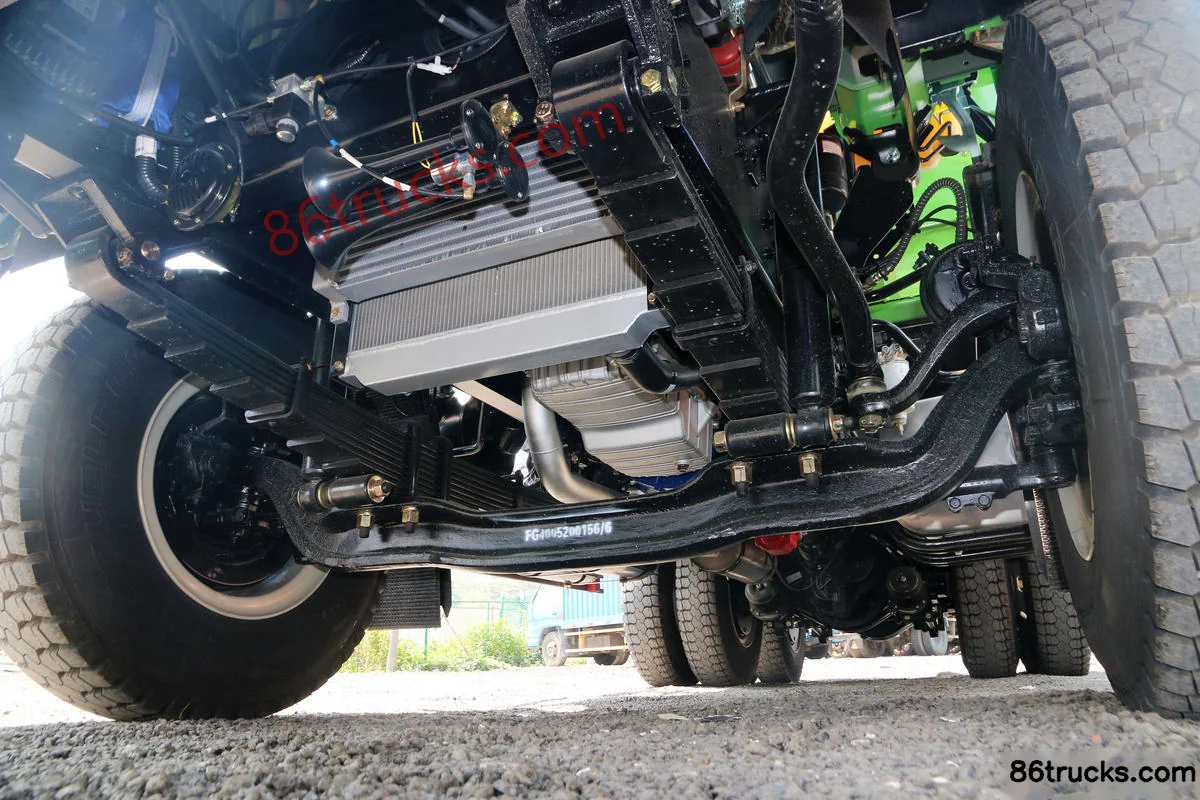

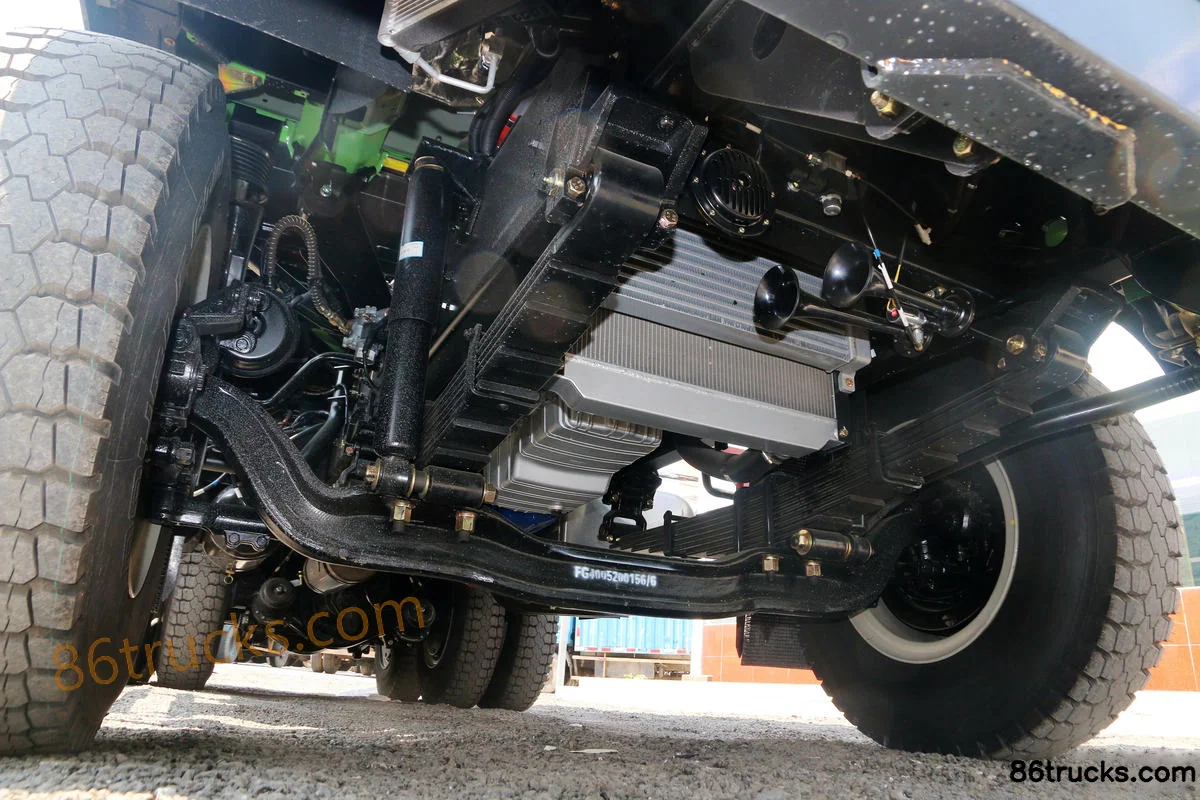

Chassis3

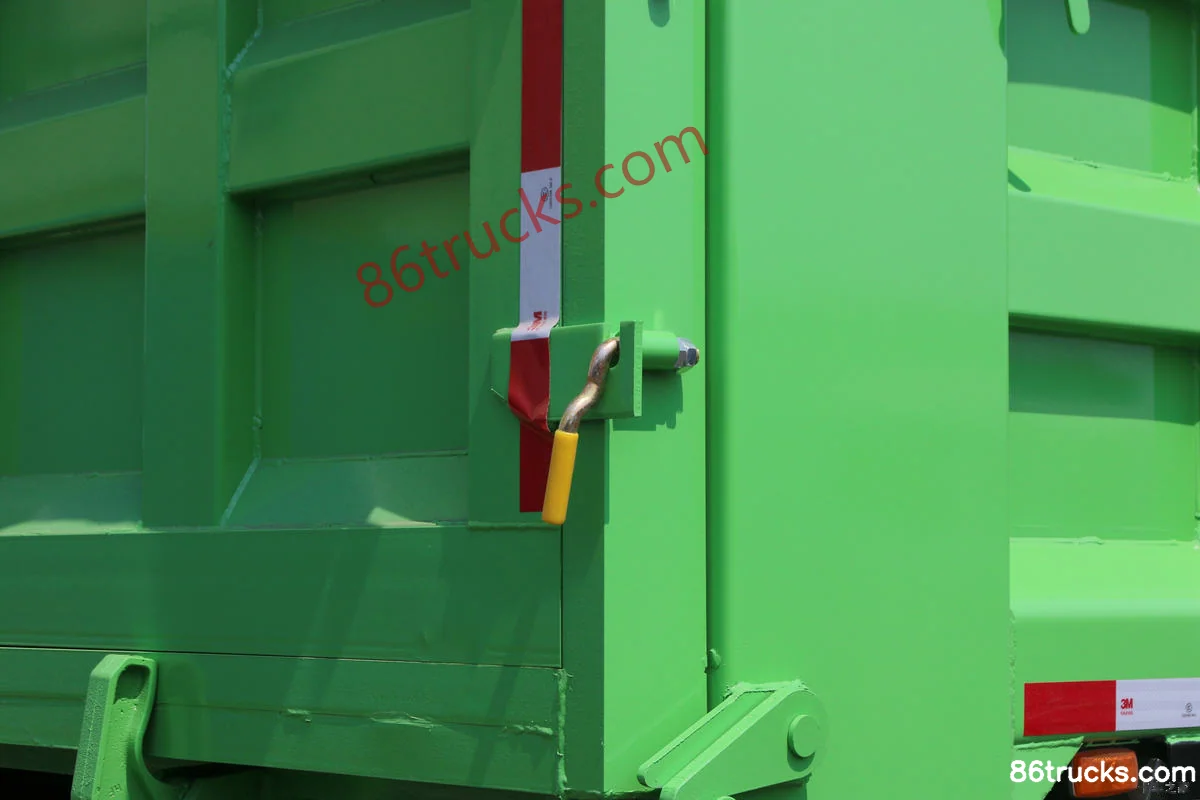

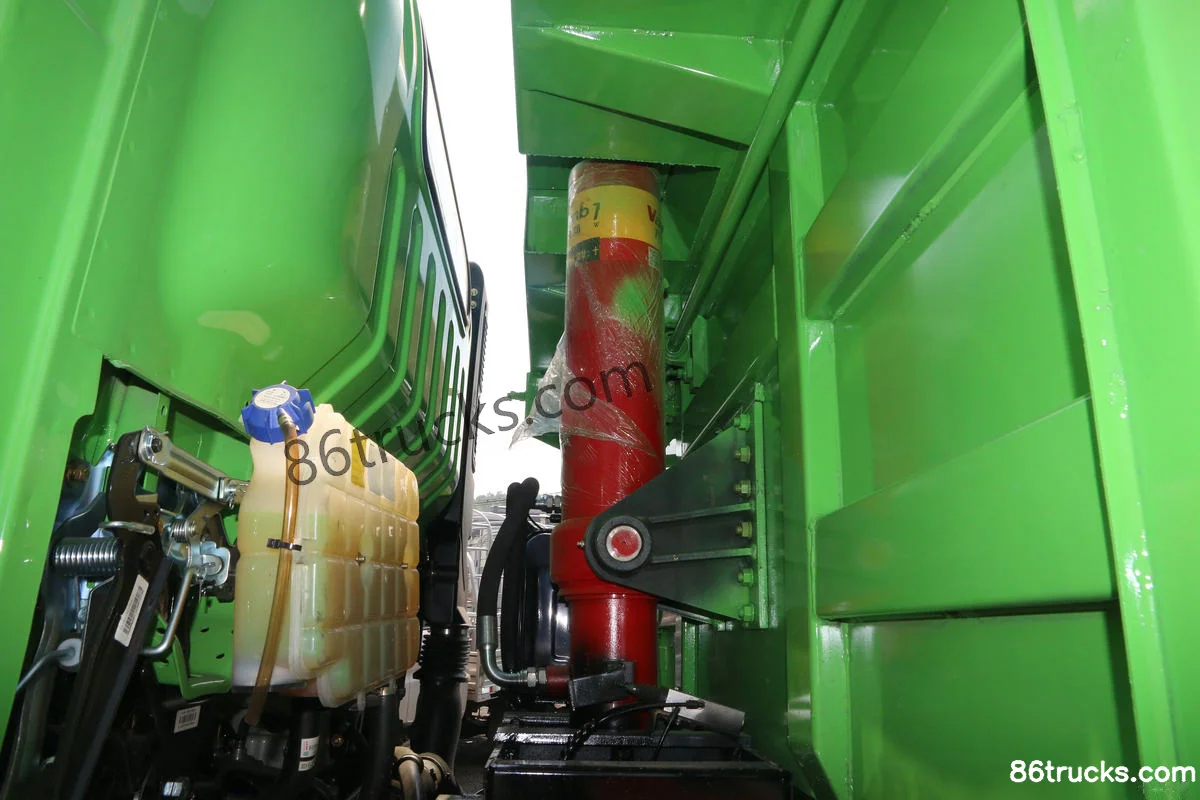

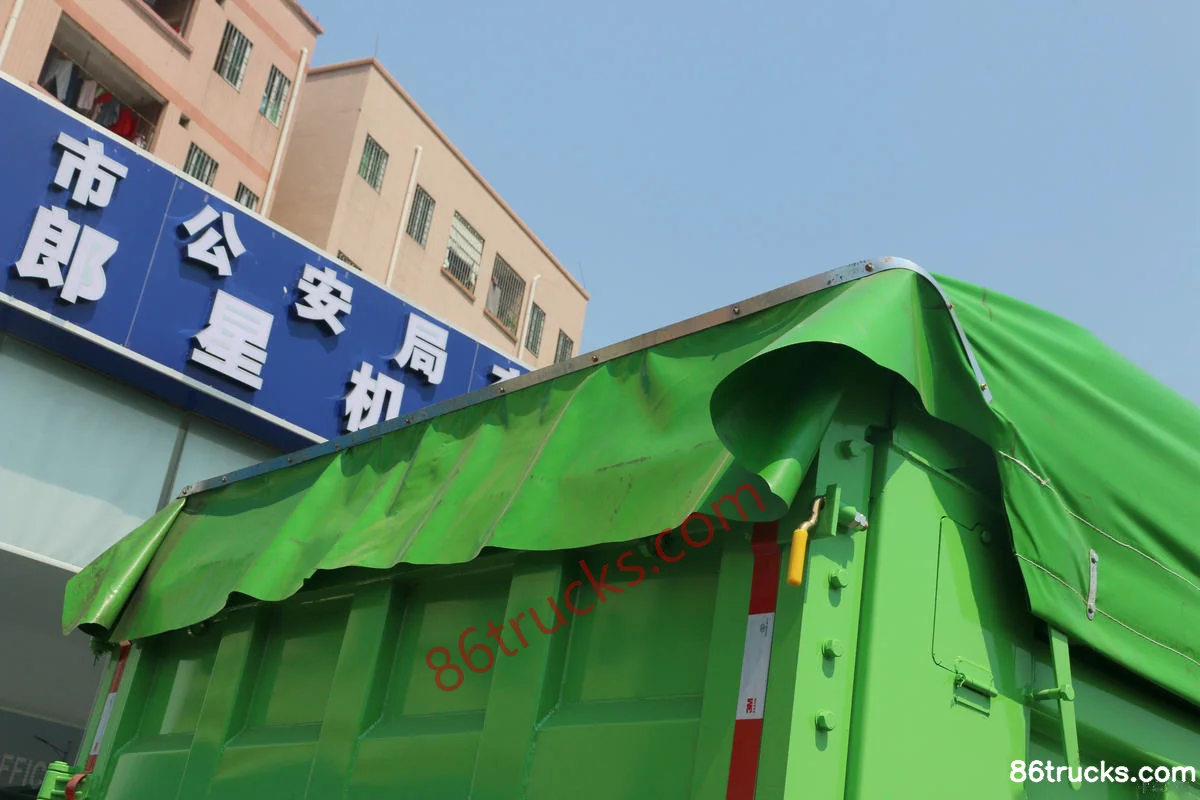

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Key specs of Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck: Drive: 6x4; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck suited for?

Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck differ from other variants in the same series?

Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MAN H3 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
