Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 15.5ton
Wheelbase:: 1950+3225+1350mm
Tire Size:: 12.00R20 18PR
Model code (announced):: ZZ3317V326GF1
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 430
Cargo box type: square box

Overview

The Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.430E62 engine, 430 hp, China VI emissions and SinotrukHW19712L transmission.

China VI 430 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317V326GF1
Drive type: 8X4
Wheelbase: 1950+3225+1350mm
engine: WeichaiWP12.430E62
transmission: SinotrukHW19712L
Rear Axle Ratio: 5.26
Cab length: 9.78m
Cab width: 2.55m
Cab height: 3.55m
Front track width: 2022/2022mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.6L
Emission standard: China VI
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2100N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: CR+DOC+DPF+Hi_SCR
Transmission Parameters
Transmission Model: SinotrukHW19712L
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: square box
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab width: 2280mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/7000kg
Frame Dimensions: 1500mm
rear axle allowable load: 17500kg
Axle ratio: 5.26
Leaf spring count: 4/4/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs

Photos

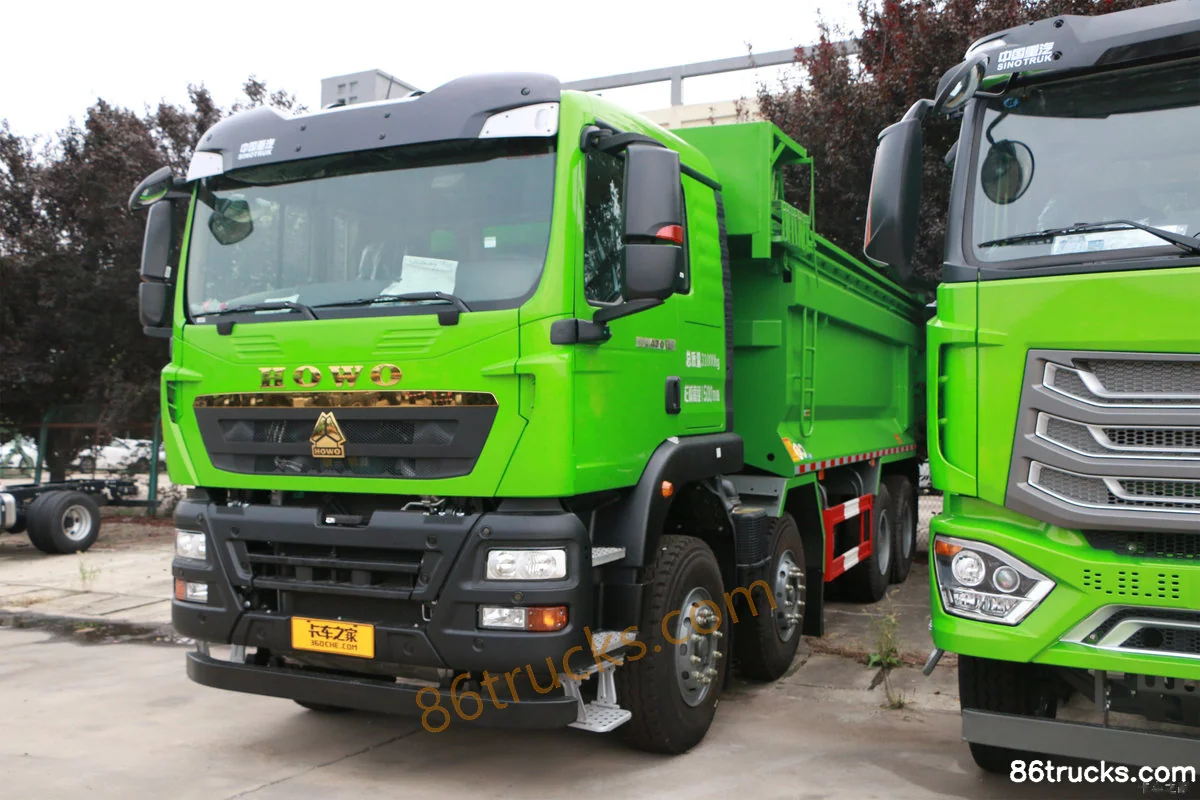

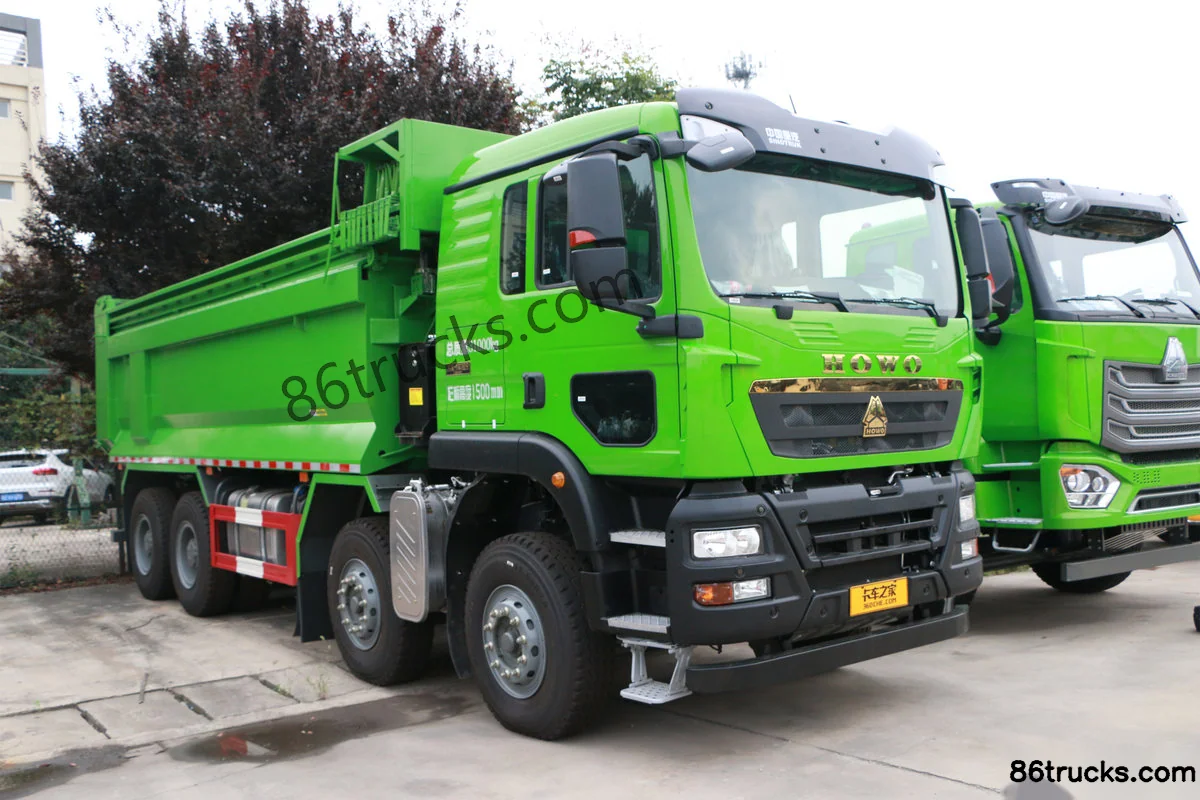

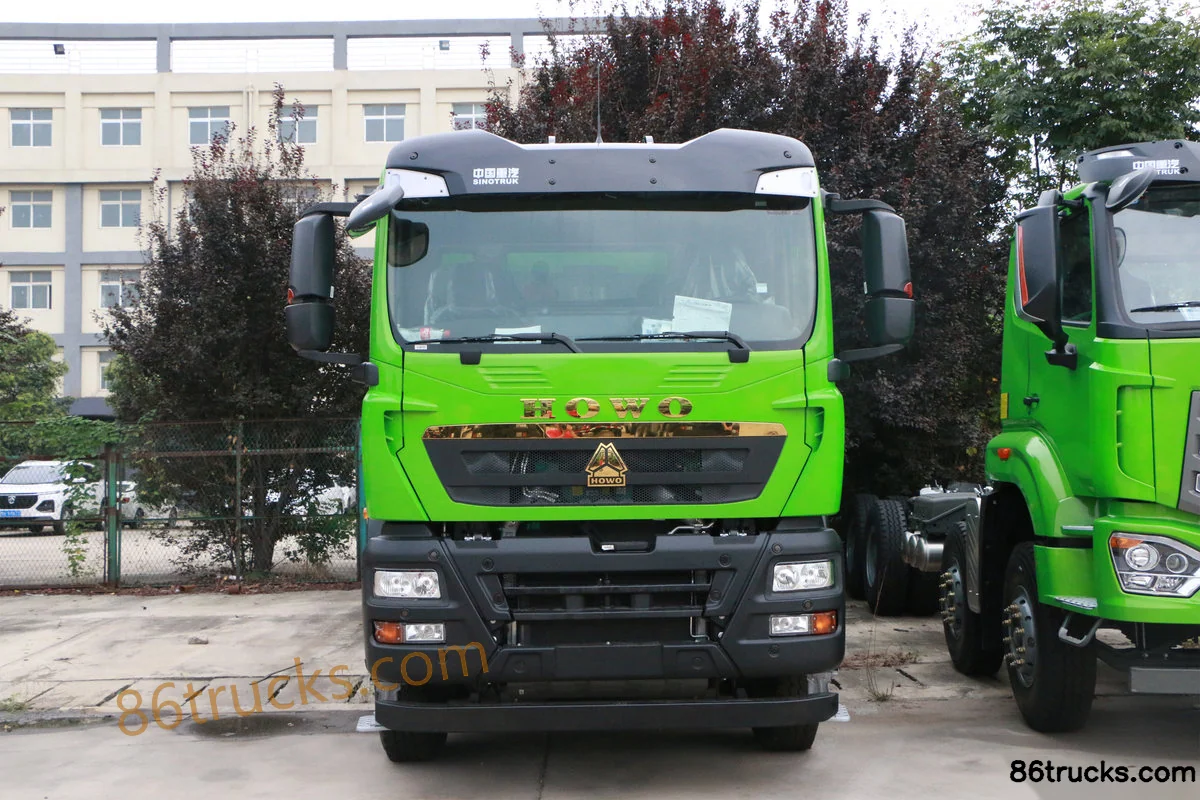

Exterior3

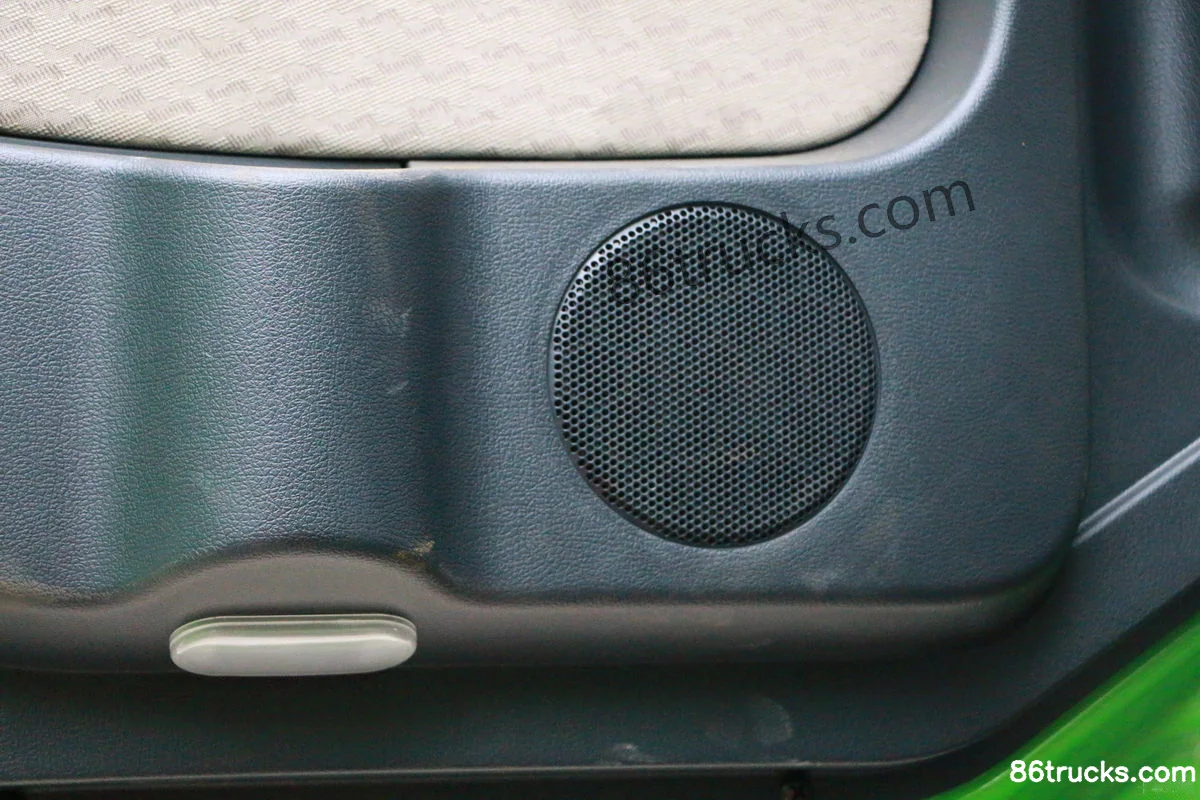

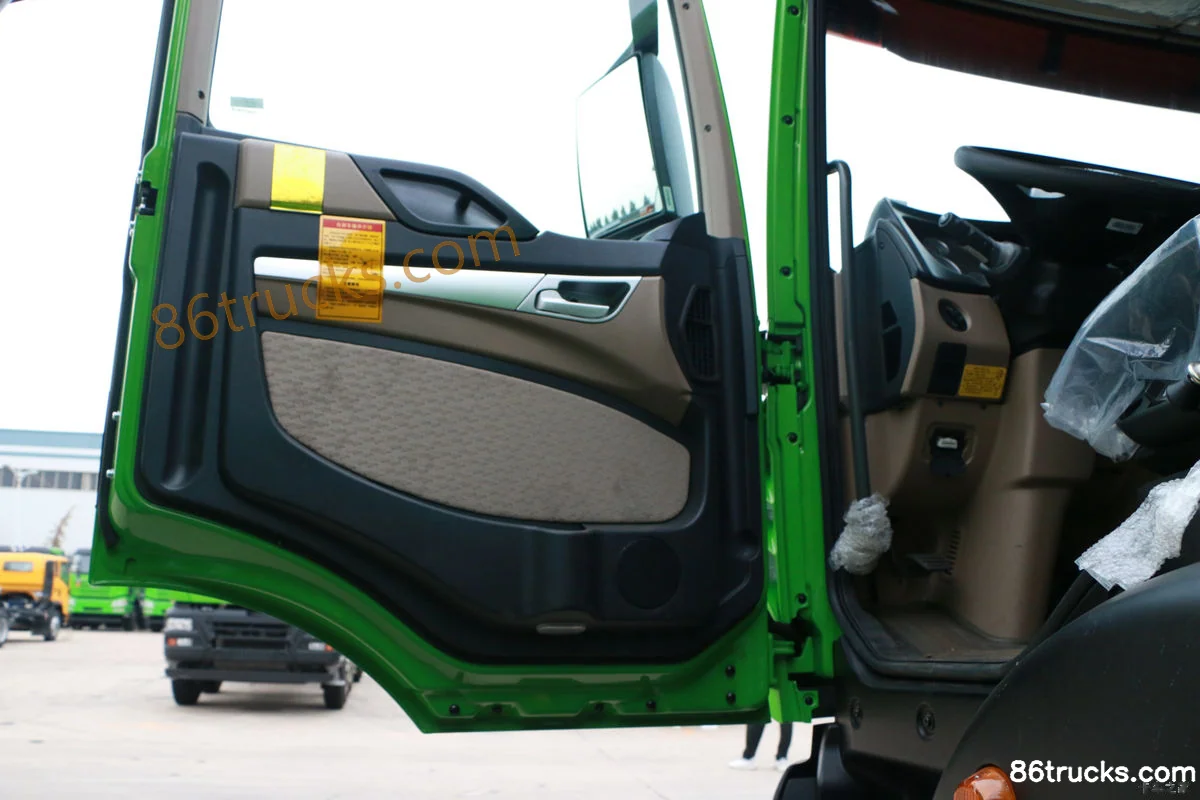

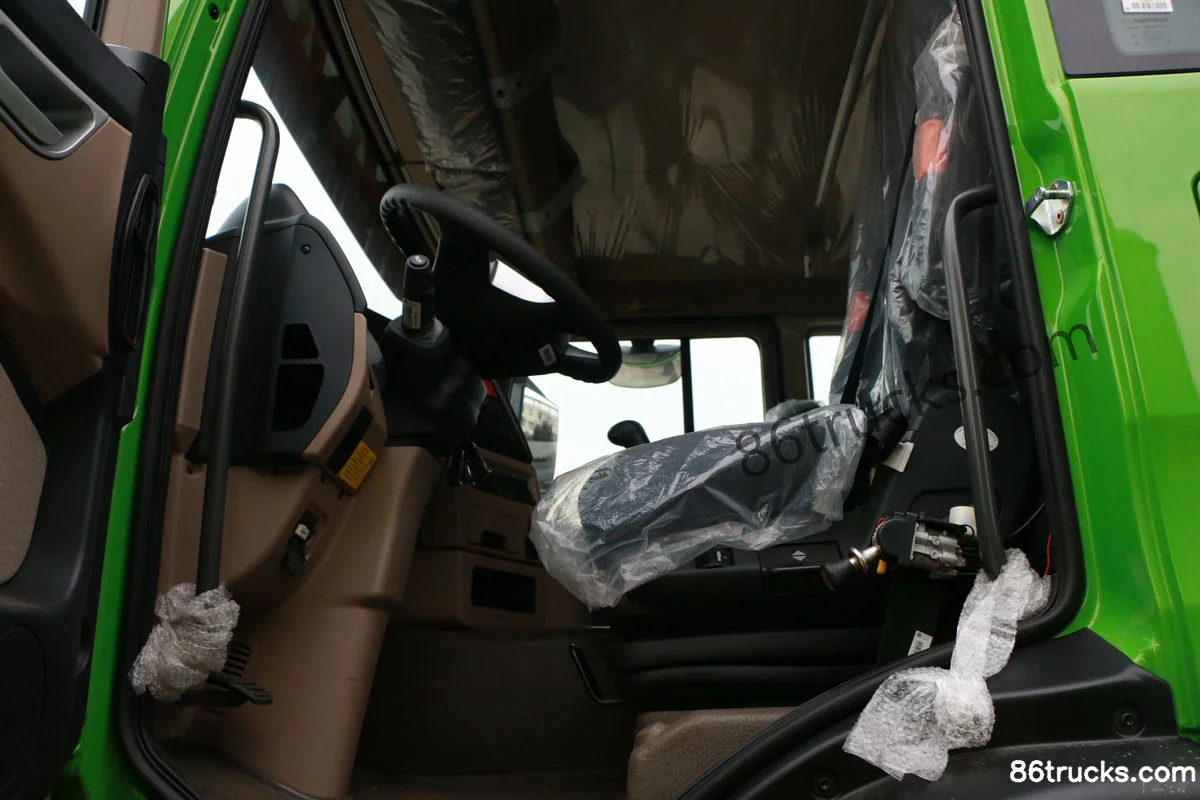

Cab3

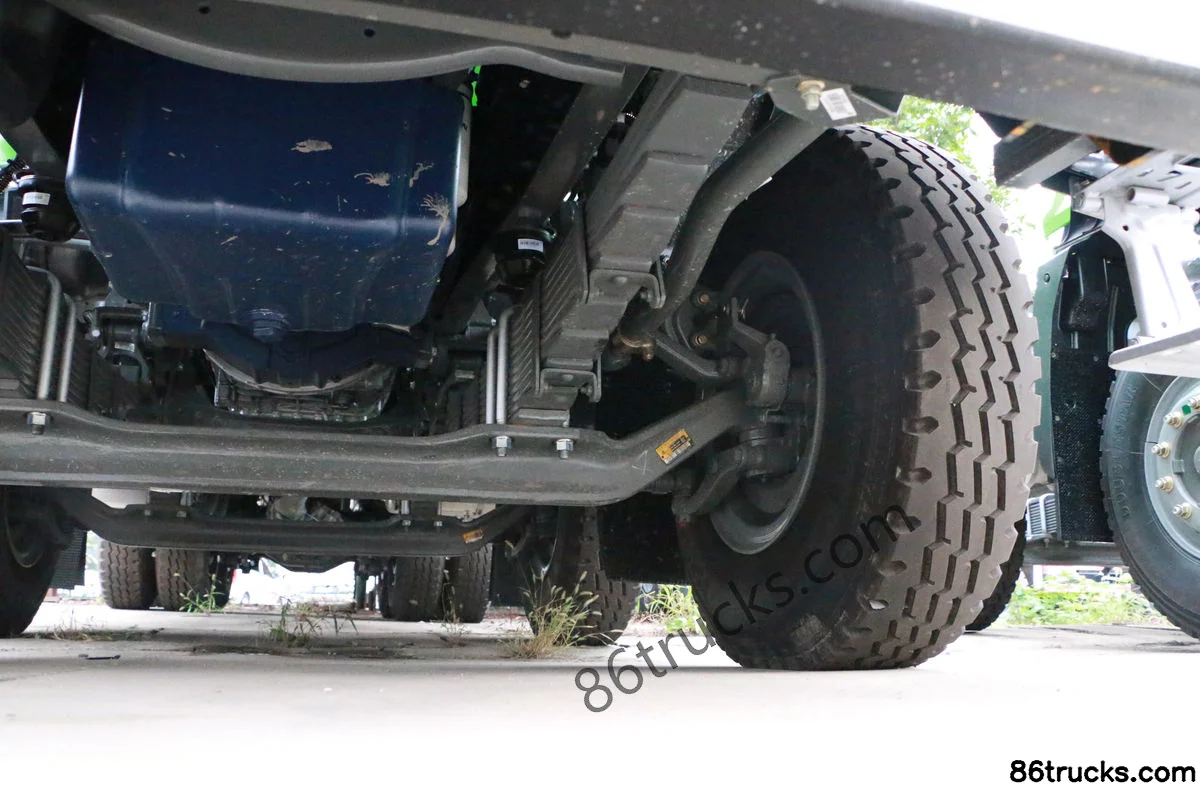

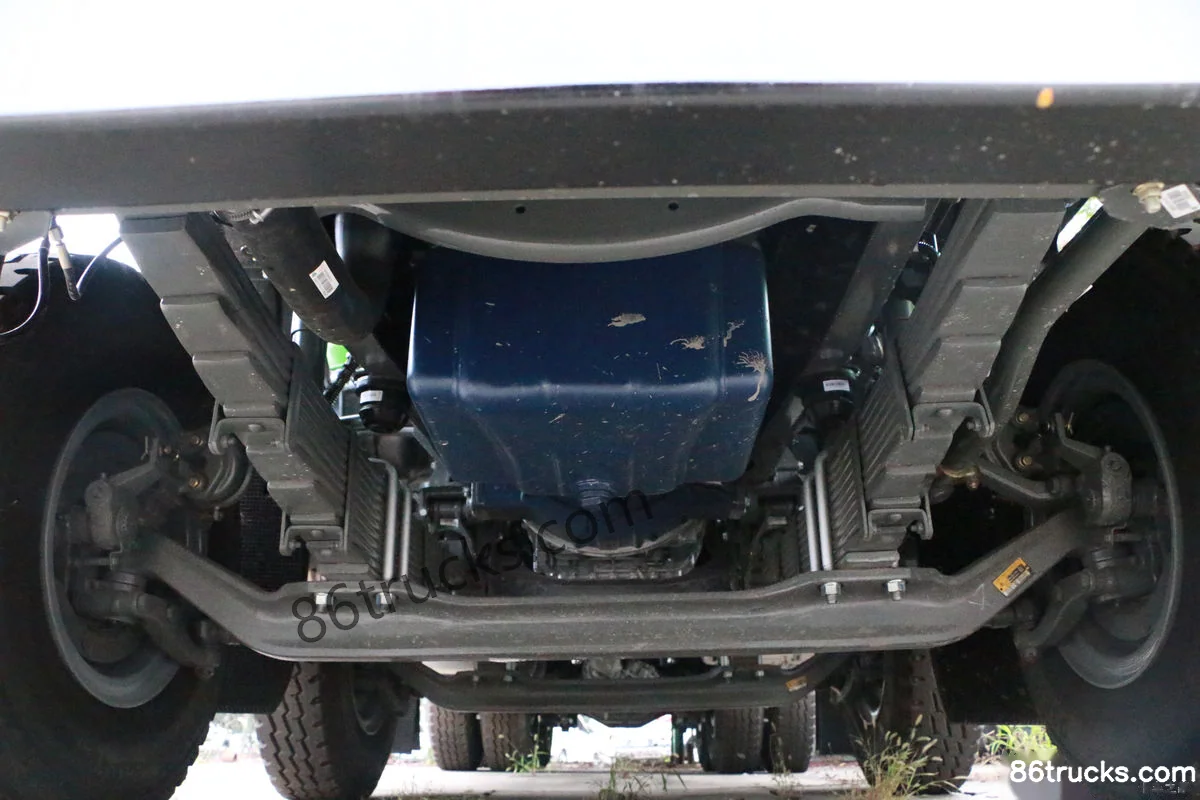

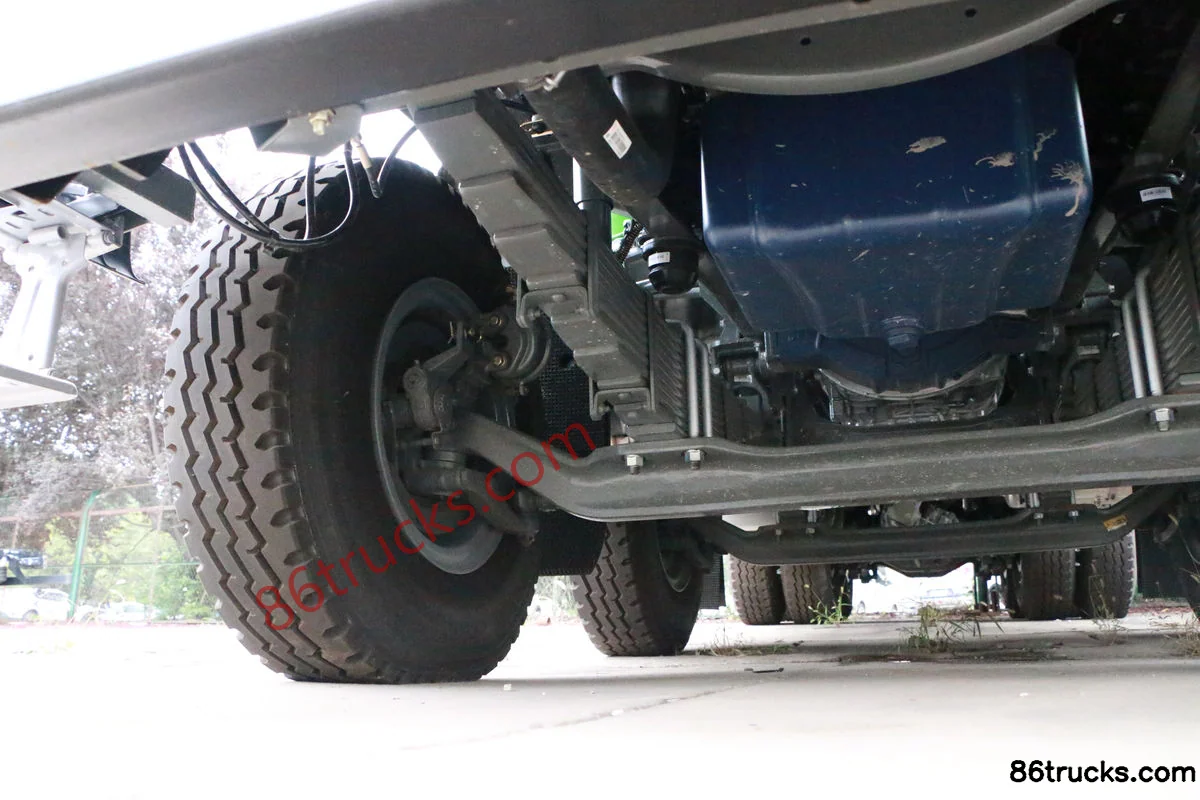

Chassis3

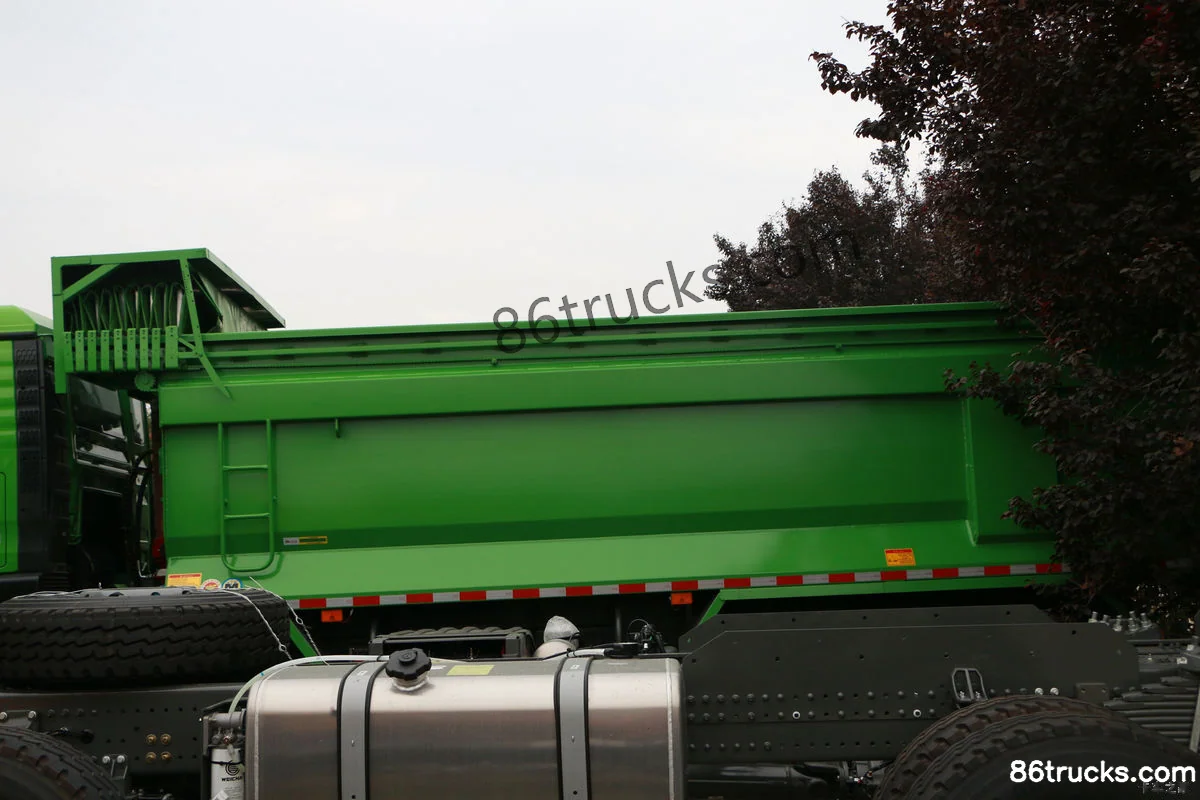

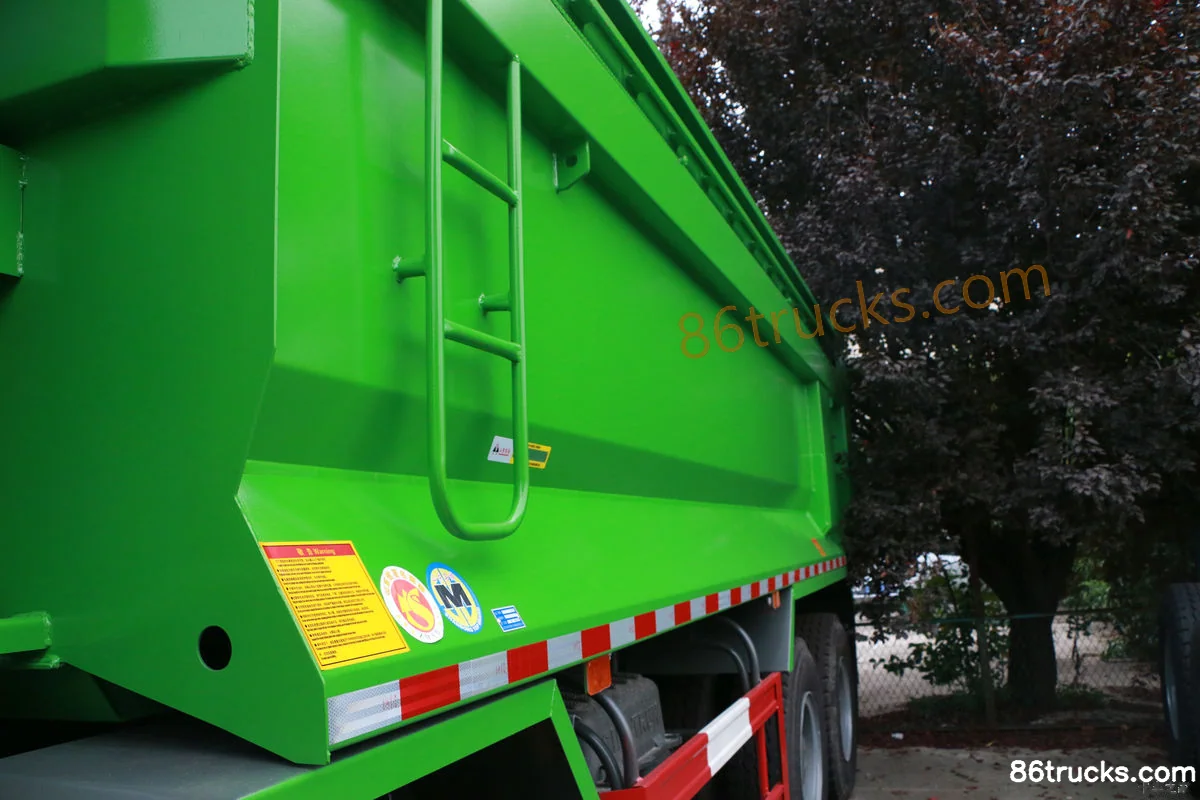

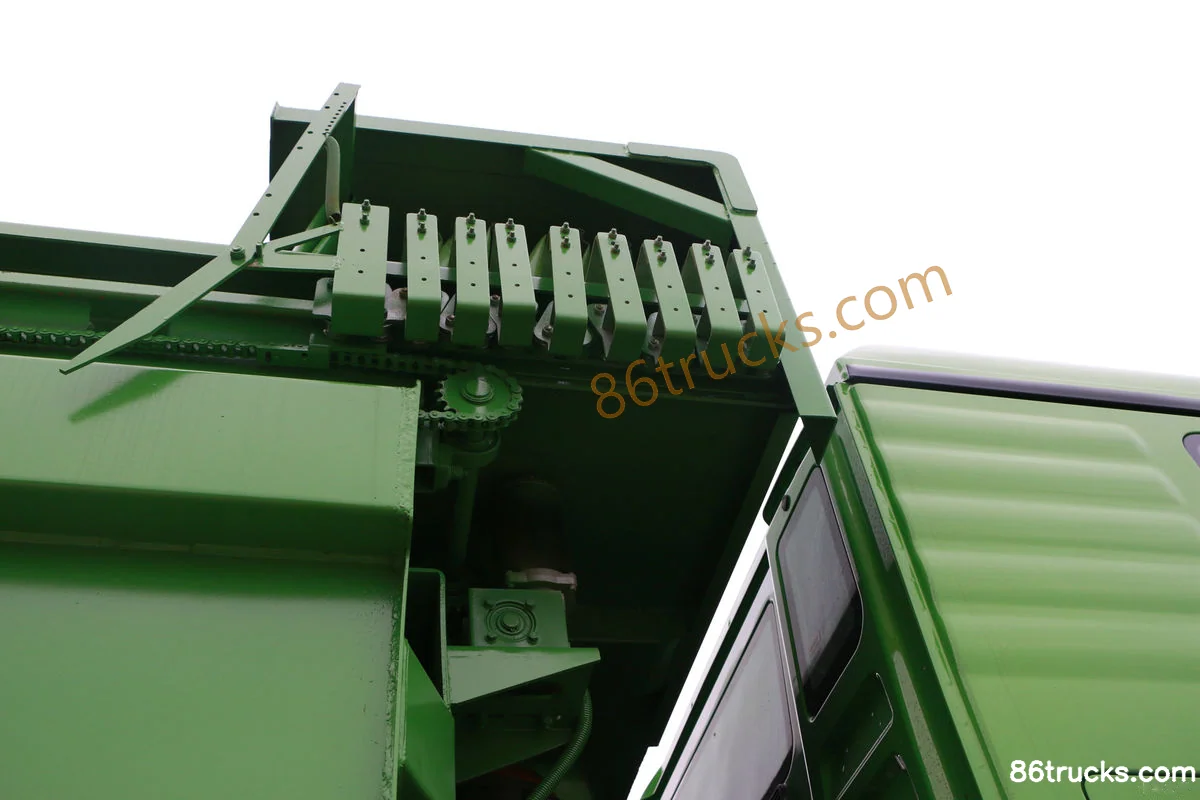

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck?

Key specs of Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck: Drive: 8x4; Horsepower: 430 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck suited for?

Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck differ from other variants in the same series?

Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck belongs to SinotrukHOWOHOWO TX7 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX 430 hp 8X4(12 wheels) 6.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
