Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3800+1550mm
Cab dimensions:: 8.53×3.3×4.18m
Model:: CQ5763PTG384
GVWR:: 76ton
Max. speed:: 52km/h
Curb Weight: 26ton
Horsepower 390
Max output power: 287kW
Emission China III / Euro III

Overview

The SAIC Hongyan Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck is a off-highway mining dump truck featuring 76t GVW, 390 hp, 287kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China III / Euro III emissions.

China III / Euro III 390 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.53×3.3×4.18m
Model: CQ5763PTG384
Drive type: 6X4
Wheelbase: 3800+1550mm
Curb Weight: 26ton
GVWR: 76ton
Max. speed: 52km/h
Body Parameters
Truck Brand: Hongyan Jieshi
Chassis Specs
Front/rear axle load: 16/40ton
Engine parameters
Engine Model: SC12E390Q3B
Displacement: 11.8L
Emission standard: China III / Euro III
Max output power: 287kW
Max hp: 390Horsepower
Max torque speed: 1600/1300rpm
Cargo box parameters
Cargo box dimensions: 5.6×3×1.6m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: 10JSD180K
Tire
Tire Size: 14.00-25
Number of tires: 10pcs

Photos

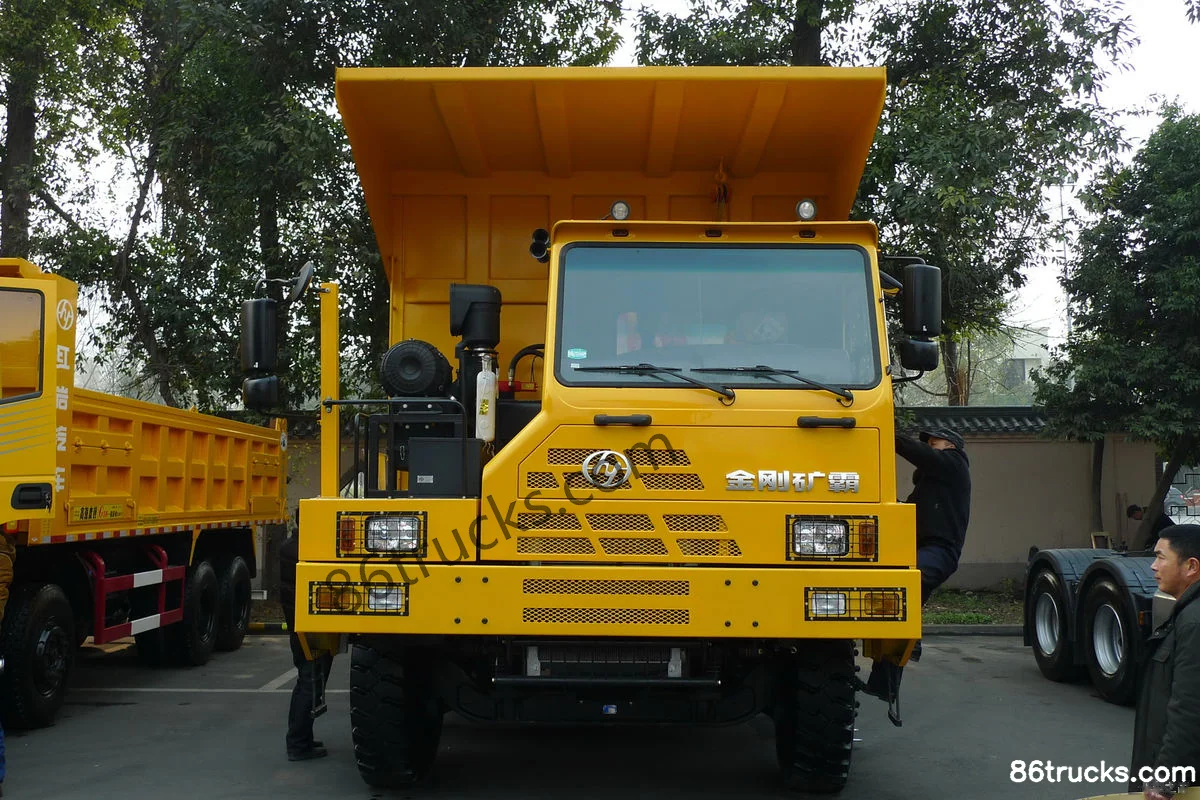

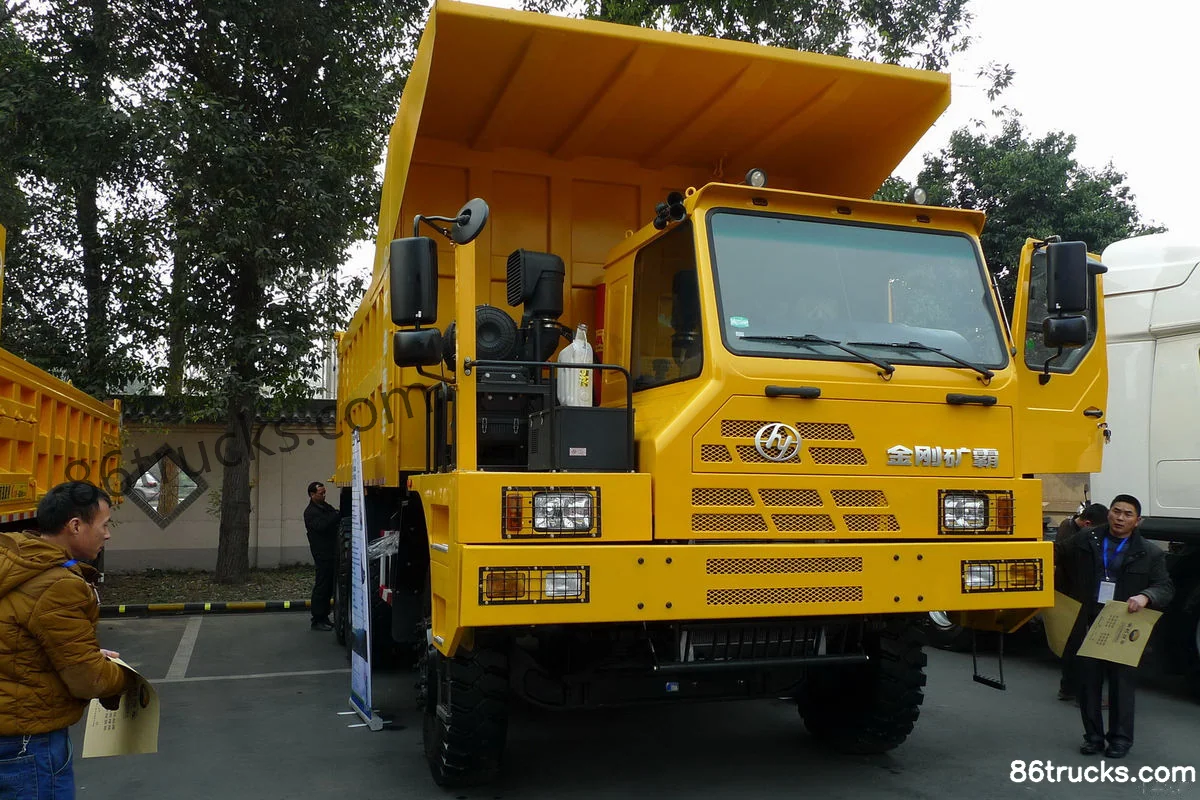

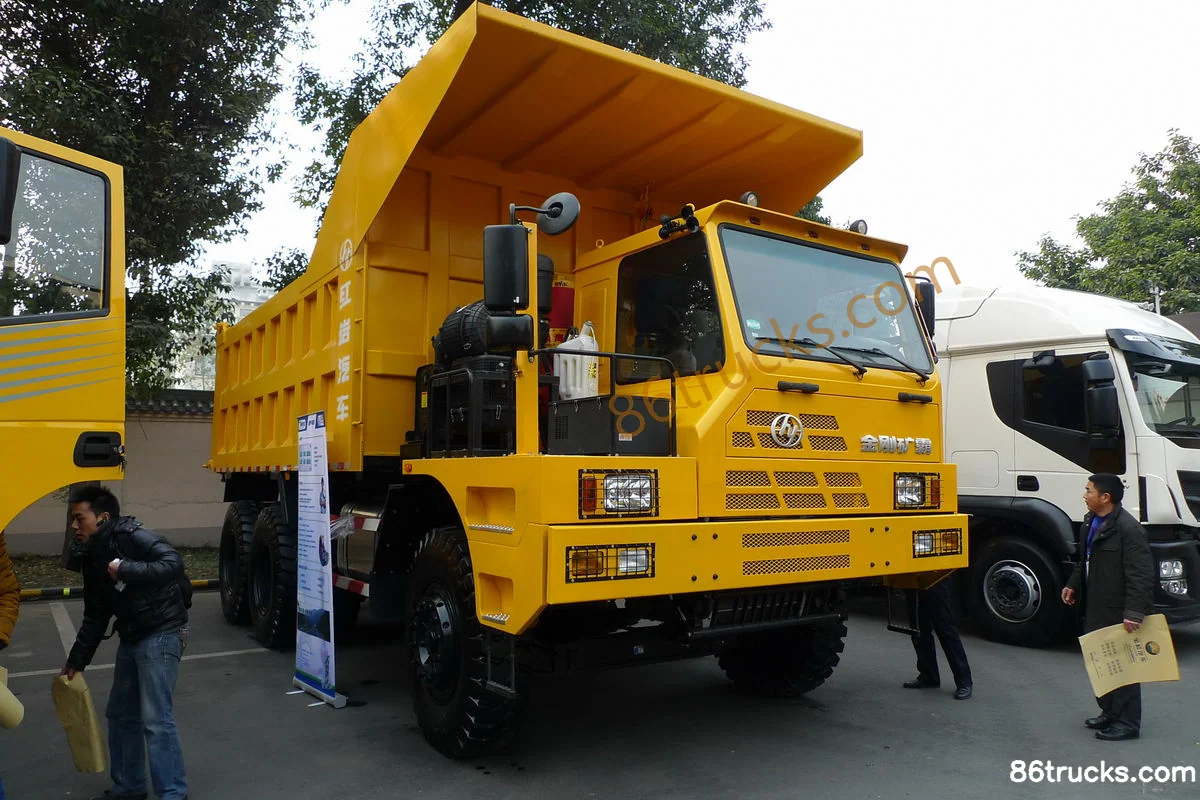

Exterior3

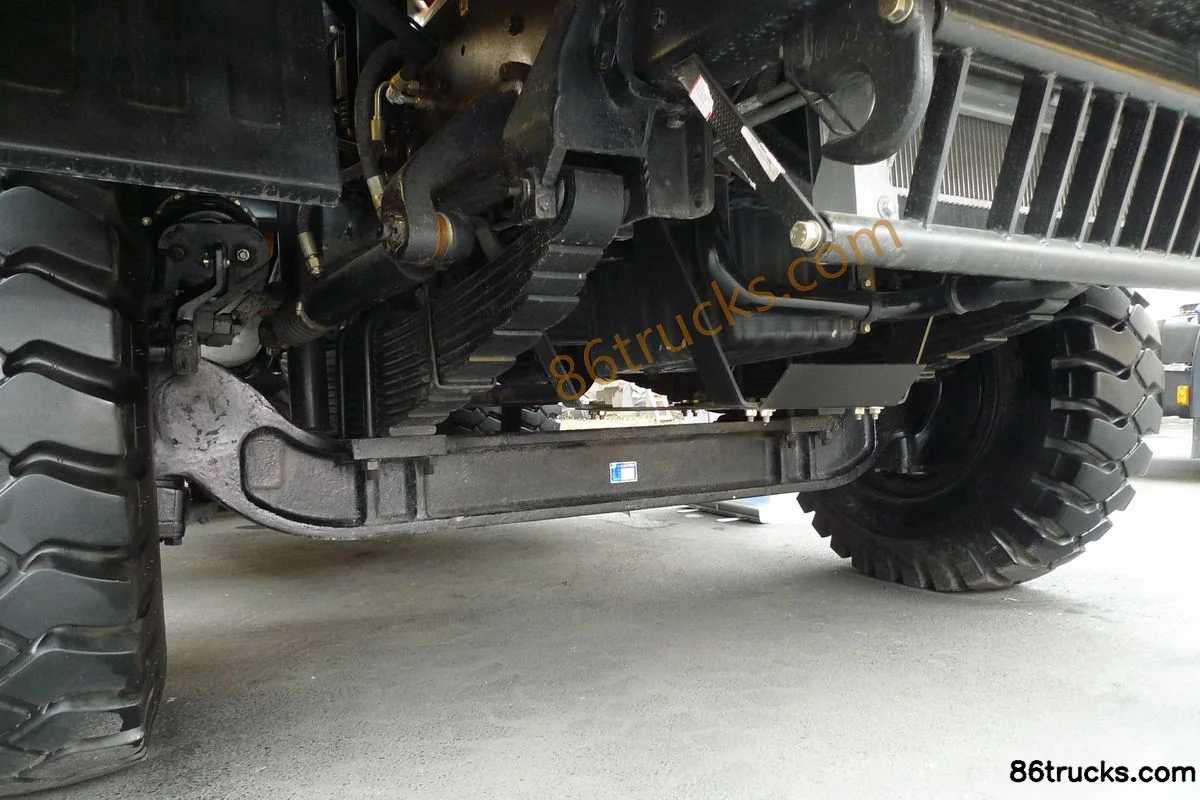

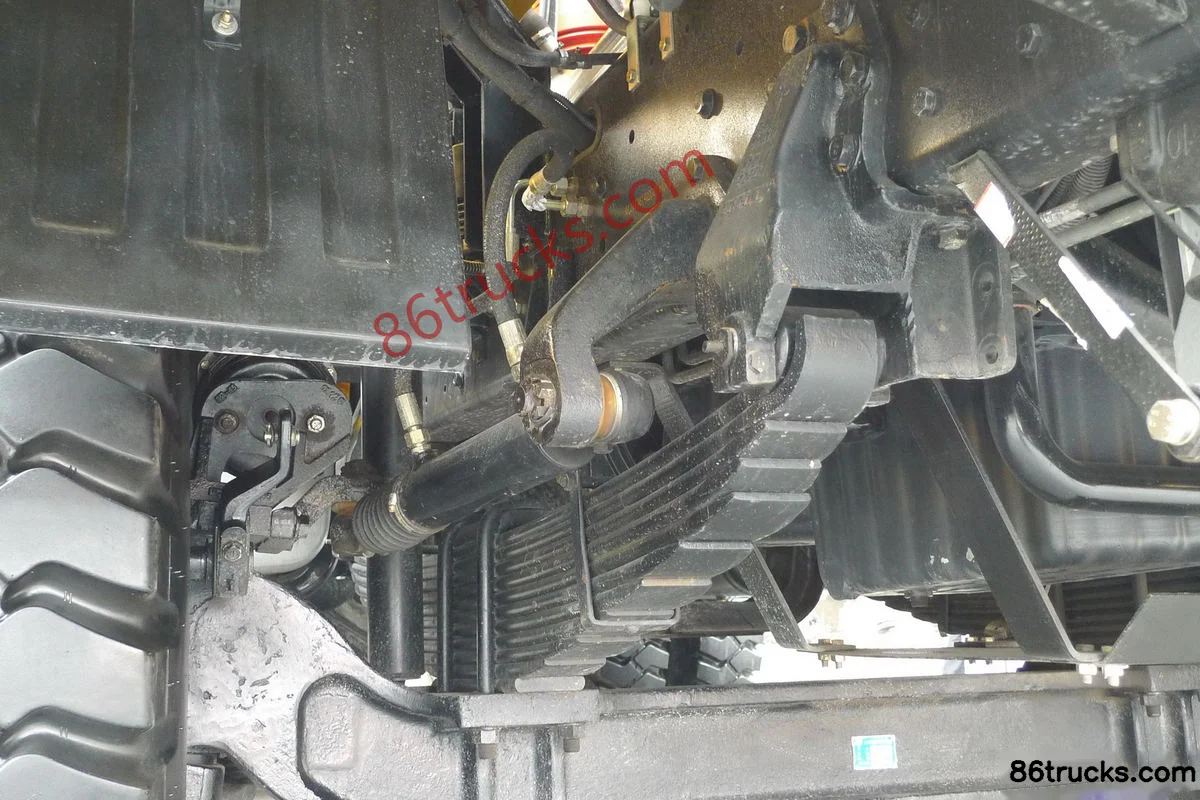

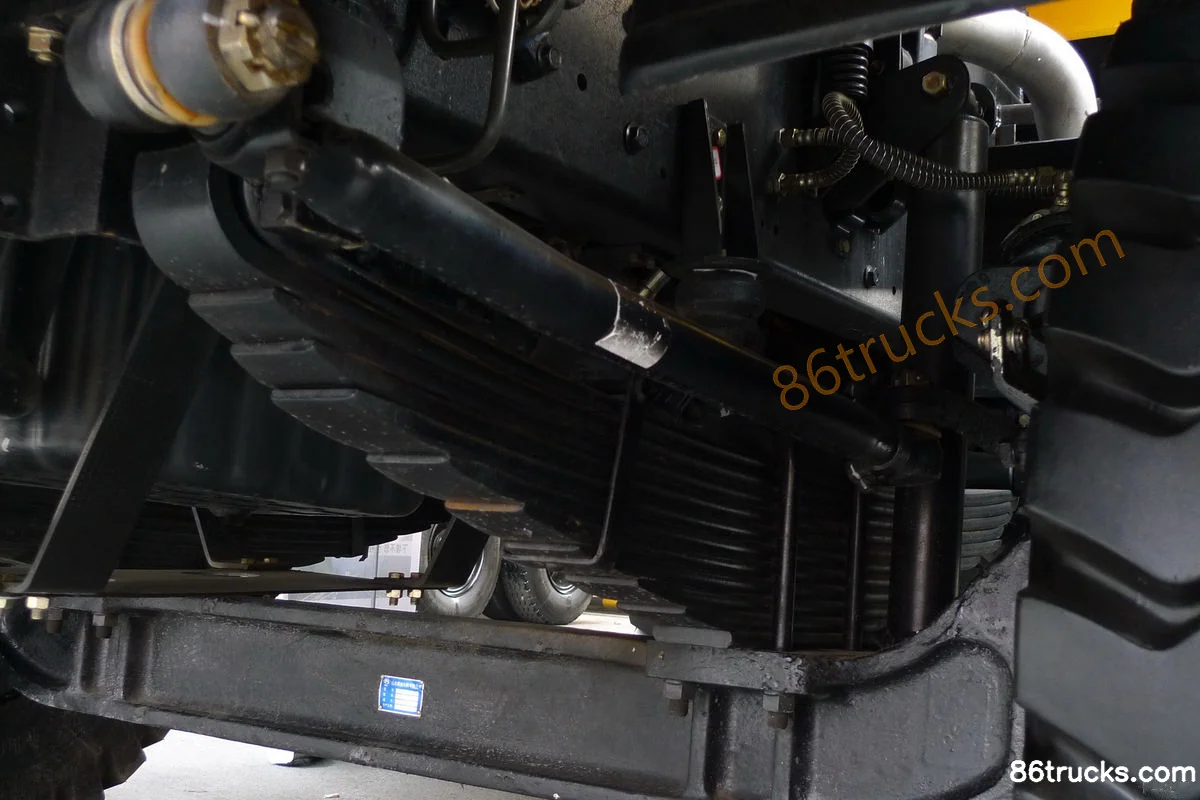

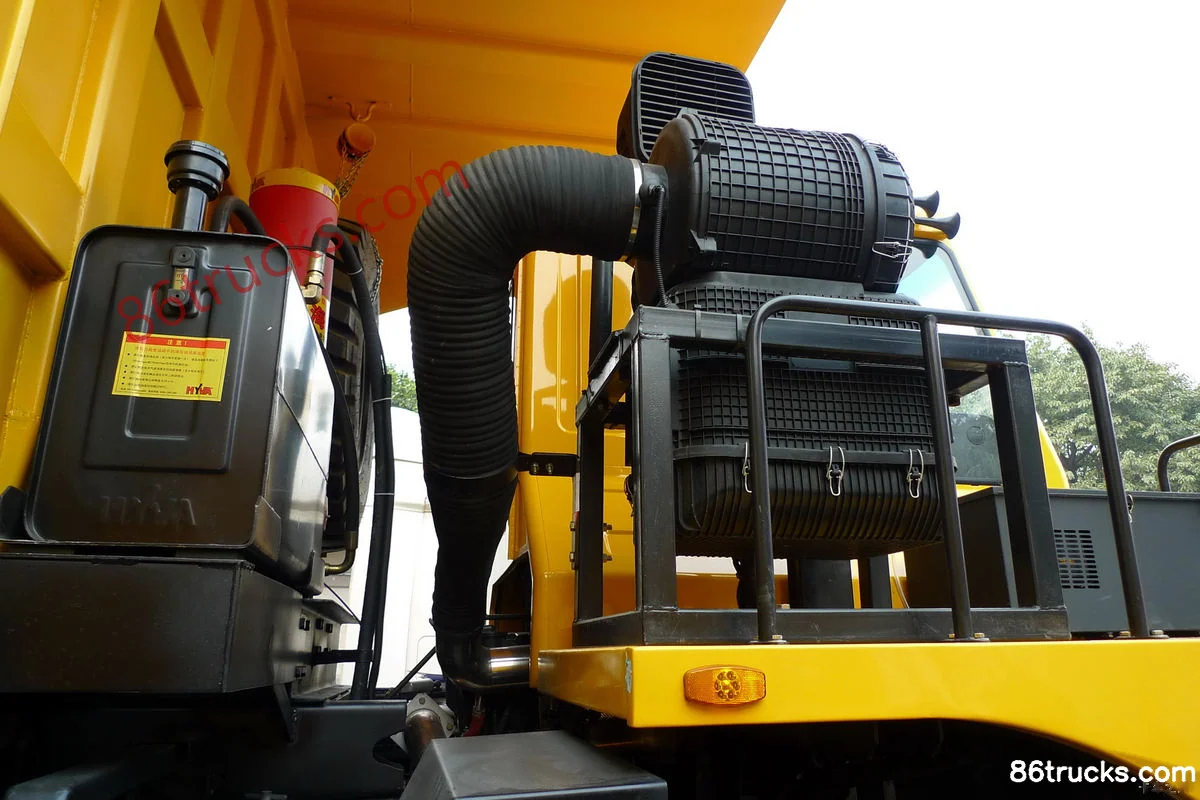

Chassis3

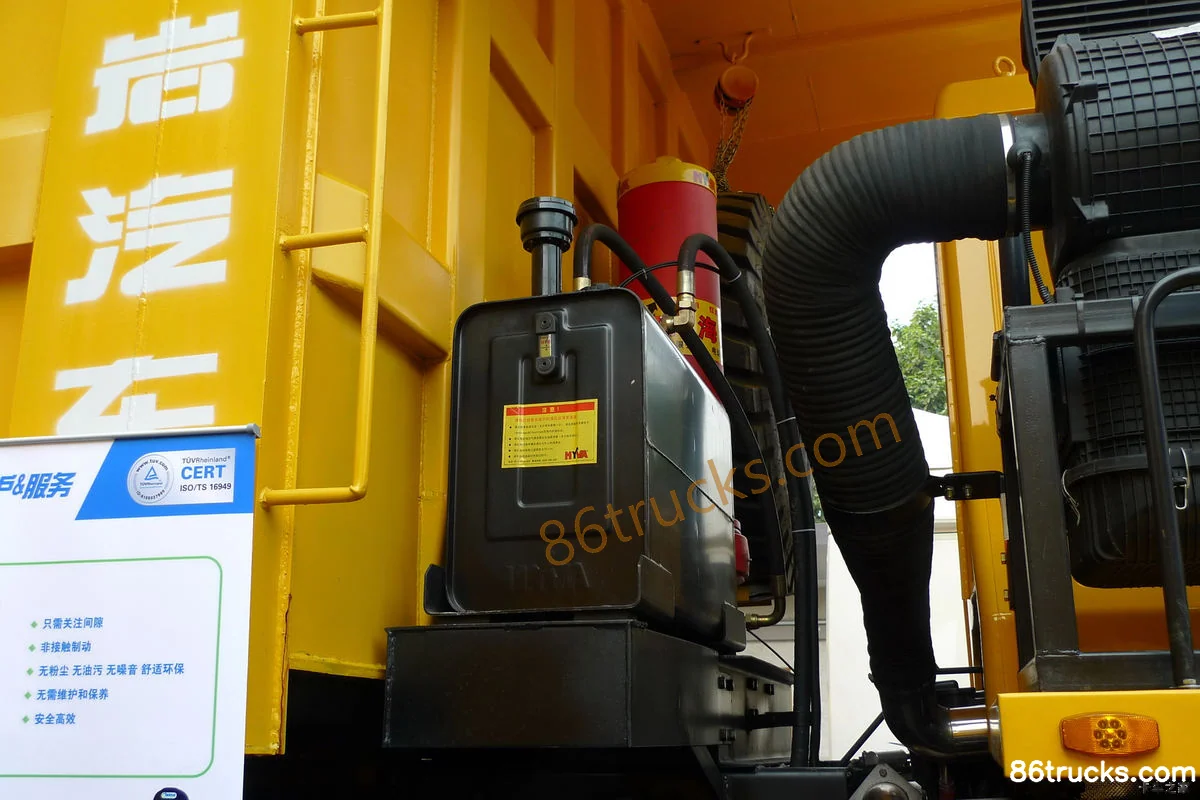

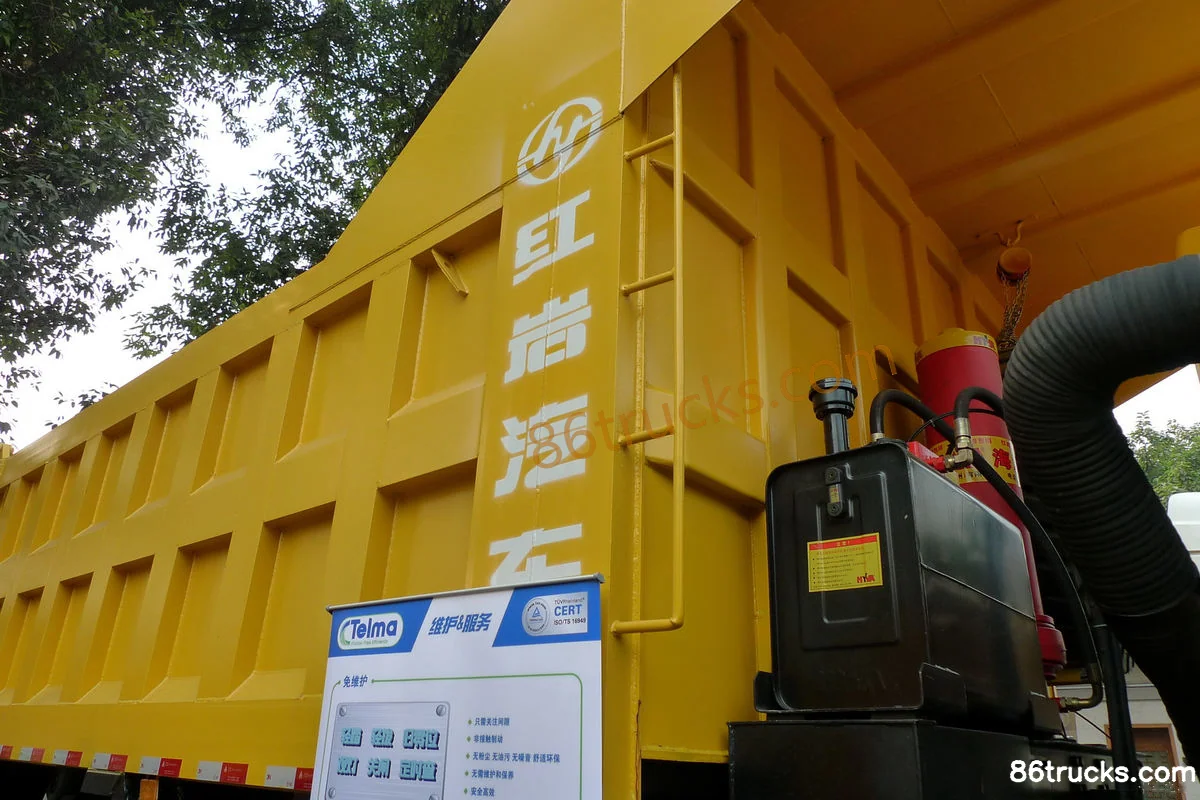

Body3

9 photos

FAQ

What emission standard does Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck?

Key specs of Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck: Drive: 6x4; Horsepower: 390 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck suited for?

Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck differ from other variants in the same series?

Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck belongs to SAIC Hongyan King Kong Mine King (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Diamond Mine King 390 hp 6X4(10 wheels) Wide Body Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
