Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI)

Export reference
From $28,194
MSRP ¥20.3M CNY
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Sinotruk
Curb Weight:: 2.58ton
Wheelbase:: 3300mm
Tire Size:: 7.50-16 8PR,8.25-16 6PR,7.50R16 8PR,8.25R16 6PR
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box length: 3.8m

Overview

The Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) is a Light Truck featuring 1.49t payload, 4.265t GVW, 3.8m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04160N-60 engine, 160 hp, China VI emissions and Sinotruk transmission.

China VI 160 LNG (liquefied natural gas) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3041GP6N
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYCS04160N-60
transmission: SinotrukHW90510
Rear Axle Ratio: 6.17
Cab length: 5.995m
Cab width: 2.3m
Cab height: 2.85m
Front track width: 1870mm
rear track: 1750mm
Curb Weight: 2.58ton
Rated payload: 1.49ton
GVWR: 4.265ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 16°
departure angle: 14°
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04160N-60
Number of cylinders: 4cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 4.16L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Technology route: LNG
Transmission Parameters
Transmission Model: SinotrukHW90510
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: D1
Cab width: 2400mm
fuel tank
Fuel tank capacity: 240L
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 1880kg
Frame Dimensions: 232×65×8+4mm
rear axle description: 10T
rear axle allowable load: 2385kg
Axle ratio: 6.17
Leaf spring count: 9/10+8
Tire
Tire Size: 7.50-16 8PR,8.25-16 6PR,7.50R16 8PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Multimedia features
GPS/Beidou driving recorder:

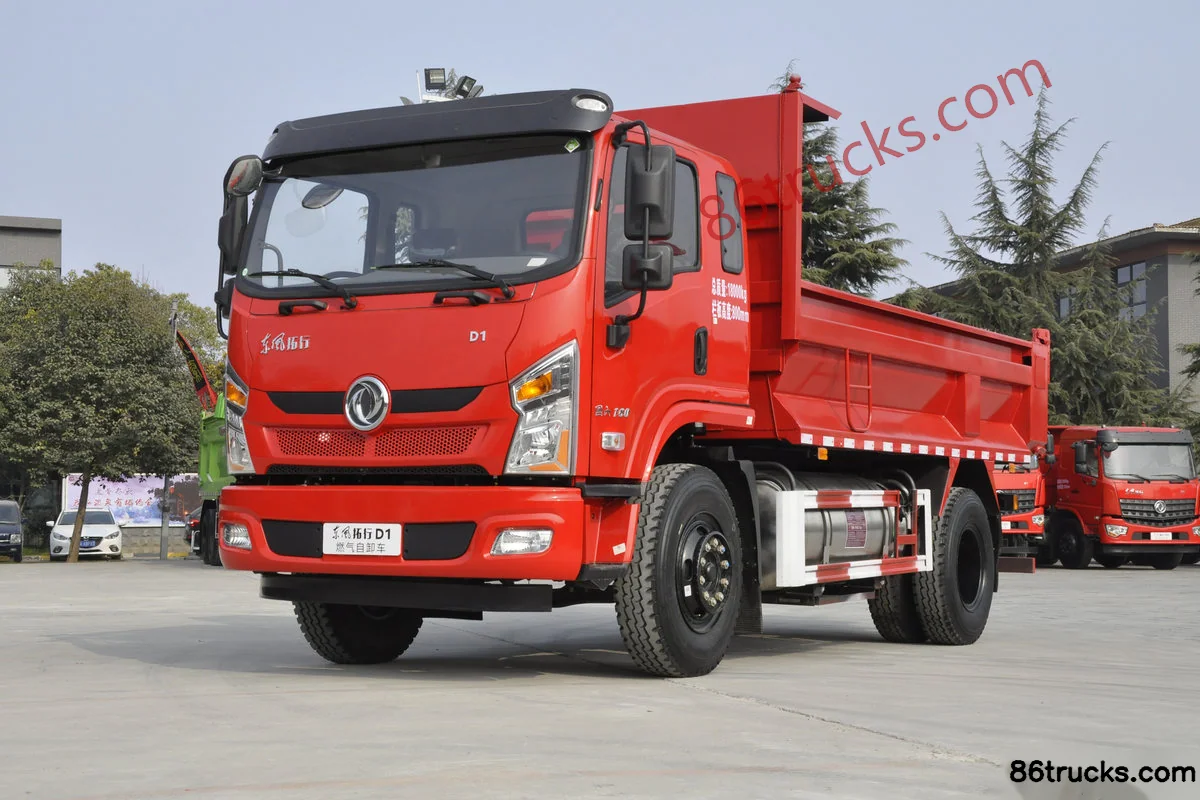

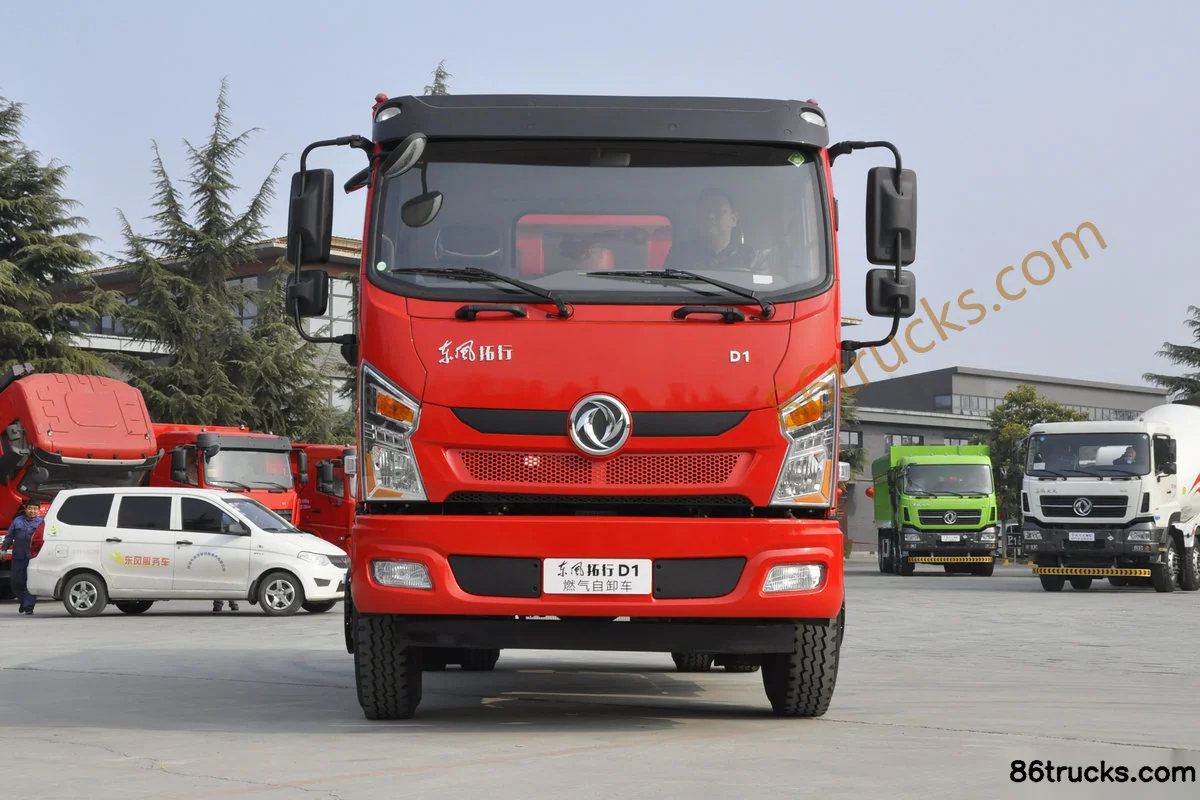

Photos

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI), and what does it include?

Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) export reference is about From $28,194; MSRP is ¥20.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI)?

Key specs of Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) suited for?

Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) differ from other variants in the same series?

Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI) belongs to Dongfeng Tuoxing D1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D1 160 hp 4X2(6 wheels) 3.8m LNG Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
