Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck

Export reference
From $21,944
MSRP ¥15.8M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.9ton
Wheelbase:: 5000mm
Tire Size:: 9.00R20
Rated payload: 7.705ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck is a Medium-duty truck featuring 7.705t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E140-45 engine, 140 hp, China IV emissions and Fast Gear transmission.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3161UPG9F
Drive type: 4X2
Wheelbase: 5000mm
engine: YuchaiYC4E140-45
transmission: Fast Gear8JS85E
Rear Axle Ratio: 5.33
Cab length: 8.99m
Cab width: 2.48m
Cab height: 2.92m
Front track width: 1865mm
rear track: 1810mm
Curb Weight: 7.9ton
Rated payload: 7.705ton
GVWR: 15.8ton
Origin: Zibo, Shandong
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 430N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic unit pump
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.6m
Cargo box width: 2.29m
Cargo box height: 0.6m
Chassis Specs
rear axle description: 1098 rear axle
rear axle allowable load: 10000kg
Axle ratio: 5.33
Leaf spring count: 10/12+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

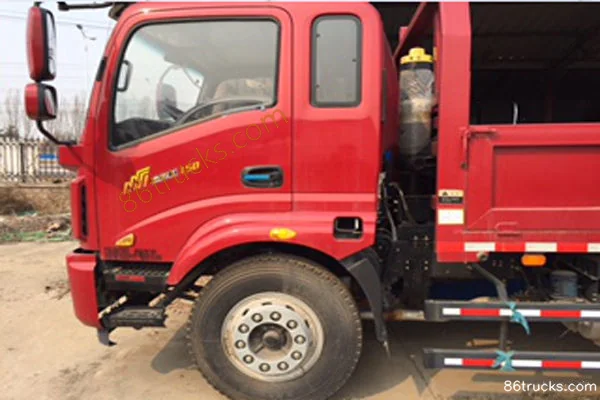

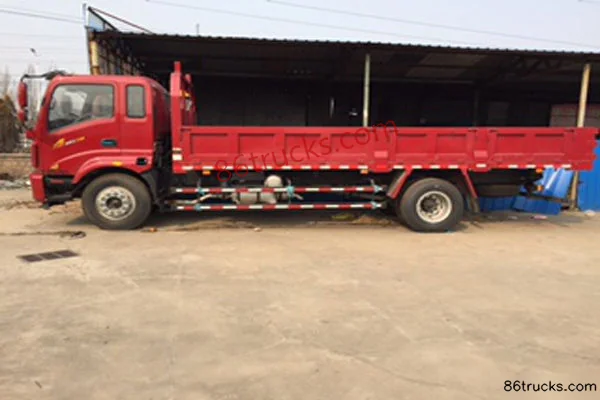

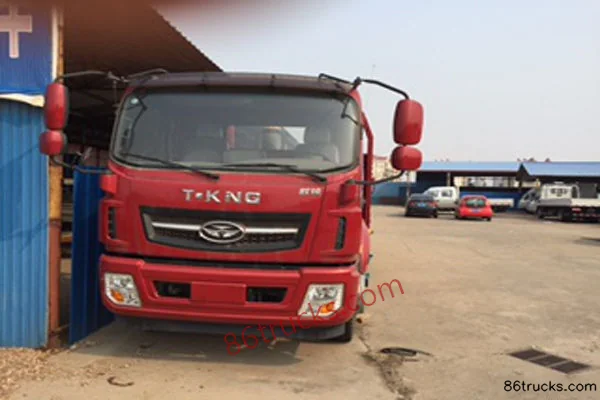

Photos

Exterior3

3 photos

FAQ

What is the export price of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck, and what does it include?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck?

Key specs of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck suited for?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck differ from other variants in the same series?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck belongs to Tangjun T6 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 6.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
