Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286)

Export reference
From $15,556
MSRP ¥11.2M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3250mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRE1 engine, 129 hp, China V emissions and WLY transmission.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3043W63K5-2
Drive type: 4X2
Wheelbase: 3250mm
engine: Yunnei PowerYN38CRE1
transmission: WLYWLY10H46
Rear Axle Ratio: 5.286
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.58m
Front track width: 1840mm
rear track: 1680mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 2m
Cargo box height: 0.8m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab: Sleeper cab
Cab tilting: Manual
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1850kg
rear axle description: 1093A
rear axle allowable load: 2645kg
Axle ratio: 5.286
Leaf spring count: 7/7+6
Aluminum wheels:
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

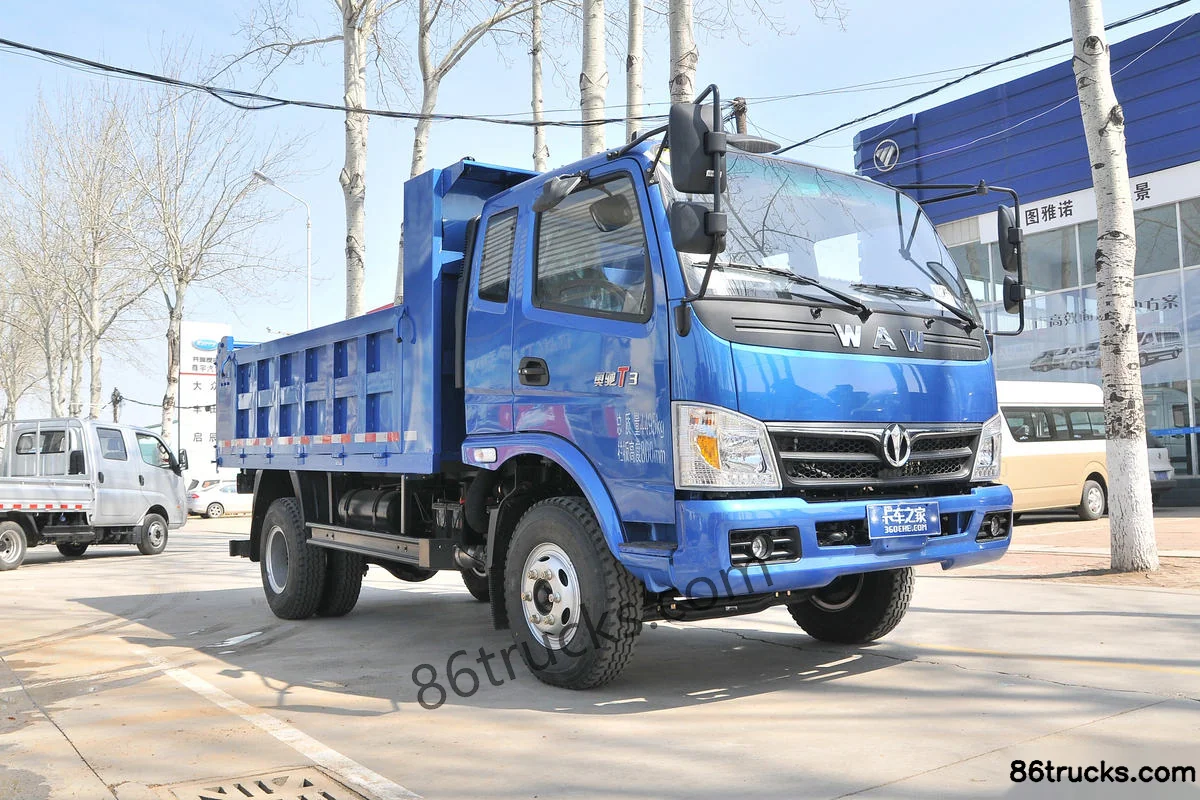

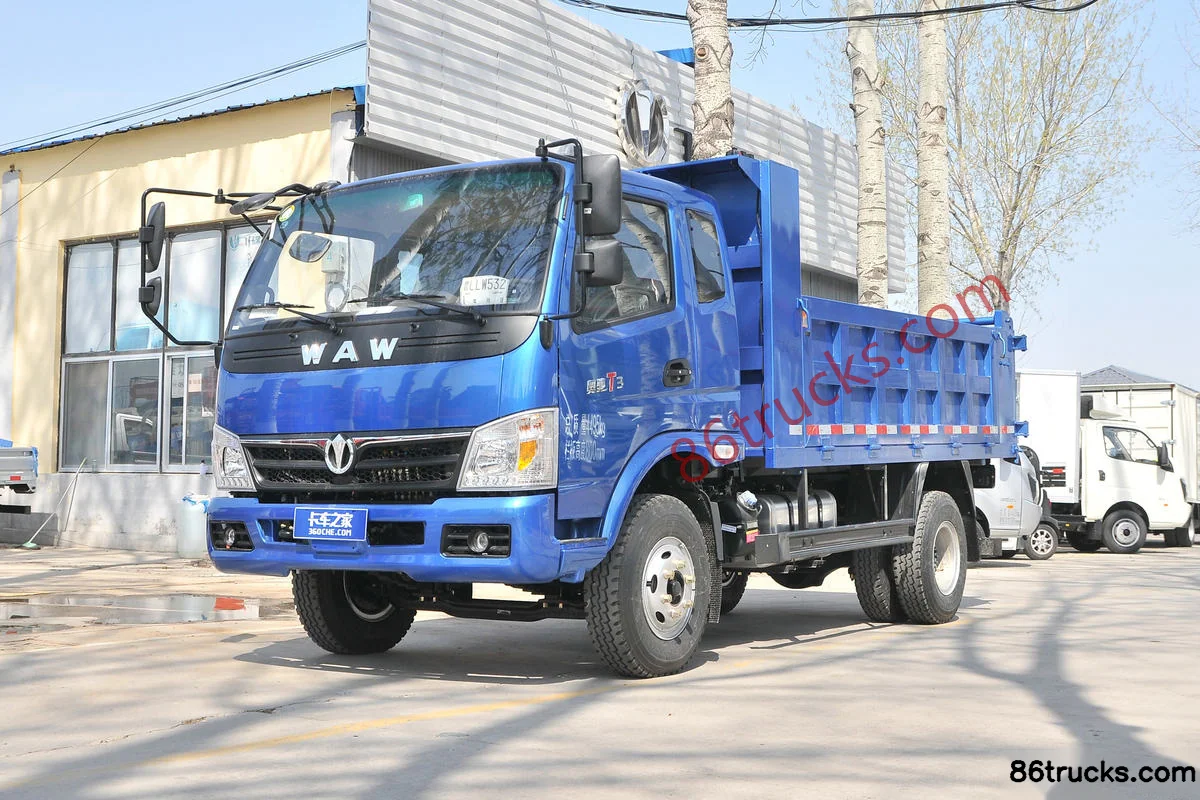

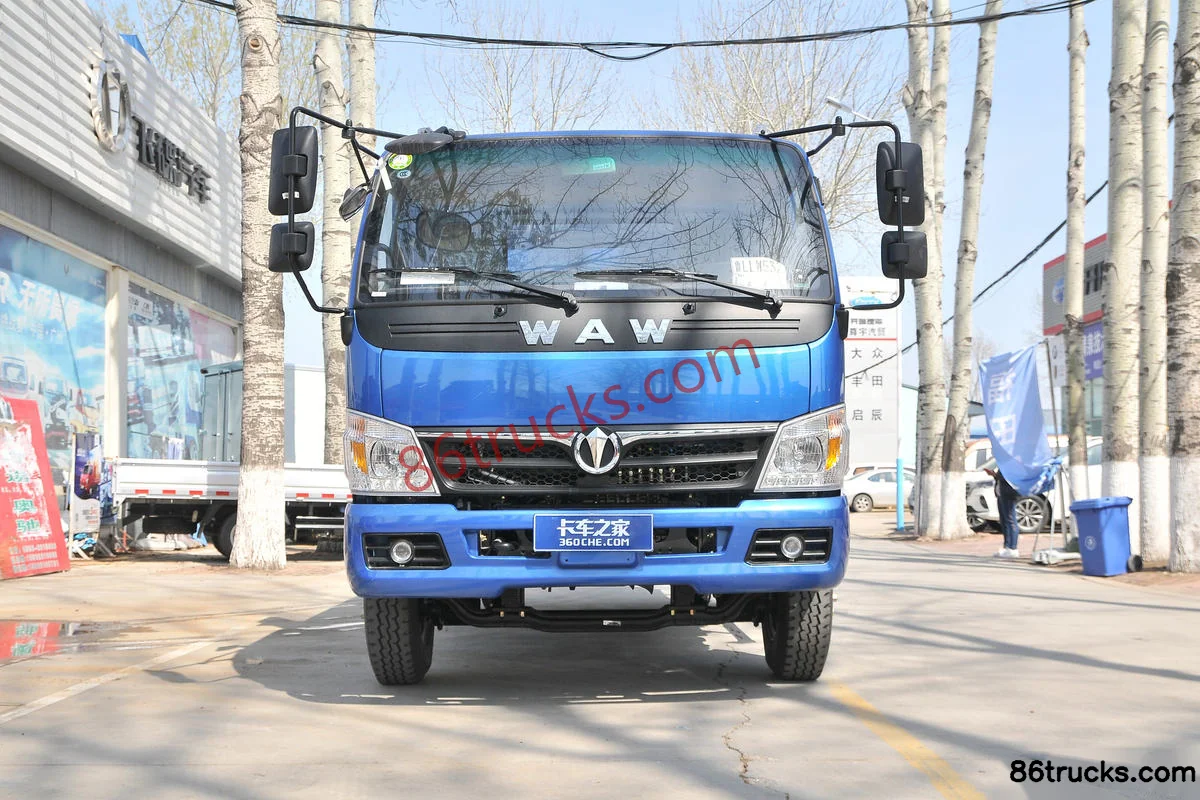

Exterior3

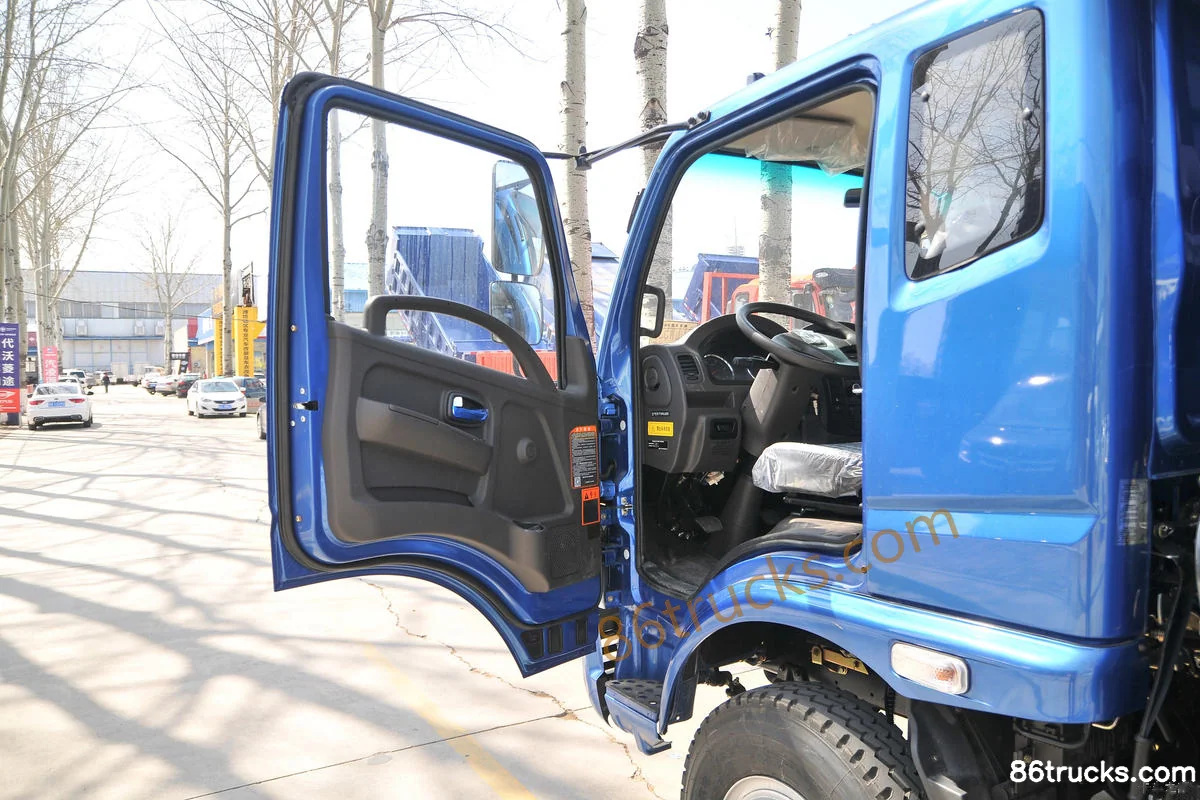

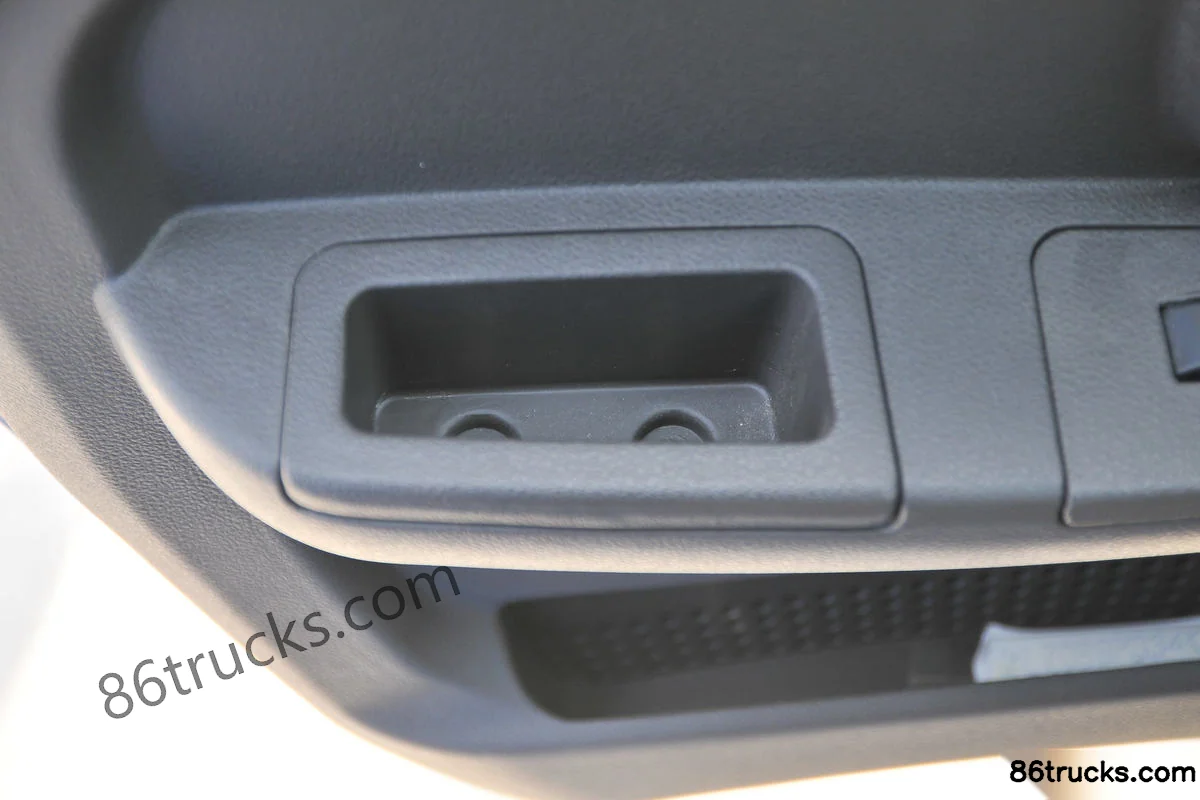

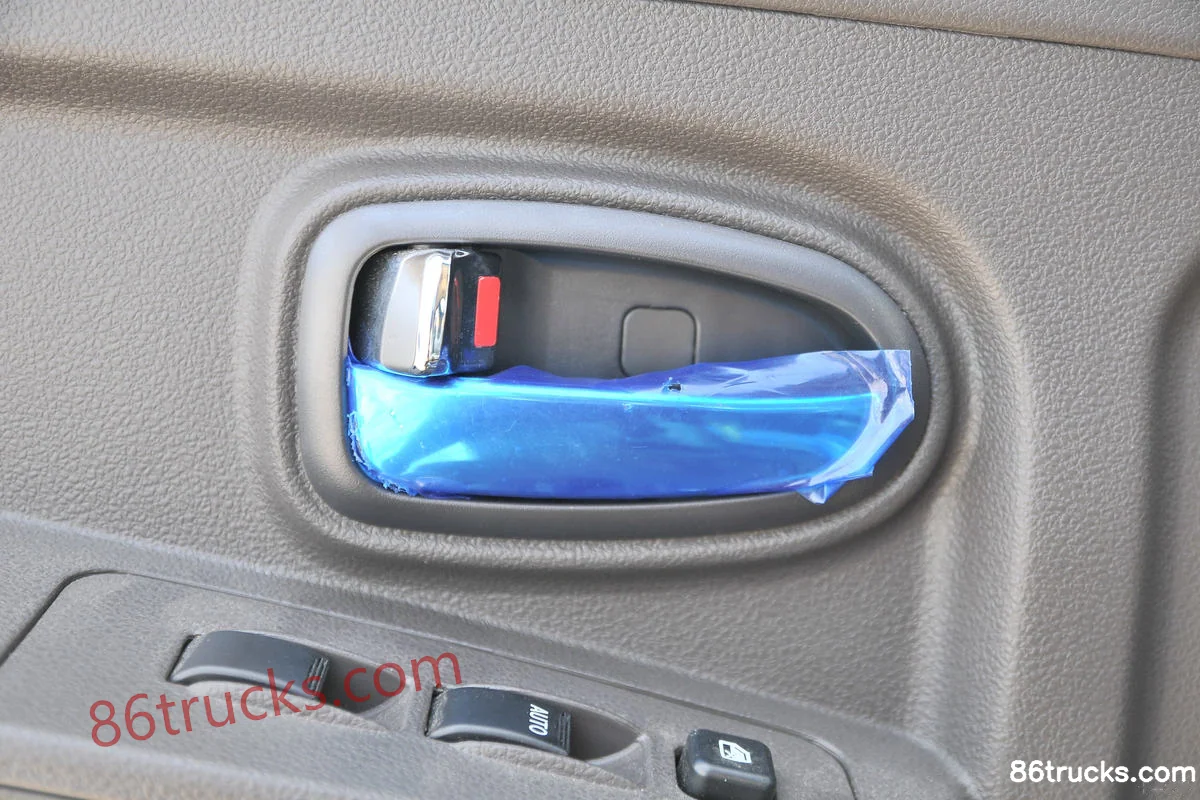

Cab3

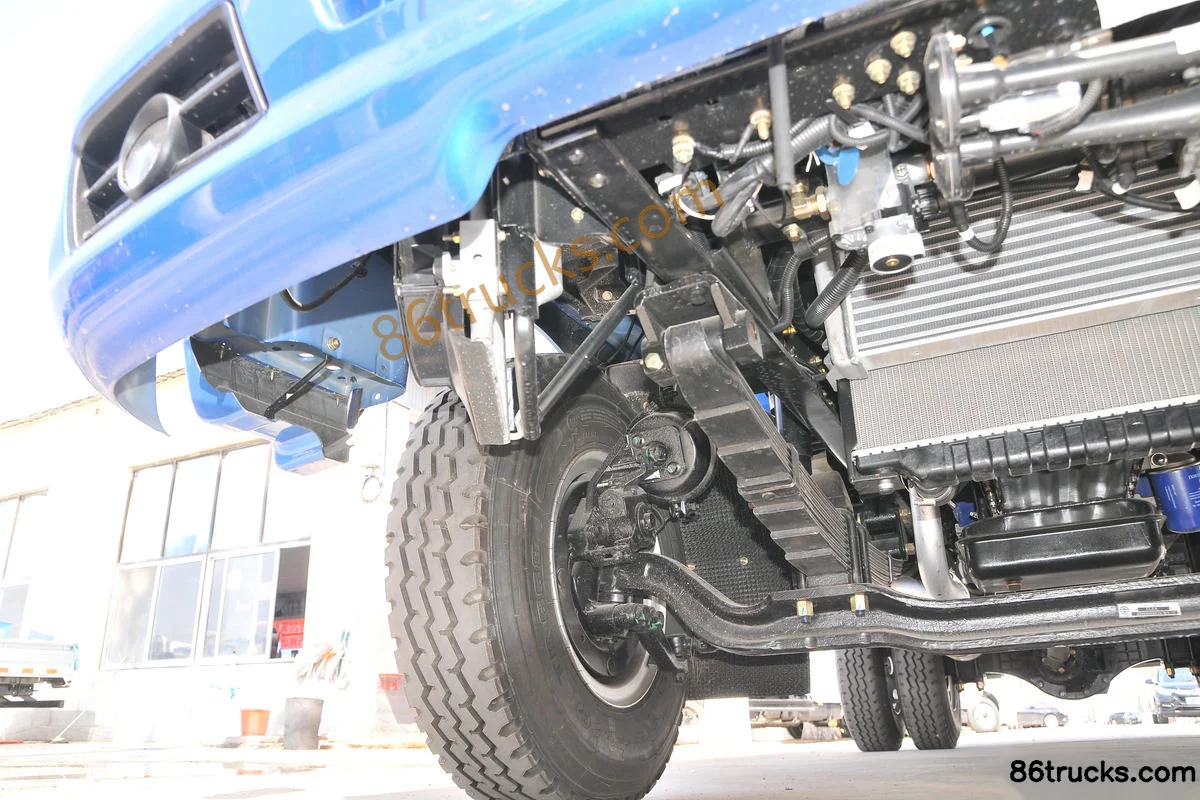

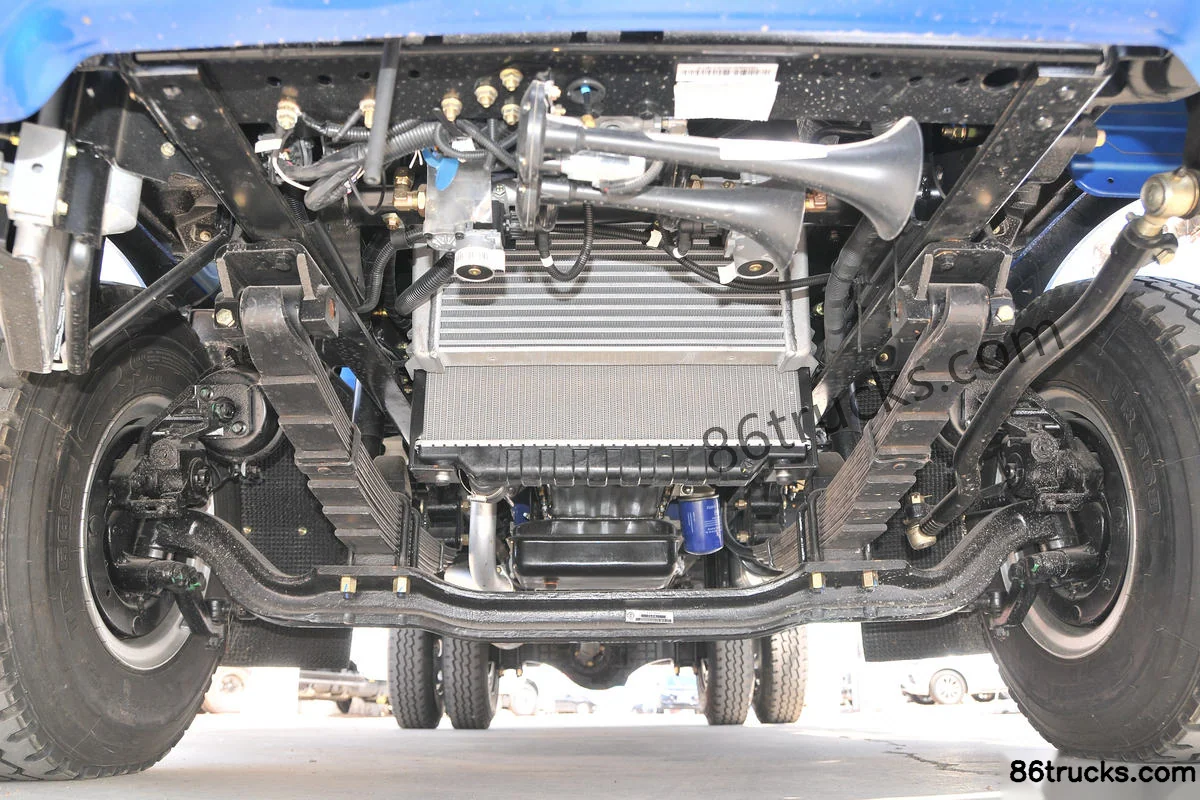

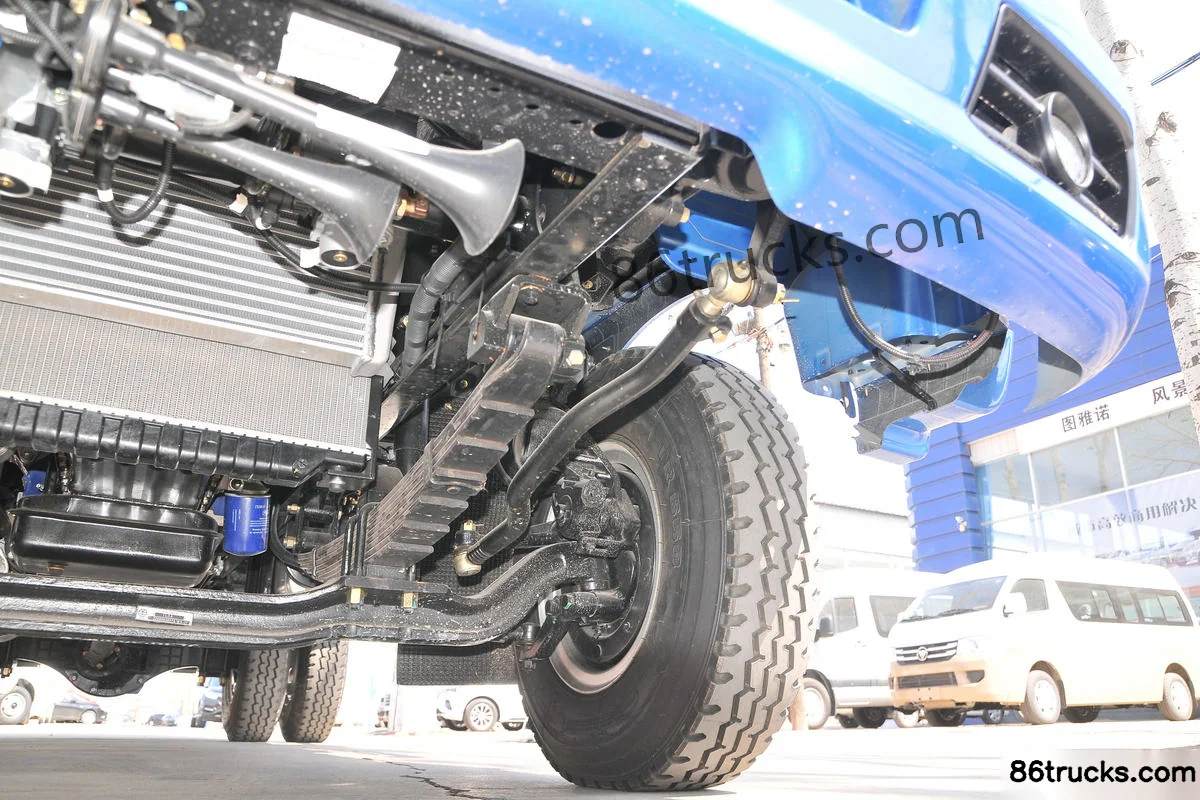

Chassis3

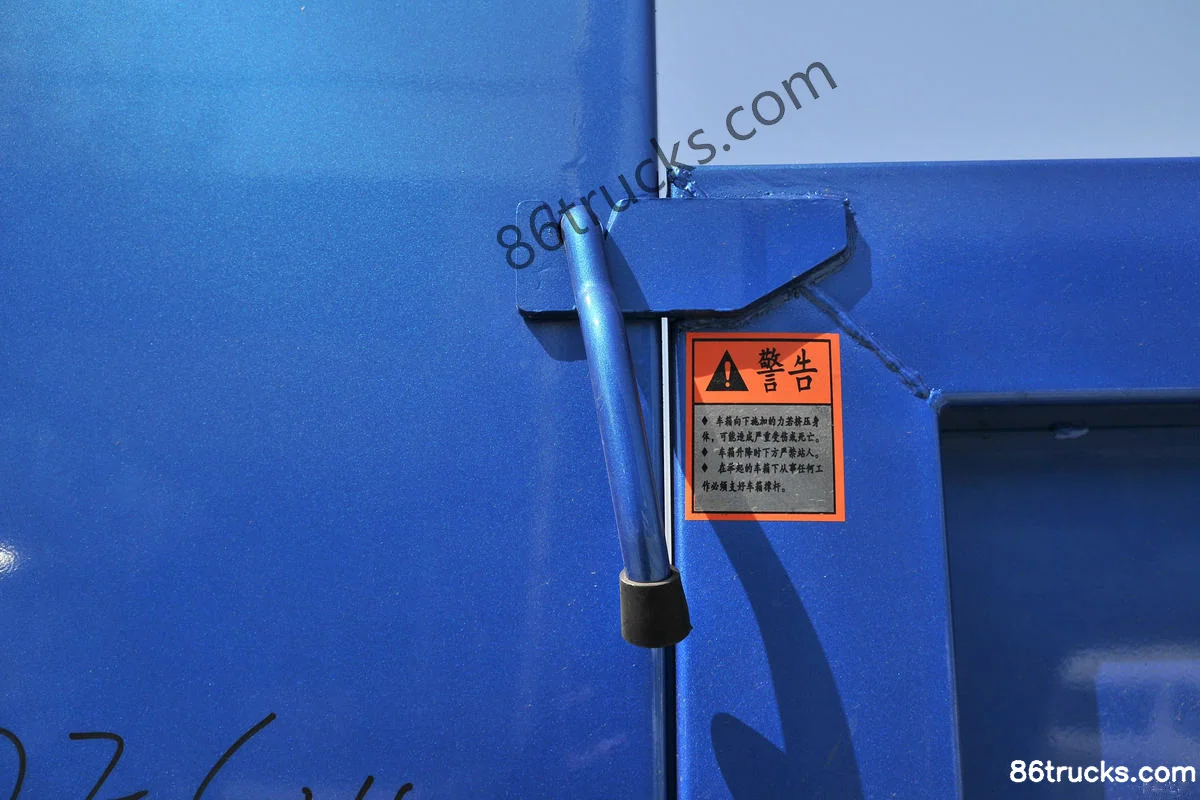

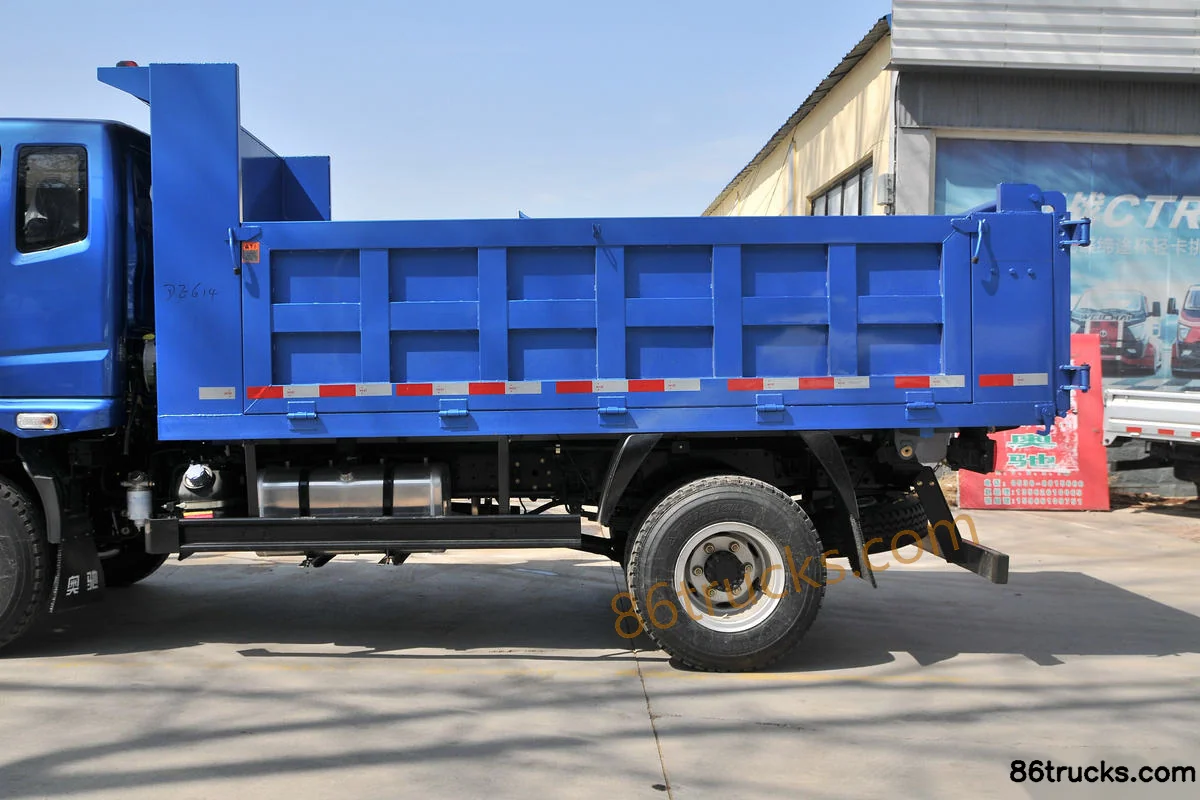

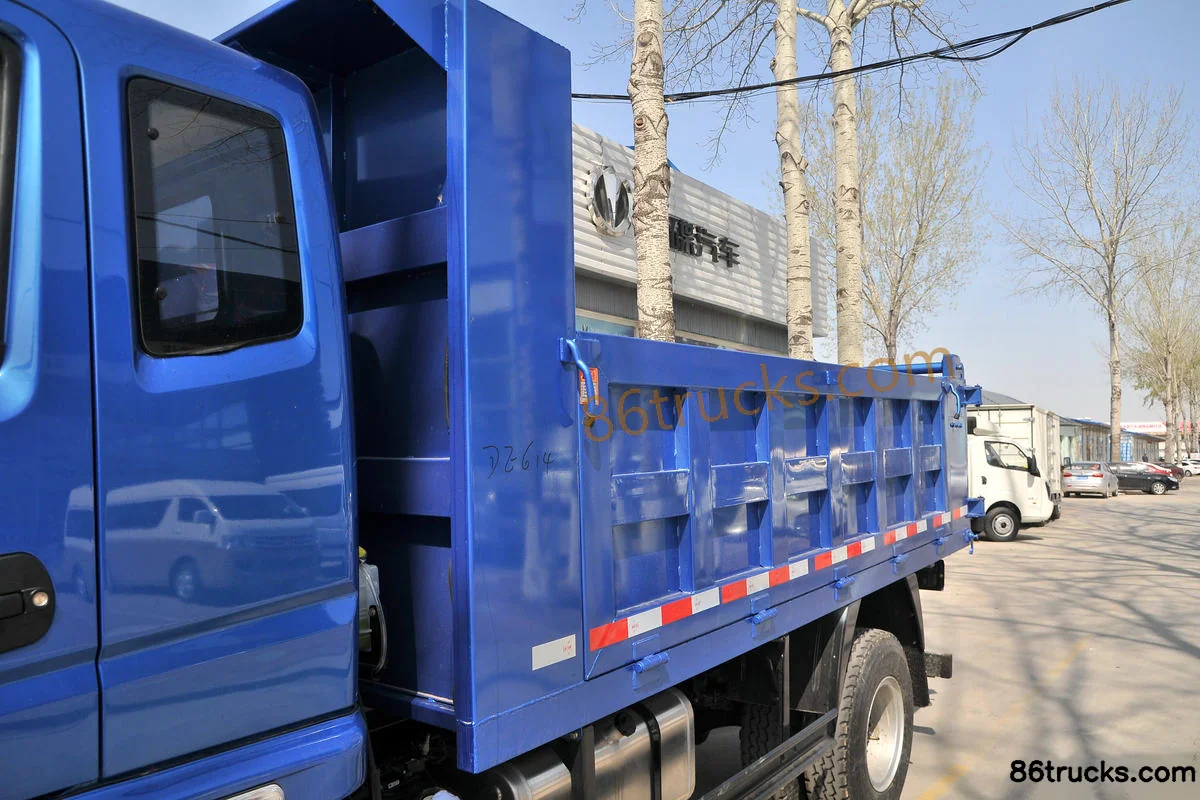

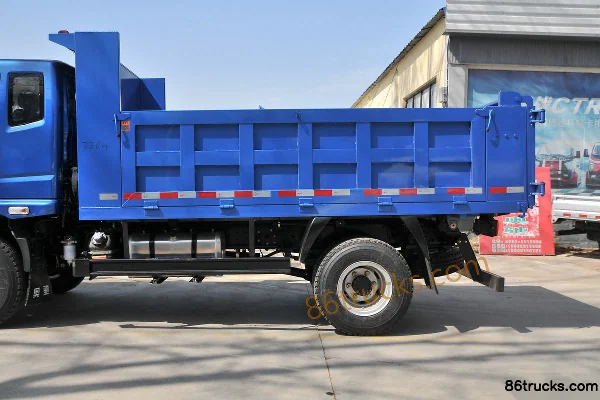

Body3

12 photos

FAQ

What is the export price of Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286), and what does it include?

Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) export reference is about From $15,556; MSRP is ¥11.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286)?

Key specs of Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286): Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) suited for?

Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) differ from other variants in the same series?

Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286) belongs to Aochi T Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi T3 Series 129hp 4X2(6 wheels) 3.75m dump truck (axle ratio 5.286)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
