SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck

Export reference
From $30,000
MSRP ¥21.6M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.5ton
Wheelbase:: 1800+3150mm
Tire Size:: 10.00R20,11.00R20
Rated payload: 14.87ton
Drive 6X2 (8 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck is a Medium-duty truck featuring 14.87t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a WeichaiWP6.180E50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3255GP5329
Drive type: 6X2
Wheelbase: 1800+3150mm
engine: WeichaiWP6.180E50
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.83
Cab length: 8.25m
Cab width: 2.55m
Cab height: 3.1m
Front track width: 1765/1765mm
rear track: 1750mm
Curb Weight: 9.5ton
Rated payload: 14.87ton
GVWR: 24.5ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 18°
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.180E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.75L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled, electronic high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.5m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
Cab: Xuande 6 Series
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 148S+ 148S
Front axle allowable load: 6500/6500kg
rear axle description: 153SD rear axle
rear axle allowable load: 11500kg
Axle ratio: 6.83
Leaf spring count: 9/9/10+8,9/9/11+8,10/10/10+9
Tire
Tire Size: 10.00R20,11.00R20
Number of tires: 8pcs
Control configuration
ABS:

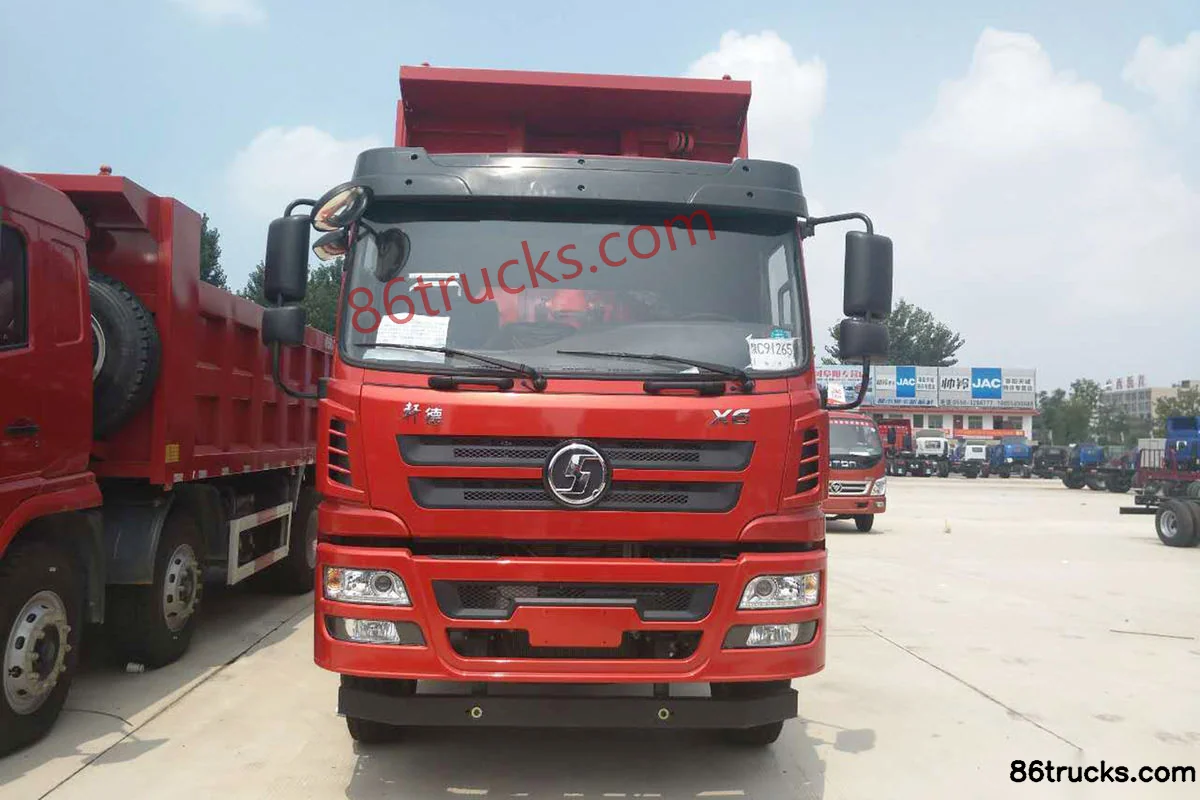

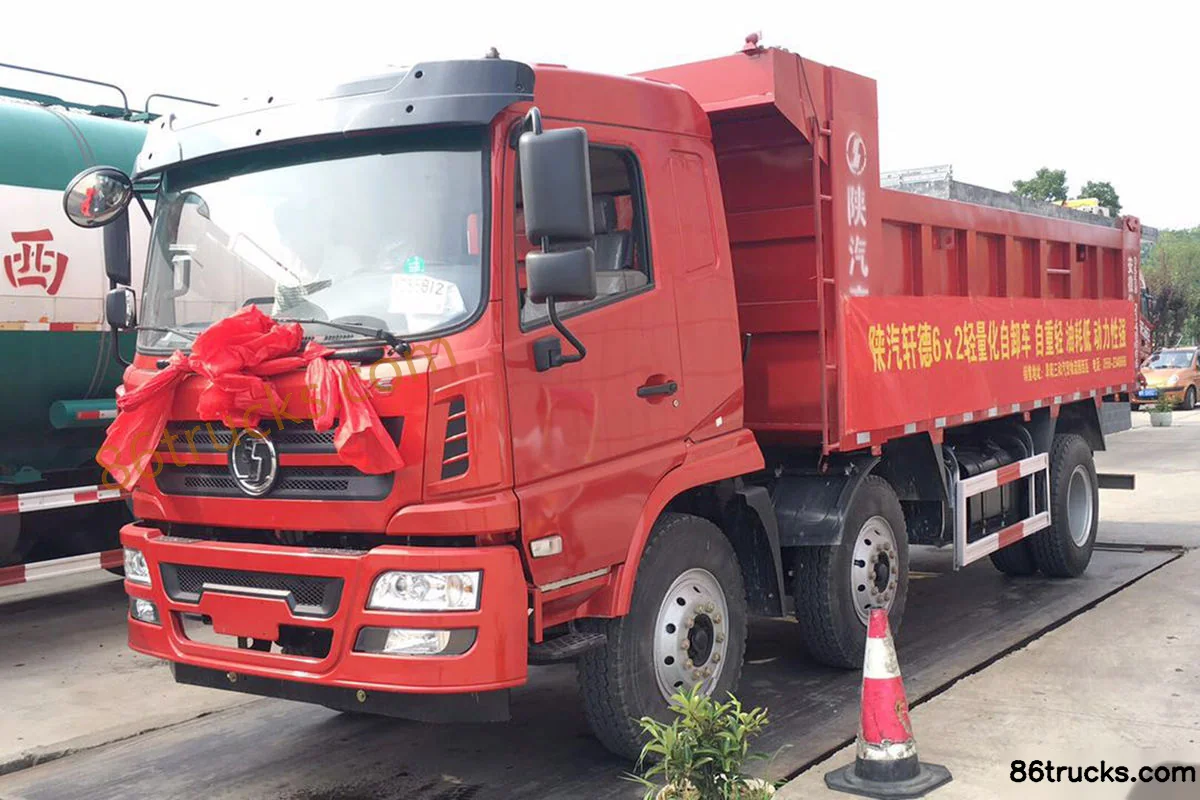

Photos

Exterior2

2 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck export reference is about From $30,000; MSRP is ¥21.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck: Drive: 6x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 Standard Load 180 hp 6X2(8 wheels) 5.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
