Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh

Export reference
From $136,111
MSRP ¥98M CNY
Rated payload:: 12.07ton
Wheelbase:: 1800+3225+1350mm
Cargo box volume:: 15.5m³
Model code (announced):: ZZ3312V3267Z11SEV
Cab length:: 9.97m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 160km
Motor 1 Brand: Sinotruk
Curb Weight: 18.8ton

Overview

The Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh is a Heavy truck featuring 160km battery/range, Sinotruk motor, 8X4 (12 wheels) drive and 12.07t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3312V3267Z11SEV
Drive type: 8X4
Wheelbase: 1800+3225+1350mm
Cab length: 9.97m
Cab width: 2.55m
Cab height: 3.48m
CLTC range: 160km
Curb Weight: 18.8ton
Rated payload: 12.07ton
GVWR: 31ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
total rated torque: 1400N·m
total peak torque: 2500N·m
Battery/Charging
Battery Brand: CATL
Charging method: swap-charge integrated
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 282kWh
Battery rated voltage: 618.24V
Energy Density: 150
Battery Model: L228C01
Transmission Parameters
Number of gears: 4Gear
shift type: AMT manual/auto
Transmission Model: TS-0425C
Cargo box parameters
Cargo box volume: 15.5m³
Cargo box type: U-shaped
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 17500 (two-axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Power steering: hydraulic power steering
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

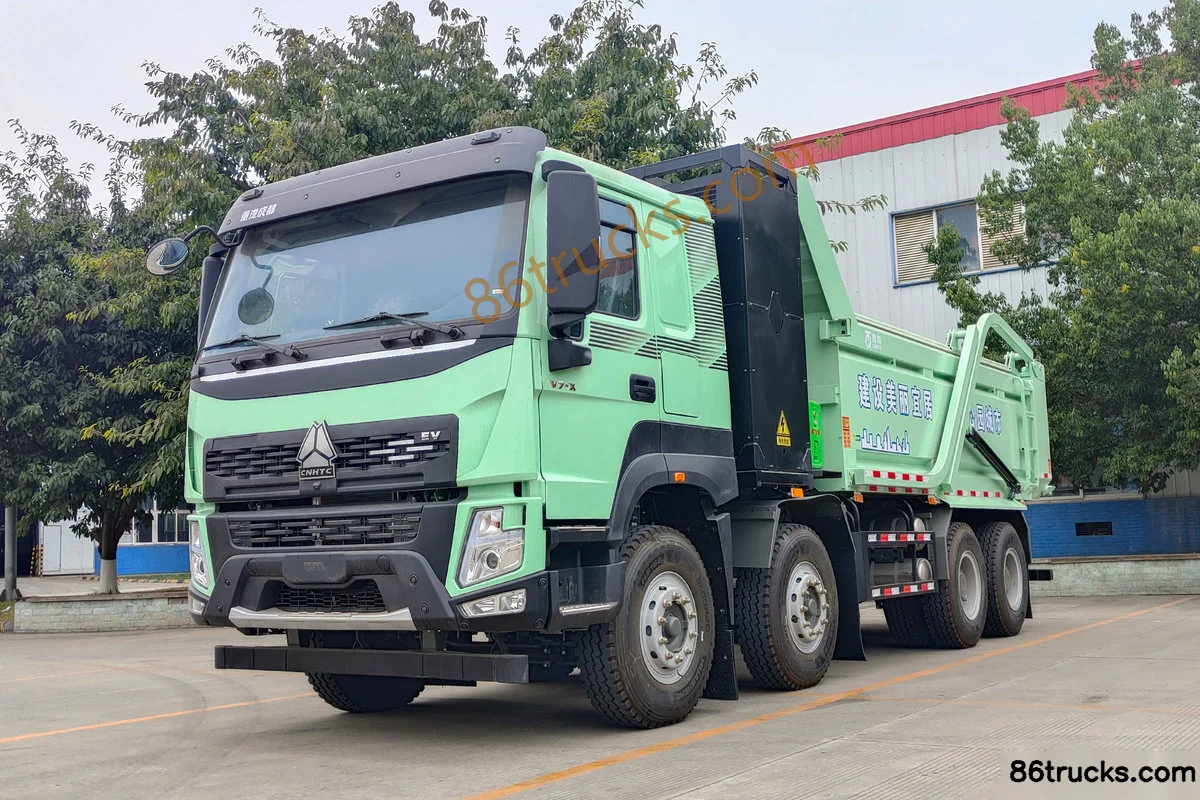

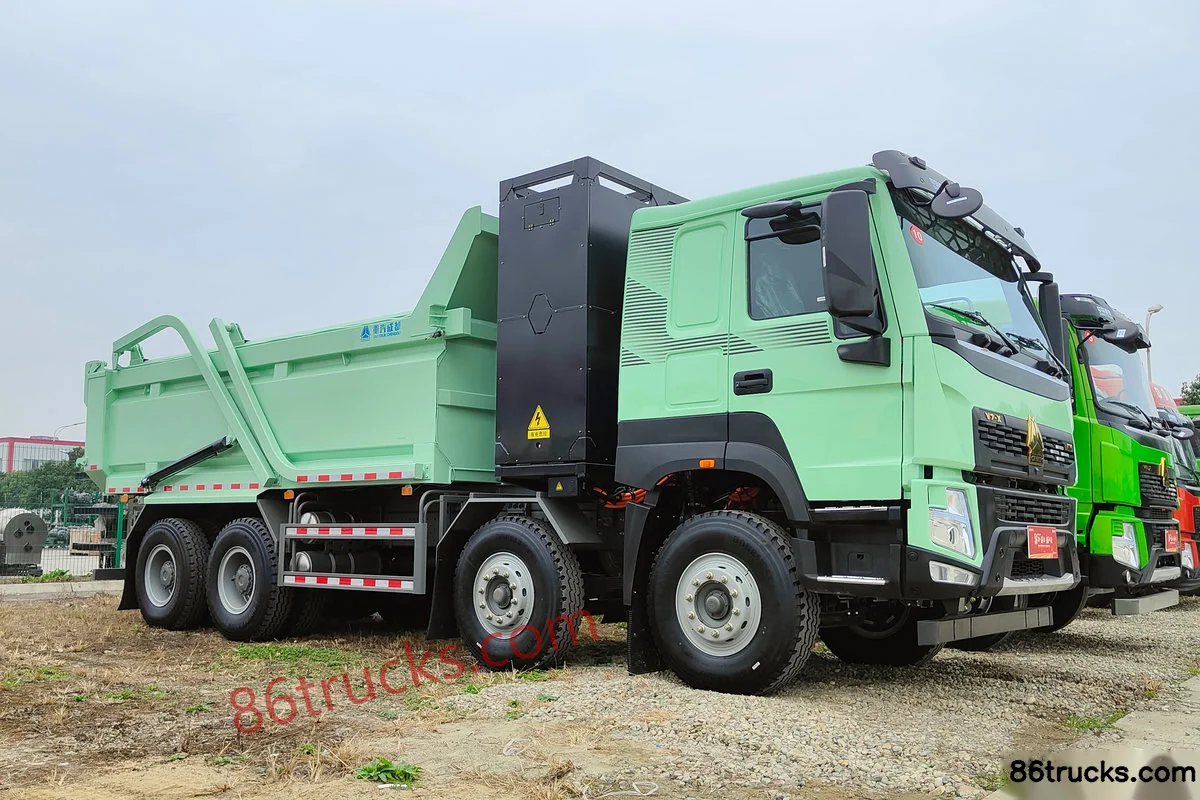

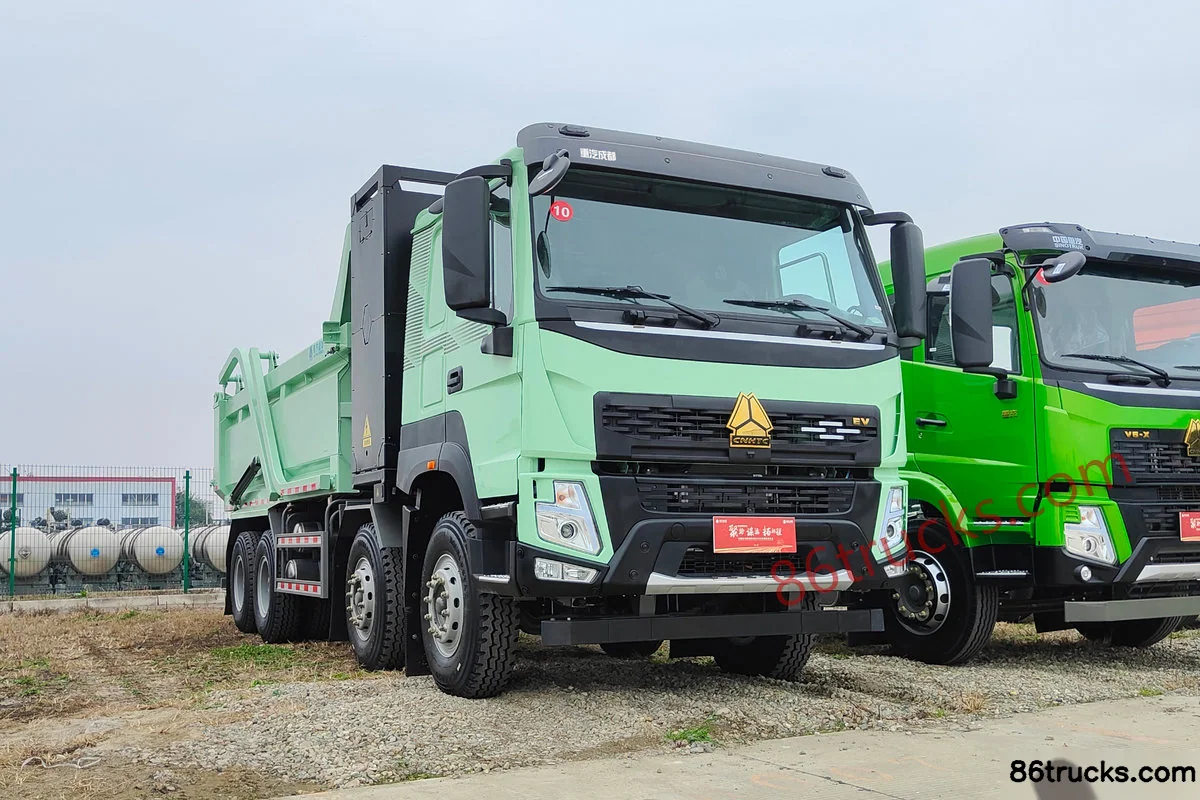

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh, and what does it include?

Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh export reference is about From $136,111; MSRP is ¥98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh?

Key specs of Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh suited for?

Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh differ from other variants in the same series?

Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh belongs to SinotrukHOWOV7-X (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X 31T 8X4(12 wheels) 5.6m Battery Swap Electric Dump Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
