JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China V
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 10ton
seating capacity: 3Personnel
Rated payload: 14.87ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck is a Heavy-duty cargo trucks featuring 7.8m cargo length, Van body cargo body, 3Personnel volume and 14.87t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 260 hp, 6X2 (8 wheels) drive and China V emissions.

China V 260 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251XXYP2K2D46S1V
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1700+4600mm
Box length class: 7.8m
engine: XichaiCA6DLD-26E5
transmission: Fast Gear8JS105T
Rear Axle Ratio: 3.417
Cab length: 10.32m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2040/2040mm
rear track: 1840mm
Curb Weight: 10ton
Rated payload: 14.87ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 10°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.495/2.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-26E5
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China V
Max output power: 194kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS105T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.8m
Cargo box width: 2.4m
Cargo box height: 2.5m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: K3X Mid-High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280X80X8mm
rear axle description: Ankai459
rear axle allowable load: 11000kg
Axle ratio: 3.417
Leaf spring count: 3/3/9+7,9/9/9+7,3/3/4+3
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 8pcs
Control configuration
ABS:

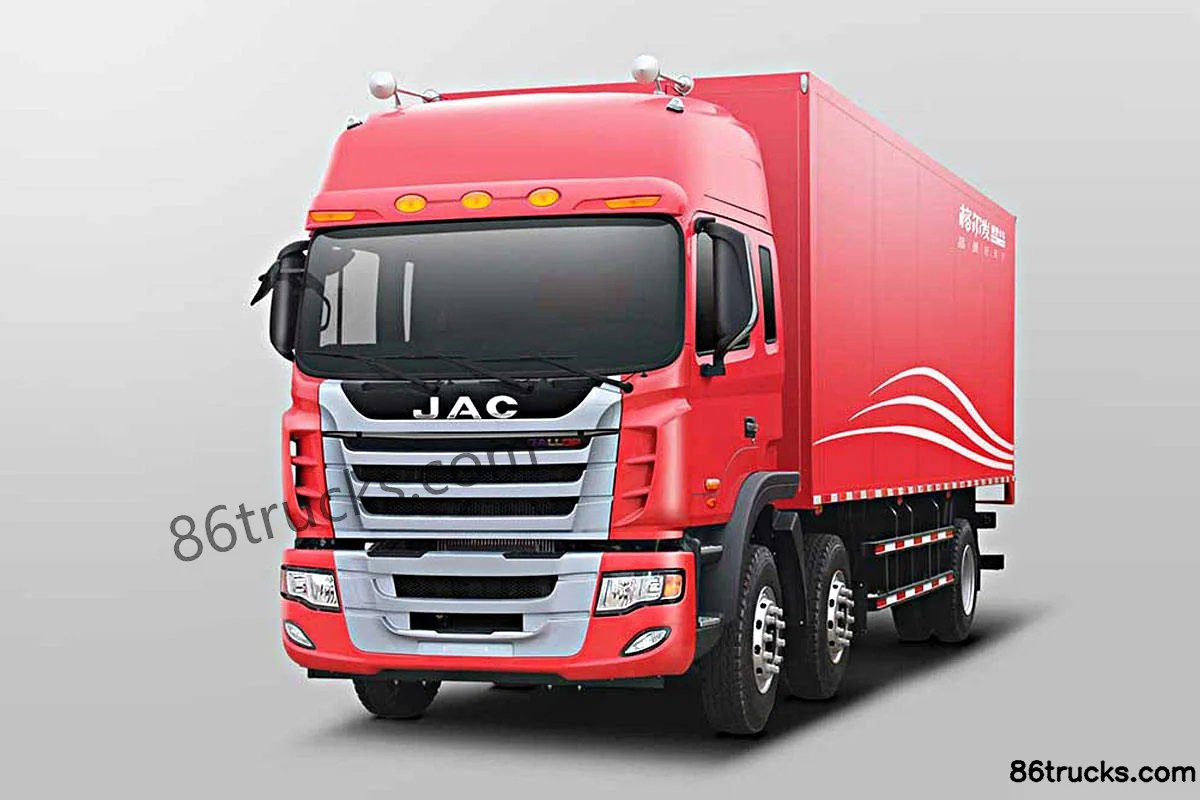

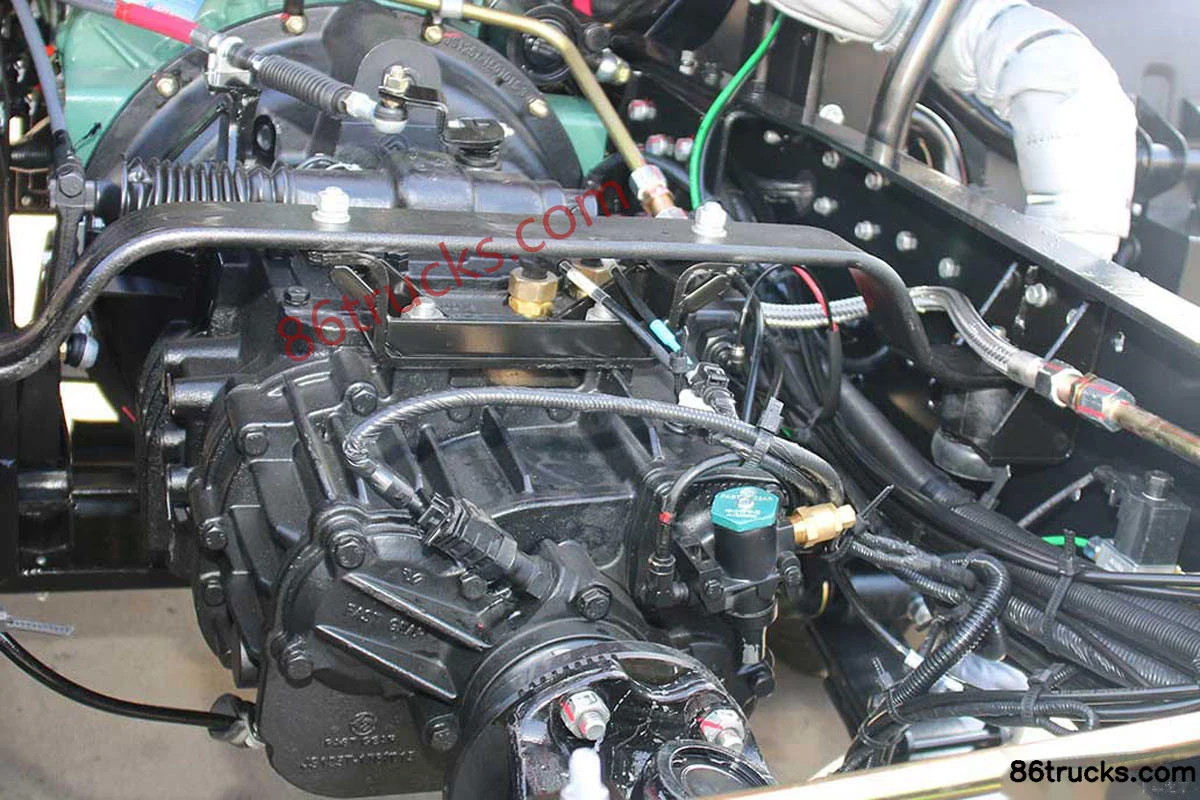

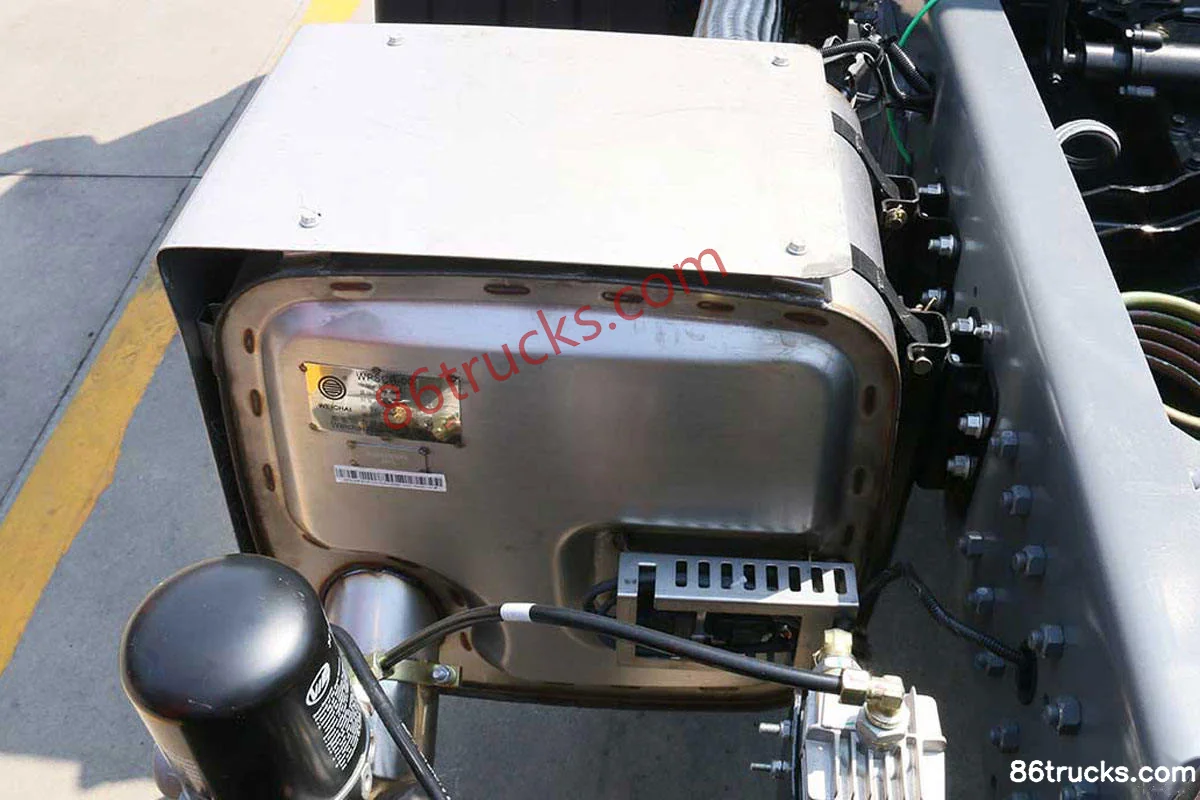

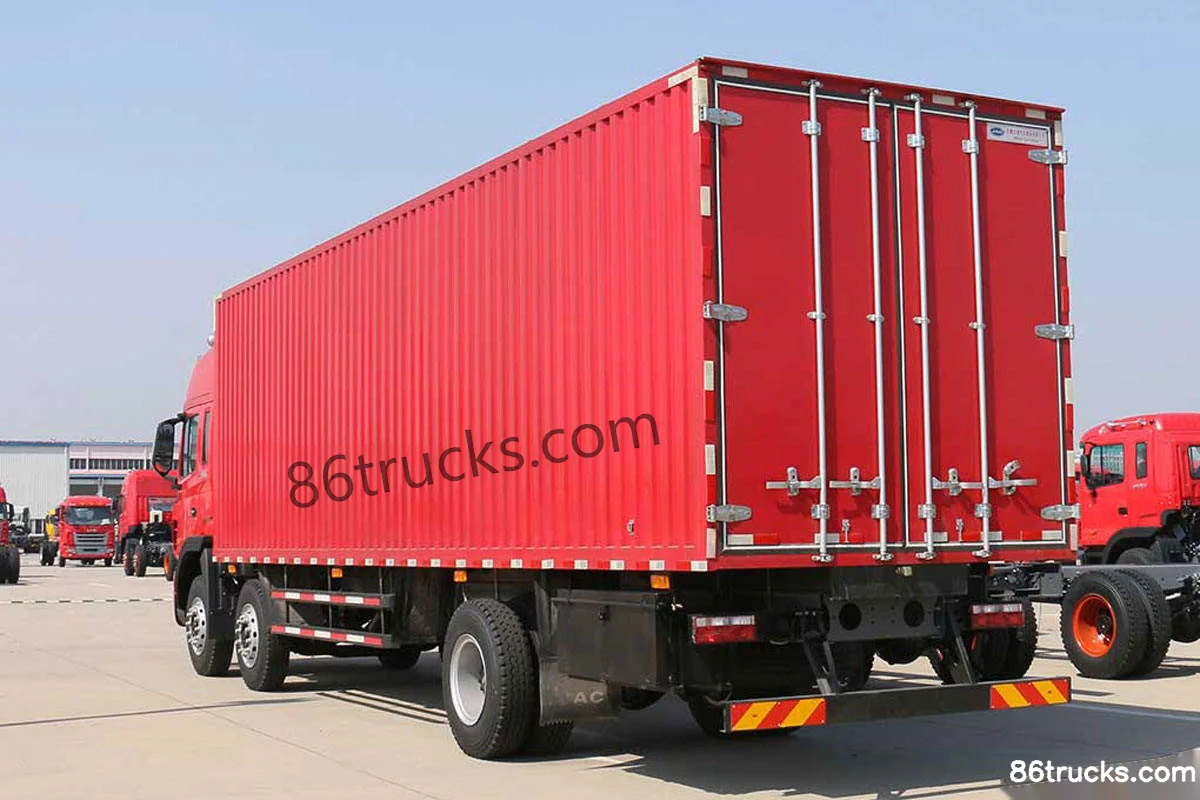

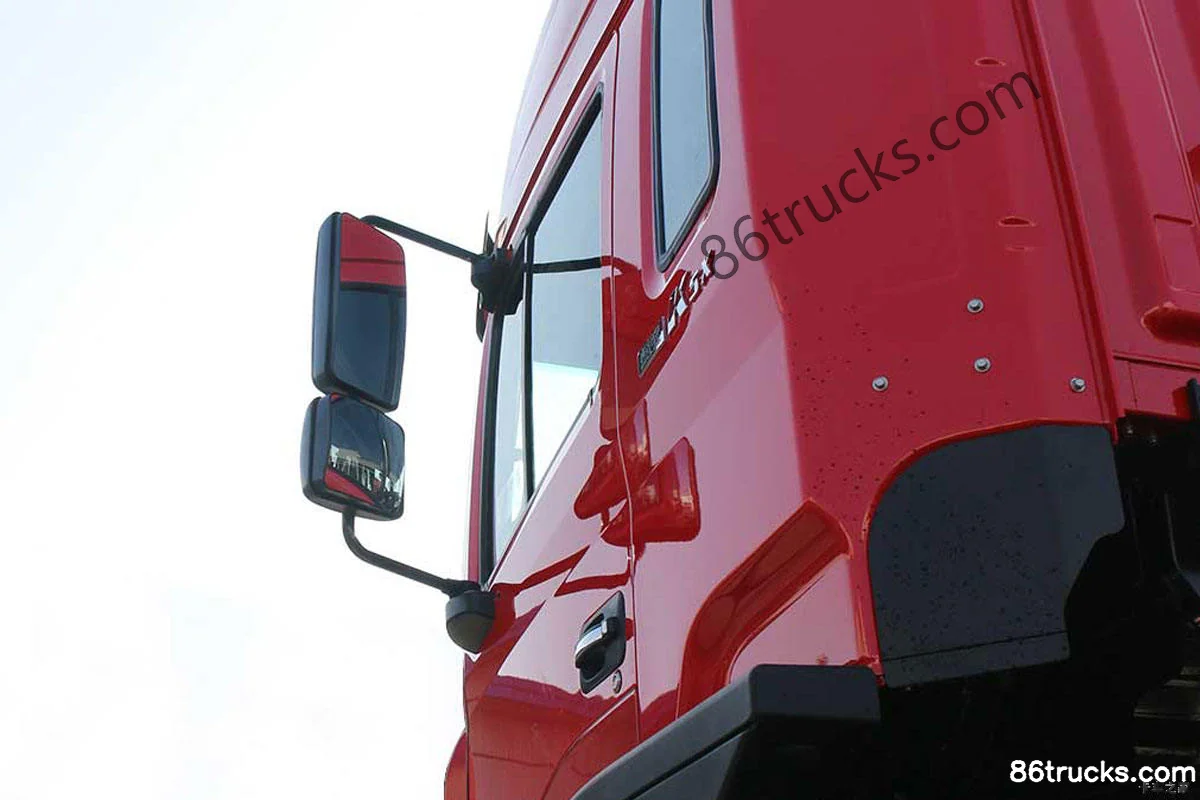

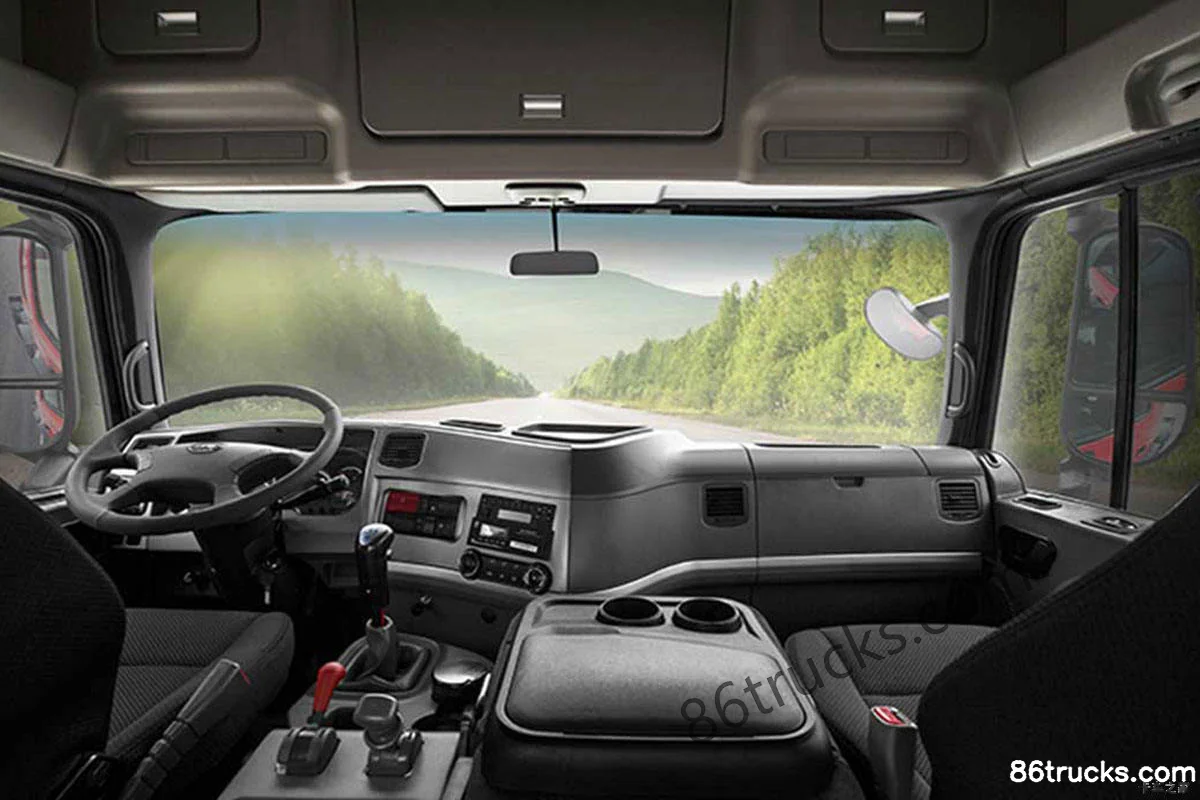

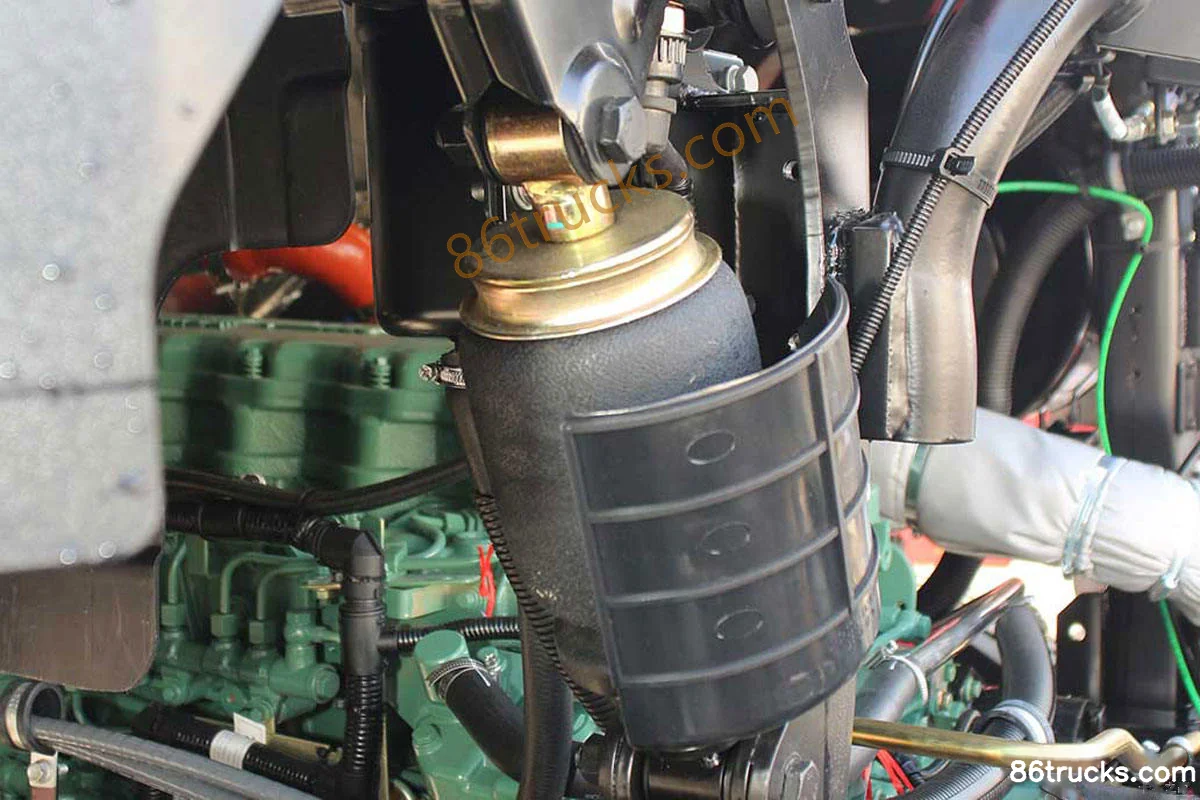

Photos

Exterior3

Cab1

Chassis3

7 photos

FAQ

What emission standard does JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Key specs of JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck: Drive: 6x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck suited for?

JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck differ from other variants in the same series?

JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3X Heavy Truck 260 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
