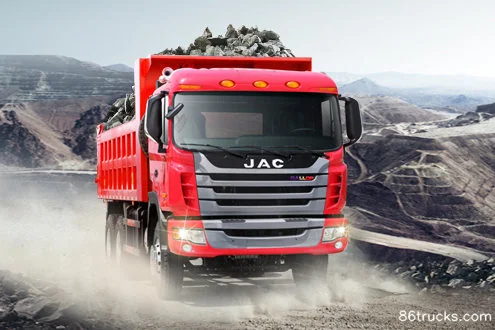

JAC Gallop K3 Series Medium Truck 210 hp 6X2(8 wheels) 6.3m Dump Truck (Semi-High Top)

Export reference
From $29,167
MSRP ¥21M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12ton
Wheelbase:: 1700+3950mm
Tire Size:: 12.00 12.00R20 11.00 11.00R20
Rated payload: 12.82ton
Drive 6X2 (8 wheels)
Horsepower 210
Cargo box type: Rear-dump body

Overview

The JAC Gallop K3 Series Medium Truck 210 hp 6X2(8 wheels) 6.3m Dump Truck (Semi-High Top) is a Medium-duty truck featuring 12.82t payload, 24.95t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6J210-33 engine, 210 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 210 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3255KR1ZT
Drive type: 6X2
Wheelbase: 1700+3950mm
engine: YuchaiYC6J210-33
transmission: Fast Gear8JS105A
Rear Axle Ratio: 4.875
Cab length: 9.3m
Cab width: 2.495m
Cab height: 3.05m
Front track width: 2020/2020mm
rear track: 1847mm
Curb Weight: 12ton
Rated payload: 12.82ton
GVWR: 24.95ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 27°
Remarks: Mainly suitable for poor working conditions, no road conditions, or construction site dirt roads
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J210-33
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.494L
Emission standard: China III / Euro III
Max output power: 156kW
Max hp: 210Horsepower
Max torque: 710N·m
Max torque speed: 1400-1600rpm
Rated speed: 2500rpm
Engine Type: Water-cooled, intercooled, four-stroke, turbocharged
Transmission Parameters
Transmission Model: Fast Gear8JS105A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.3m
Cargo box width: 2.3m
Cargo box height: 1.08m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Axle ratio: 4.875
Leaf spring count: 10/10/9+7,10/10/11+10
Tire
Tire Size: 12.00 12.00R20 11.00 11.00R20
Number of tires: 8pcs
