Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body)

Export reference
From $7,917
MSRP ¥5.7M CNY
Horsepower: 88
Emission: China IV
Fuel: Diesel
Engine: Sida 490
Transmission: WLY
Curb Weight:: 2.56ton
seating capacity: 2Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) is a Light Truck featuring 4.23m cargo length, stake body cargo body, 2Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Sida 490 engine, 88 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040TDD6F
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Sida PowerSD4BW654U
transmission: WLYWLY525
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.26m
Cab height: 2.23m
Front track width: 1524mm
rear track: 1550mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 24°
departure angle: 27°
market segment: Building materials, agricultural products
Remarks: Optional front combination lamps, front mask, and front bumper.
Front/rear suspension: 1.15/1.645m
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sida Power
Engine Model: Sida PowerSD4BW654U
Engine info: Sida 490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.545L
Emission standard: China IV
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 225N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: WLYWLY525
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.23m
Cargo box width: 2m
Cargo box height: 0.46m
*Cargo box interior width: 2
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 60L
Chassis Specs
Front axle allowable load: 1500kg
rear axle description: 2995
rear axle allowable load: 2995kg
Axle ratio: 5.571
Leaf spring count: 6/9+5
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

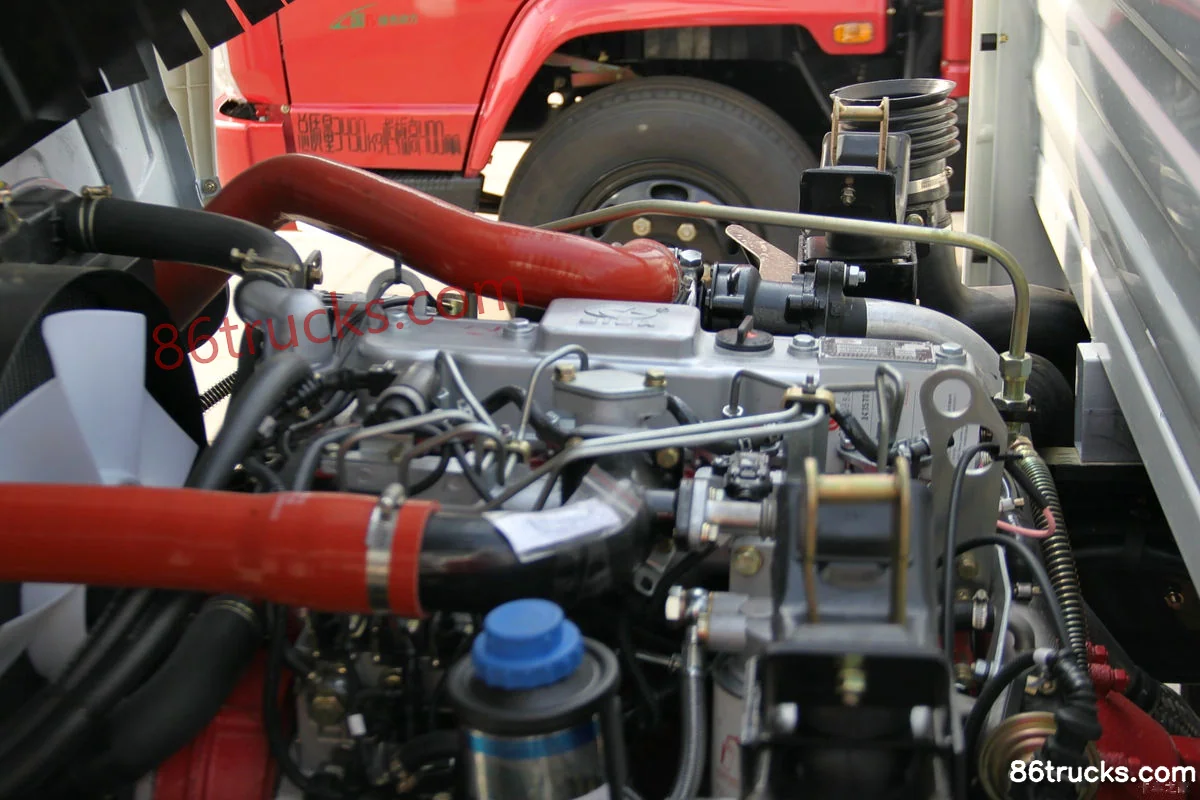

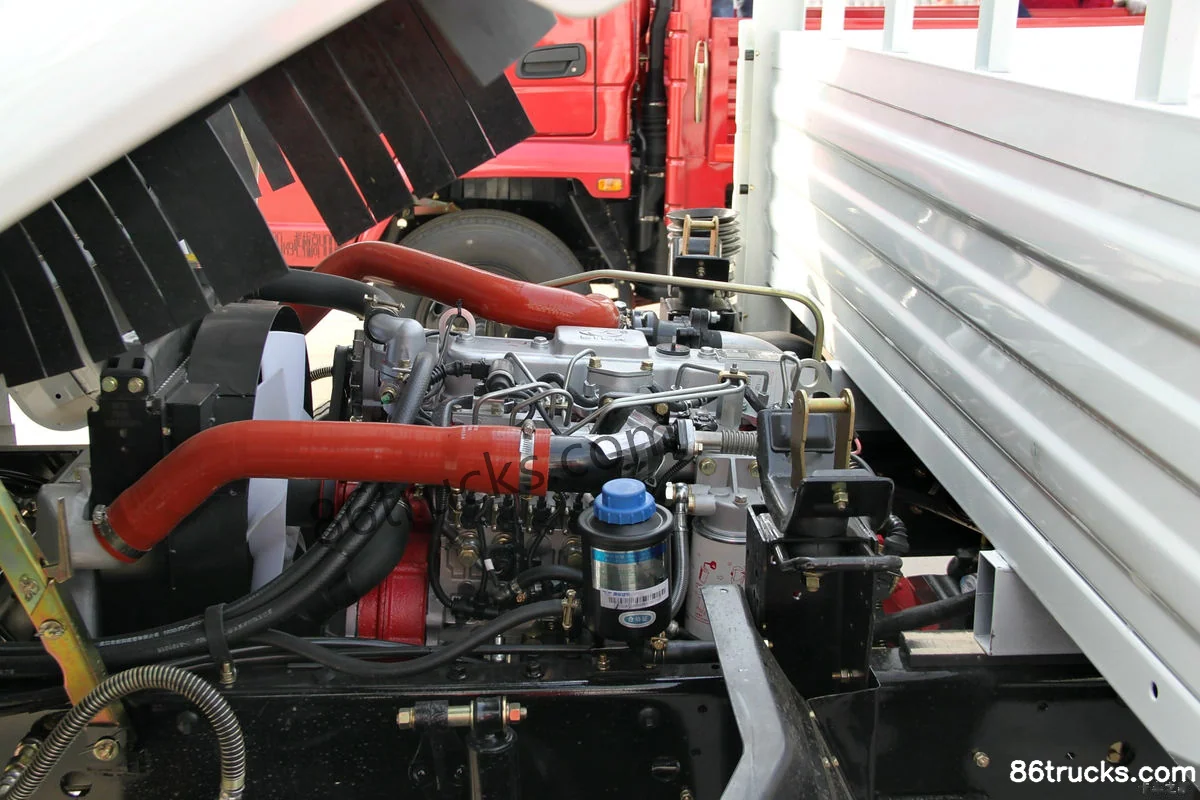

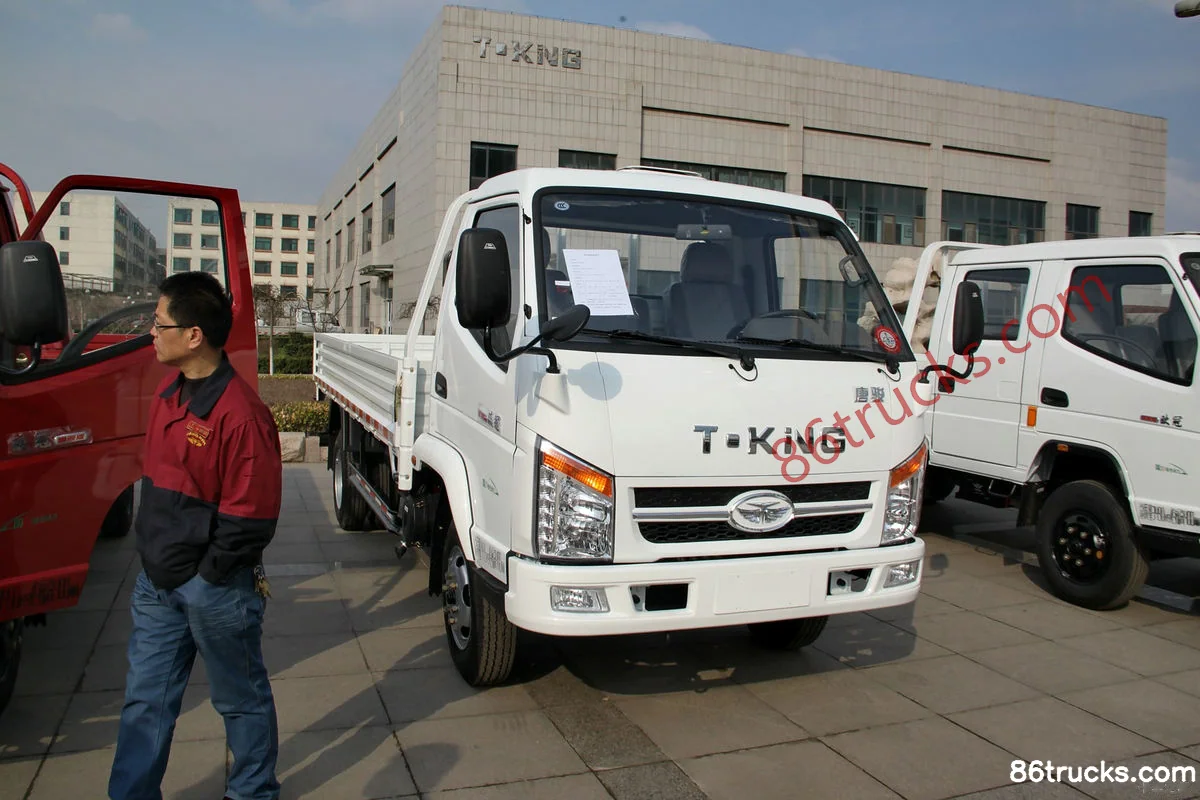

Exterior1

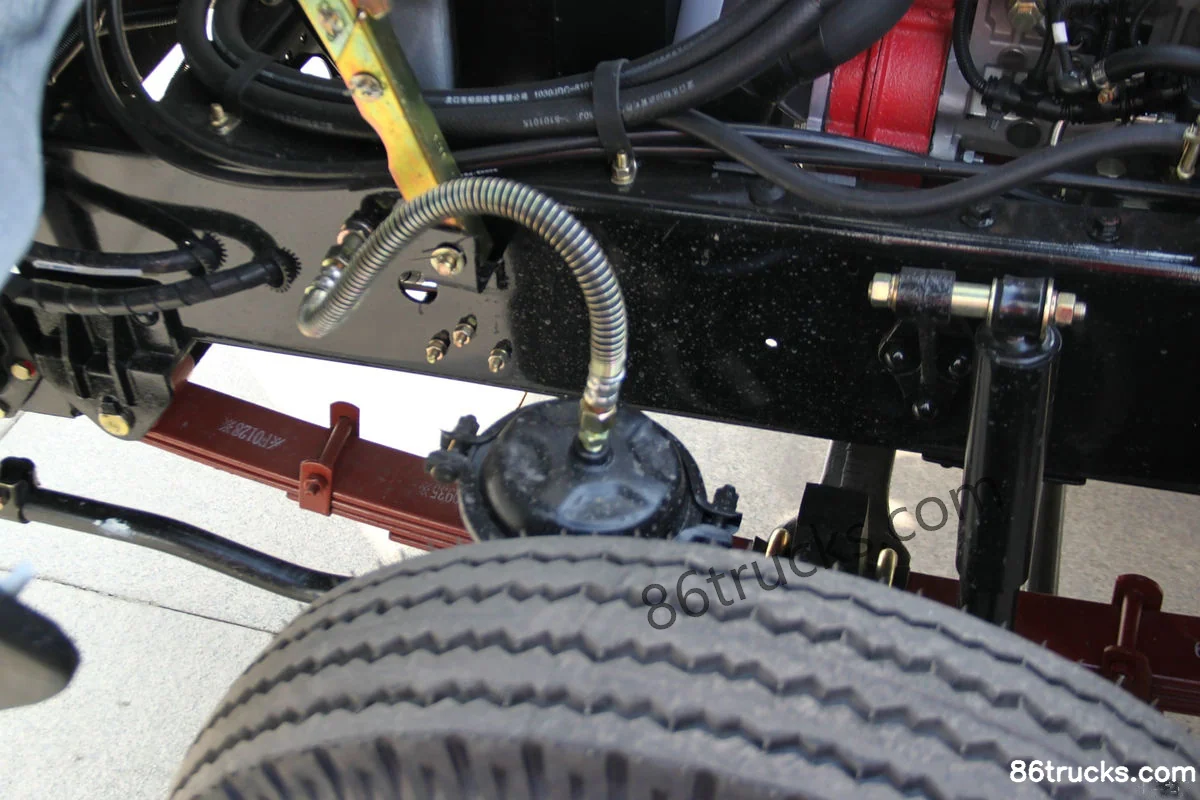

Chassis3

4 photos

FAQ

What is the export price of Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body), and what does it include?

Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) export reference is about From $7,917; MSRP is ¥5.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body)?

Key specs of Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body): Drive: 4x2; Horsepower: 88 hp; Emission: China IV; Fuel: Diesel; Engine: Sida 490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) suited for?

Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) differ from other variants in the same series?

Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body) belongs to Tangjun Ouguan Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Ouguan Flagship Edition 88hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck (Narrow Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
