Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck

Export reference
From $43,056
MSRP ¥31M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.1ton
Wheelbase:: 1950+3600+1350mm
Tire Size:: 11.00-20
Rated payload: 13.99ton
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck is a Heavy truck featuring 13.99t payload, 28.2t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DongfengL290 30 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL3280A2
Drive type: 8X4
Wheelbase: 1950+3600+1350mm
engine: DongfengL290 30
transmission: Fast GearRT-11509G
Rear Axle Ratio: 5.57
Cab length: 9.95m
Cab width: 2.5m
Cab height: 3.45m
Front track width: 1986/1986mm
rear track: 1860/1860mm
Curb Weight: 14.1ton
Rated payload: 13.99ton
GVWR: 28.2ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 28°
Remarks: D310 flat front one-and-a-half-row flat-roof cab, Yuchai YC6M340-33 engine (EGR), with cold start device (flame preheat), wheelbase 1950+4250+1350, all-steel 350L fuel tank, Φ430mm pull-type diaphragm spring clutch, Shaanchi 9-speed transmission, 7T dual front axle (Dongfeng axle plant), 13T hub reduction dual rear axle (reinforced brake, reinforced brake drum) (Dongfeng axle plant, final drive ratio 5.92), with wheel diff lock, partial power PTO (on transmission), with dump lifting device (with slow lowering), frame section 300×90×(8+8)mm, leaf spring count 10/10/13, 12.00R20 radial tires, manual adjuster arm, no ABS, semi-floating cab rear suspension, hydraulic mechanical tilt, walk-through dashboard, with A/C
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengL290 30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.9L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1200N·m
Max torque speed: 1300rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder with forced-cooled articulated pistons, capable of withstanding extremely high mechanical and thermal loads, strength comparable to heavy-duty engines; centrally arranged injector and symmetrical combustion chamber for more uniform mixture, more complete combustion, and lower emissions.
Transmission Parameters
Transmission Model: Fast GearRT-11509G
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.3m
Cargo box width: 2.3m
Cargo box height: 1.02m
fuel tank
Fuel tank capacity: 350L
Chassis Specs
rear axle description: 13T hub-reduction dual rear axle (reinforced brake, reinforced brake drum)
rear axle allowable load: 13000kg
Axle ratio: 5.57
Leaf spring count: 8/8/10
Tire
Tire Size: 11.00-20
Number of tires: 12pcs

Photos

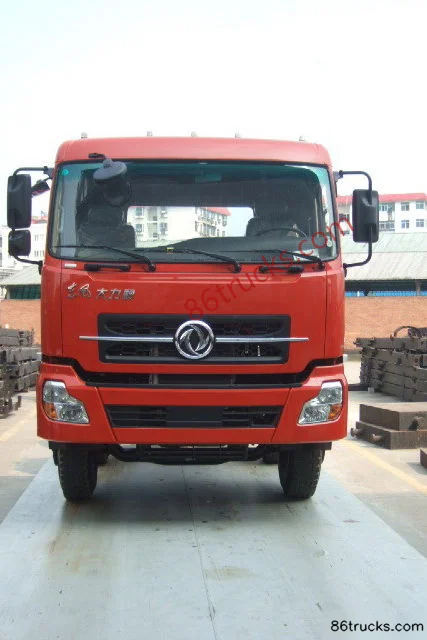

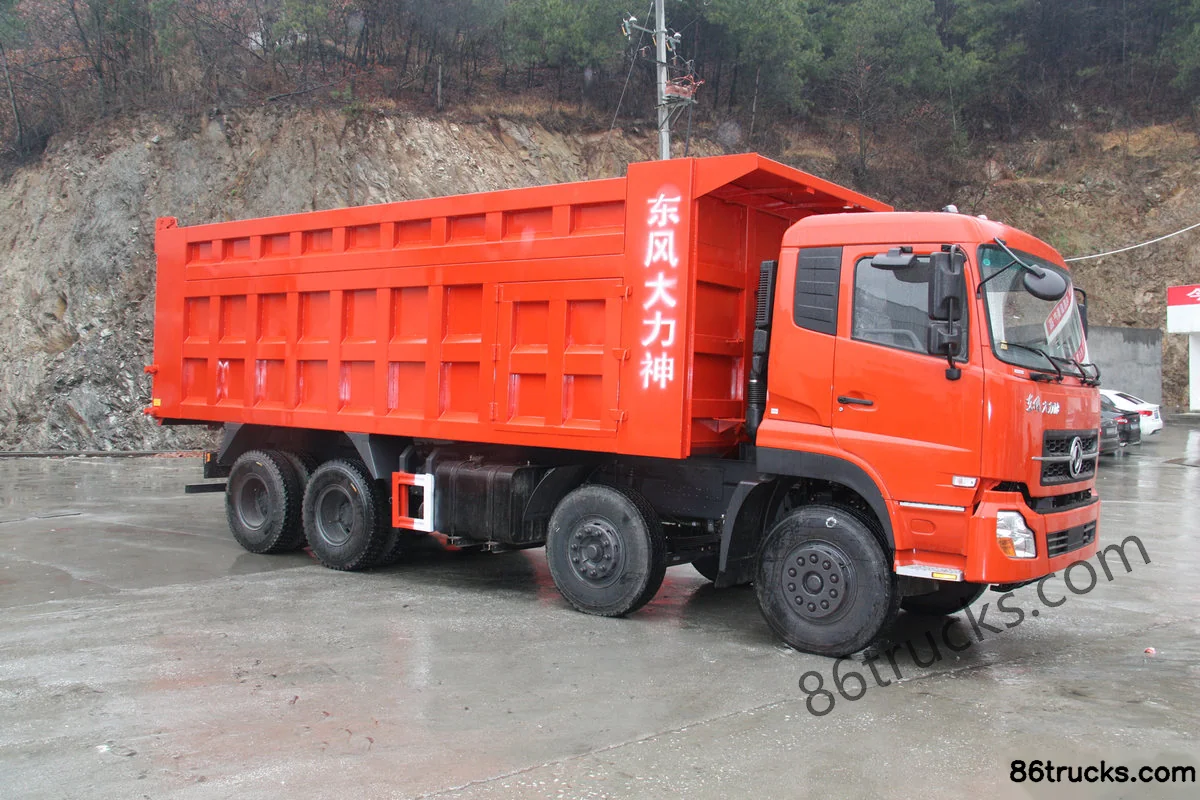

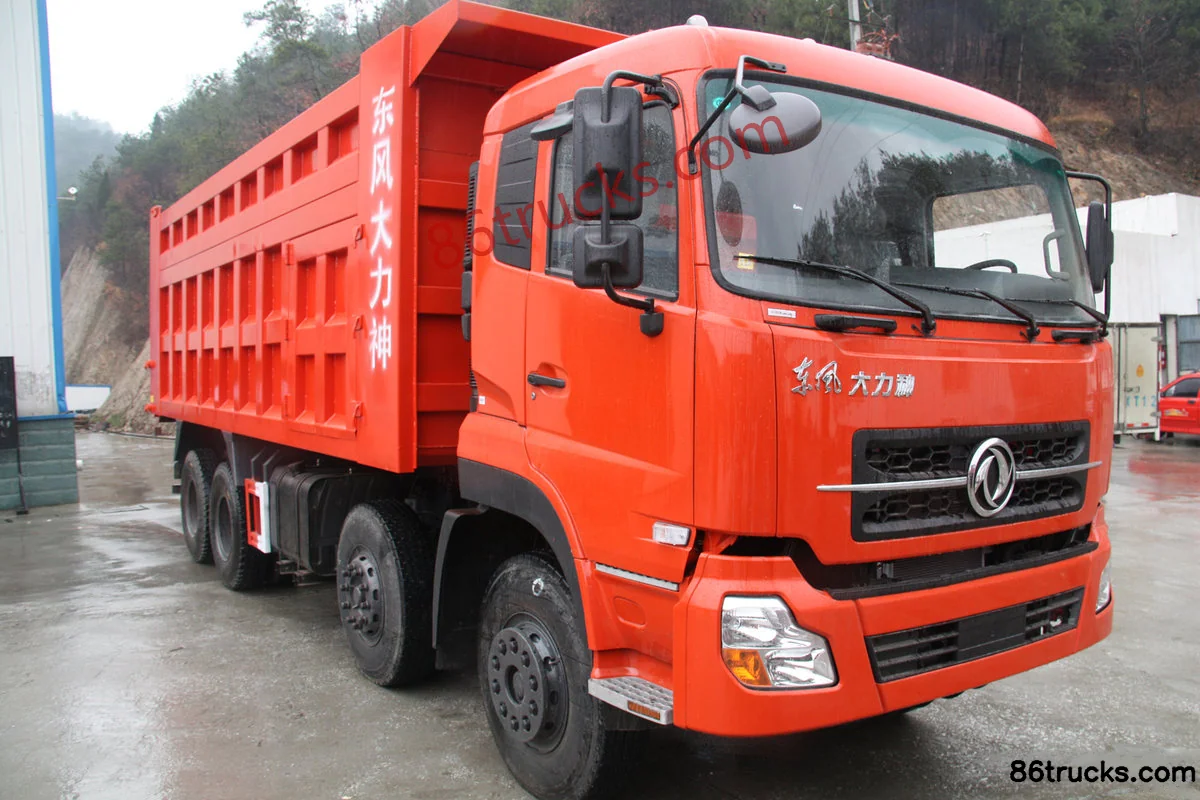

Exterior3

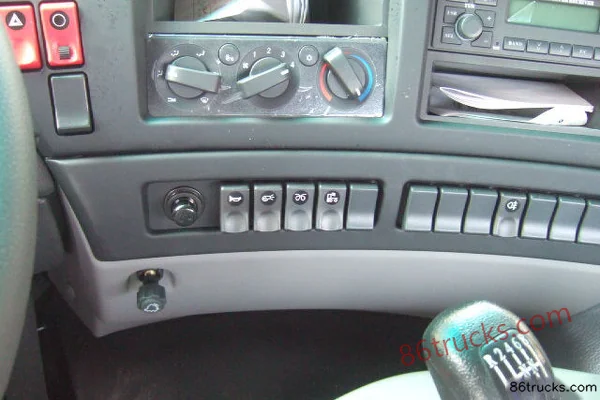

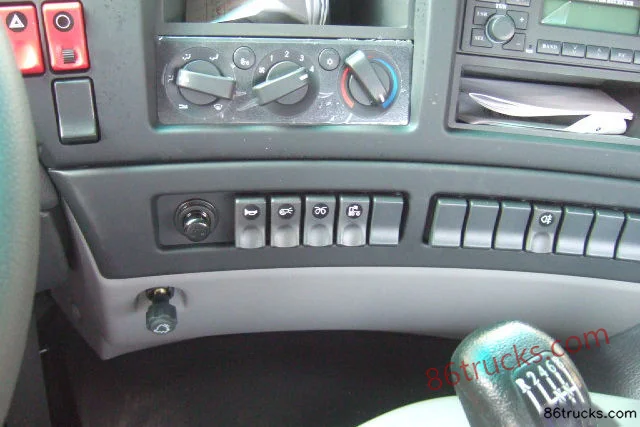

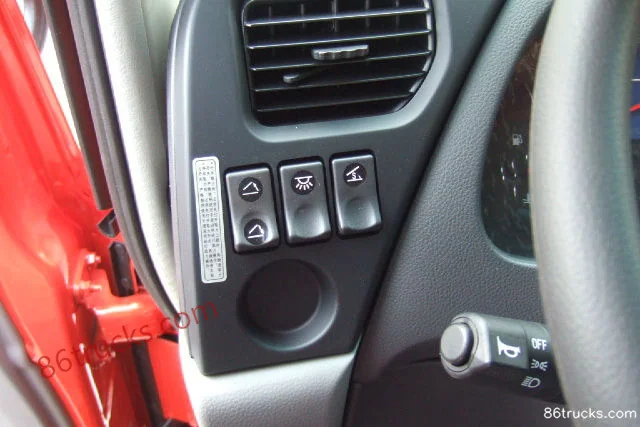

Cab2

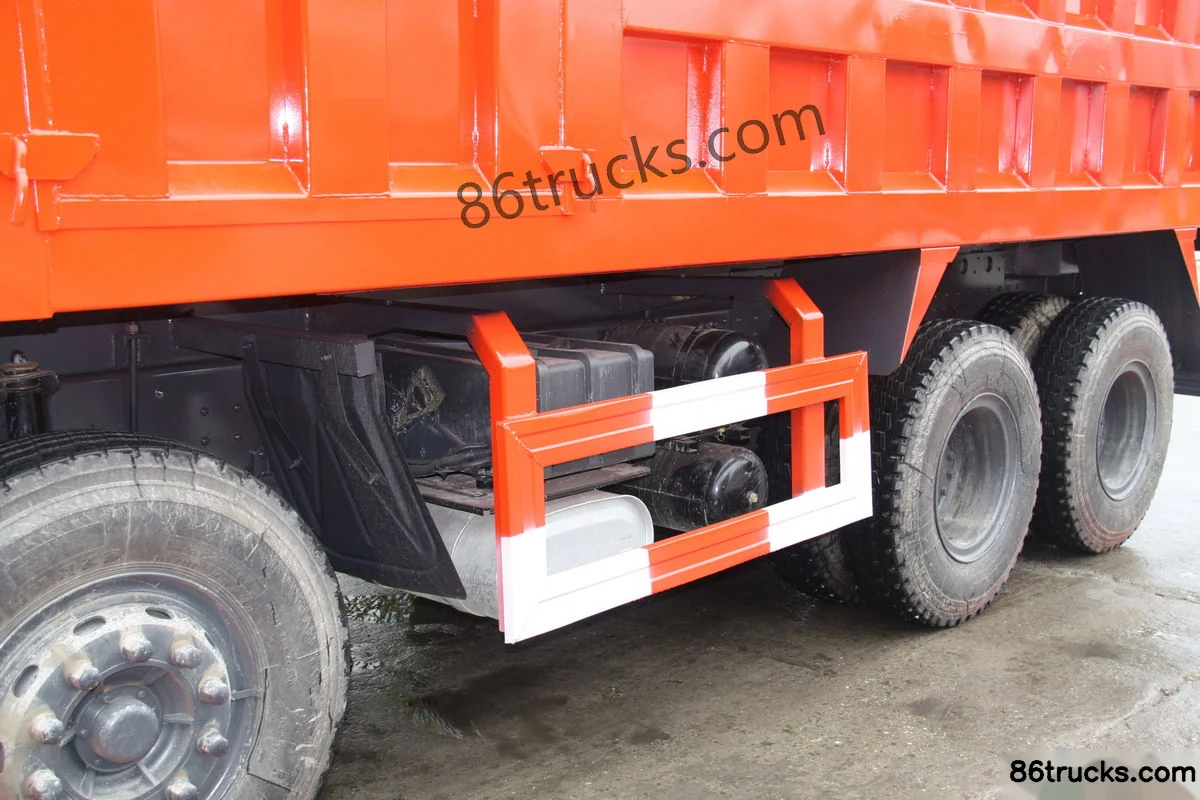

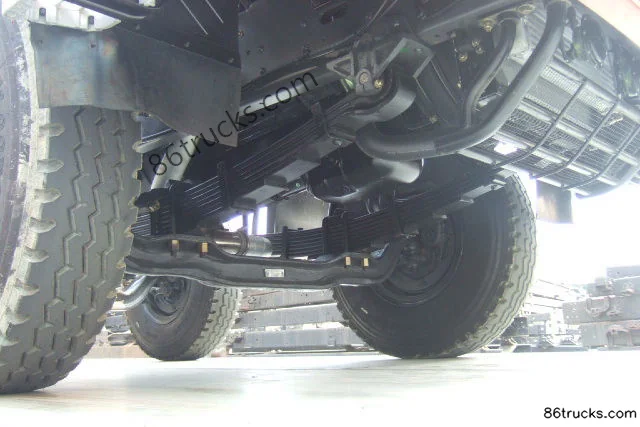

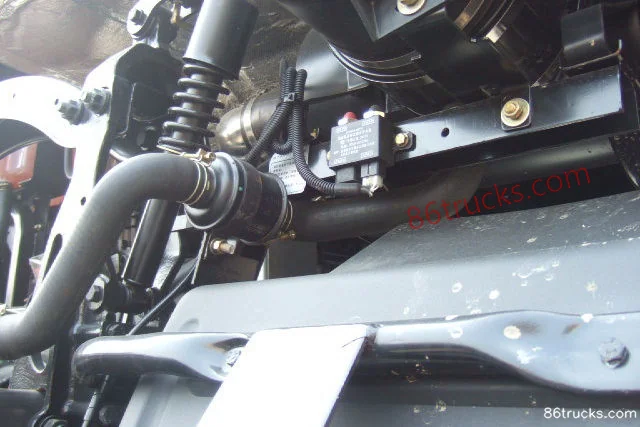

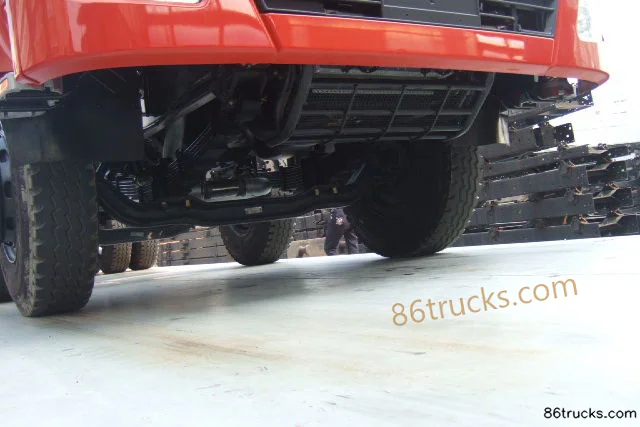

Chassis3

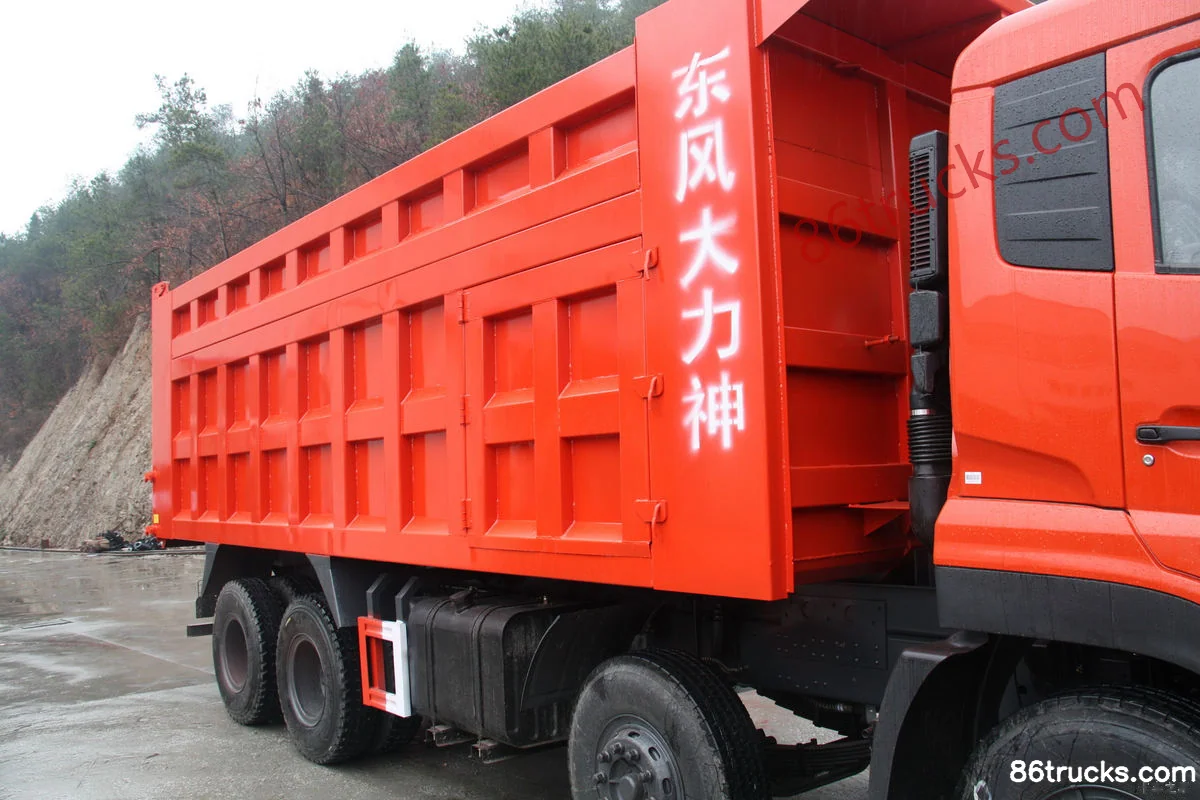

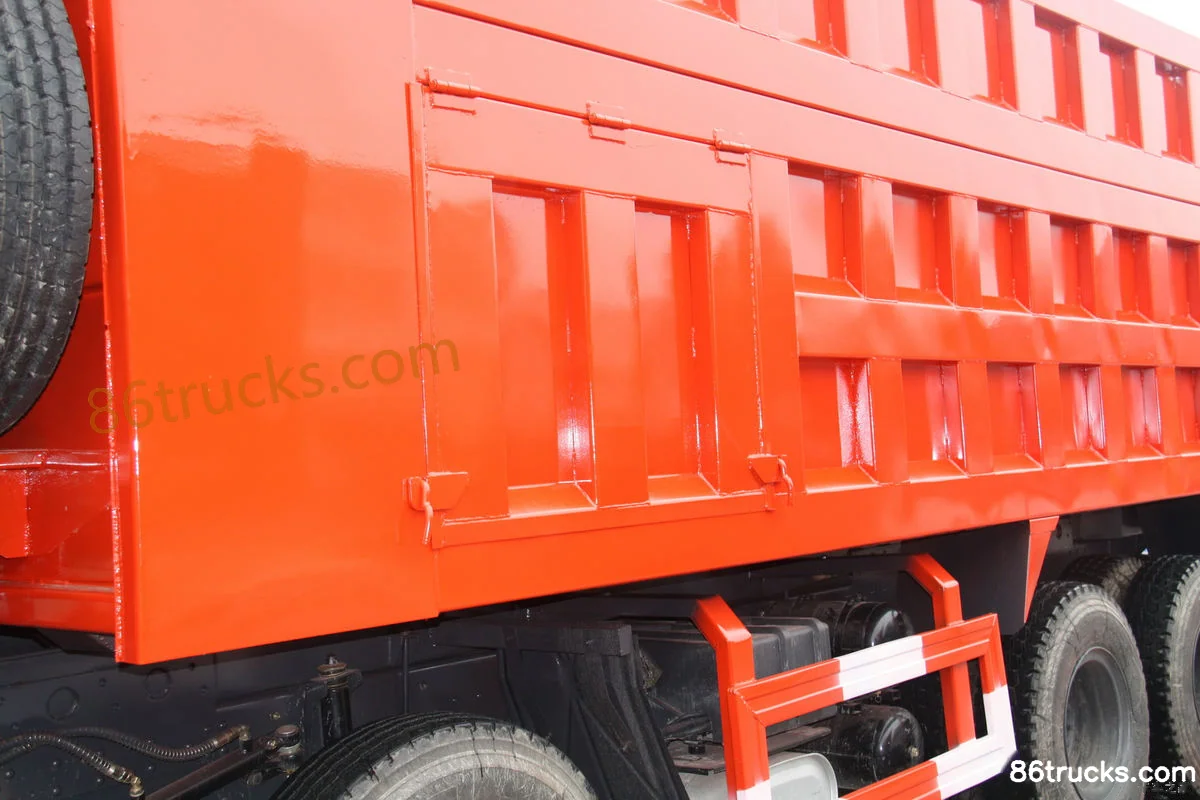

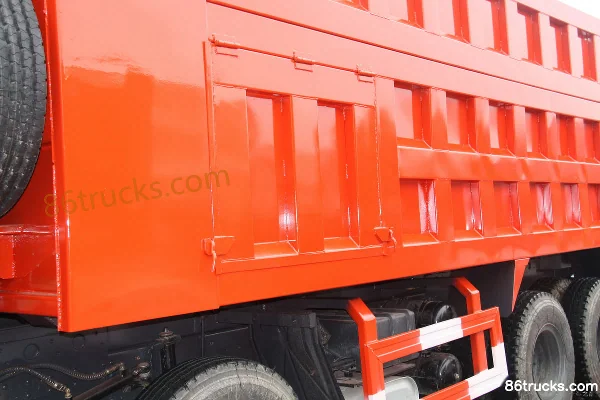

Body3

11 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck, and what does it include?

Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck export reference is about From $43,056; MSRP is ¥31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck?

Key specs of Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck suited for?

Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck belongs to Dongfeng Tianlong KC (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Hercules Heavy Truck 290 hp 8X4(12 wheels) 7.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
