Caterpillar 336D Crawler Excavator

Export reference
MSRP N/A
Model:: 336D
Engine Model:: crawler excavator
Tonnage:: 36ton
Bucket capacity:: 1.4cubic meter
boom length:: 6500mm
Arm Length:: 3200mm
Caterpillar 336D Crawler Excavator exterior
View more photos (3)
Operating weight: 33.75ton
Bucket type: backhoe
Fuel Tank Capacity: 620L
Product power: Conventional Power

Overview

The Caterpillar 336D Crawler Excavator is a excavator featuring 33.75ton GVW, backhoe bucket capacity, 620L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 336D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 36ton
Bucket capacity: 1.4cubic meter
Operating weight: 33.75ton
boom length: 6500mm
Arm Length: 3200mm
Machine dimensions: 11.15×3.19×3.34mm
Track shoe width: 600mm
Track gauge: 2590mm
Counterweight ground clearance: 1220mm
Rear Overhang Radius: 3500mm
Min ground clearance: 450cm
hydraulic system
Max flow of main pump: 280L/min
Working hydraulic circuit: 3.5
travel hydraulic circuit: 3.5Mpa
Swing Hydraulic Circuit: 2.8Mpa
Oil capacity
Fuel Tank Capacity: 620L
coolant: 40L
hydraulic oil tank: 175L
Engine Oil Capacity: 40L
performance specs
Bucket digging force: 222kN
Arm Digging Force: 146kN
Operating Range
Max digging radius: 10920mm
Max digging depth: 7390mm
Max digging height: 10240mm
Max unloading height: 7200mm
Max vertical digging depth: 5830mm
Engine parameters
Engine Model: C9ACERT
Max output power: 200kW

Photos

Exterior3

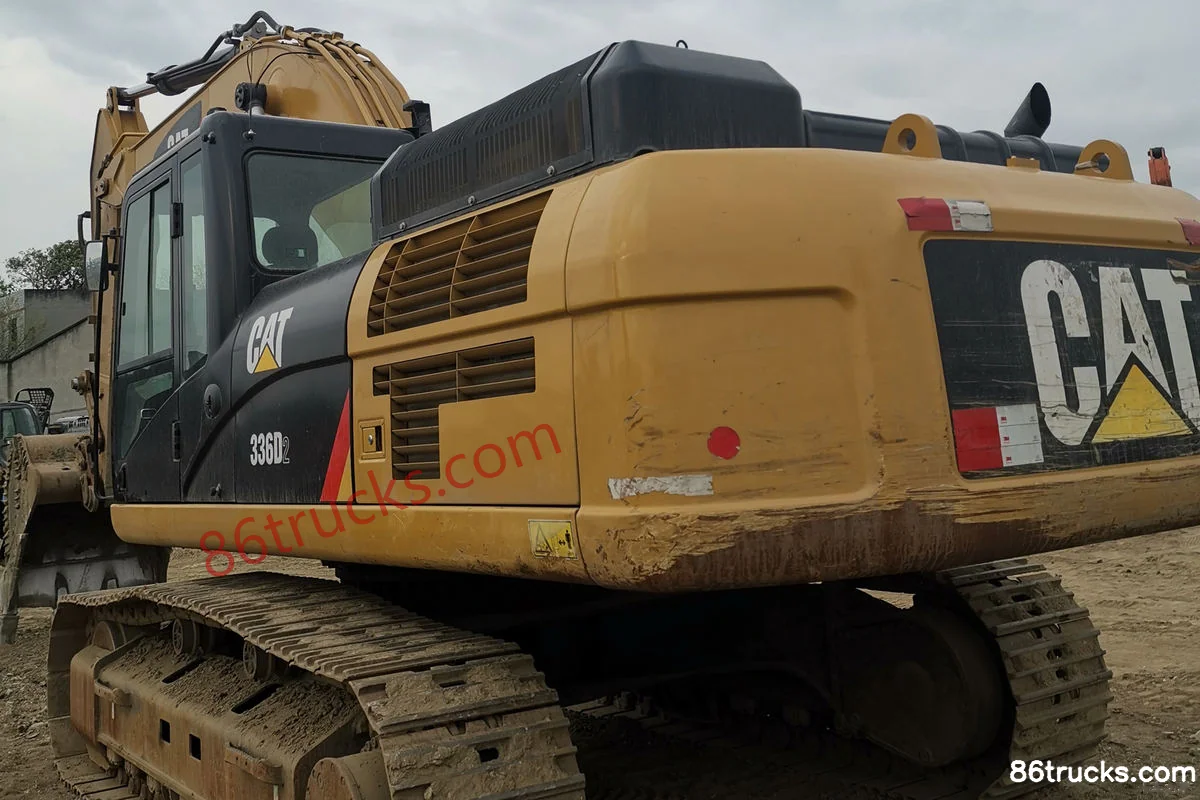

Caterpillar 336D Crawler Excavator Exterior (1) | 86Trucks Caterpillar 336D Crawler Excavator Exterior (2) | 86Trucks Caterpillar 336D Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 336D Crawler Excavator suited for?

Caterpillar 336D Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 336D Crawler Excavator differ from other variants in the same series?

Caterpillar 336D Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 336D Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 336D Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
