JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck

Export reference
MSRP N/A
Horsepower: 150
Emission: China IV
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.905ton
JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck exterior
View more photos (5)
seating capacity: 3Personnel
Rated payload: 9.5ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck is a Medium-duty truck featuring 7m cargo length, Stake type cargo body, 3Personnel volume and 9.5t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Xichai 4-cylinder engine, 150 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 150 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5161CCYPZ5K1E1AF
Type: stake truck
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 7m
engine: XichaiCA4DLD-15E4R
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 8.98m
Cab width: 2.495m
Cab height: 3.8m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 5.905ton
Rated payload: 9.5ton
GVWR: 15.6ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Optional ratio 4.33; A/C, air-suspension seat, ABS, hydraulic tilt cab, tachograph
Front/rear suspension: 1.47/2.21m
Energy Type: Diesel

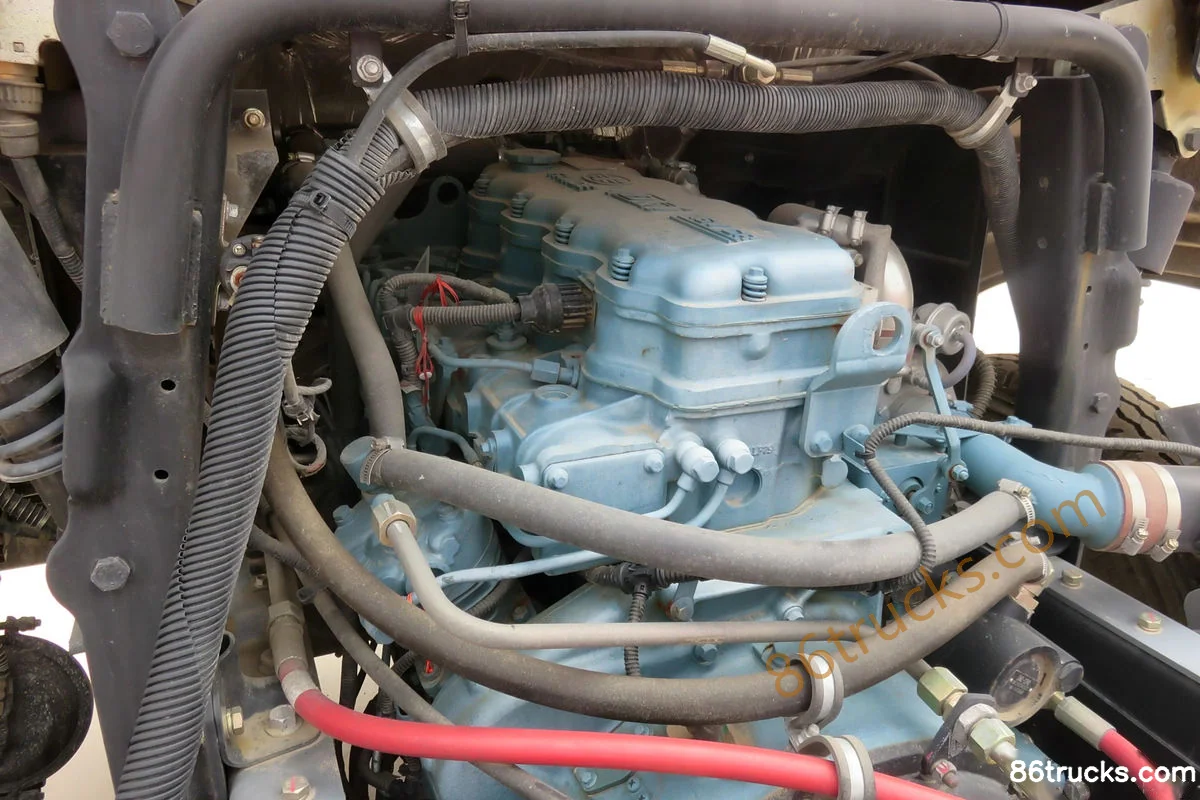

Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DLD-15E4R
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.4L
Emission standard: China IV
Max output power: 112kW
Max hp: 150Horsepower
Max torque: 530N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail

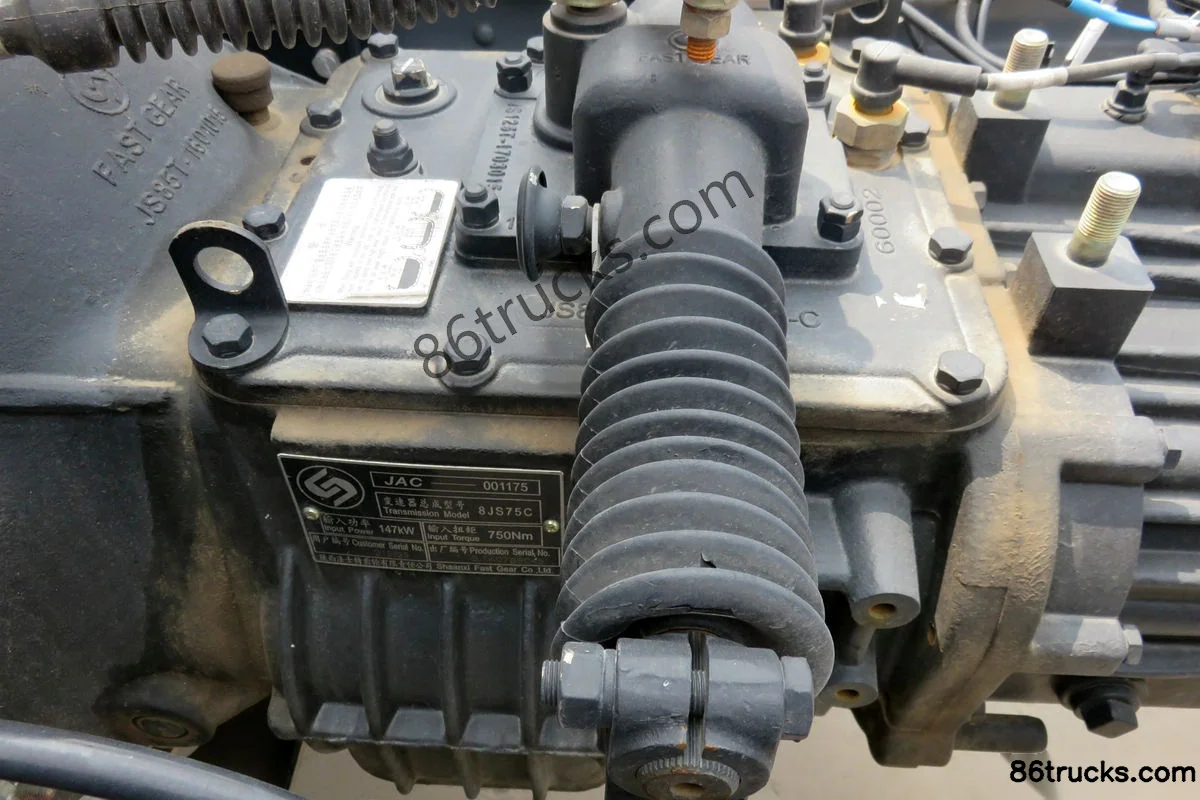

Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7m
Cargo box width: 2.34m
Cargo box height: 0.55m
*Cargo box interior width: 2.3399999141693
Cab parameters
Cab: Semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5600kg
rear axle description: Boying 8T
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 9/9+7,9/12+9,3/4+3,3/9+7,10/11+10
Tire
Tire Size: 9.00R22.5 (standard) / 9.00R20 (optional)
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior2

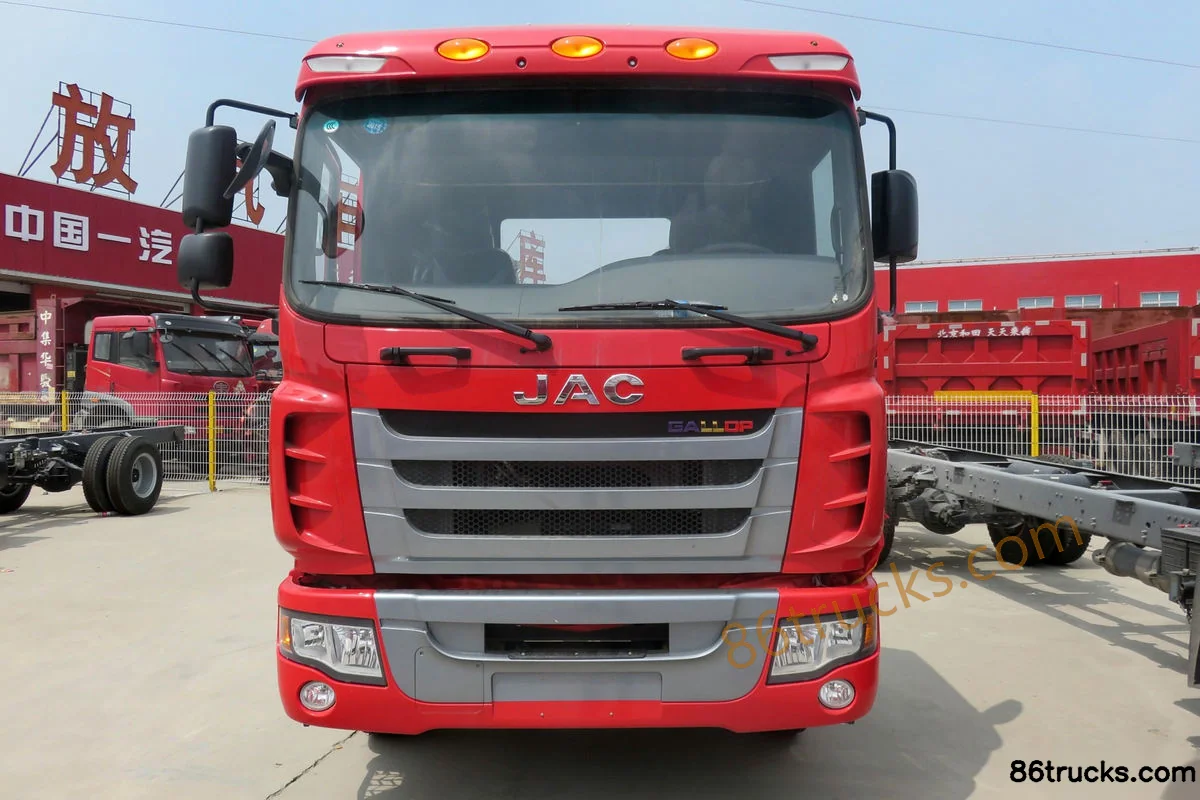

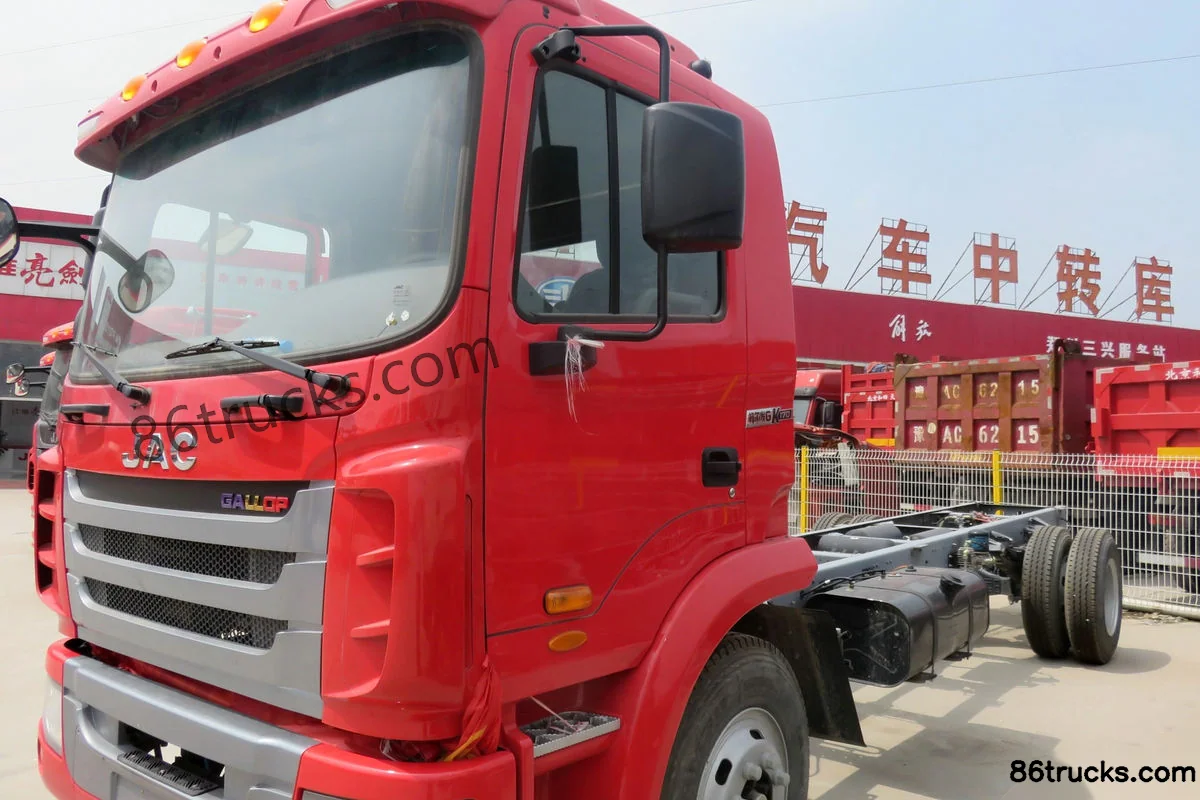

JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck Exterior (1) | 86Trucks JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck Exterior (2) | 86Trucks

Cab1

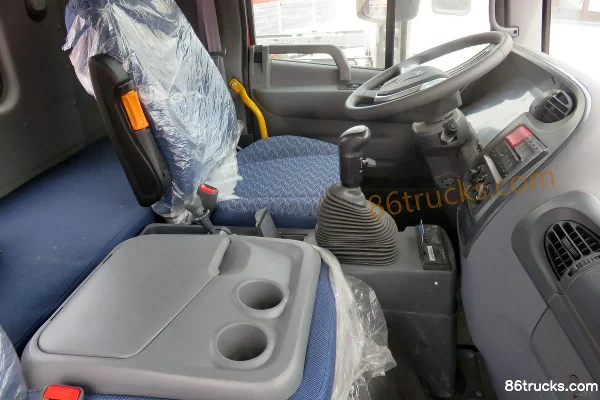

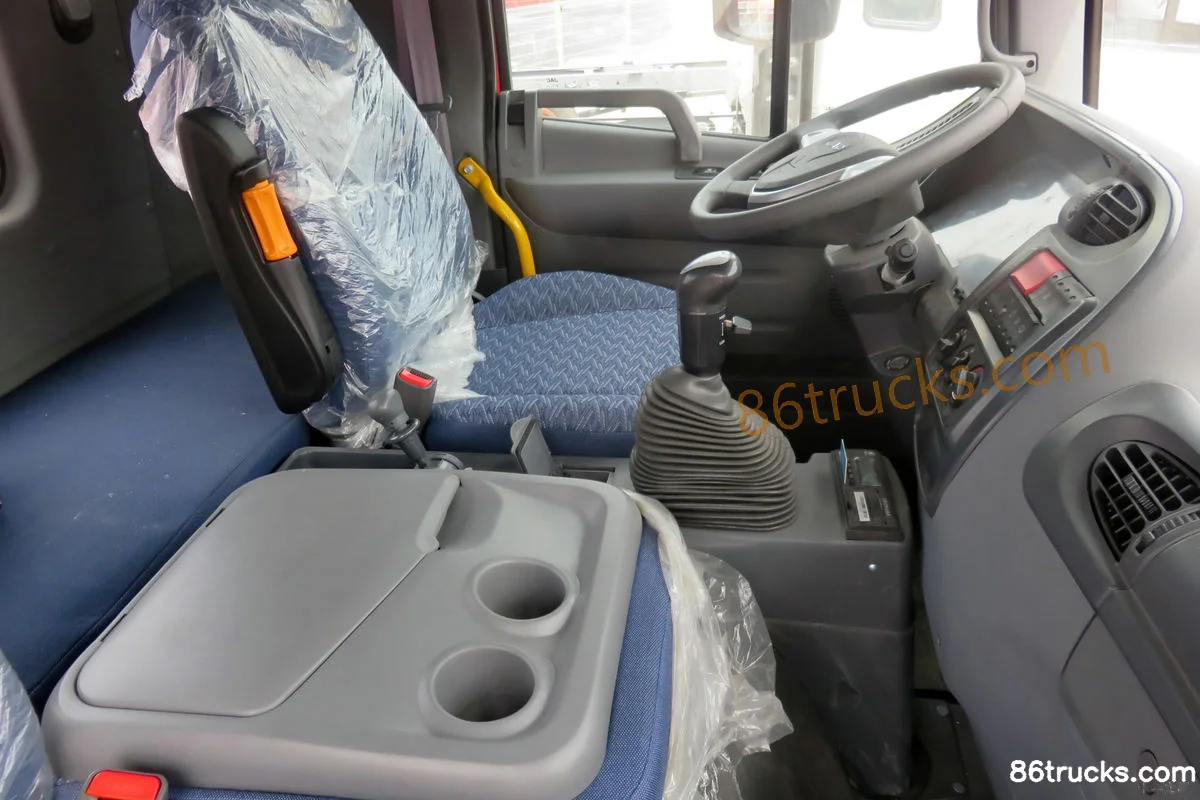

JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck Cab (1) | 86Trucks

Chassis2

JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck Chassis (1) | 86Trucks JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck Chassis (2) | 86Trucks

5 photos

FAQ

What emission standard does JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck?

Key specs of JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck suited for?

JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck differ from other variants in the same series?

JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 Medium Truck 250 hp 4X2(6 wheels) 7m Grain Hauler Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
