FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck

Export reference
MSRP N/A
Curb Weight:: 7.75ton
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 7.585×2.49×2.8m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 4.8×2.2×1.2m
Rated payload: 8.055ton
Drive 4X2 (6 wheels)
Horsepower 220

Overview

The FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck is a water sprinkler truck featuring 4.8×2.2×1.2m tank capacity, 8.055t payload, 8.45m³ volume and 7.75ton GVW. On the powertrain side, it comes with 220 hp, 4X2 (6 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.585×2.49×2.8m
Drive type: 4X2
Truck Type: Water Sprinkler Truck
Vehicle origin: Changchun, Jilin
Wheelbase: 4500mm
Front track width: 1914mm
rear track: 1860mm
Curb Weight: 7.75ton
Rated payload: 8.055ton
Max. speed: 98km/h
Front/rear suspension: 1.375/1.71m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4.8×2.2×1.2m
Vehicle certification code: CA5163GSSP7K2L2E
Body Brand: FAW Jiefang
Engine parameters
Engine Model: Xichai CA6DF3-22E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.7L
Emission standard: China III / Euro III
Max output power: 162kW
Max hp: 220Horsepower
Rated speed: 2300rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged intercooled
Cargo box parameters
Box volume: 8.45m³
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Hanwei (J5M)
Chassis Model: CA1163P7K2L2E
Leaf spring count: 4/4+3,10/12+8
Tire
Tire Size: 9.00-20,9.00R20,10.00-20,10.00R20
Number of tires: 6pcs

Photos

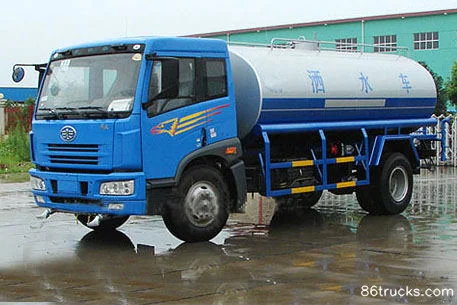

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck?

Key specs of FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck suited for?

FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck differ from other variants in the same series?

FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck belongs to FAW Jiefang Hanwei J5M Heavy Truck (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei (J5M) 220 hp 4X2(6 wheels) Water Sprinkler Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
