JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI)

Export reference
MSRP N/A
Horsepower: 132
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Curb Weight:: 2.8ton
Wheelbase:: 3365mm
JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.49t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 132 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 132 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5045XXYP32K1C7NS
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: QuanchaiQ23-132E60
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.985m
Cab width: 2.19m
Cab height: 3.15m
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 2.8ton
Rated payload: 1.49ton
GVWR: 4.485ton
Max. speed: 110km/h
Origin: Suining, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
Front/rear suspension: 1.075/1.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-132E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 320N·m
Rated speed: 3000rpm
Engine Oil Change Interval: 20,000 km
Engine Type: Common Rail
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Transmission oil change interval: 60,000 km
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1695kg
Frame Dimensions: 180*65*5/700mm
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 4/5+6
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Aluminum wheels:
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
24-hour service hotline:
Rescue service:

Photos

Exterior3

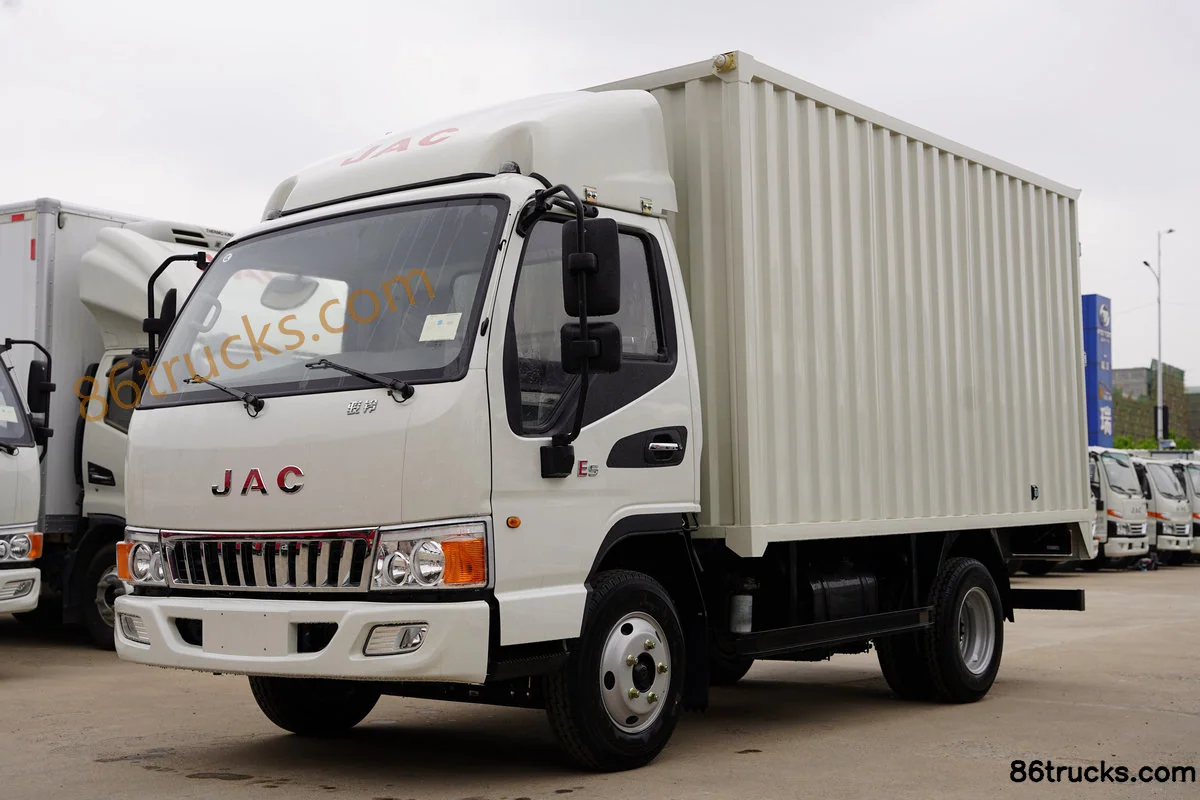

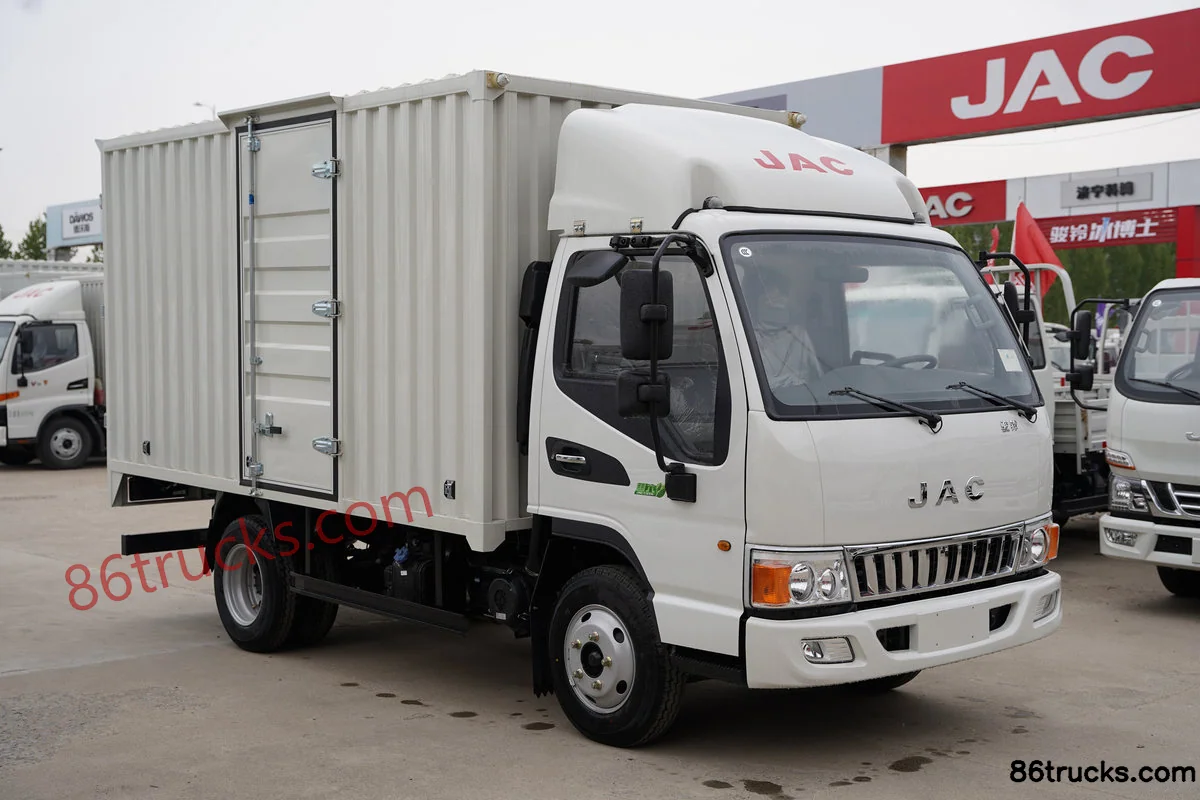

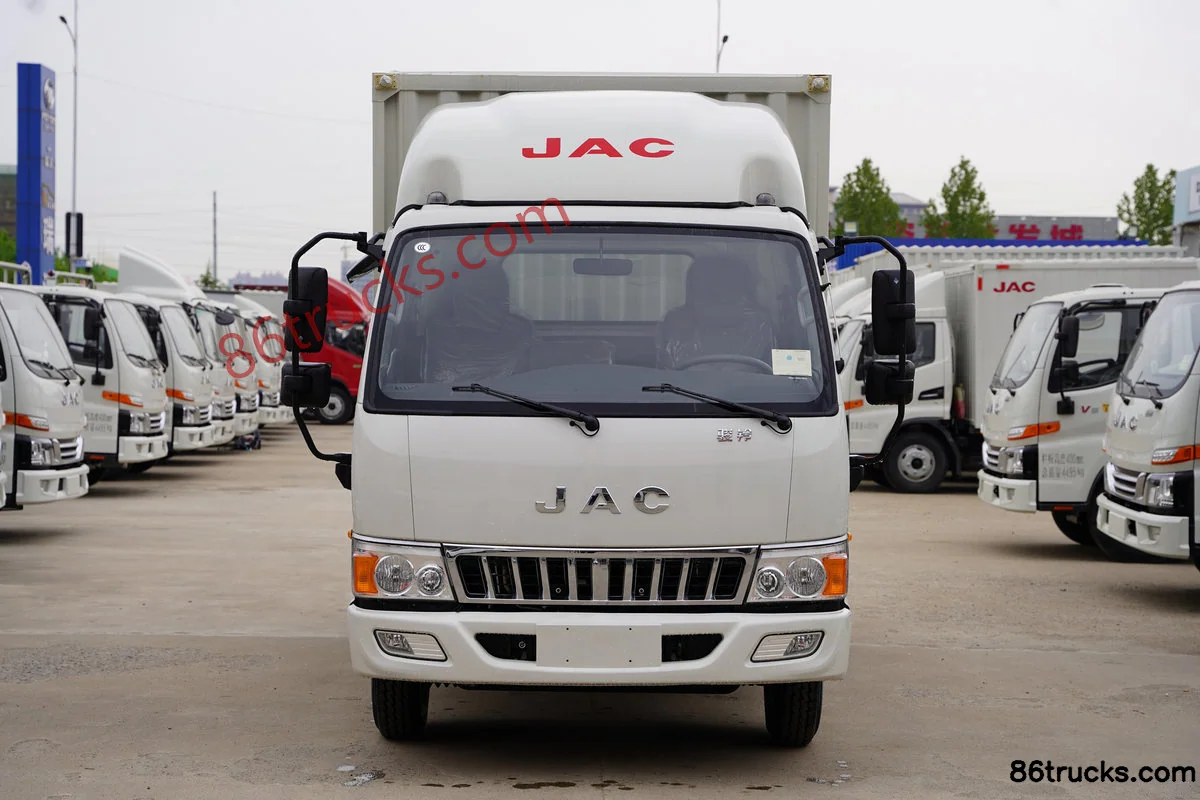

JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Exterior (1) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Exterior (2) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Exterior (3) | 86Trucks

Cab3

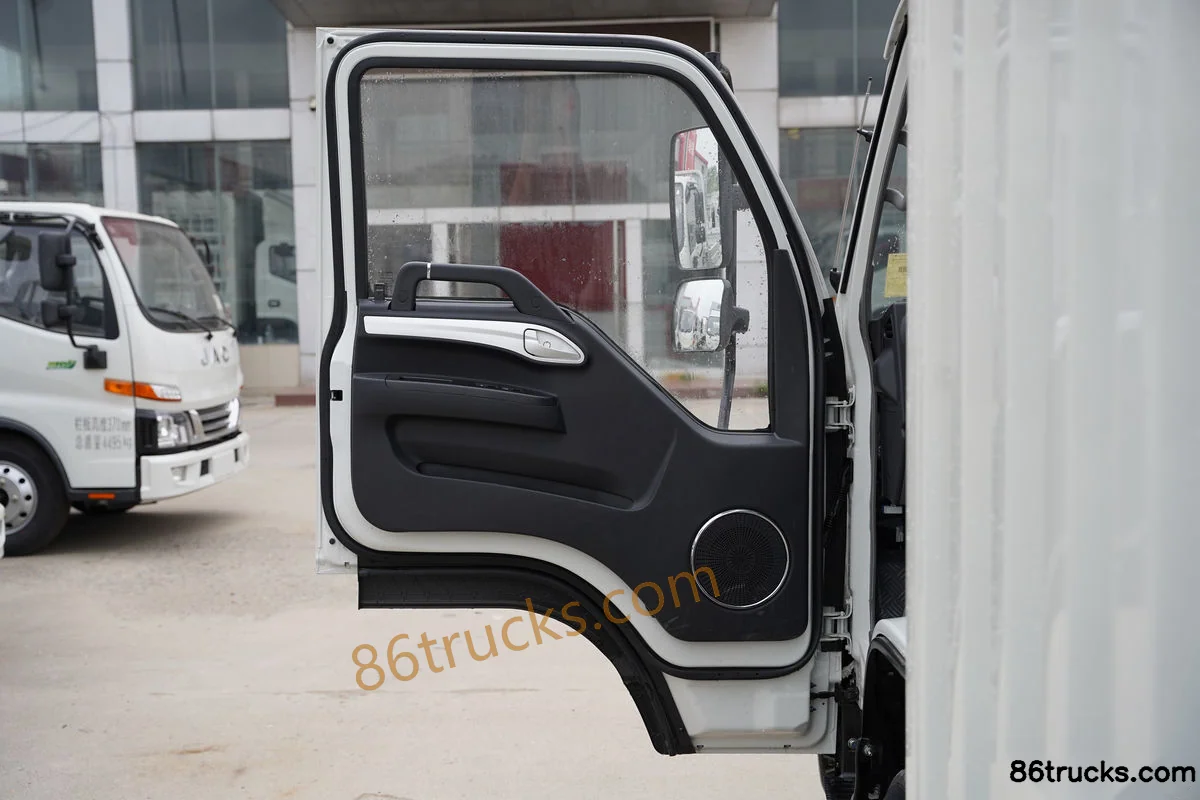

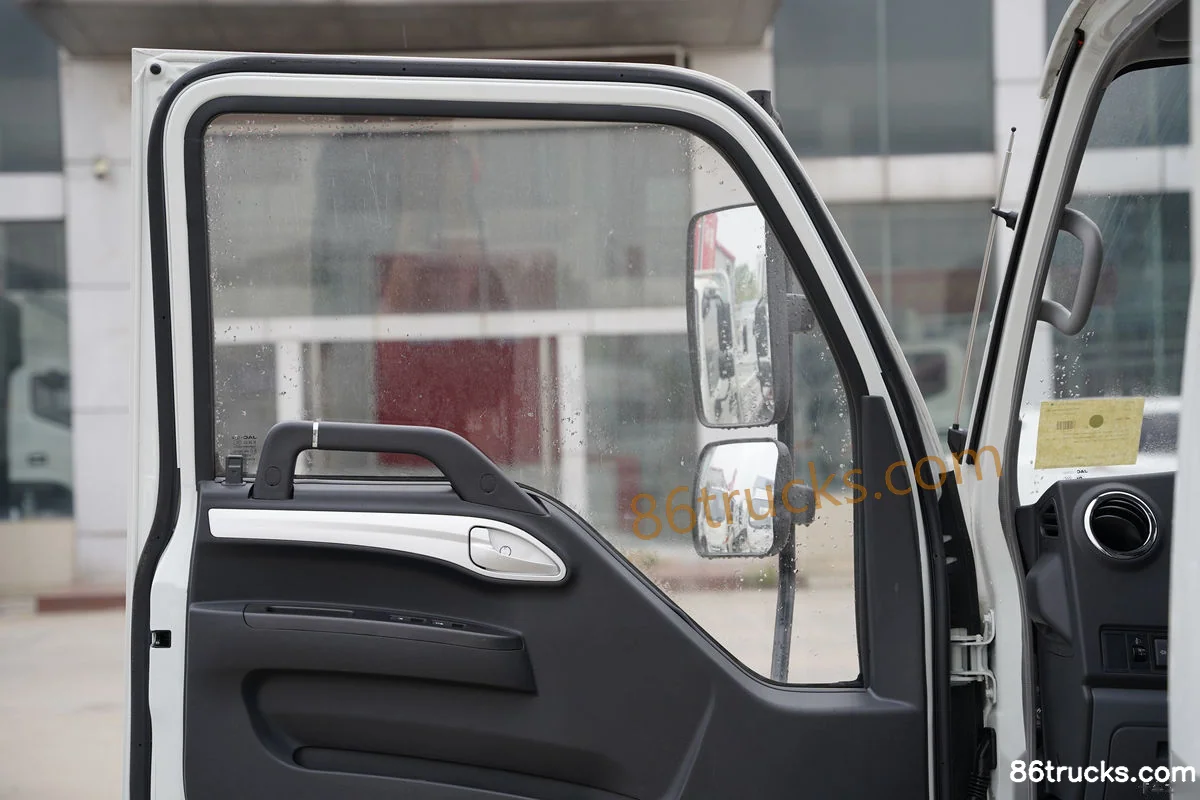

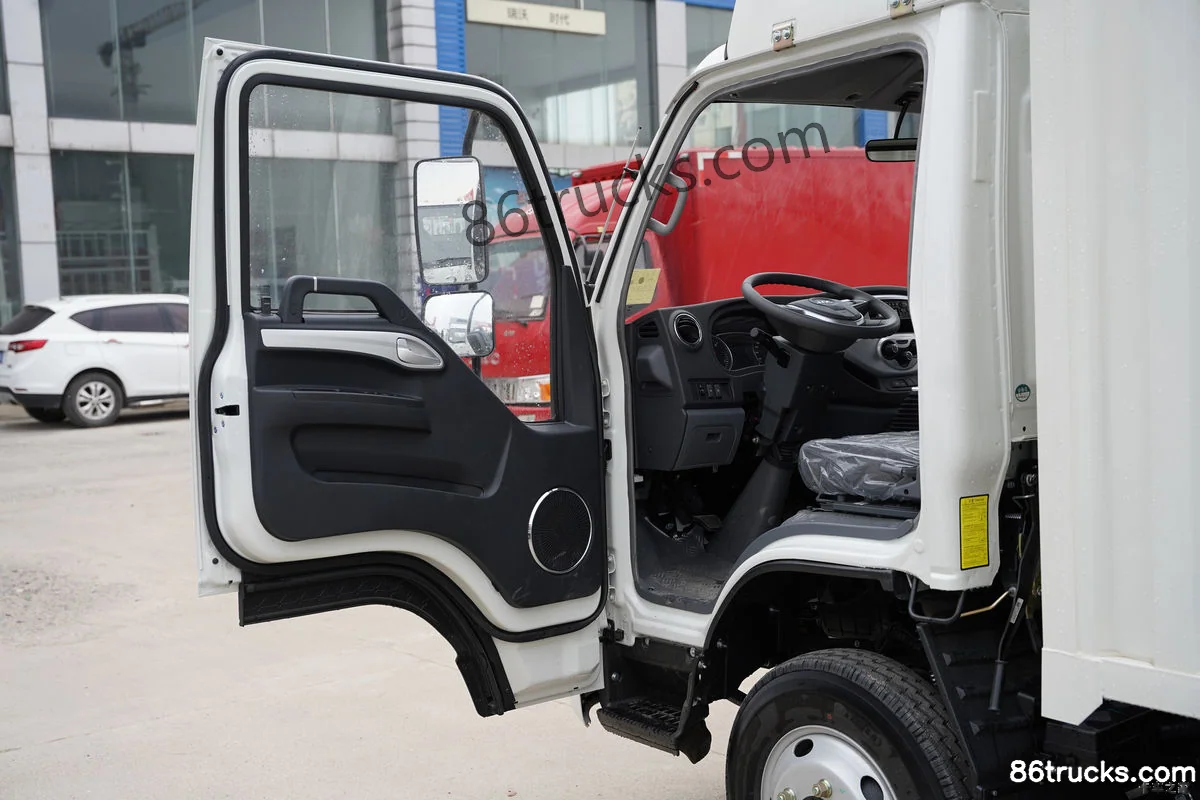

JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Cab (1) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Cab (2) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Cab (3) | 86Trucks

Chassis3

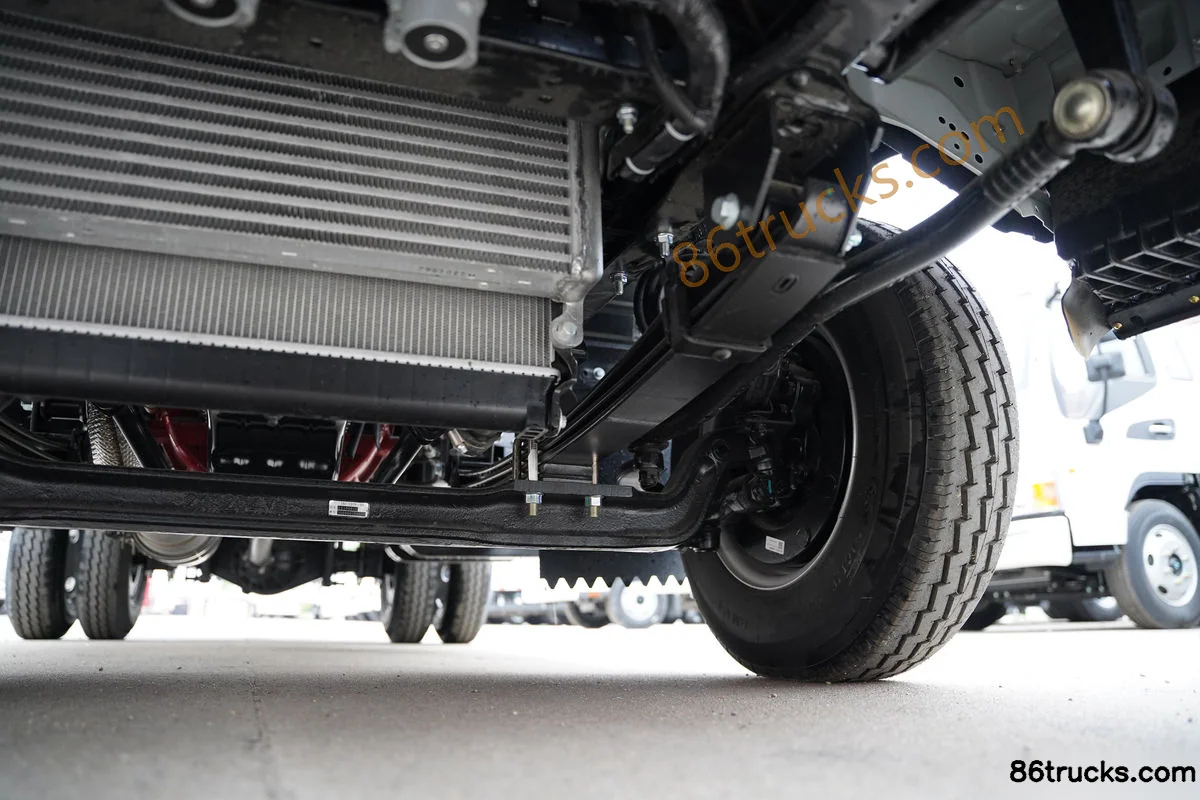

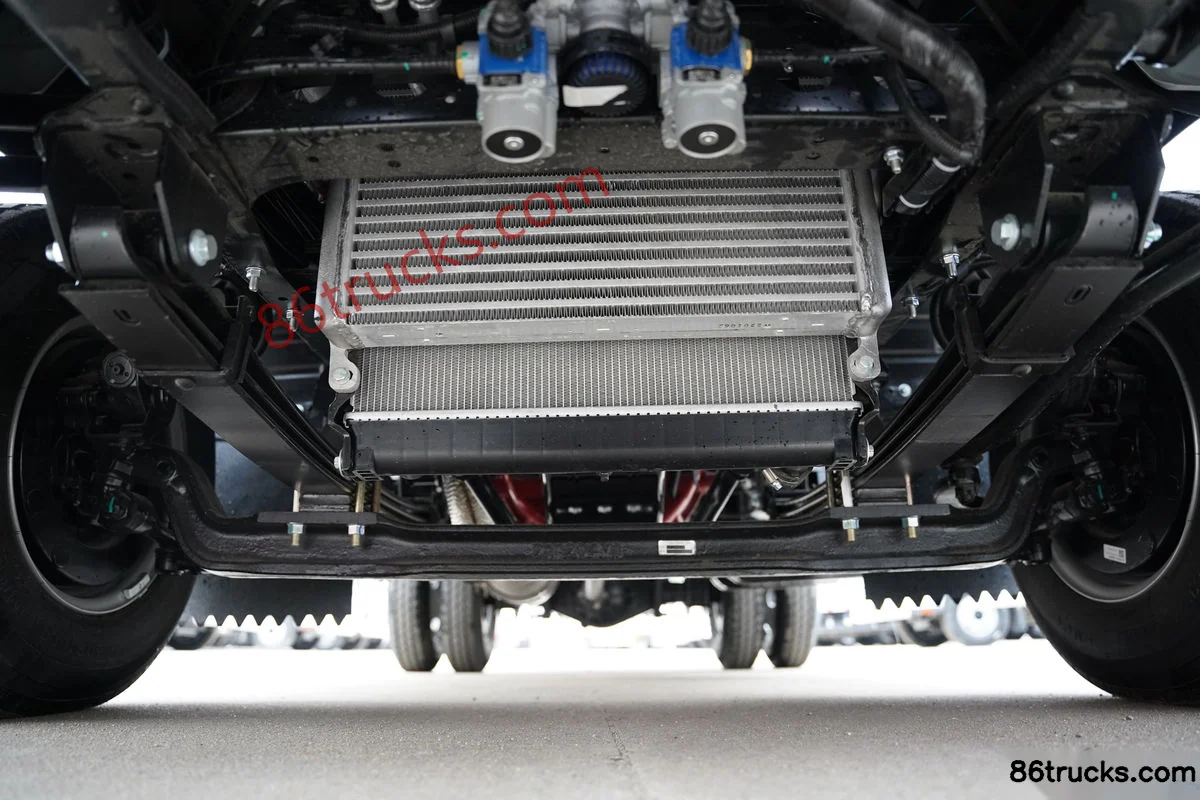

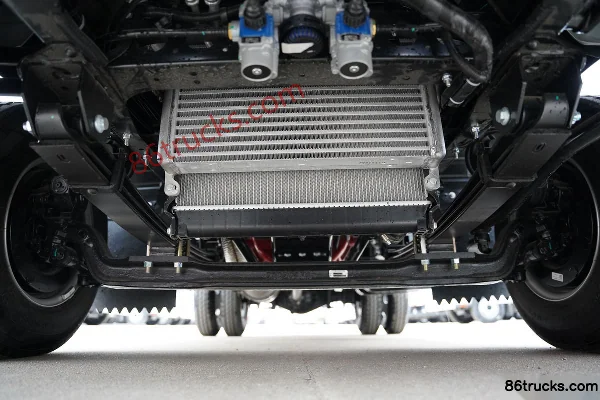

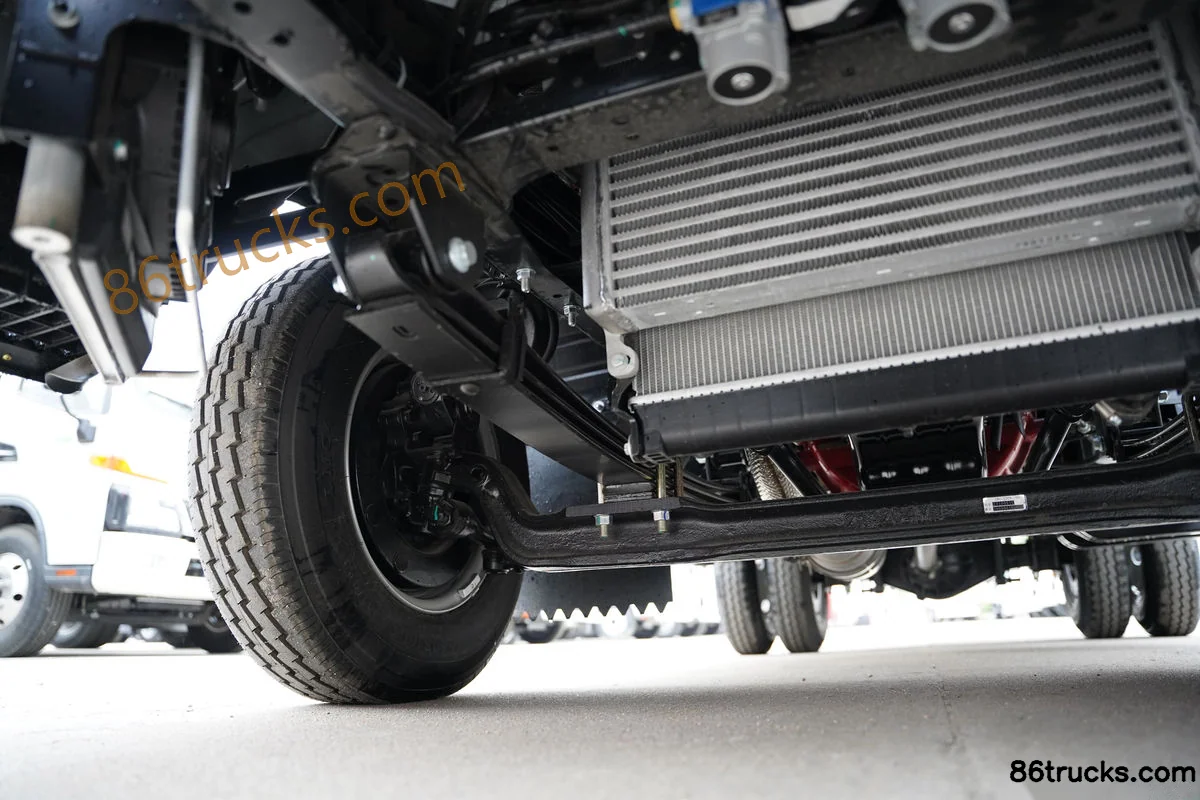

JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Chassis (1) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Chassis (2) | 86Trucks JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI)?

Key specs of JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI): Drive: 4x2; Horsepower: 132 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) suited for?

JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) differ from other variants in the same series?

JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI) belongs to JAC E5 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling E5 132hp 4X2(6 wheels) 4.15m single-row van light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
